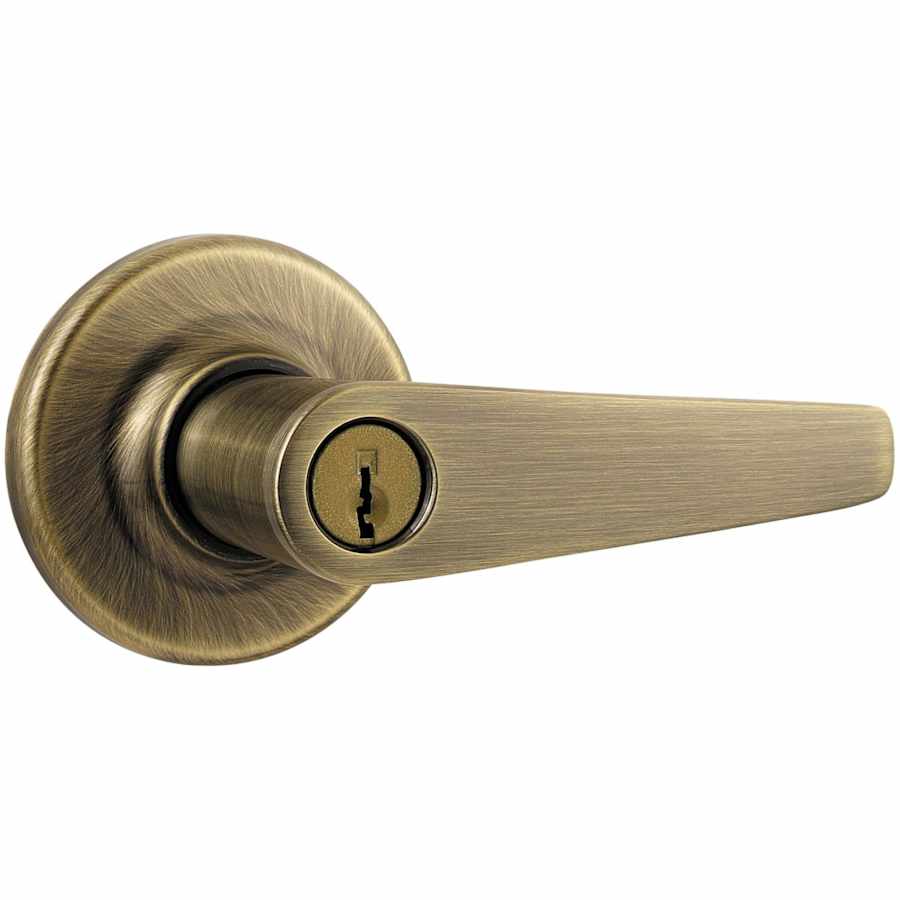

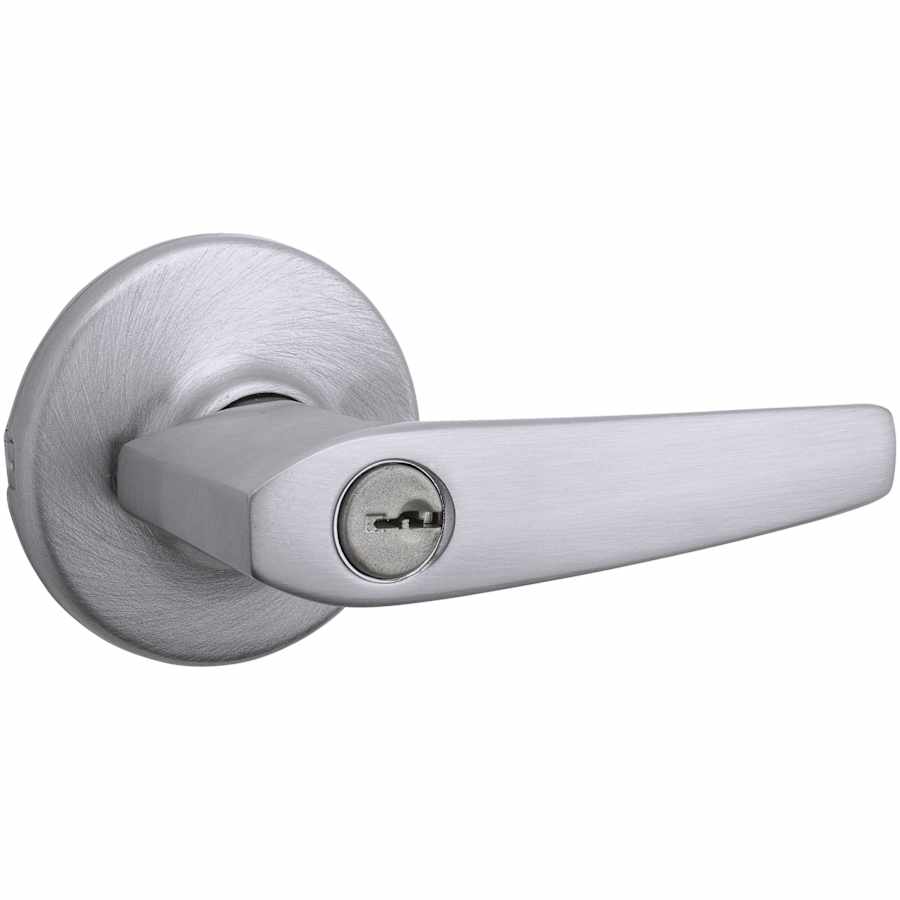

Kwikset Maximum Series Delta Single Cylinder Keyed Entry Door Leverset
A clean, streamlined design, Delta fits a whole range of decorating styles beautifully, from traditional and ranch to contemporary. Designed for your entryway, this knob is easy to install and locks/unlocks both sides with a key on the outside or the turn button on the inside.
Interior Rosette has EXPOSED SCREWS and are not concealed on the interior side.
Includes Standard Round Corner Strike Plate Part Number 83796 (Strike Plate is on Door Jamb). For Square Corner Strike Plate See Product: Kwikset 83437. For a T-Strike Plate See: Kwikset 83028.
There is an optional kit available for 2-1/4″ thick doors, see product ID 81706.
Not a Panic-Proof set
Reversible for left and right handed doors
Door Prep: Cross bore 2-1/8″ Edge Bore 1″ Latch Face 1″ x 2-1/4″
Door thickness: 1-3/8″-1-3/4″ doors standard. 2-1/4″ doors optional on 200 and 400 functions only.
Cylinder: 5-pin
Bolt: 1/2″ throw
Meets ANSI Grade-2 security standards
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Manufacturer Model Numbers:
Antique Brass: 94050-326
Polished Brass: 94050-325
Satin Chrome: 94050-354
Additional Kwikset Links
View the Manufacturer Warranty
Browse all Kwikset Products
Kwikset Delta Collection
Specifications
| Thermostat | Transitional |
| Handshower | Left, Reversible, Right |
| Handle Material | Metal |
| Latch Faceplate | Round Corner |
| Concealed Screws | No |
| Cylinder | 5 Pin |
| Cylinder Type | Single Cylinder |
| Function | Keyed Entry |
| Keyway | KW1 |
| Rosette Shape | Round |
| Locking Mechanism | Thumbturn |
| Lever Shape | Straight |
| Approved for Commercial Use | No |
| Collection | Delta |
| Series | Kwikset Series |
| ADA | No |
| BHMA Certification | Grade 3 |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Projection | 1.9375 in. |
| Trim Height | 2.625 in. |
| Trim Width | 2.625 in. |
| Handle Length | 3.625 in. |
| Color | Antique Brass, Antique Nickel, Polished Brass, Polished Chrome, Satin Chrome, Satin Nickel, Venetian Bronze |
| Color Tone | Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
