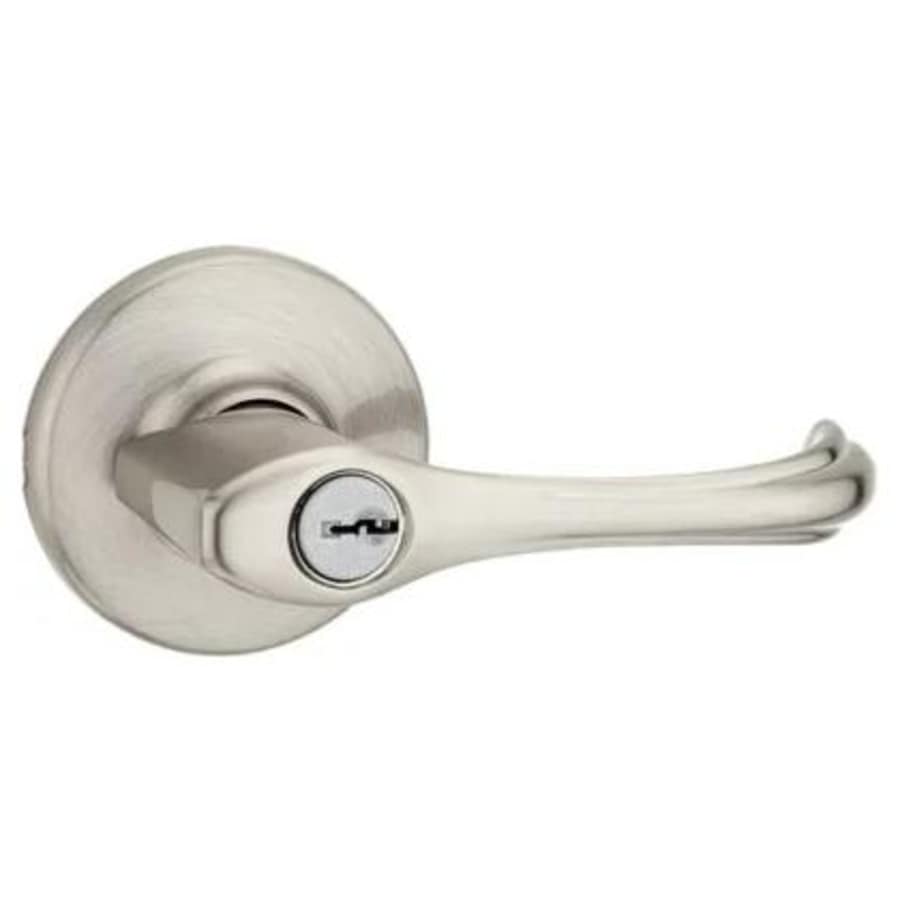

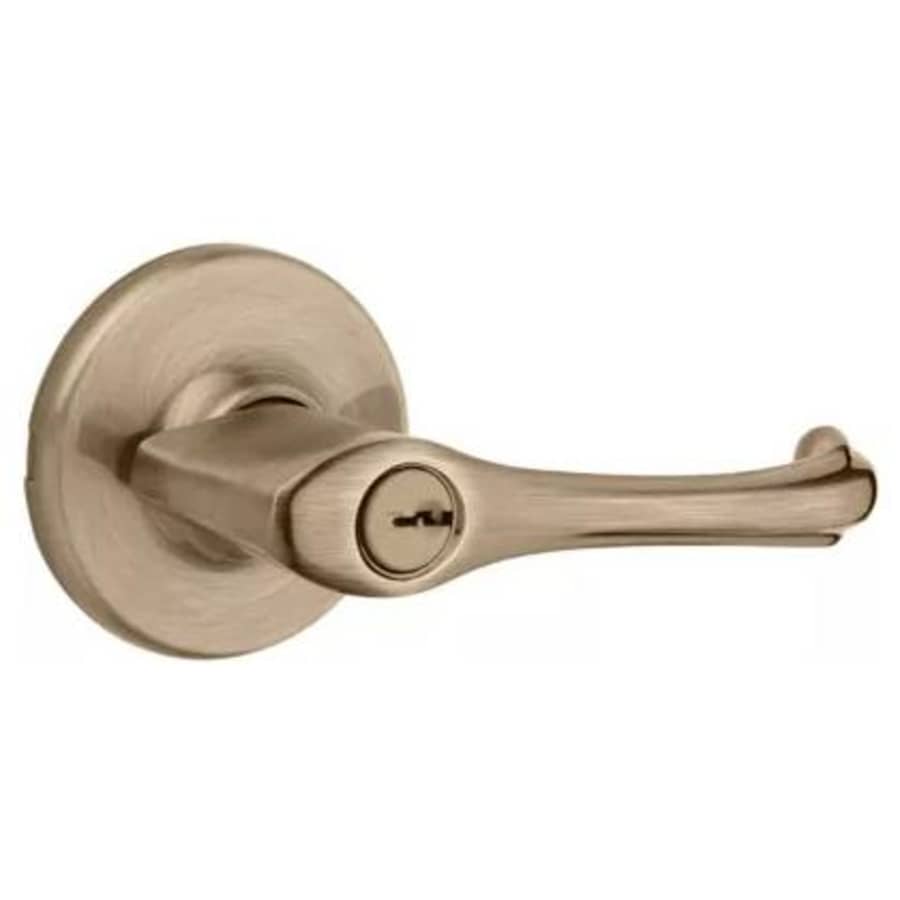

Etched detailing at the tip of the lever lends an air of elegant sophistication to the Dorian. Its graceful styling feels right at home in a wide range of decor. Designed for your entryway, this leverset is easy to install and locks/unlocks both sides with a key on the outside or the turn button on the inside.
Features:
BHMA Grade 3 security for increased reliability and durability
Comes standard with a round corner latch faceplate
Installs easily with the included screws, no advancing door prep required
Non handed design allows it to fit both right and left handed doors
Installation screws are exposed on the interior rosette
Limited lifetime mechanical and finish warranty
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Left, Right, Reversible
Lever Length: 3-3/4″
Projection: 2-11/16″
Rosette Diameter: 2-5/8″
Latch Faceplate: Round Corner
Cylinder: 5 Pin C
Additional Kwikset Links
View the Manufacturer Warranty
Browse all Kwikset Products
Kwikset Dorian Collection
Specifications
| Thermostat | Traditional |
| Handle Material | Metal |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Round Corner |
| Concealed Screws | No |
| Cylinder | 5 Pin KW1 |
| Cylinder Type | Single Cylinder |
| Function | Keyed Entry |
| Keyway | KW1 |
| Rosette Shape | Round |
| Lever Shape | Straight |
| Locking Mechanism | Thumbturn |
| ADA | No |
| Approved for Commercial Use | No |
| Collection | Dorian |
| Series | Kwikset Series |
| BHMA Certification | Grade 3 |
| Edge Bore | 1" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Handle Projection | 2.688 in. |
| Trim Height | 2.625 in. |
| Trim Width | 2.625 in. |
| Handle Length | 3.75 in. |
| Color | Antique Brass, Antique Nickel, Polished Brass, Polished Chrome, Satin Chrome, Satin Nickel, Venetian Bronze |
| Color Tone | Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
Reviews
There are no reviews yet.
