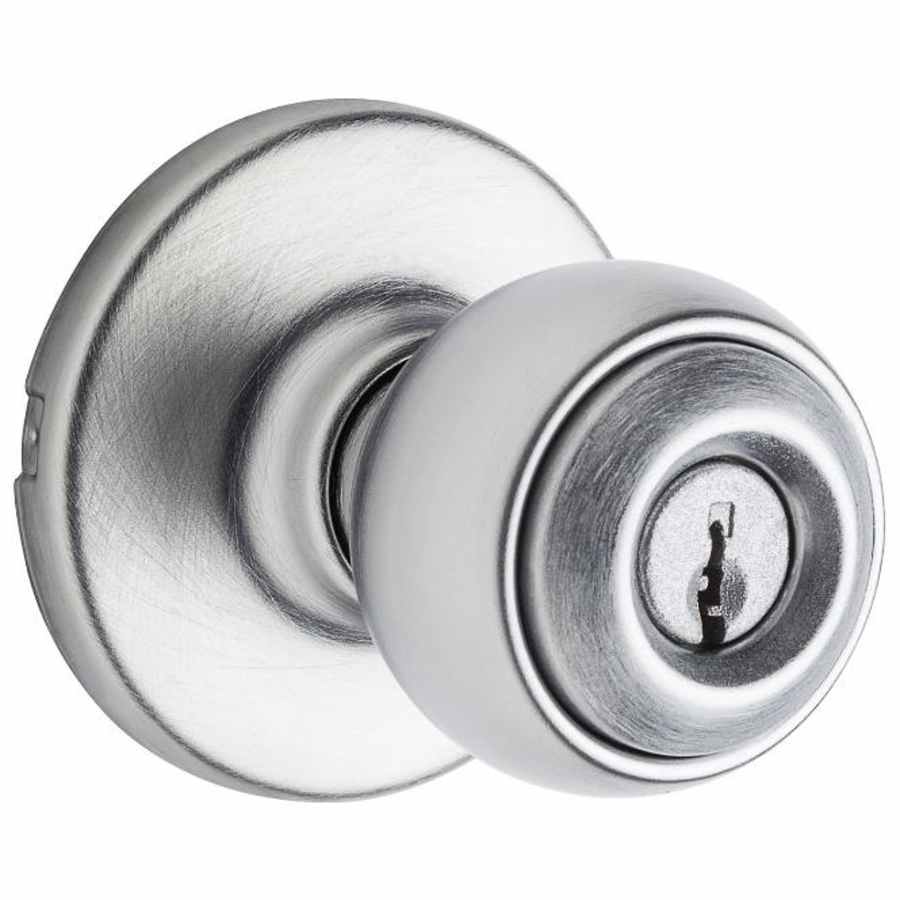

Kwikset Security Series Polo Storeroom Function Keyed Entry Door Knobset
Outside unlocked only while key is turned. inside always free.
Interior Rosette has EXPOSED SCREWS and are not concealed on the interior side.
Includes Standard Round Corner Strike Plate Part Number 83796 (Strike Plate is on Door Jamb). For Square Corner Strike Plate See Product: Kwikset 83437. For a T-Strike Plate See: Kwikset 83028.
Door Prep: Cross bore 2-1/8″ Edge Bore 1″ Latch Face 1″ x 2-1/4″
Door thickness: 1-3/8″-1-3/4″ doors standard. 2-1/4″ optional on 200 and 400 functions only.
Cylinder: 5-pin
Bolt: 1/2″ throw
Additional Kwikset Links
View the Manufacturer Warranty
Browse all Kwikset Products
Kwikset Polo Collection
Specifications
Characteristics and Features
| Thermostat | Transitional |
| Handshower | Left, Reversible, Right |
| Handle Material | Metal |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Concealed Screws | No |
| Cylinder | 5 Pin |
| Function | Vestibule, Keyed Entry, Storeroom |
| Keyway | KW1 |
| Knob Shape | Round |
| Rosette Shape | Round |
Warranty and Product Information
| Approved for Commercial Use | No, Yes |
| Collection | Polo |
| Series | Kwikset Series |
| BHMA Certification | Grade 3 |
Dimensions and Measurements
| Door Thickness | 1-3/4", 1-3/8", 1-5/8", 1-1/2" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Projection | 2.75 in. |
| Trim Height | 2.625 in. |
| Trim Width | 2.625 in. |
| Handle Width | 1.875 in. |
| Handle Height | 1.875 in. |
| Color | Antique Brass |
| Color Tone | Brass Tones |
