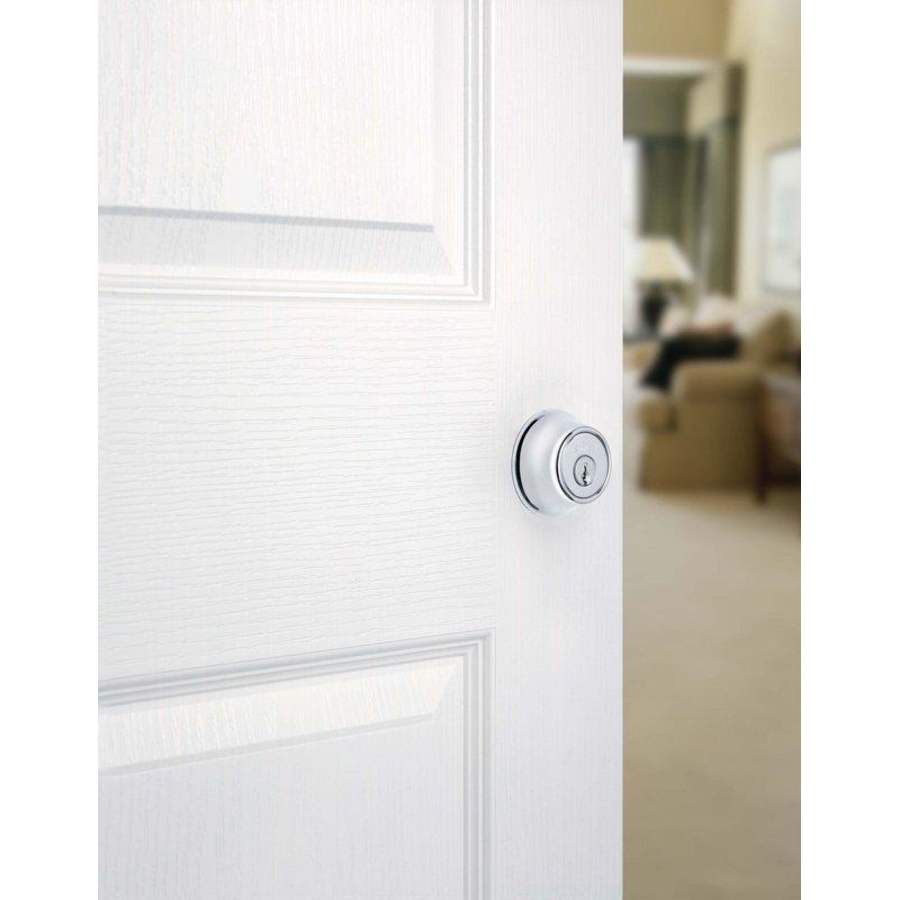

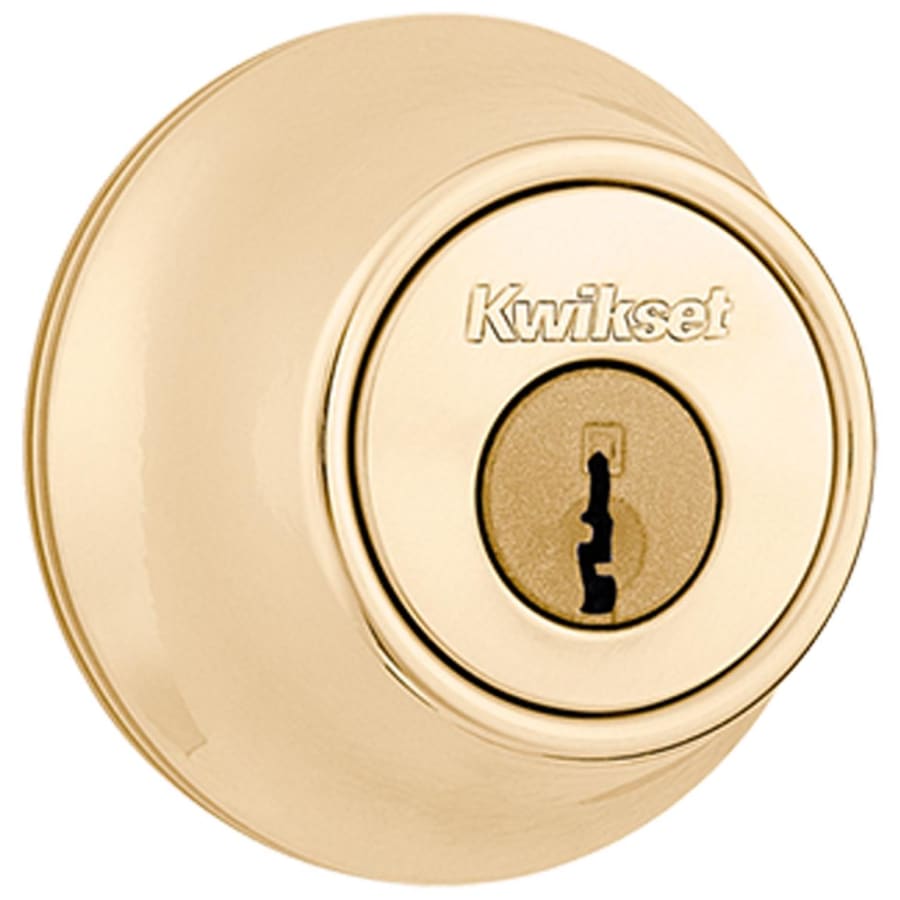

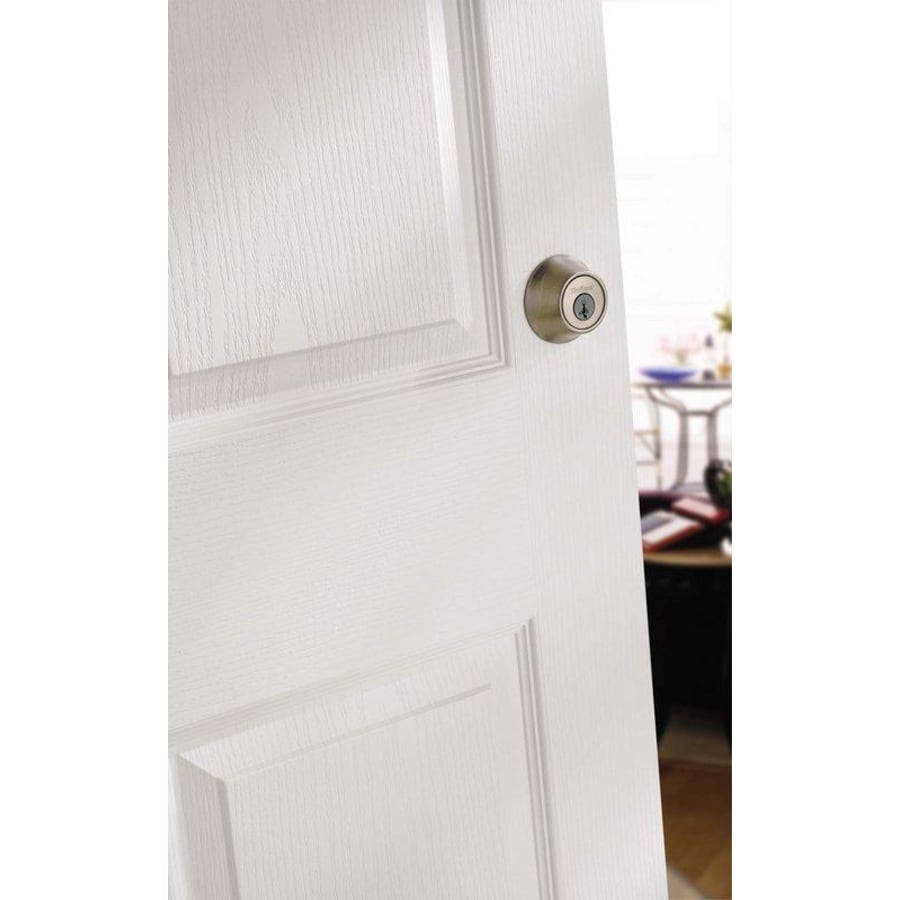

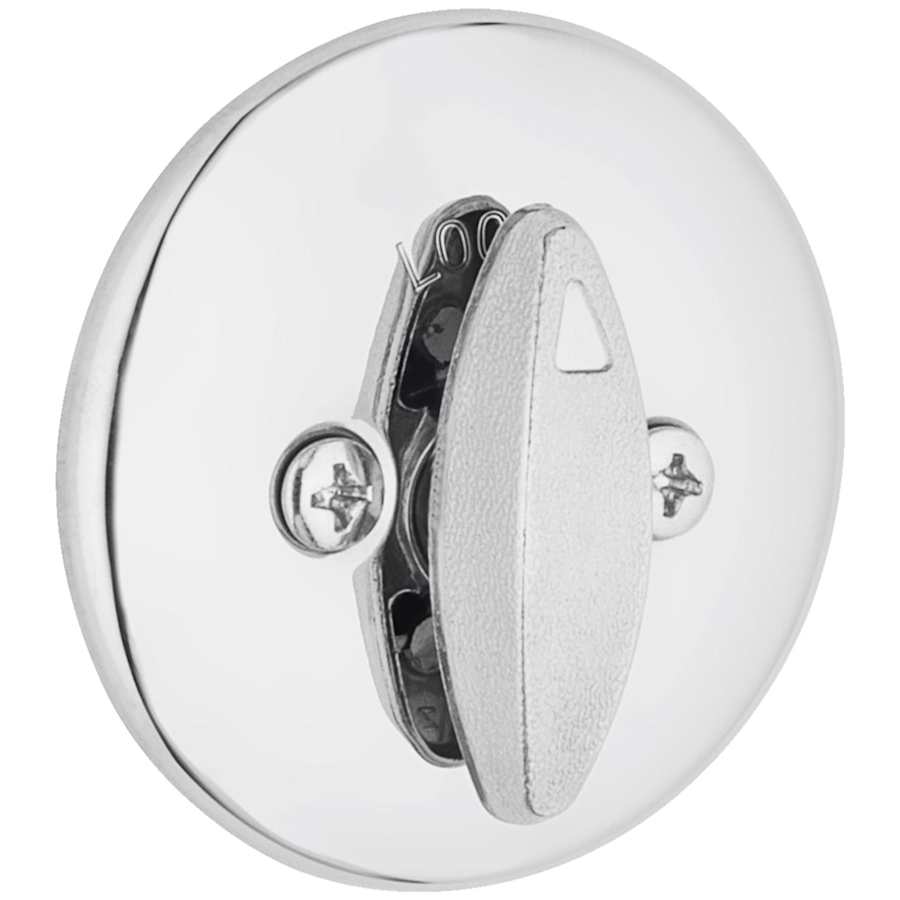

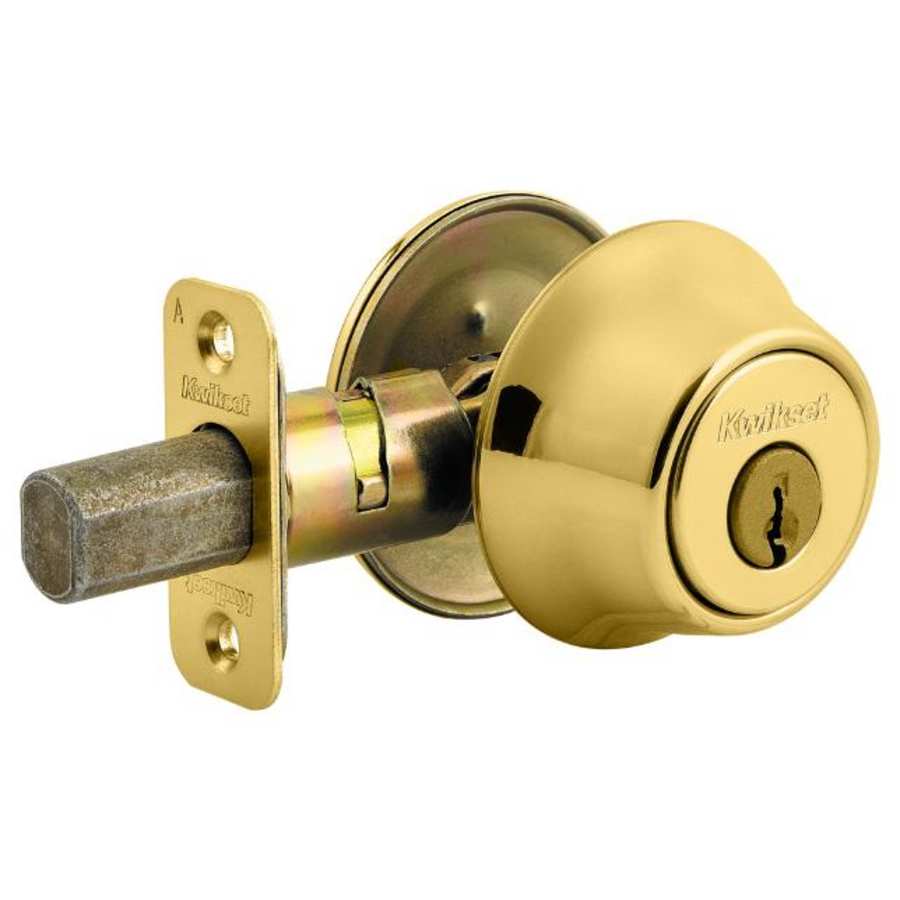

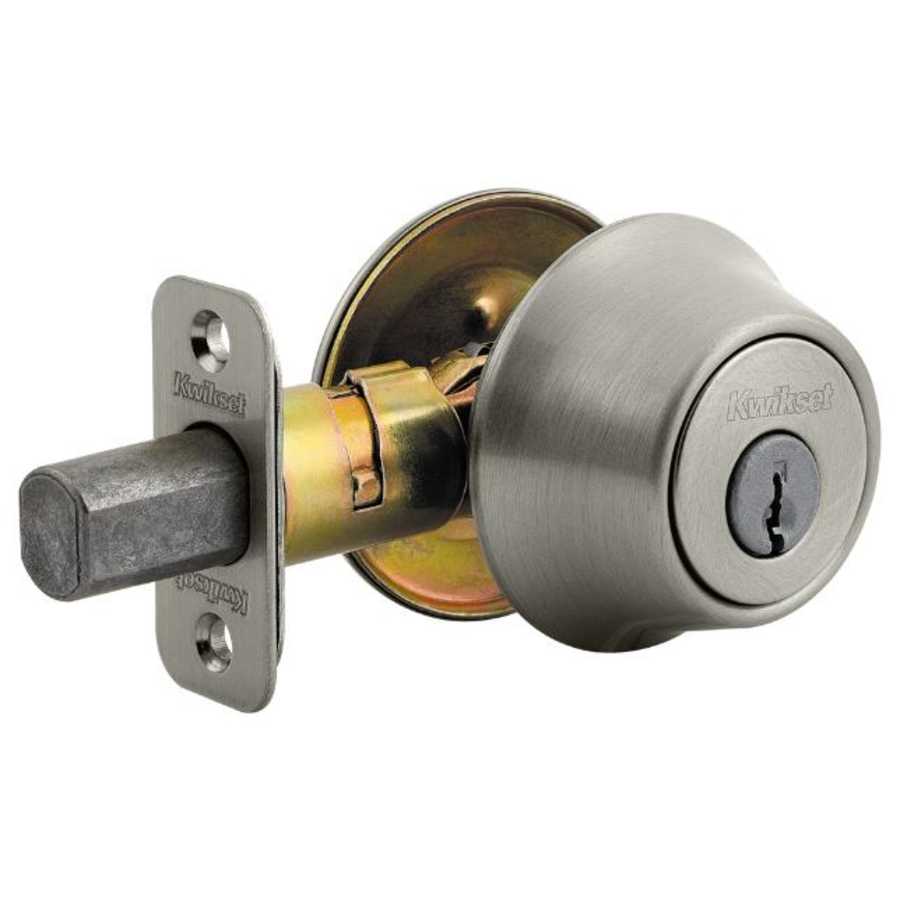

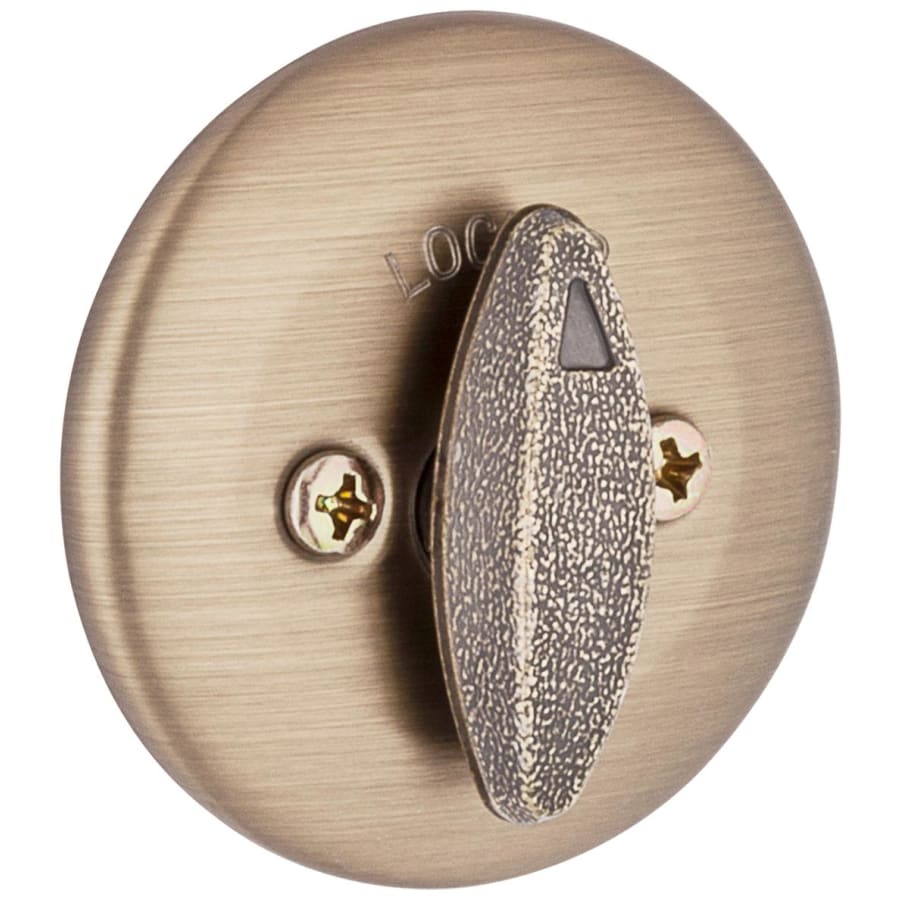

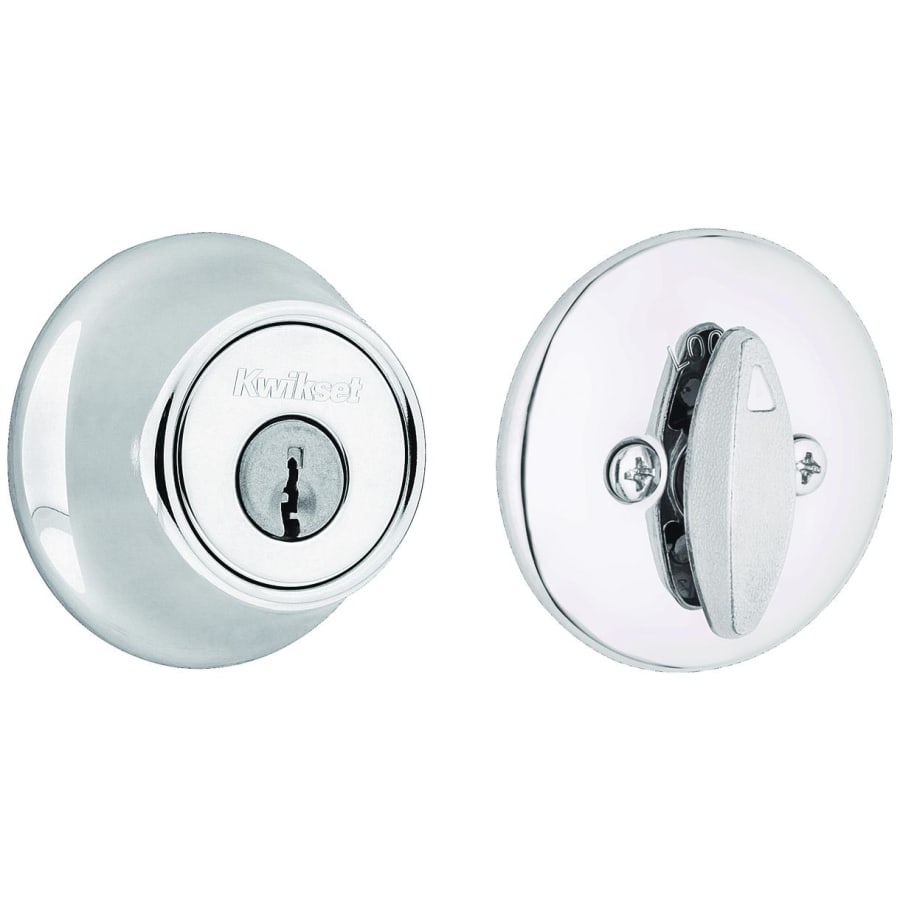

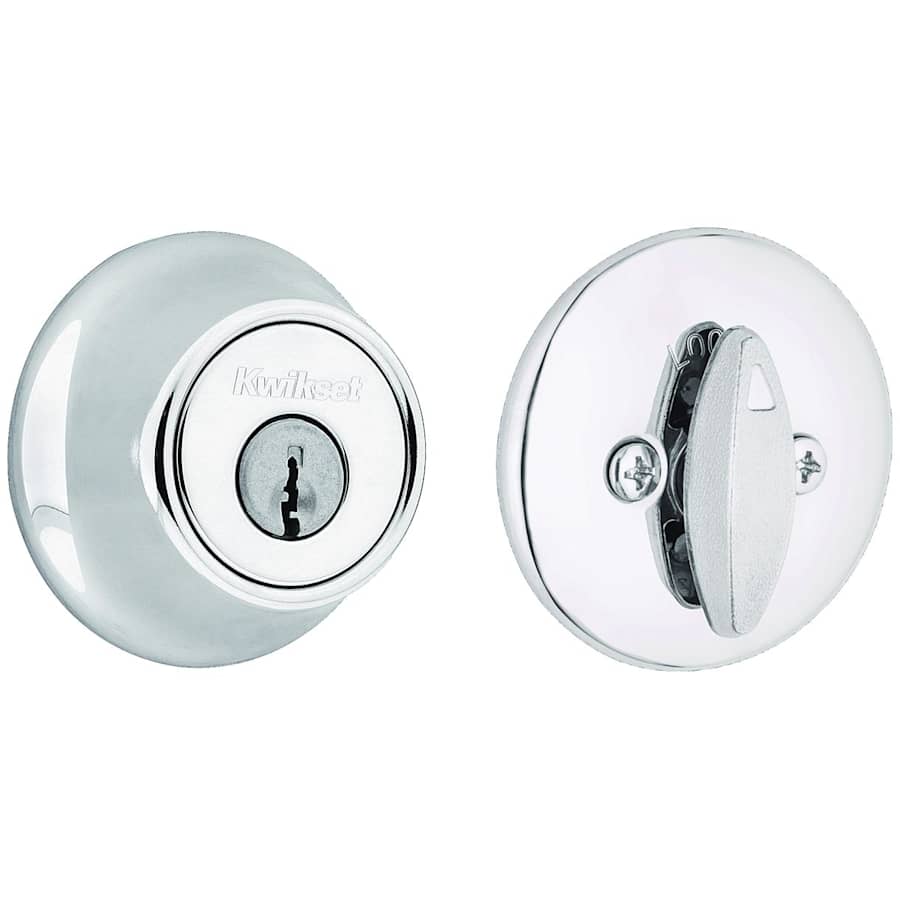

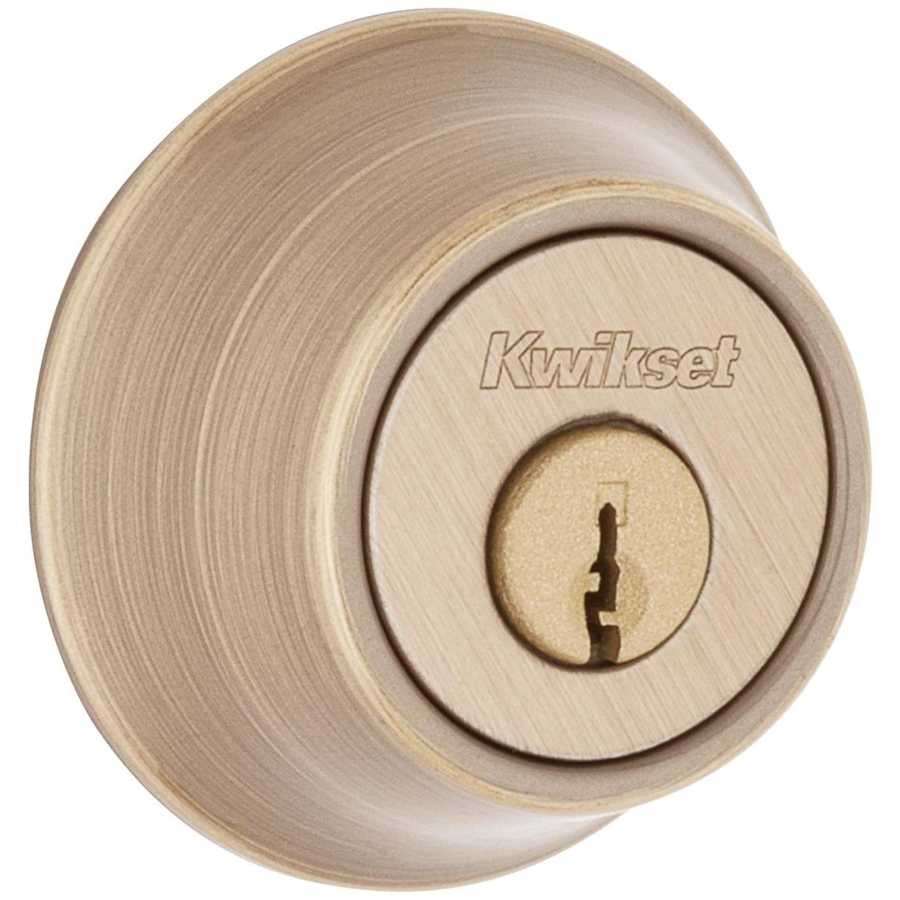

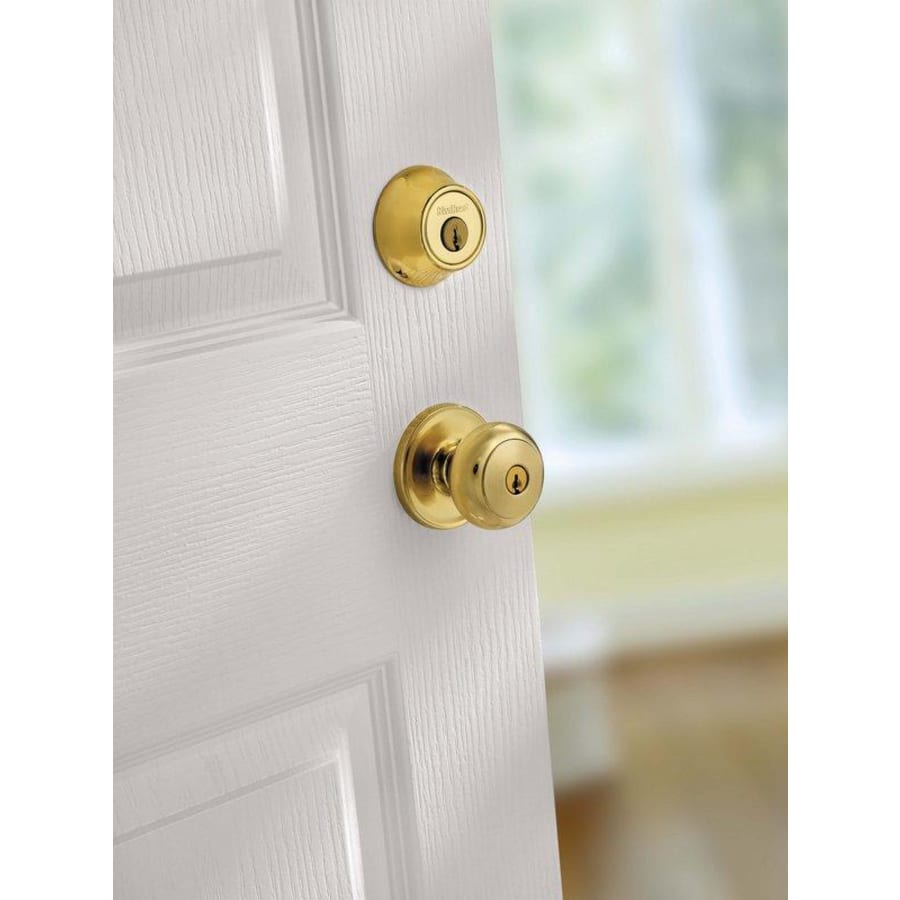

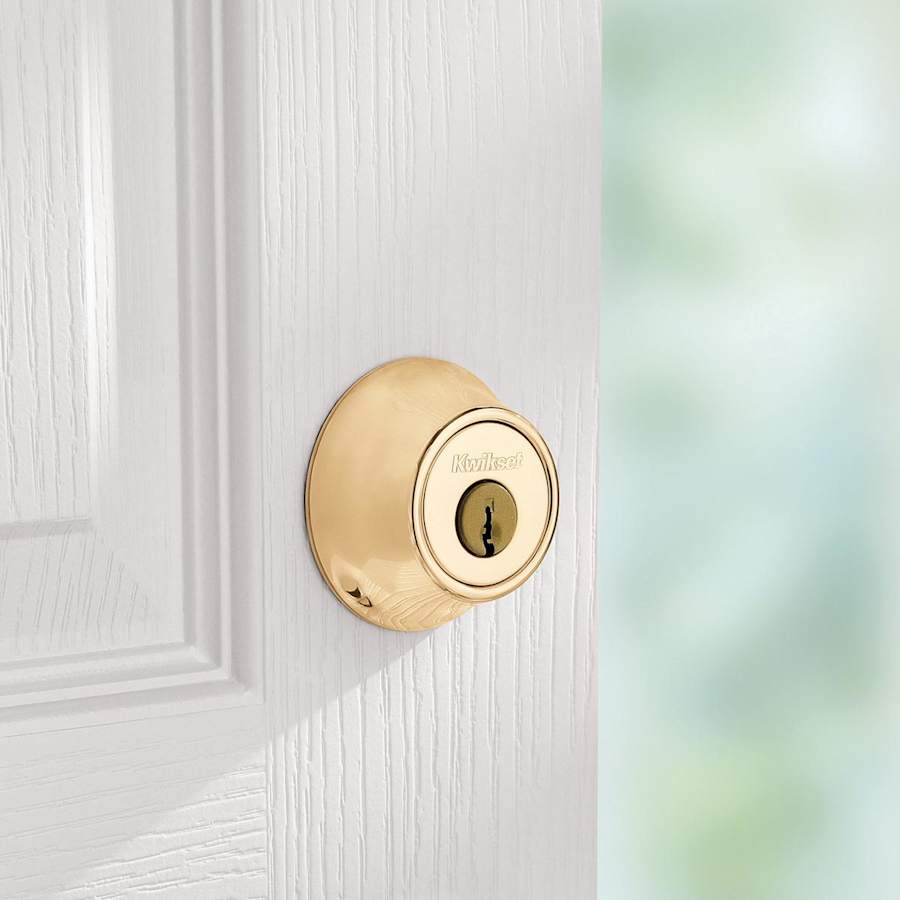

The Single cylinder deadbolt 660 provides tough, effective protection at an affordable price. It is equipped with a full 1″ throwbolt. This model locks and unlocks with a key from the outside and a thumbturn on the inside.
Crossbore 2-1/8″ Edge Bore 1″ Latch Face 1″ x 2-1/4″
Door thickness: 1-3/8″-1-3/4″ doors standard.
Cylinder: 5-pin.
Bolt: 1″ throw
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Manufacturer Model Numbers:

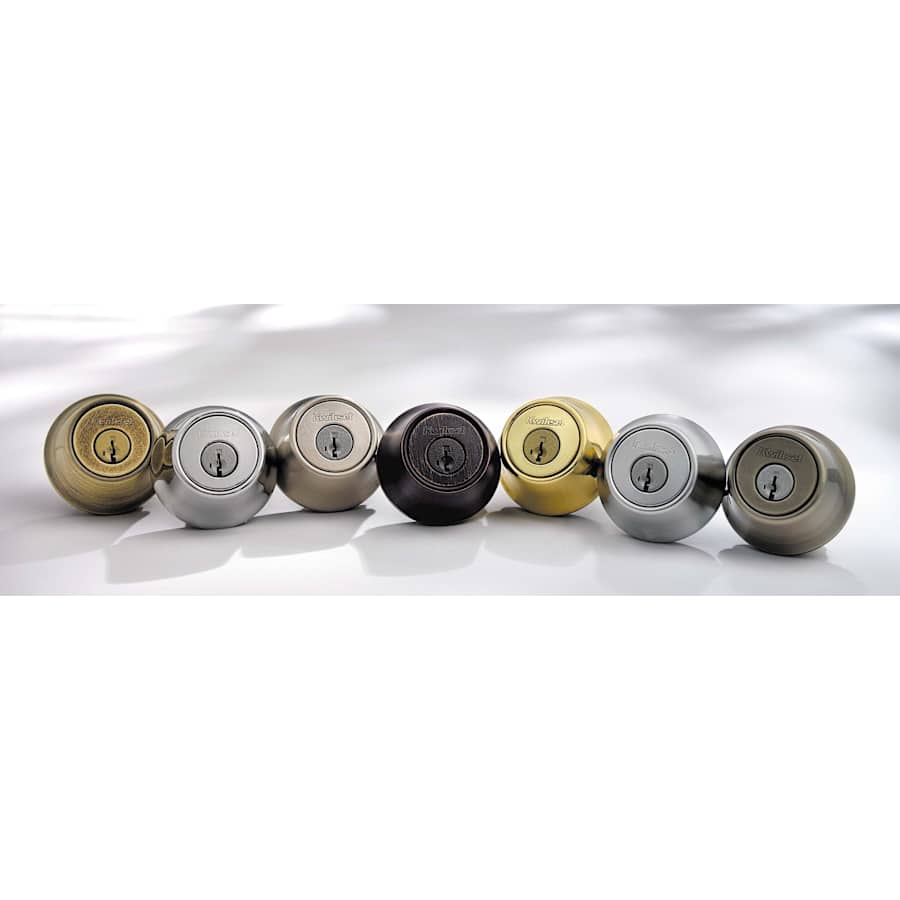

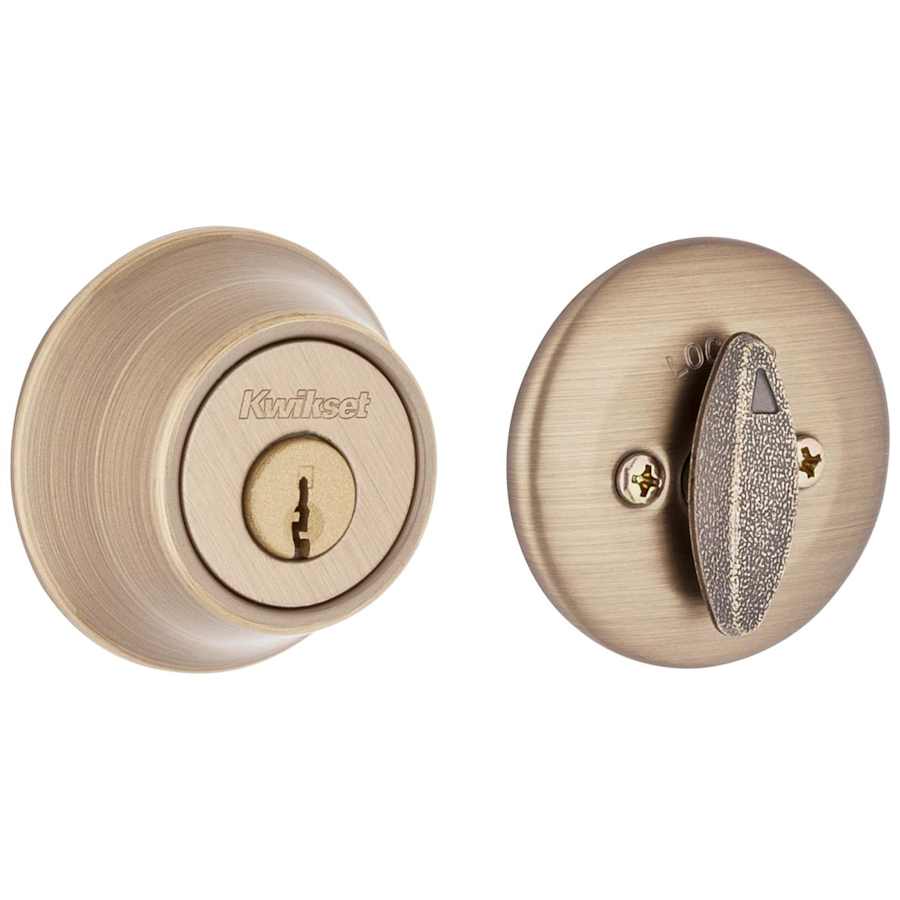

Antique Brass: 96600-420

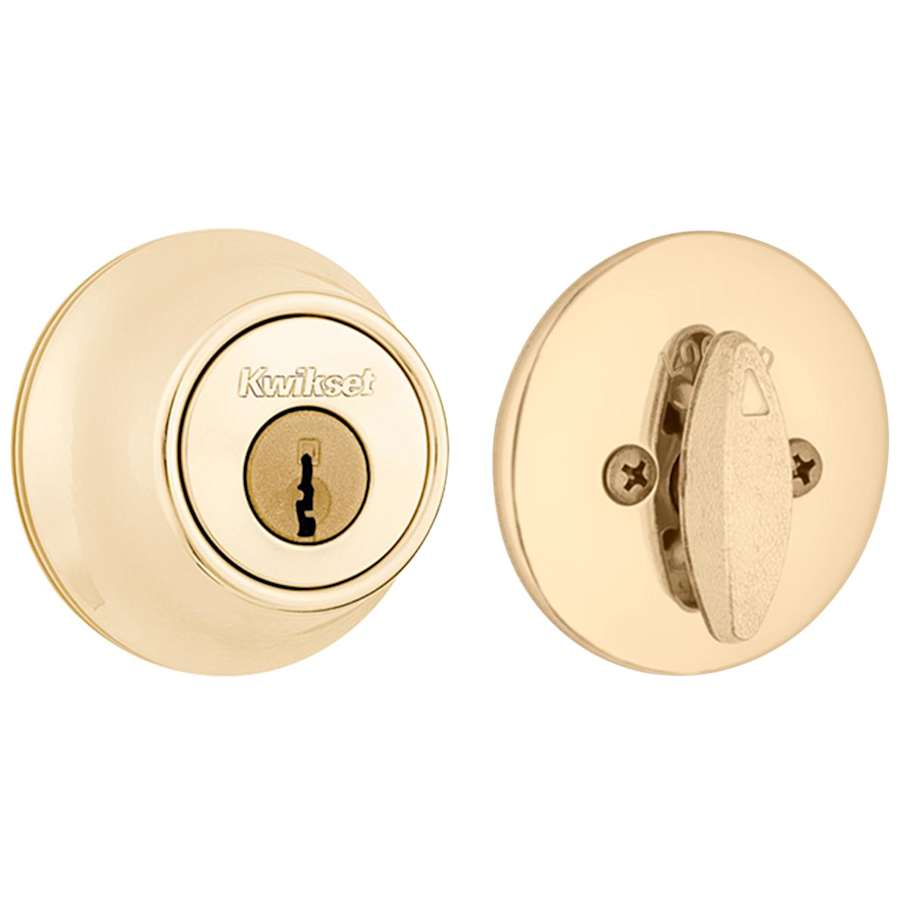

Polished Brass: 96600-419
Satin Chrome: 96600-483
Satin Nickel: 96600-532
Venetian Bronze: 96600-542
Additional Kwikset Links
View the Manufacturer Warranty
Browse all Kwikset Products
Kwikset 660 Series Deadbolt Collection
Specifications
Characteristics and Features
| Thermostat | Traditional |
| Shape | Round |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Round Corner |
| Function | Keyed Entry |
| Cylinder | 5 Pin |
| Cylinder Type | Single Cylinder |
| Keyway | KW1 |
| Concealed Screws | No |
Dimensions and Measurements
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
Warranty and Product Information
| Approved for Commercial Use | No |
| Collection | 660-Series |
| Series | Kwikset Series |
| ADA | Yes |
| Certifications | ANSI |
| BHMA Certification | Grade 3 |
| ANSI Certification | A156.5 |
| Color | Antique Brass, Antique Nickel, Matte Black, Polished Brass, Polished Chrome, Satin Chrome, Satin Nickel, Venetian Bronze |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
