PLEASE NOTE: When selecting Keying Options above, this item is treated as two separate items. By selecting “Keyed Alike” the handle and deadbolt will be keyed alike. Selecting “Keyed Differently” the handle and deadbolt will be keyed to two different keys. When ordering multiple combo packs on the same order, “Keyed Alike” means every handle and deadbolt will be keyed to the same key. “Keyed Differently” means every handle and deadbolt will be keyed to different keys. If you require different groups of combo packs to be “Keyed Alike”, separate orders will be required. Please contact customer service if you need help determining your needs.

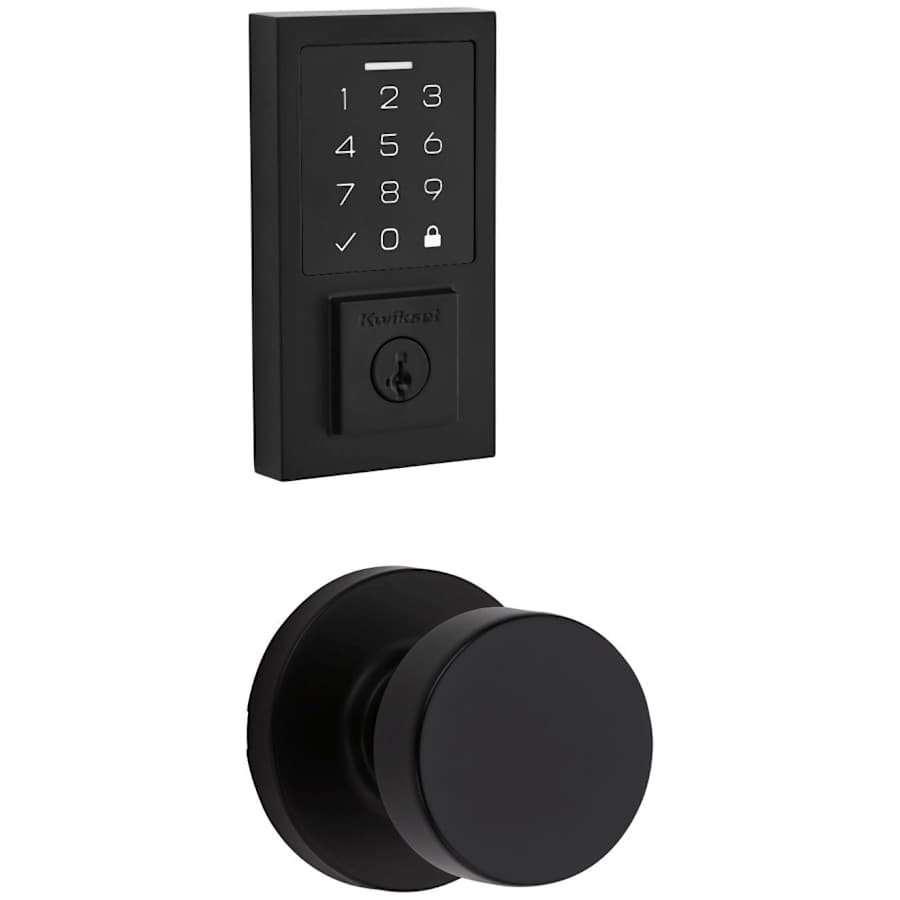

Electronic Keypad Entry: Go keyless with the Keypad Entry. Enter a valid user code for entry. Perfect for garage/house doors, store rooms, home office and more.
Features:
Tested to exceed ANSI/BHMA Grade 2 security requirements
Constructed of high quality materials for durability and dependability
Installs easily with all necessary mounting hardware included
Covered by Kwikset’s 1 year electronics and limited lifetime mechanical manufacturer warranties
Up to 50 programmable user codes
Deadbolt locks automatically after use for your peace of mind
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 1-1/2″, 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Reversible Left or Right
Handle Width: 2-3/16″
Handle Height: 2-3/16″
Handle Projection: 2-7/16″
Trim Width: 2-5/8″
Trim Height: 2-5/8″
Product Weight: 4.86 lbs.
Latch Faceplate: Drive-In, Round Corner, and Square Corner
Cylinder: SmartKey 5 Pin KW1
Additional Kwikset Links
View the Manufacturer Warranty
Browse all Kwikset Products
Kwikset Pismo Collection
Specifications
| Material | Zinc |
| Handle Style | Knob |
| Thermostat | Contemporary, Modern |
| Cylinder Type | Single Cylinder |
| Handshower | Left, Reversible, Right |
| Keyway | KW1 |
| Handle Material | Metal |
| Smart Home | No |
| Full Backplate | No |
| Concealed Screws | No |
| Function | Keyless Entry, Passage, Electronic Keyless Entry |
| Cylinder | SmartKey 5 Pin |
| Battery Quantity | 4 |
| Handle Design | Pismo |
| Insulation Type | Touchscreen |
| Interconnected | No |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Lit Keypad | Yes |
| Lock Style | Single Point |
| Motorized Deadbolt | Yes |
| Number of Codes | 50 |
| Panic Proof | No |
| Rosette Shape | Rectangle, Round |
| Knob Shape | Flat, Round |
| Auto-Lock Capable | Yes |
| ADA | No |
| Approved for Commercial Use | No |
| Collection | Pismo, SmartCode Deadbolts Touchscreen |
| Manufacturer Warranty | 1 Year Electronics, Limited Lifetime Mechanical |
| Certifications | ANSI, UL |
| Country Of Origin | China |
| ANSI Certification | A156.2 |
| Series | Contemporary |
| BHMA Certification | Grade 2 |
| Fire Rated | Yes |
| Product Weight | 4.86 lbs. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Center to Center | 5.5 in. |
| Cross Bore | 1-1/2", 2-1/8" |
| Edge Bore | 1" |
| Handle Projection | 2.4063 in. |
| Trim Height | 2.625 in. |
| Trim Width | 2.625 in. |
| Handle Height | 2.1875 in. |
| Handle Width | 2.1875 in. |
| Power Source | Battery |
| Battery Size | AA |
| Battery Type | Alkaline |
| Cylinder Included | Yes |
| Battery Included | Yes |
| Color | Matte Black, Satin Nickel |
