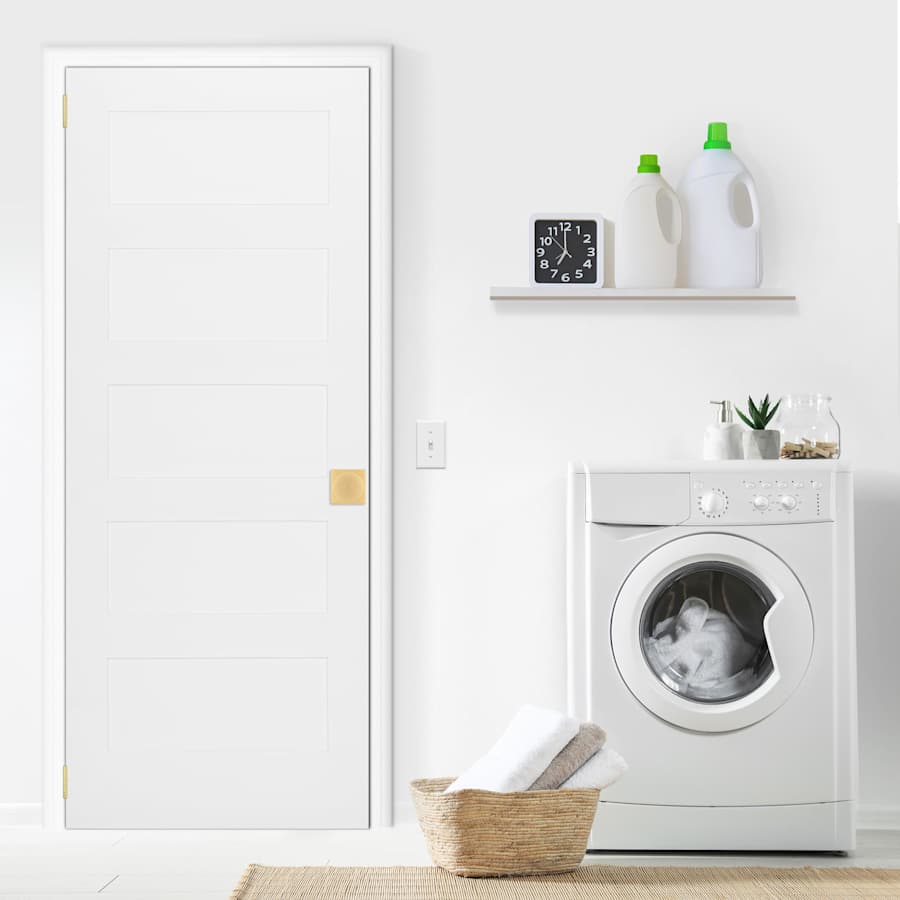

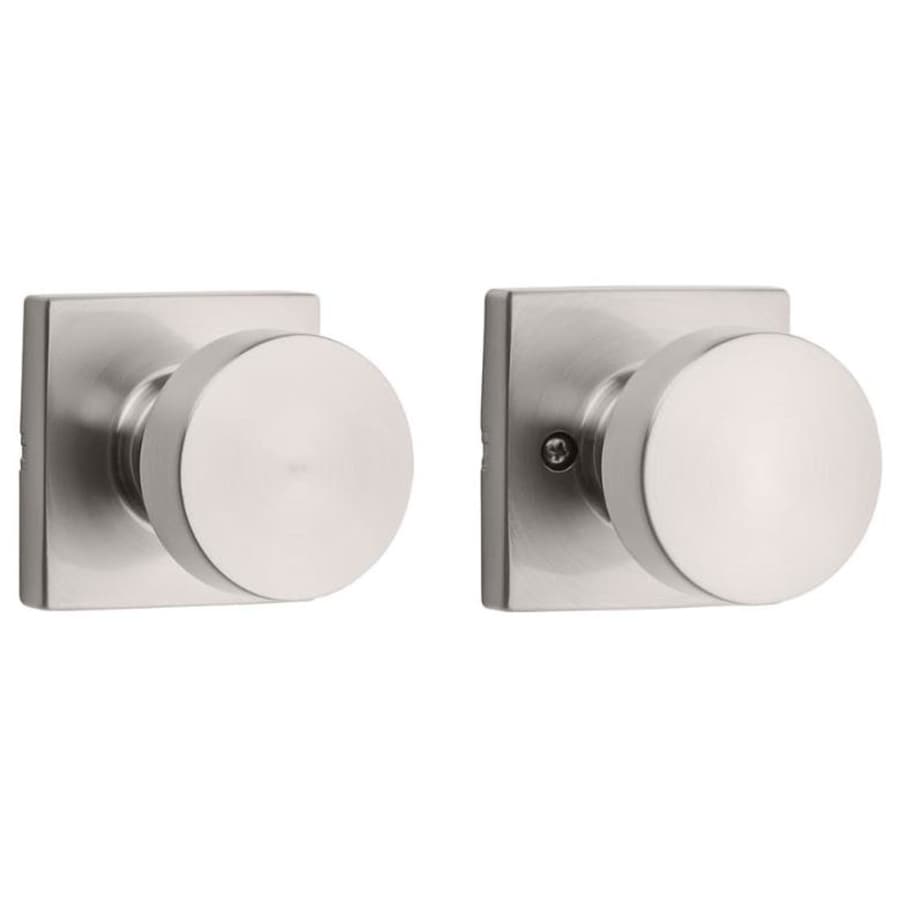

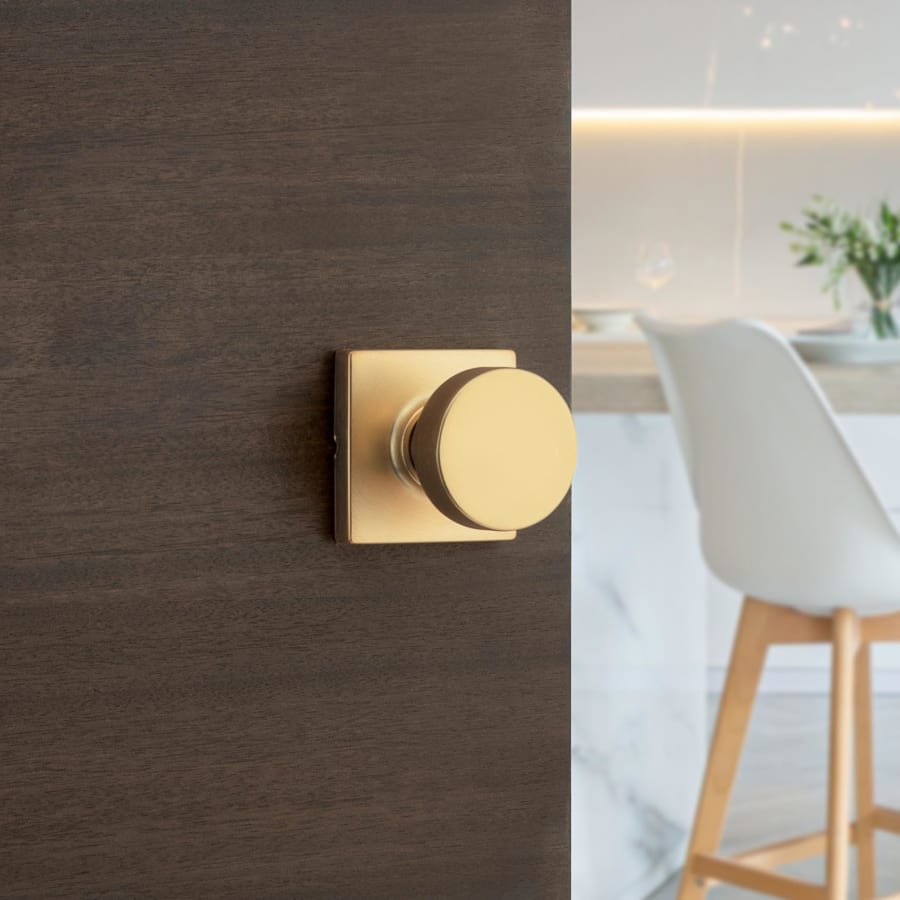

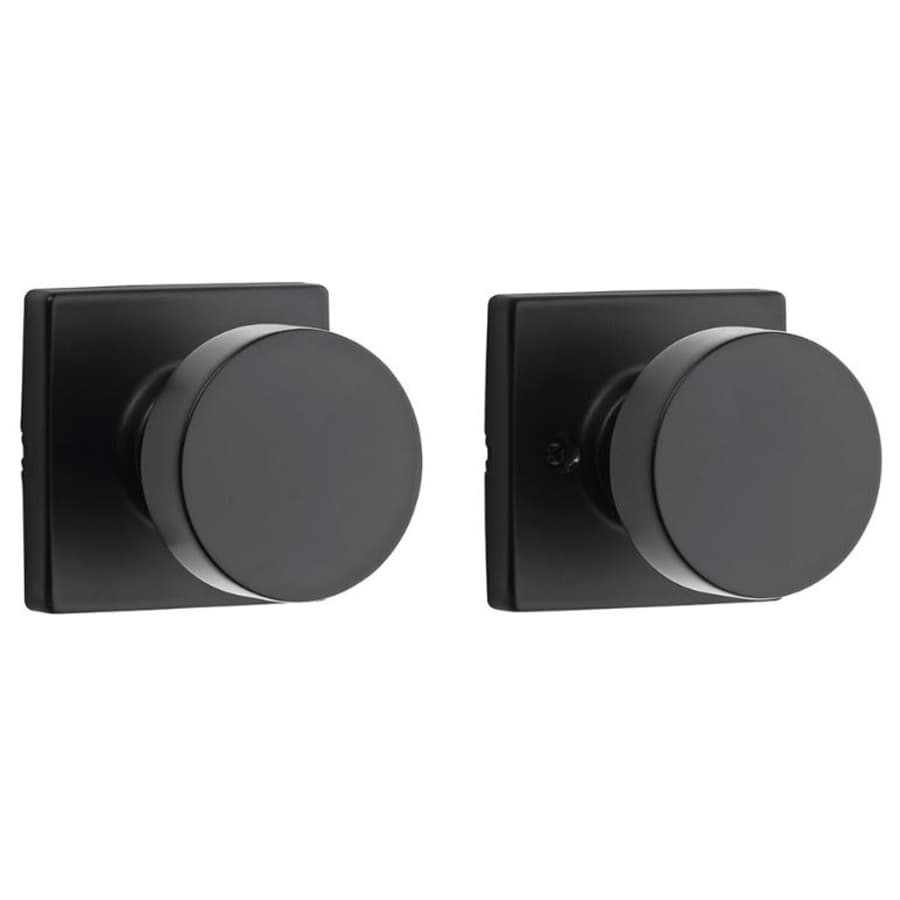

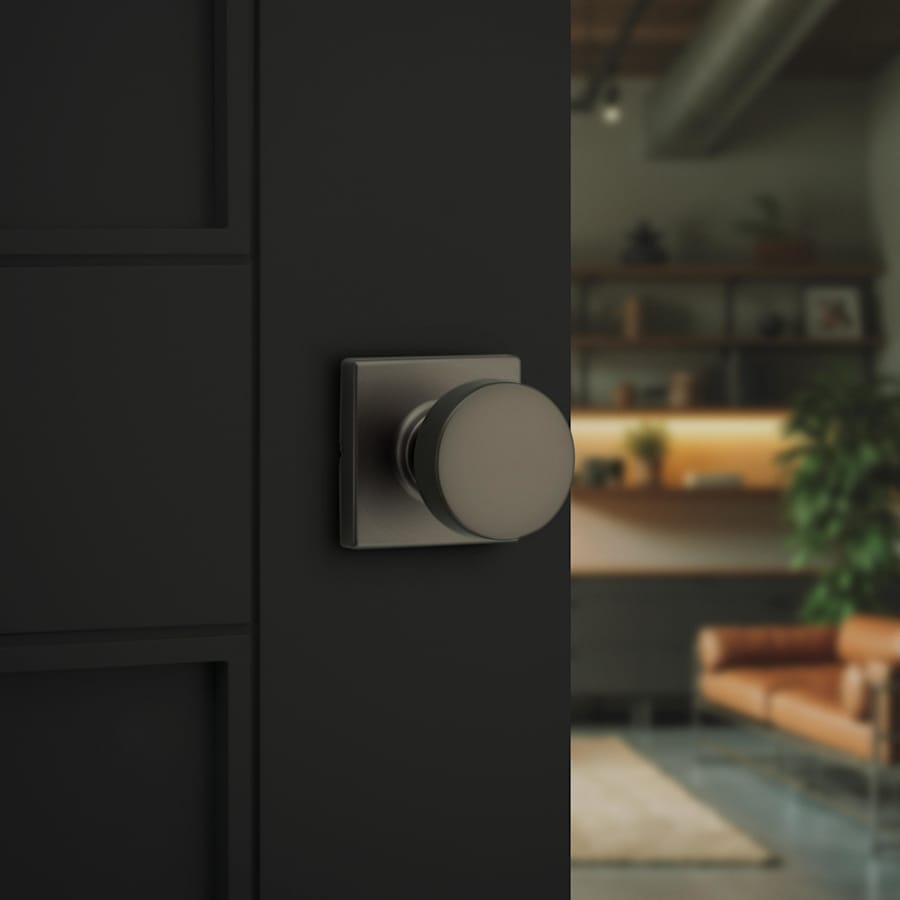

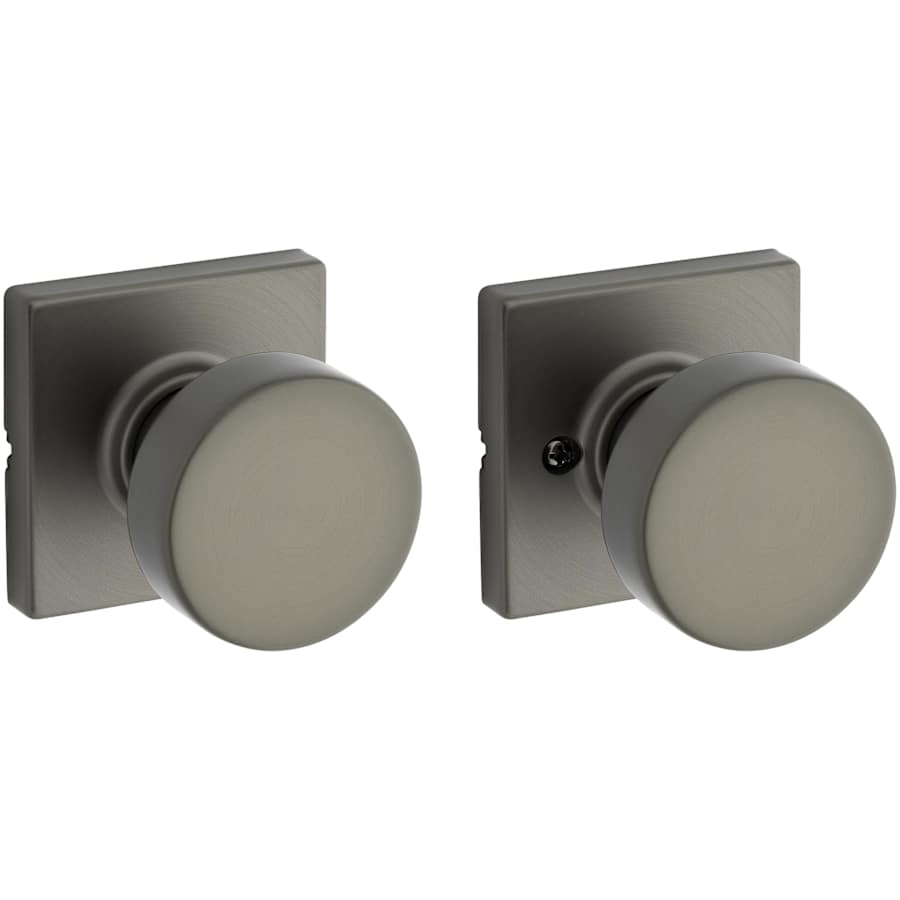

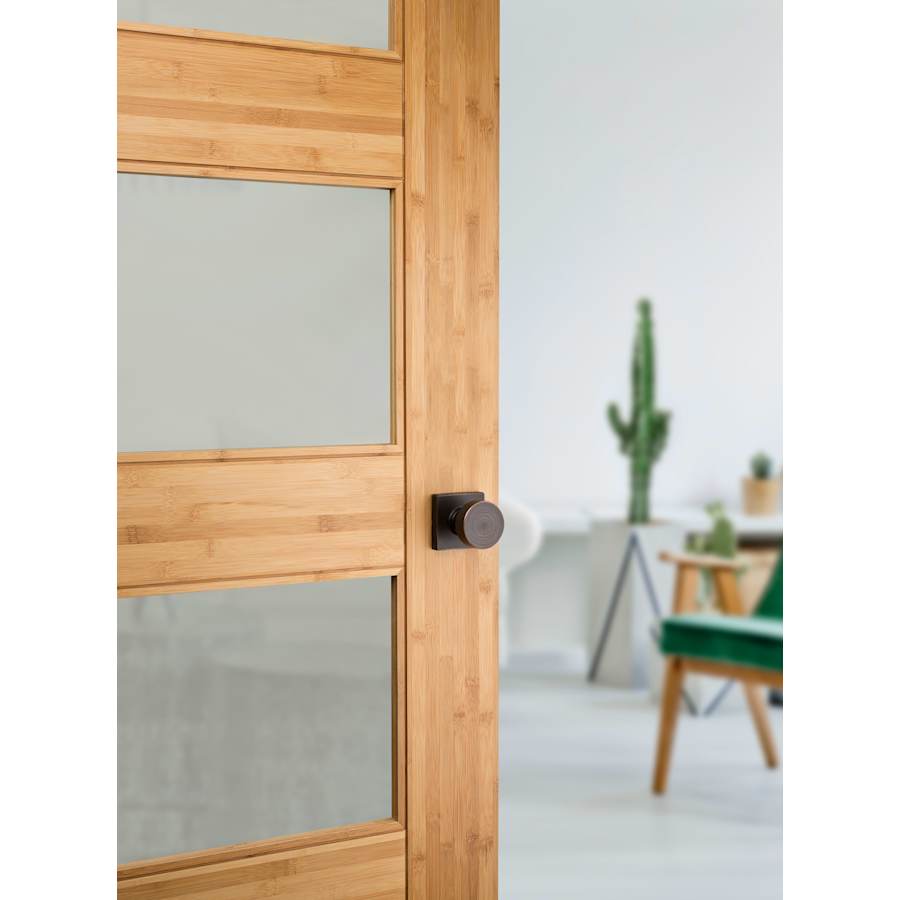

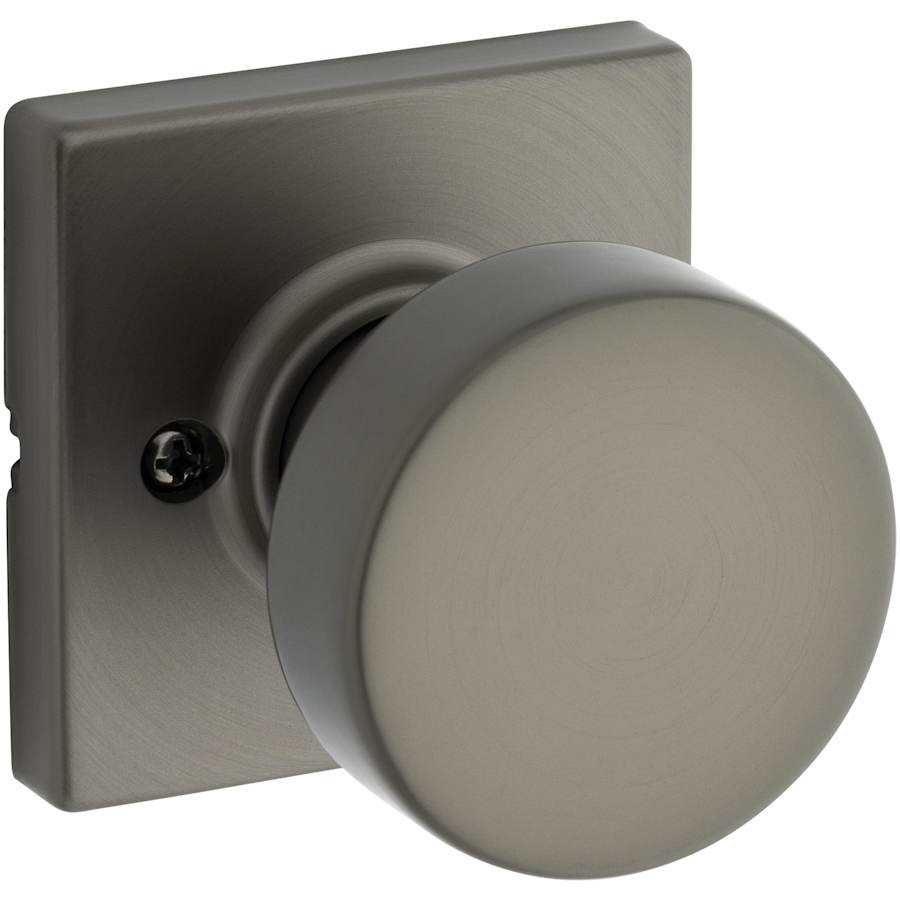

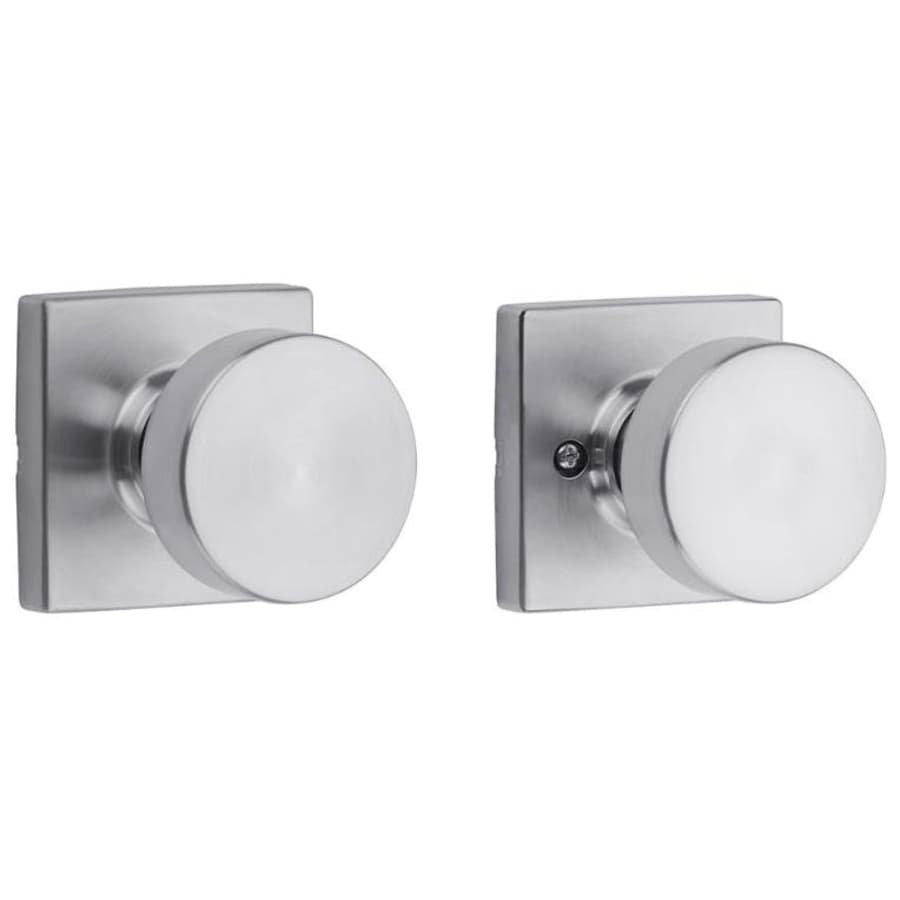

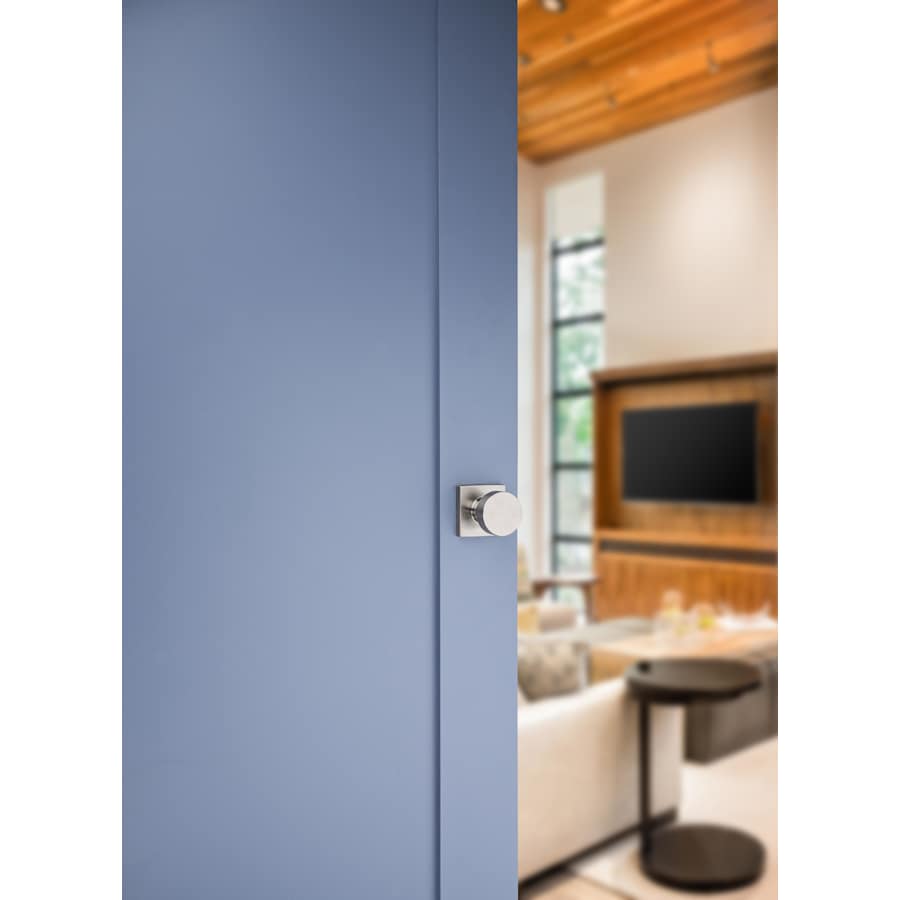

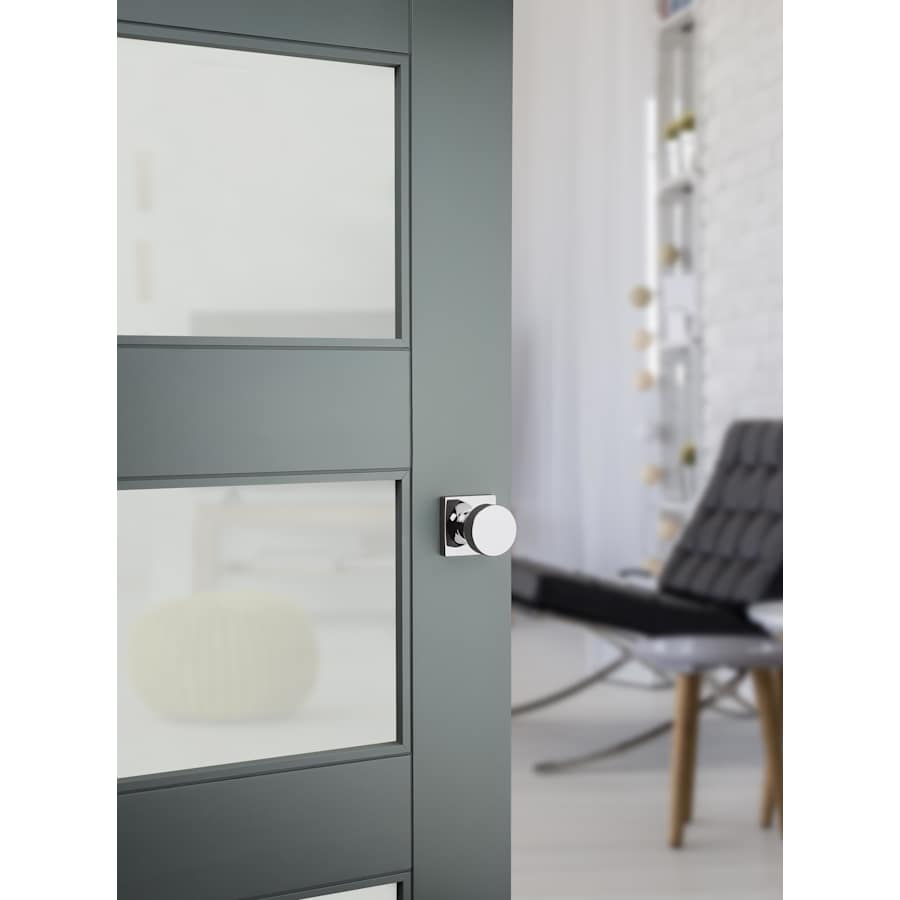

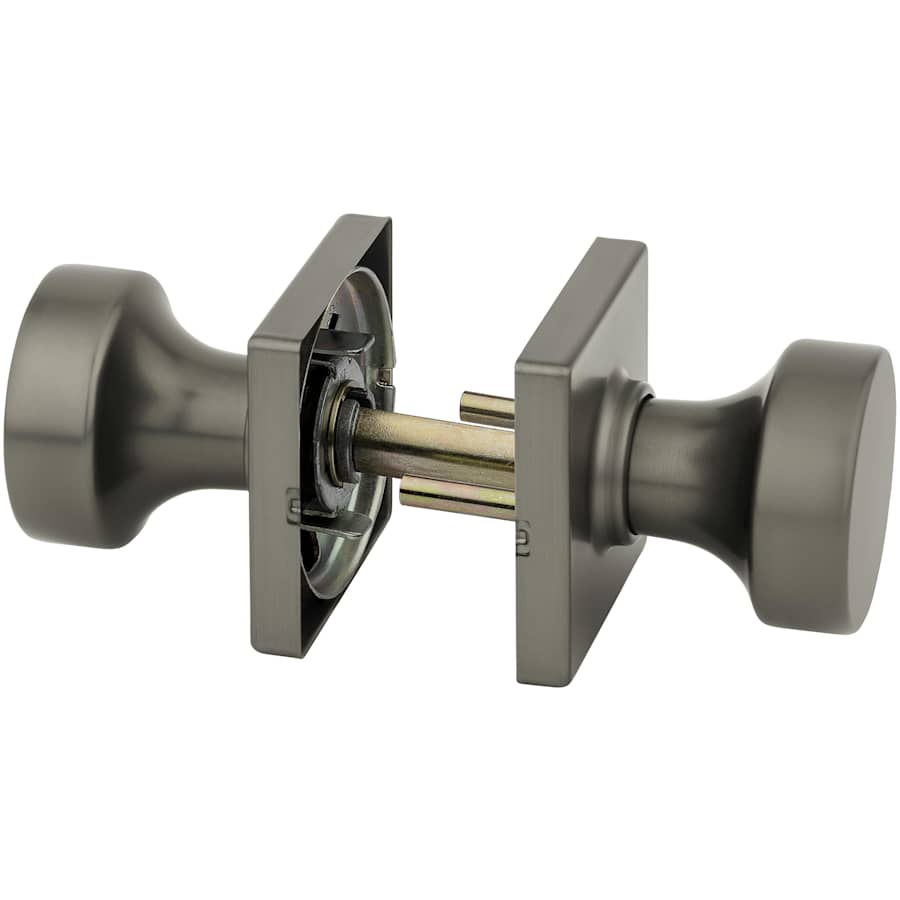

Passage: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn’t needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.
Features:
Tested to exceed ANSI/BHMA AAA security requirements
Constructed of high quality materials for durability and dependability

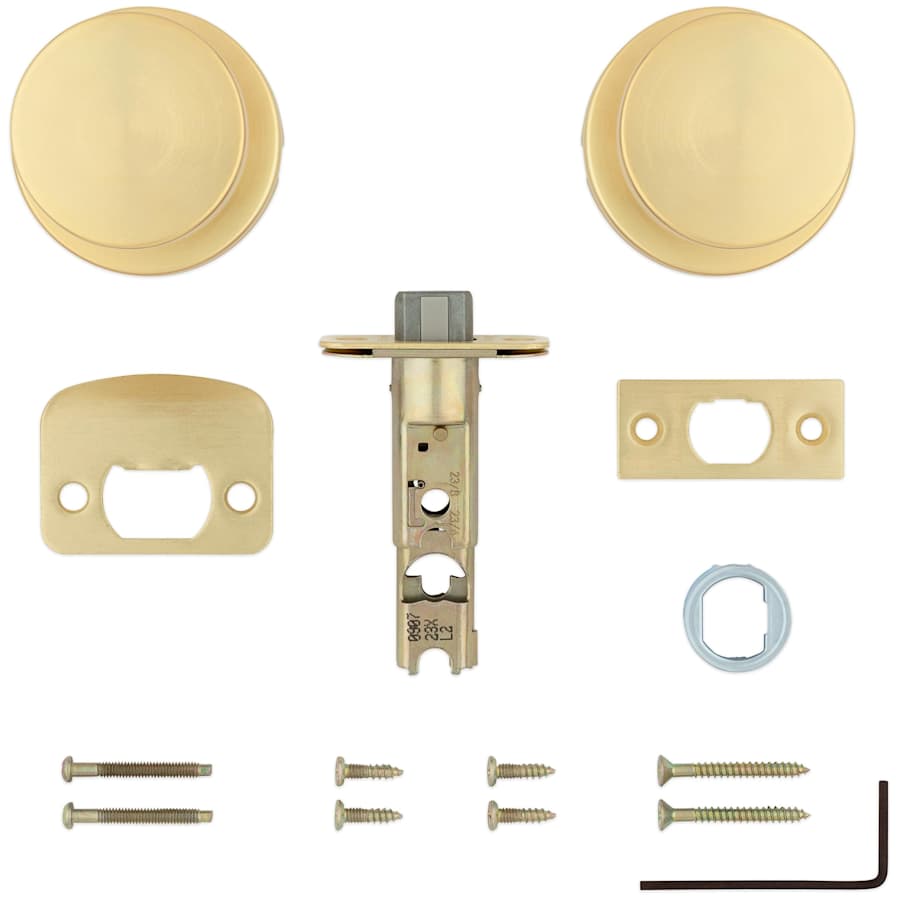

Installs easily with all necessary mounting hardware included
Covered by Kwikset’s limited lifetime manufacturer warranty
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Reversible Left or Right
Handle Width: 2-3/16″
Handle Height: 2-3/16″
Handle Projection: 2-3/8″
Trim Width: 2-5/8″
Trim Height: 2-5/8″
Product Weight: 1.89 lbs.

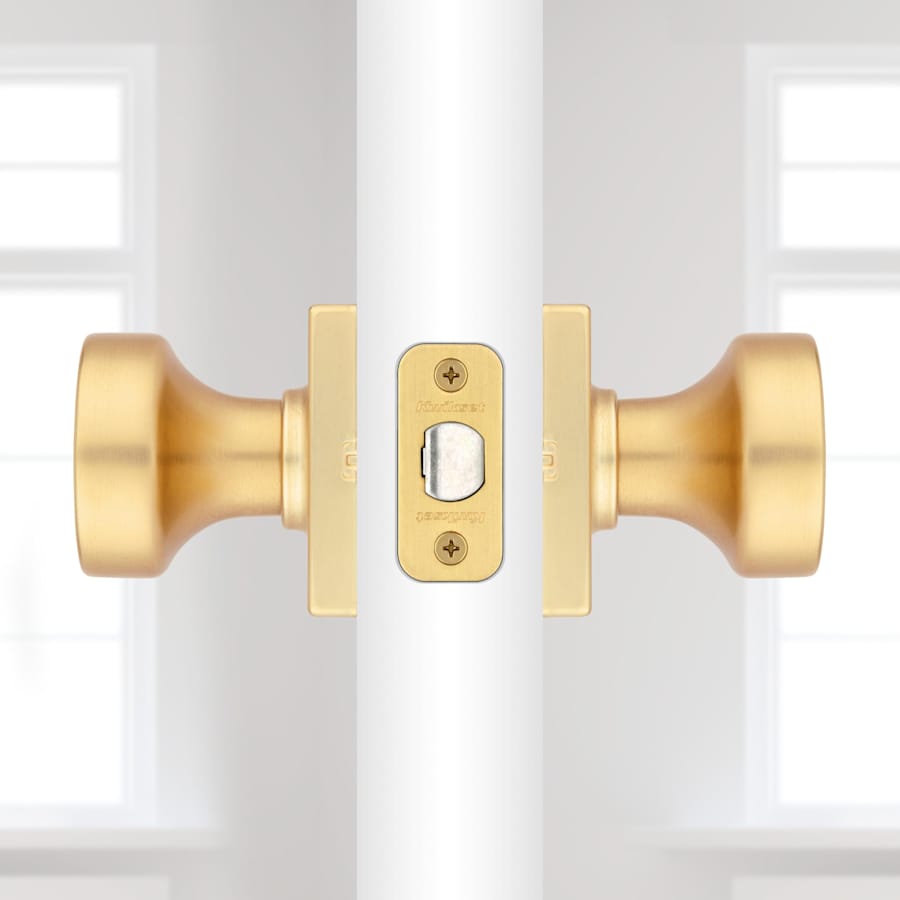

Latch Faceplate: Drive-In or Round Corner
Additional Kwikset Links
View the Manufacturer Warranty
Browse all Kwikset Products
Kwikset Pismo Collection
Specifications
| Product Weight | 1.89 lbs. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Edge Bore | 1" |
| Handle Projection | 2.40625 in. |
| Trim Height | 2.625 in. |
| Trim Width | 2.625 in. |
| Handle Height | 2.1875 in. |
| Handle Width | 2.1875 in. |
| Latch Throw | 0.5 in. |
| Material | Zinc |
| Thermostat | Contemporary |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Drive-In, Round Corner |
| Rosette Shape | Square |
| Handle Style | Knob |
| Handle Material | Metal |
| Concealed Screws | No |
| Function | Passage |
| Handle Design | Pismo |
| Knob Shape | Flat, Round |
| ADA | No |
| Certifications | BHMA |
| Collection | Pismo |
| Country Of Origin | Taiwan |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | No |
| Series | Contemporary, Signature Series |
| BHMA Certification | AAA |
| Fire Rated | No |
| 28 Degree Latch | No |
| Color | Gun Metal, Iron Black, Matte Black, Polished Chrome, Satin Brass, Satin Chrome, Satin Nickel, Venetian Bronze |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Neutrals, Nickel Tones, Silver Tones |
