PLEASE NOTE: When selecting Keying Options above, this item is treated as two separate items. By selecting “Keyed Alike” the handle and deadbolt will be keyed alike. Selecting “Keyed Differently” the handle and deadbolt will be keyed to two different keys. When ordering multiple combo packs on the same order, “Keyed Alike” means every handle and deadbolt will be keyed to the same key. “Keyed Differently” means every handle and deadbolt will be keyed to different keys. If you require different groups of combo packs to be “Keyed Alike”, separate orders will be required. Please contact customer service if you need help determining your needs.

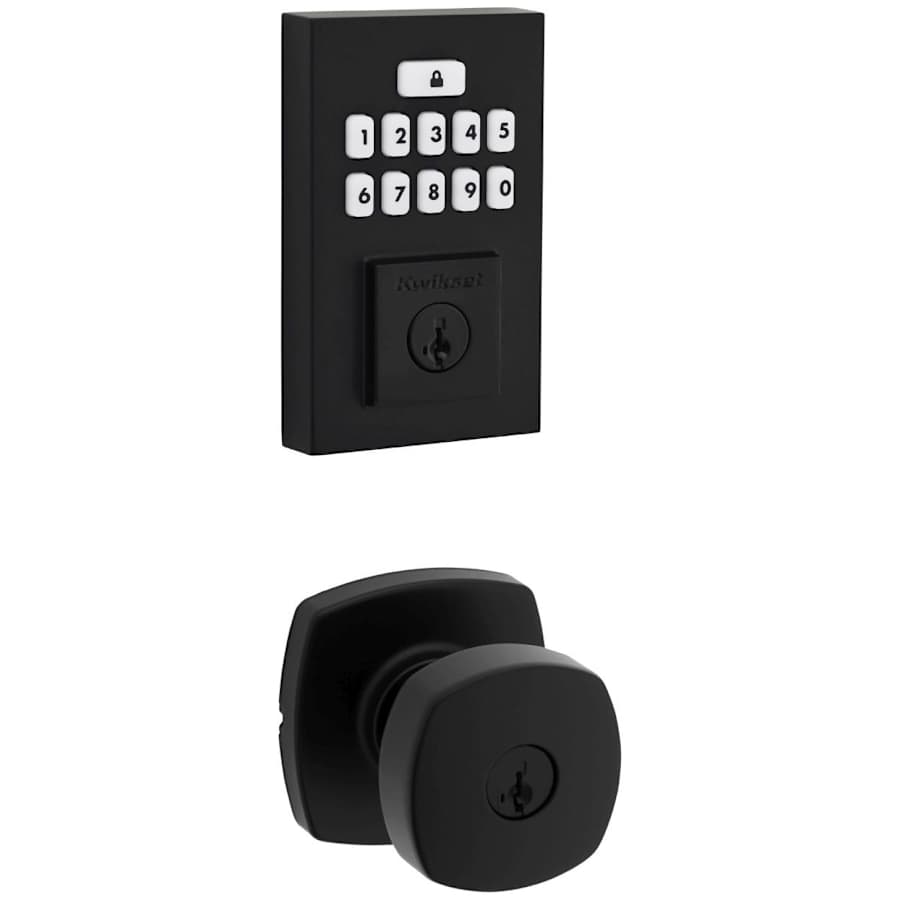

Electronic Keypad Entry: Go keyless with the Keypad Entry. Enter a valid user code for entry. Perfect for garage/house doors, store rooms, home office and more.
Features:
Tested to exceed ANSI/BHMA Grade 2 security requirements
Constructed of high quality materials for durability and dependability
Installs easily with all necessary mounting hardware included
Covered by Kwikset’s 1 year electronics and limited lifetime mechanical manufacturer warranties
Up to 50 programmable user codes
Deadbolt locks automatically after use for your peace of mind
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 1-1/2″, 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Reversible Left or Right
Handle Width: 2-3/16″
Handle Height: 2-3/16″
Handle Projection: 2-3/8″
Trim Width: 2-5/8″
Trim Height: 2-5/8″
Product Weight: 5.21 lbs.
Latch Faceplate: Drive-In, Round Corner, and Square Corner
Cylinder: SmartKey 5 Pin KW1
Additional Kwikset Links
View the Manufacturer Warranty
Browse all Kwikset Products
Kwikset Arroyo Collection
Specifications
| Product Weight | 5.21 lbs. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 1-1/2", 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Edge Bore | 1" |
| Handle Projection | 2.40625 in. |
| Trim Height | 2.625 in. |
| Trim Width | 2.625 in. |
| Handle Height | 2.1875 in. |
| Handle Width | 2.1875 in. |
| Center to Center | 5.5 in. |
| Thermostat | Contemporary, Modern |
| Material | Zinc |
| Concealed Screws | No |
| Cylinder Type | Single Cylinder |
| Function | Keyless Entry, Electronic Keyless Entry |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Panic Proof | No |
| Rosette Shape | Rectangle, Square |
| Handle Style | Knob |
| Full Backplate | No |
| Smart Home | No |
| Cylinder | SmartKey 5 Pin |
| Keyway | KW1 |
| Handle Design | Arroyo |
| Knob Shape | Square |
| Handle Material | Metal |
| Battery Quantity | 4 |
| Number of Codes | 50 |
| Auto-Lock Capable | Yes |
| Insulation Type | Keypad |
| Lit Keypad | Yes |
| Motorized Deadbolt | Yes |
| Lock Style | Two Point |
| Interconnected | No |
| ADA | No |
| Collection | Arroyo, SmartCode Deadbolts Touchpad |
| Manufacturer Warranty | 1 Year Electronics, Limited Lifetime Mechanical |
| Certifications | ANSI, UL |
| Fire Rated | Yes |
| ANSI Certification | A156.2 |
| BHMA Certification | Grade 2 |
| Series | Contemporary |
| Cylinder Included | Yes |
| Battery Included | Yes |
| Power Source | Battery |
| Battery Size | AA |
| Battery Type | Alkaline |
| Color | Matte Black, Polished Chrome, Satin Nickel |
| Color Tone | Blacks, Nickel Tones, Silver Tones |
