PLEASE NOTE: When selecting Keying Options above, this item is treated as two separate items. By selecting “Keyed Alike” the handle and deadbolt will be keyed alike. Selecting “Keyed Differently” the handle and deadbolt will be keyed to two different keys. When ordering multiple combo packs on the same order, “Keyed Alike” means every handle and deadbolt will be keyed to the same key. “Keyed Differently” means every handle and deadbolt will be keyed to different keys. If you require different groups of combo packs to be “Keyed Alike”, separate orders will be required. Please contact customer service if you need help determining your needs

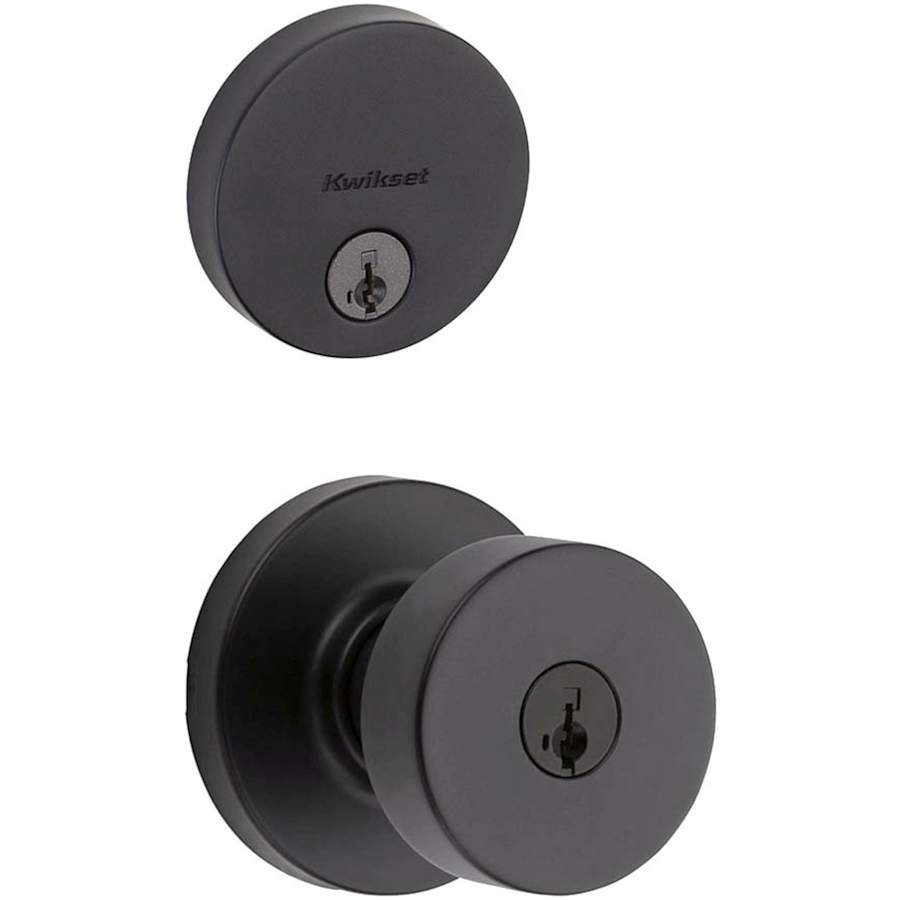

Combo Pack: Combo packs come with a separate deadbolt and knob/lever. They can be locked and unlocked from the exterior using a key in the deadbolt and can be locked and unlocked from the interior using the thumbturn. This entry set would be ideal for the front entry of a home.
Features:
Tested to exceed ANSI/BHMA Grade 1 security requirements
Constructed of high quality materials for durability and dependability
Installs easily with all necessary mounting hardware included
Covered by Kwikset’s limited lifetime manufacturer warranty
Two keys will be shipped per lock – three or more items keyed alike will ship a total of 6 keys
SmartKey®:
This re-key technology allows you to re-key your lock in seconds. It also features stainless steel racks, pins, and side locking bar for increased strength and security.
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Reversible Left or Right
Handle Width: 2-3/16″
Handle Height: 2-3/16″
Handle Projection: 2-7/16″
Trim Width: 2-5/8″
Trim Height: 2-5/8″
Product Weight: 3.91 lbs.
Latch Faceplate: Round Corner
Cylinder: SmartKey 5 Pin KW1
Additional Kwikset Links
View the Manufacturer Warranty
Browse all Kwikset Products
Kwikset Pismo Collection
Specifications
| Full Backplate | No |
| Material | Zinc |
| Thermostat | Contemporary, Modern |
| Handle Style | Knob |
| Handshower | Left, Reversible, Right |
| Concealed Screws | No |
| Cylinder Type | Single Cylinder |
| Latch Faceplate | Round Corner |
| Rosette Shape | Round |
| Function | Keyed Entry |
| Handle Design | Pismo |
| Handle Material | Metal |
| Lock Style | Two Point |
| Panic Proof | No |
| Cylinder | SmartKey 5 Pin |
| Keyway | KW1 |
| Knob Shape | Flat, Round |
| ADA | Yes |
| Certifications | BHMA |
| Collection | Pismo |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | No |
| Series | Uptown |
| ANSI Certification | A156.2, A156.36 |
| BHMA Certification | Grade 1 |
| Fire Rated | No |
| Product Weight | 3.91 lbs. |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Projection | 2.41 in. |
| Trim Height | 2.625 in. |
| Trim Width | 2.625 in. |
| Handle Height | 2.1875 in. |
| Handle Width | 2.1875 in. |
| Cylinder Included | Yes |
| Color | Iron Black, Matte Black, Polished Chrome, Satin Brass, Satin Chrome, Satin Nickel, Venetian Bronze |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
