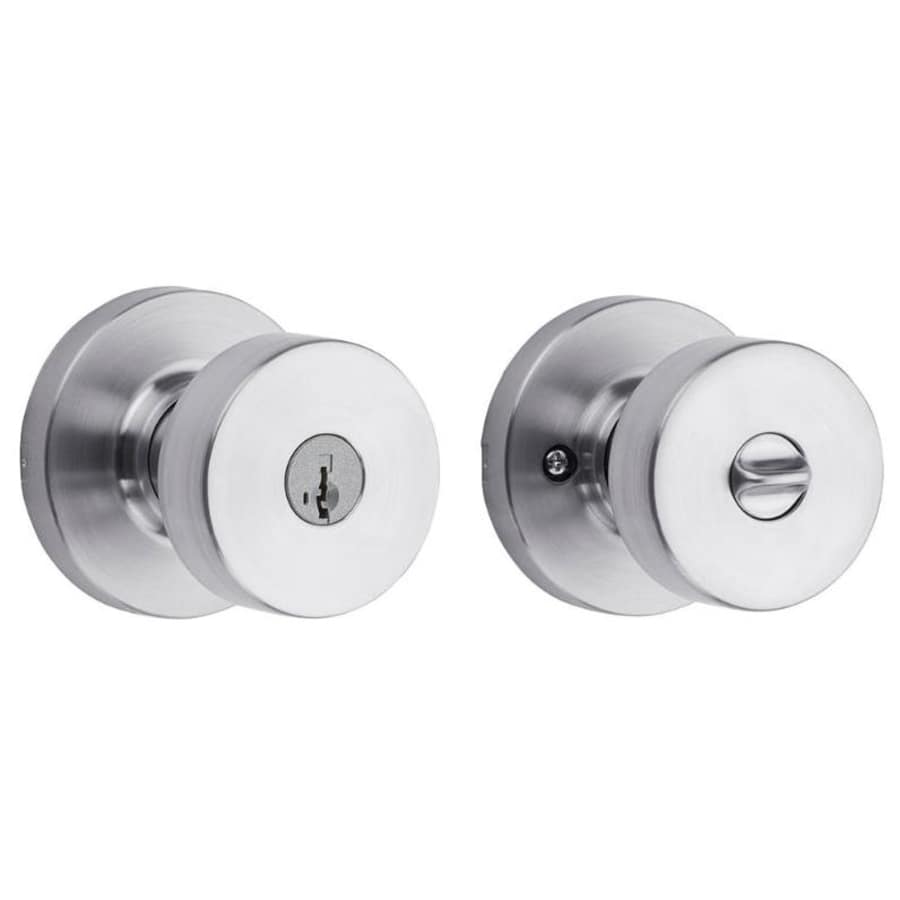

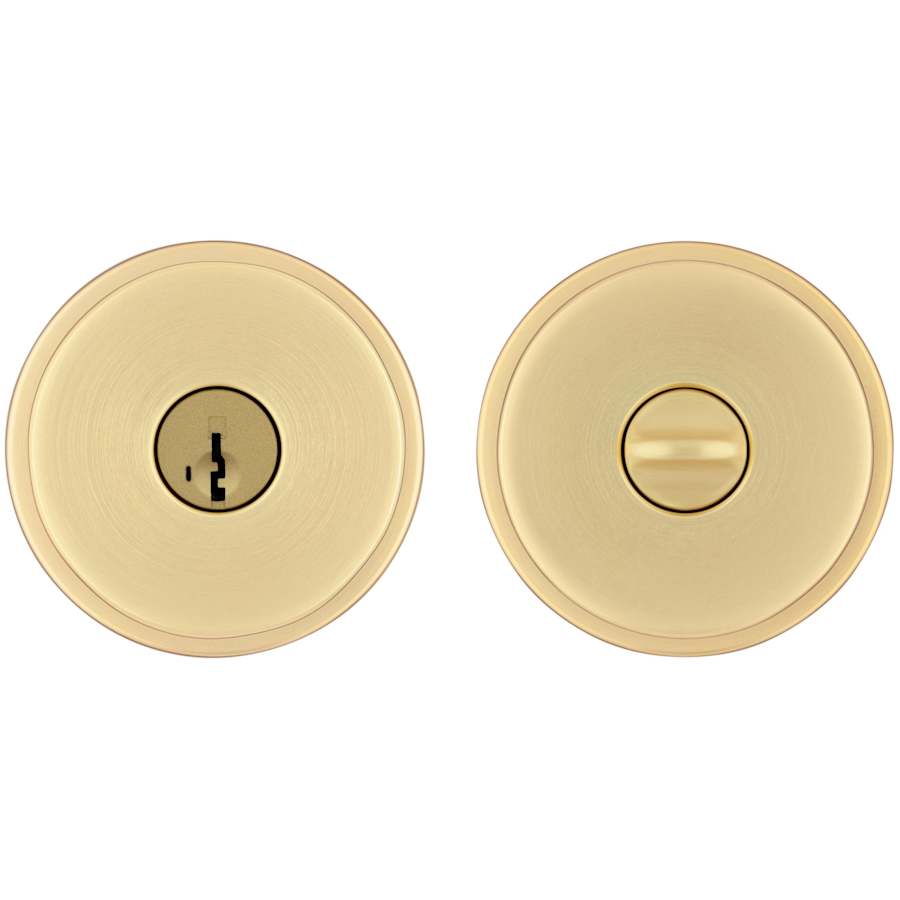

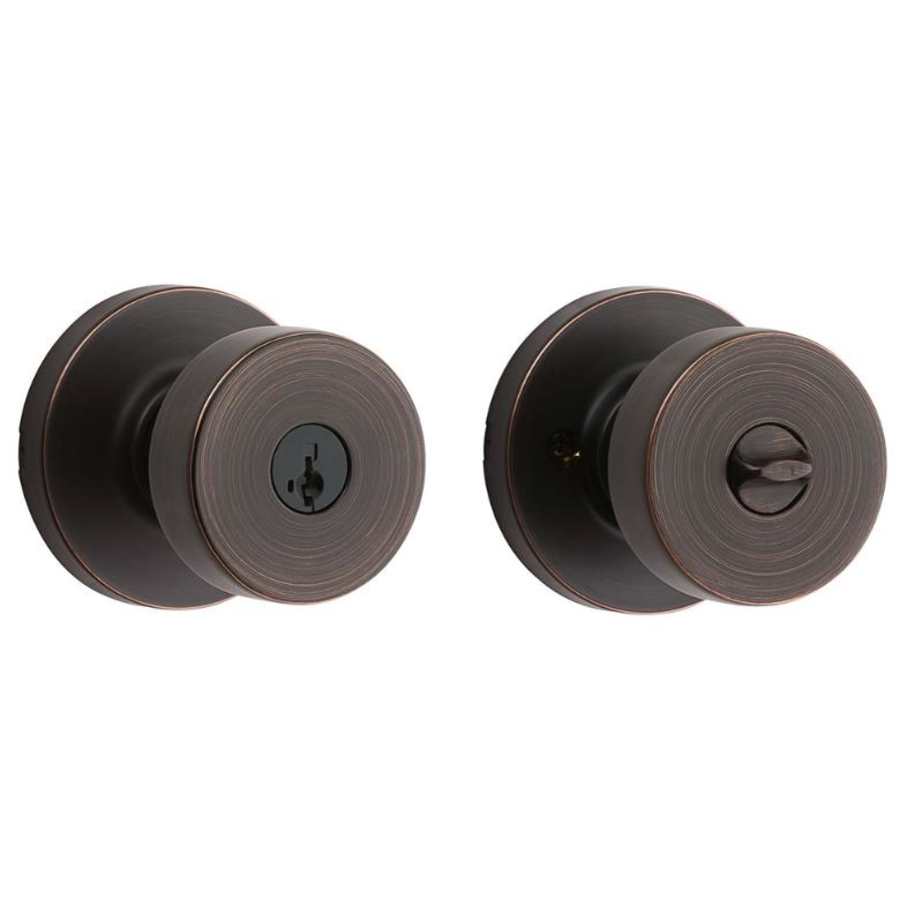

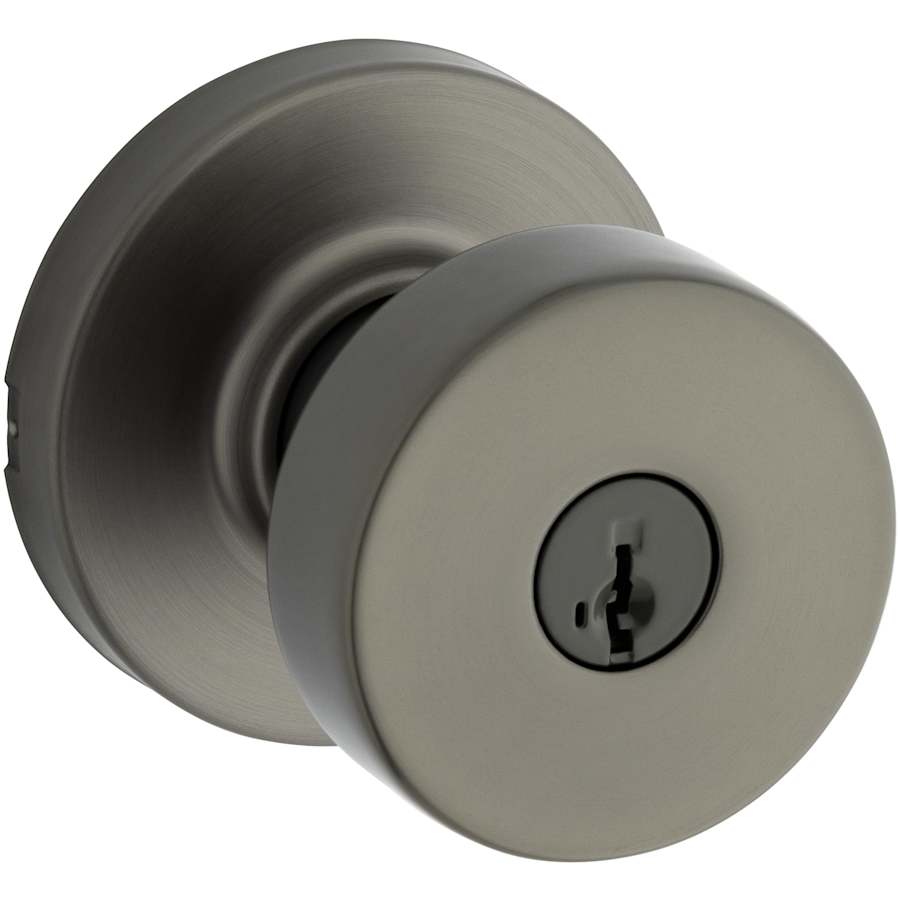

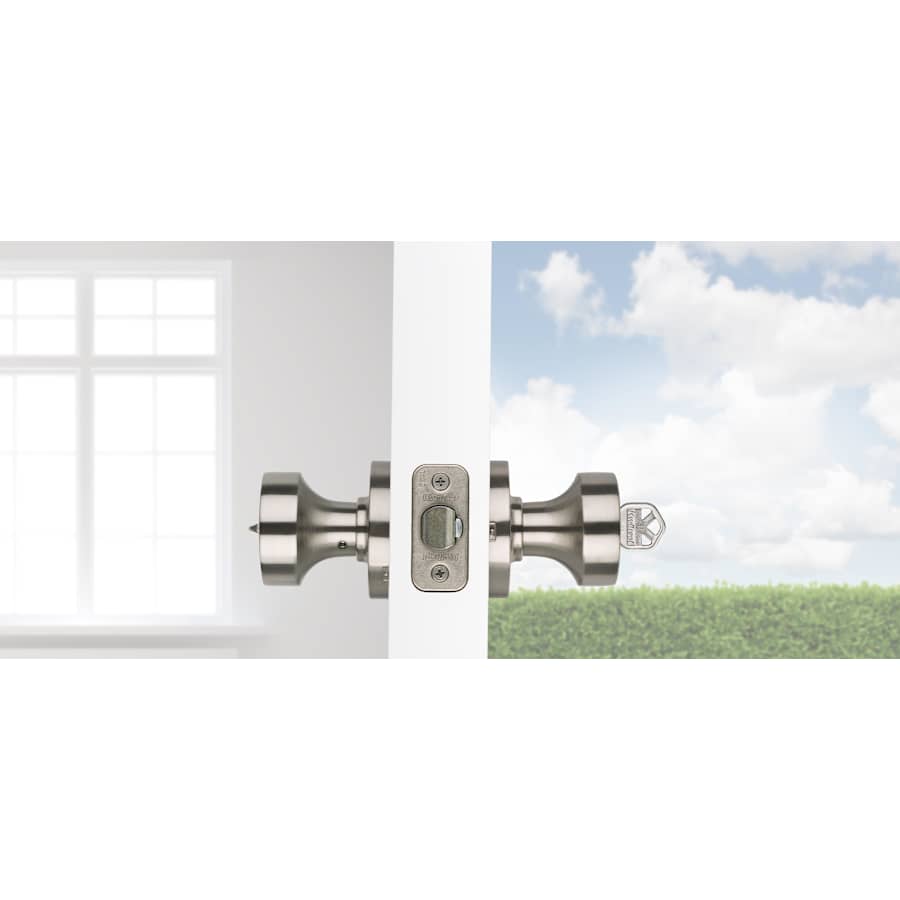

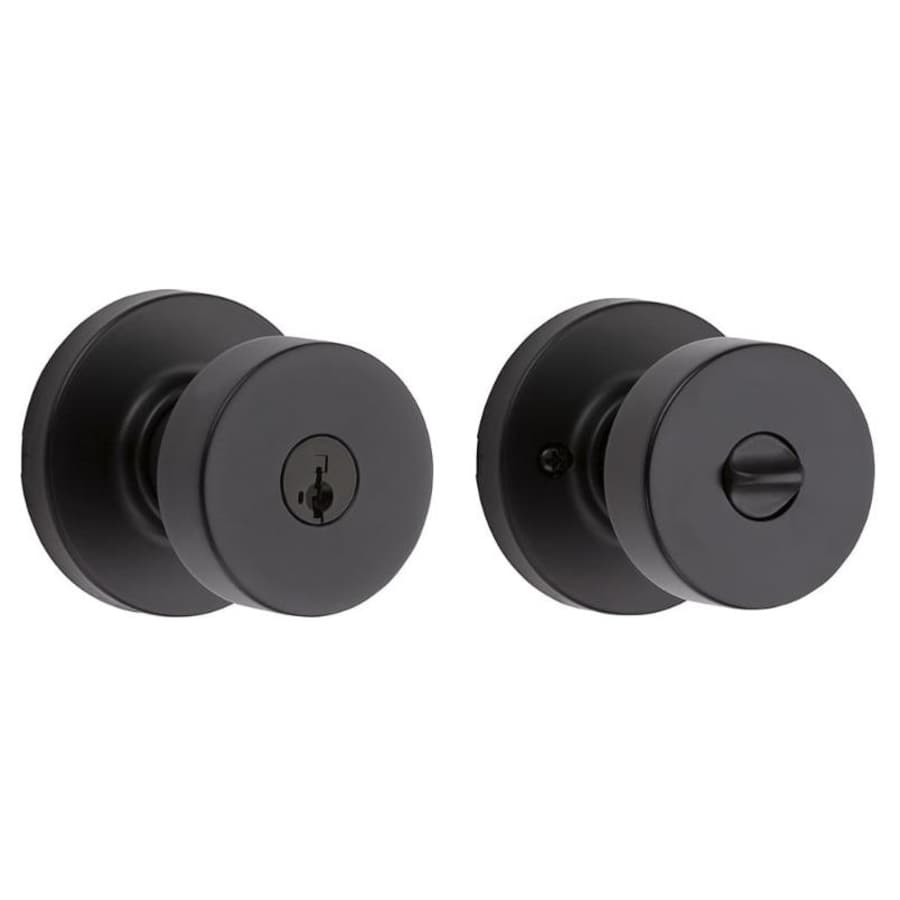

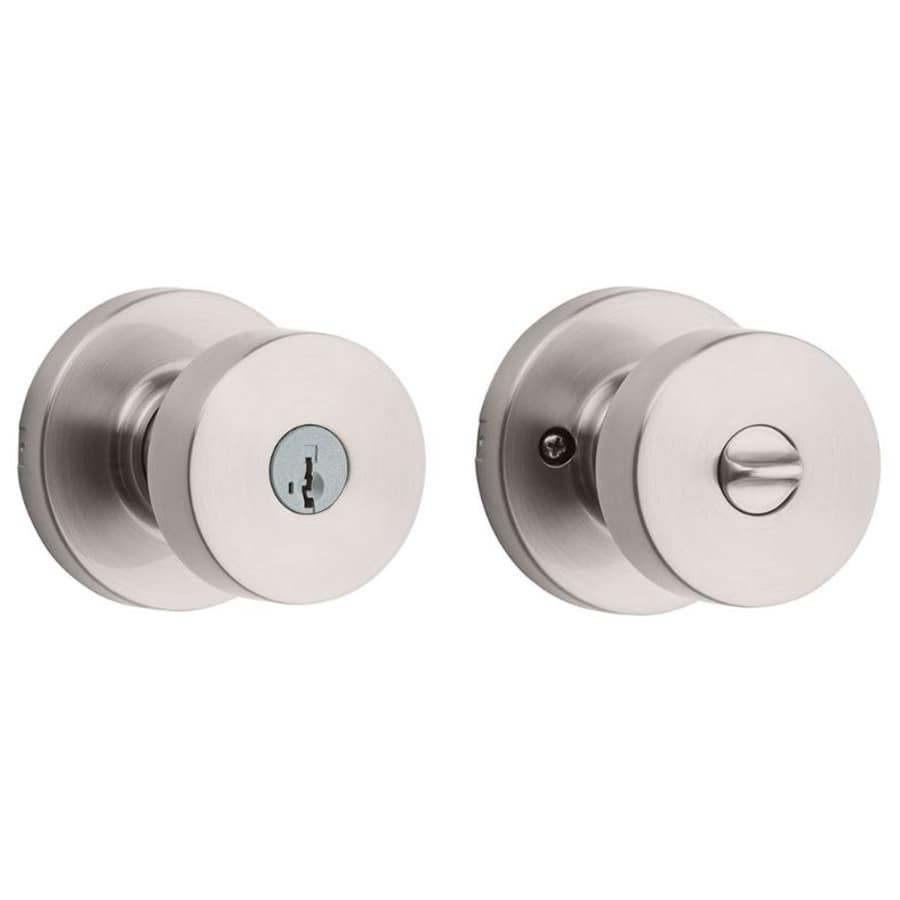

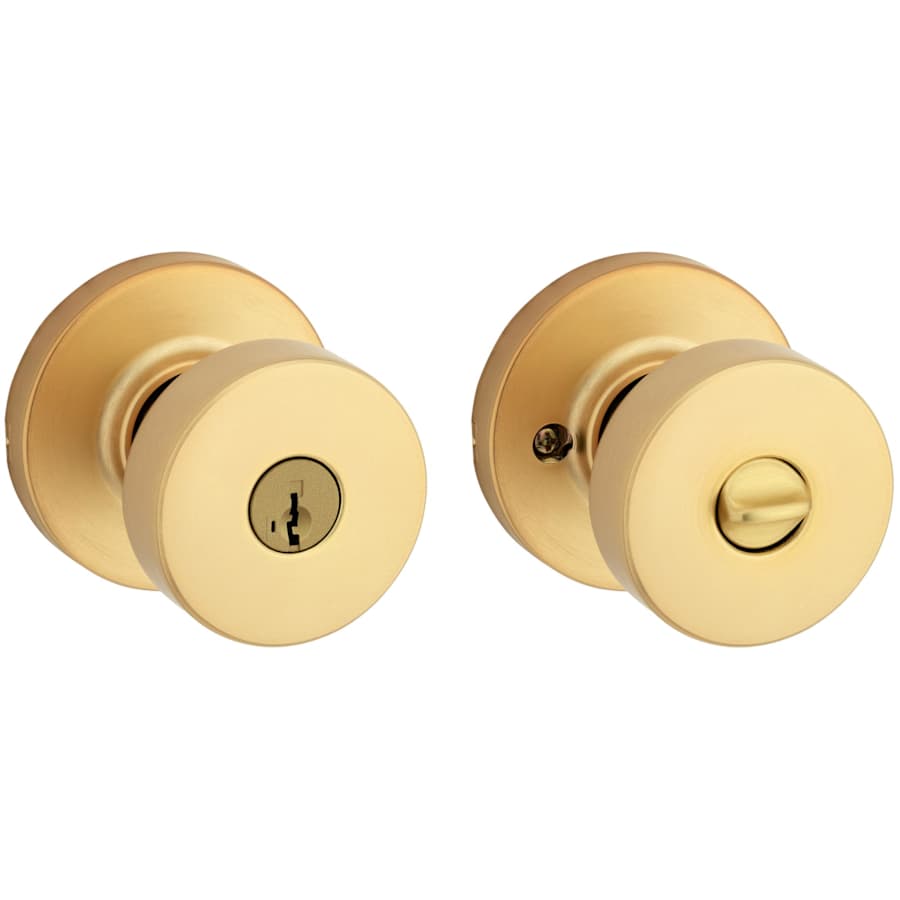

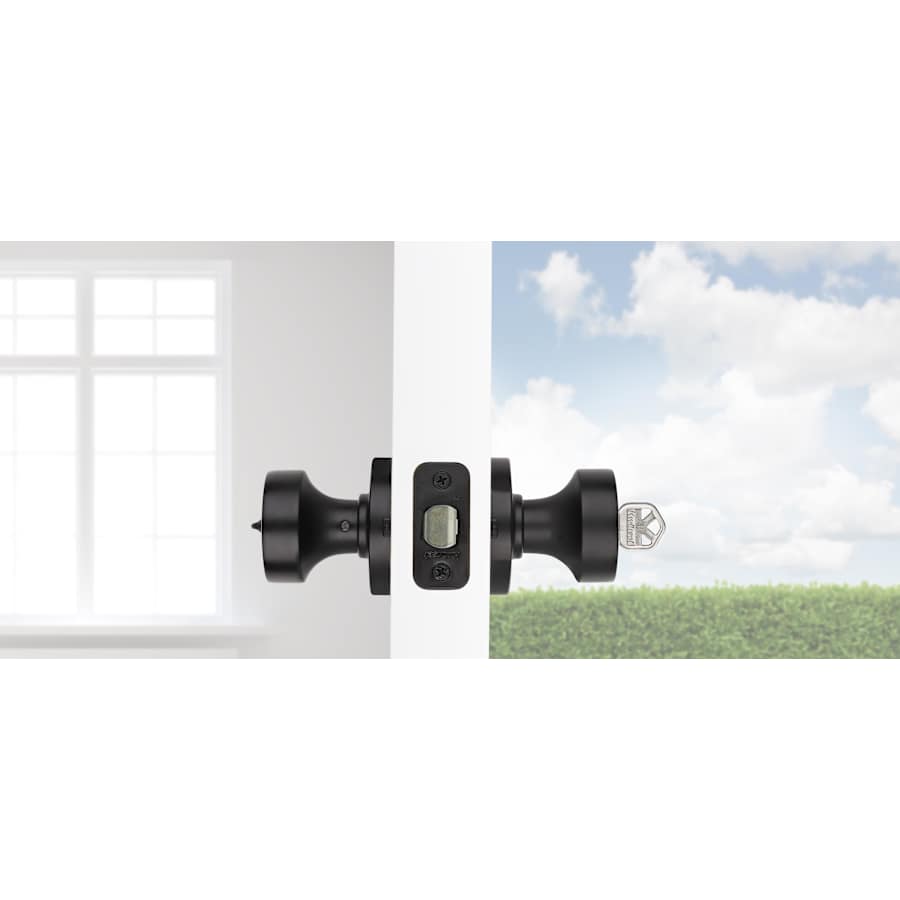

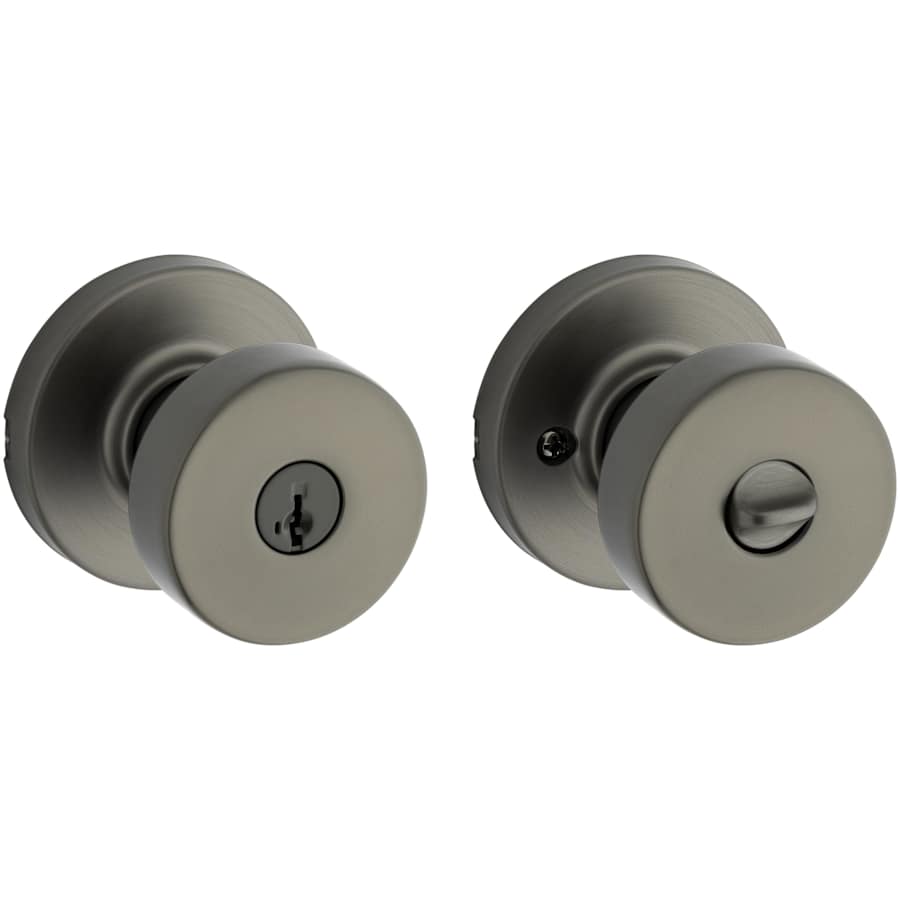

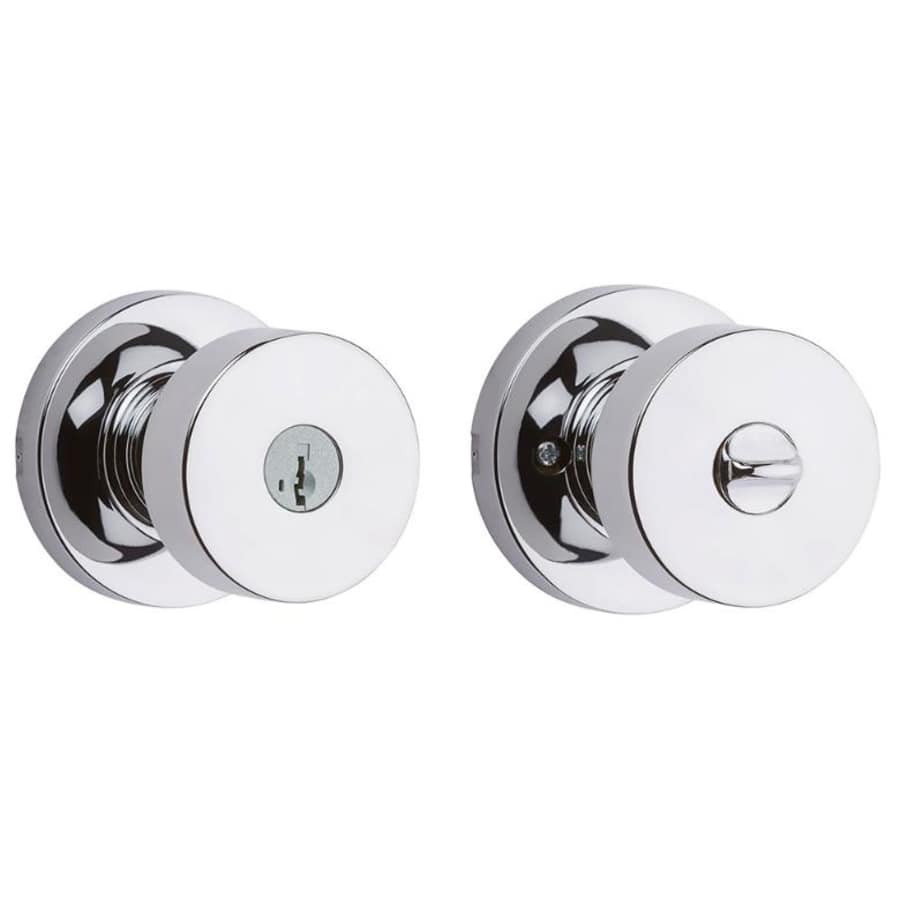

Single Cylinder Keyed Entry: Single cylinder keyed entry door hardware is locked and unlocked from the exterior using a key and can be locked and unlocked from the interior using the locking mechanism. Perfect for securing entrances, side doors, and anywhere else that needs a bit more security.
Features:
Tested to exceed ANSI/BHMA AAA security requirements
Constructed of high quality materials for durability and dependability

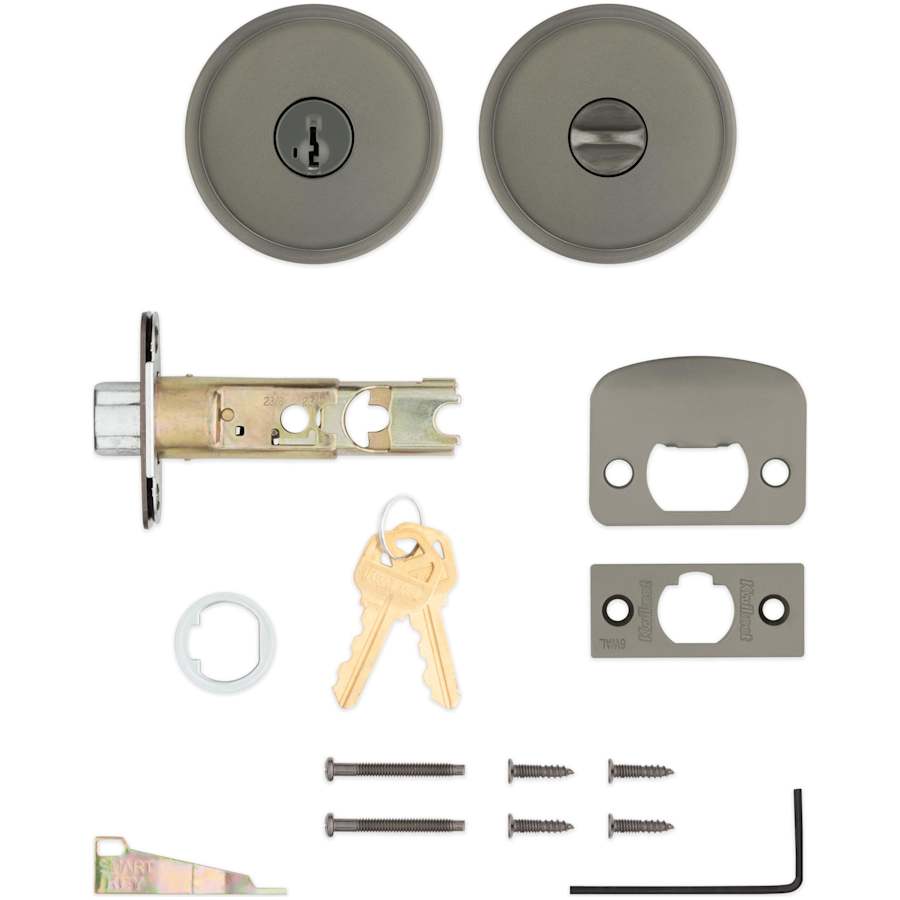

Installs easily with all necessary mounting hardware included
Covered by Kwikset’s limited lifetime manufacturer warranty
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
SmartKey®:Â
This re-key technology allows you to re-key your lock in seconds. It also features stainless steel racks, pins, and side locking bar for increased strength and security.
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Reversible Left or Right
Handle Width: 2-3/16″
Handle Height: 2-3/16″
Handle Projection: 2-3/8″
Trim Width: 2-5/8″
Trim Height: 2-5/8″
Product Weight: 1.581 lbs.

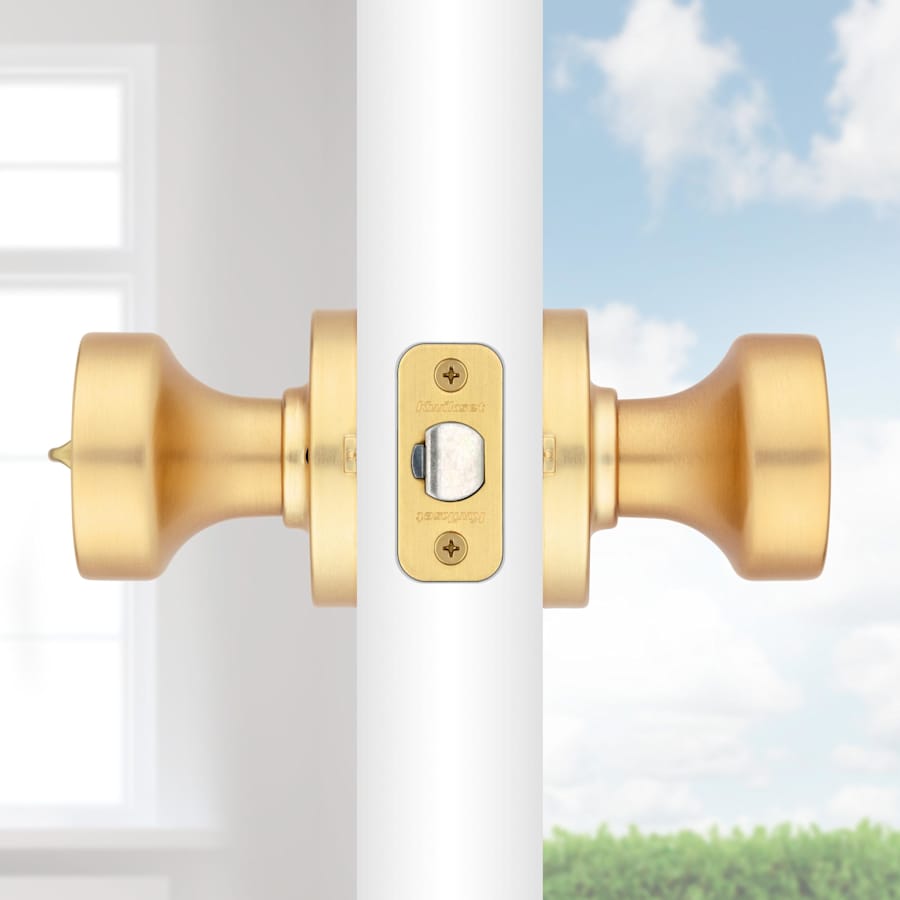

Latch Faceplate: Drive-In, Round Corner, or Square Corner
Cylinder: SmartKey 5 Pin KW1
Additional Kwikset Links
View the Manufacturer Warranty
Browse all Kwikset Products
Kwikset Pismo Collection
Specifications
| Product Weight | 1.581 lbs. |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Handle Projection | 2.40625 in. |
| Trim Height | 2.625 in. |
| Trim Width | 2.625 in. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Height | 2.1875 in. |
| Handle Width | 2.1875 in. |
| Latch Throw | 0.5 in. |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | No |
| Collection | Pismo |
| Country Of Origin | Taiwan |
| Certifications | BHMA |
| ADA | No |
| BHMA Certification | AAA |
| Fire Rated | No |
| Series | Contemporary, Signature Series |
| Material | Zinc |
| Thermostat | Contemporary |
| Handshower | Left, Reversible, Right |
| Handle Material | Metal |
| Handle Style | Knob |
| Keyway | KW1 |
| Panic Proof | No |
| Concealed Screws | No |
| Function | Keyed Entry |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Lock Style | Single Point |
| Cylinder | SmartKey 5 Pin |
| Cylinder Type | Single Cylinder |
| Rosette Shape | Round |
| Handle Design | Pismo |
| Knob Shape | Flat, Round |
| Interconnected | No |
| Number of Keys | 2 |
| Removable Core | No |
| 28 Degree Latch | No |
| Cylinder Included | Yes |
| Interchangeable Core | No |
| Color | Gun Metal, Iron Black, Matte Black, Polished Chrome, Satin Brass, Satin Chrome, Satin Nickel, Venetian Bronze |
