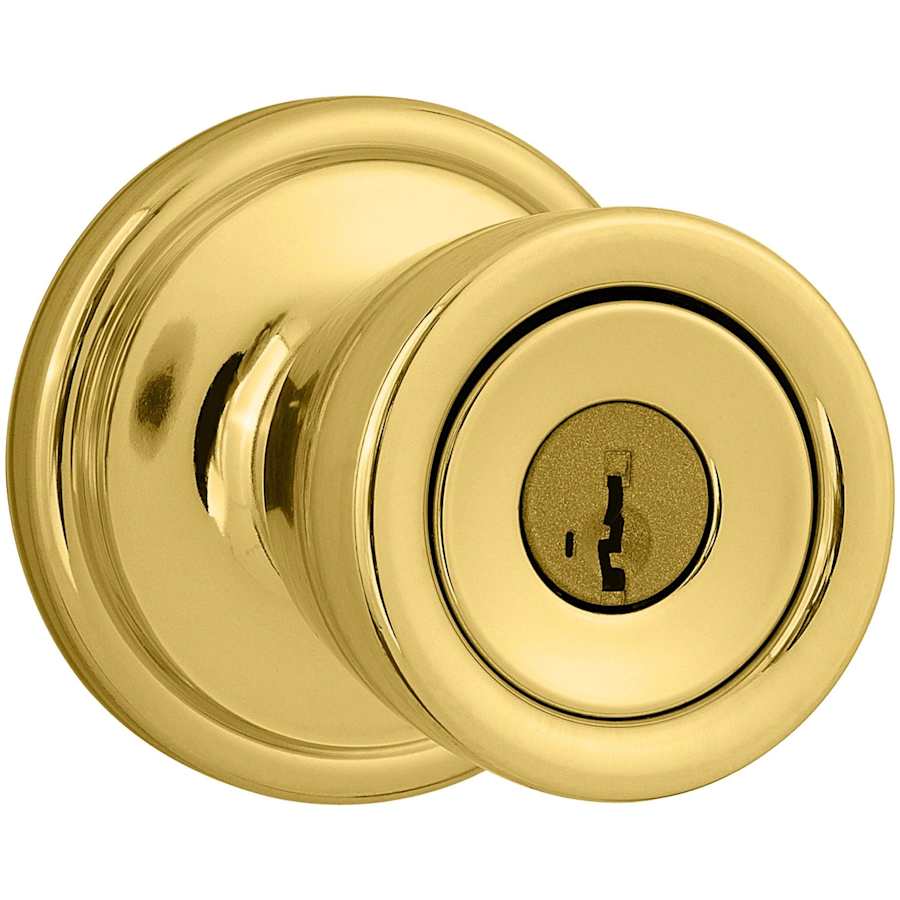

Kwikset 750A-S Abbey Storeroom/Vestibule Door Knobset Featuring SmartKey Cylinder
The Kwikset 750A-S SmartKey Signature Series Grade 2 storeroom knob is exquisitely versatile and the Abbey is right at home in almost any style décor. Its rounded handle is proportioned to fit the palm of the hand, beautifully. This is a Storeroom Knob Set which means the exterior knob is ALWAYS locked unless the key is in the exterior knob and in the turned position. The interior knob is always unlocked (free).
Key it Yourself: Lock is rekeyable by using the included learn tool in less than 30 seconds without removing the lock from the door.
Storeroom means the exterior knob is ALWAYS locked (fixed). Entrance by key only from the exterior side. The interior knob is always free (unlocked).
Features a fully adjustable latch to fit all standard door preparations
ANSI/BHMA Grade 2 Security
Compatible with both right handed and left handed doors
Lifetime mechanical and finish warranty
Includes Standard Round Corner Strike Plate Part Number 83796 (Strike Plate is on Door Jamb). For Square Corner Strike Plate See Product: Kwikset 83437. For a T-Strike Plate See: Kwikset 83028.
Bump guard: Patented side locking bar technology replaces a traditions pin & tumbler design to protect against lock bumping.
Drill Resistance: Cylinder uses two steel balls inserted into the front of the key face to resist attack from drilling.
Smart Key Cylinders are 5-pin, and will not key alike to 6-pin cylinders.
SmartKey®:Â
This technology allows you to re-key your lock in seconds with 3 simple steps and features stainless steel racks, pins, and side locking bar for increased strength and security.
Additional Kwikset Links
View the Manufacturer Warranty
Browse all Kwikset Products
Kwikset Abbey Collection
Specifications
| Thermostat | Transitional |
| Concealed Screws | No |
| Cylinder | SmartKey 5 Pin |
| Cylinder Type | Single Cylinder |
| Function | Vestibule, Keyed Entry, Storeroom |
| Handshower | Left, Reversible, Right |
| Keyway | KW1 |
| Knob Shape | Tulip |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Rosette Shape | Round |
| Approved for Commercial Use | No, Yes |
| Collection | Abbey |
| Series | Signature Series |
| BHMA Certification | Grade 2 |
| Backset | 2-3/8", 2-3/4", Adjustable 2-3/8" or 2-3/4" |
| Handle Height | 2.0313 in. |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-5/8", 1-1/2", 1-3/4", 1-3/8" |
| Edge Bore | 1" |
| Handle Projection | 2.75 in. |
| Handle Width | 2.0313 in. |
| Trim Height | 2.625 in. |
| Trim Width | 2.625 in. |
| Color | Antique Brass |
| Color Tone | Brass Tones |
