Features:

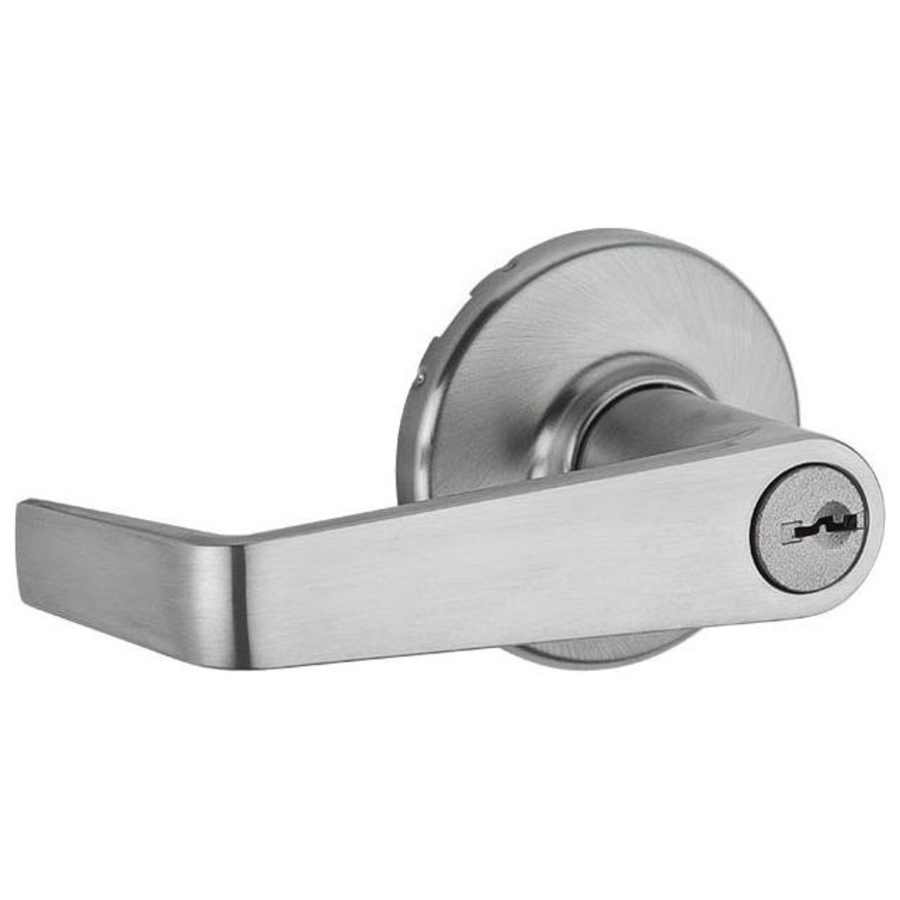

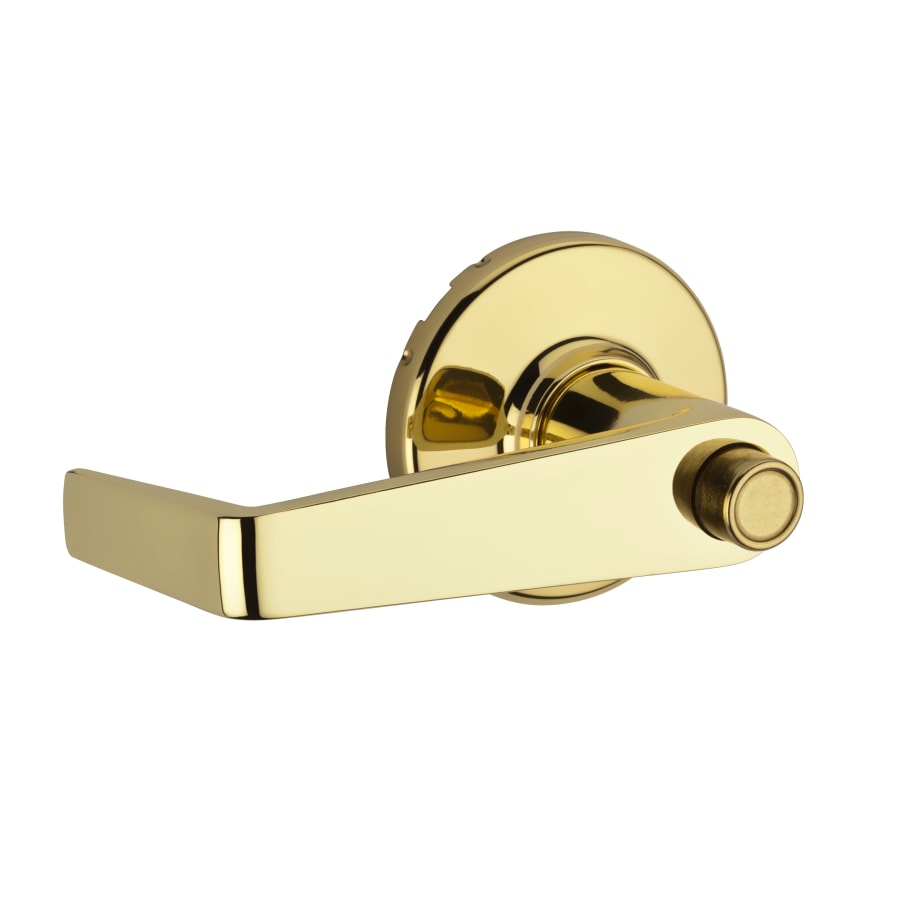

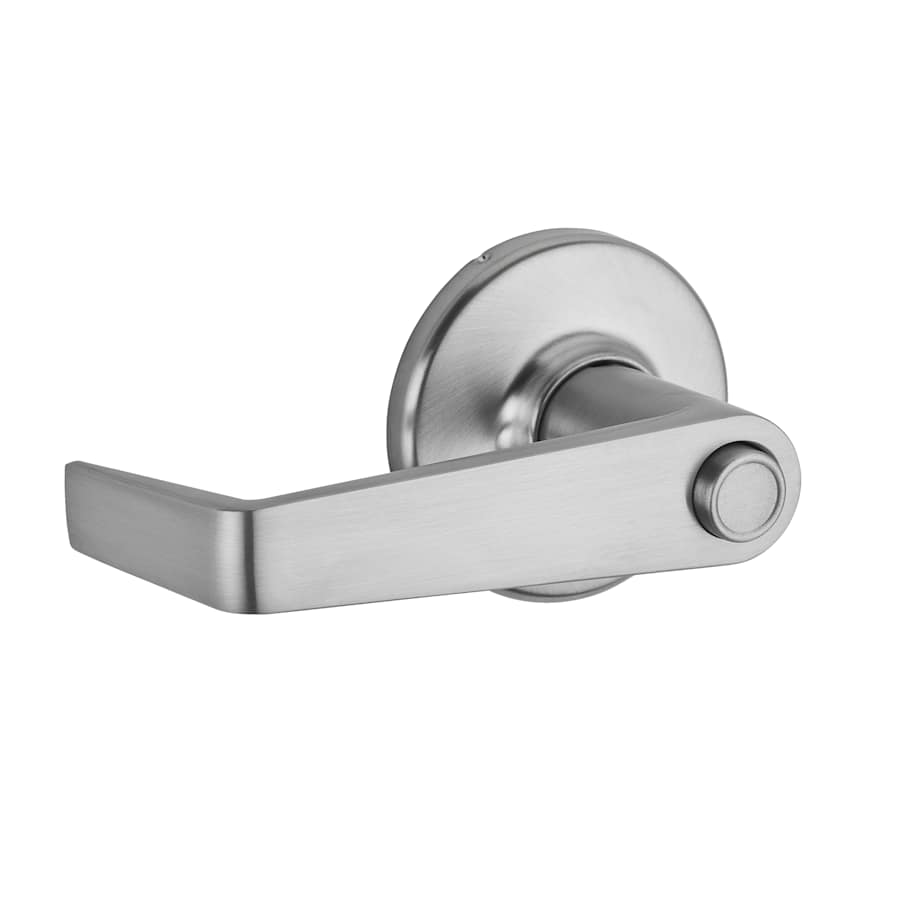

Single cylinder keyed entry door lever set featuring the Kingston lever and interior push button
ANSI/BHMA A156.2, security grade 2
Constructed from high quality steel
Features a reversible, symmetrical design for right or left handed doors
Simple one-person installation; no extra hands needed
Round corner latches available
Lifetime mechanical, 5 year finish warranty
Lever functions meet 4.13.9 ADA requirements
Meets UL 3 hour fire rating
Key Product Attributes:
Keyed Entry Function (Single Cylinder): Keyed entry levers can be locked from the exterior with a key, and then locked or unlocked from the inside with a push-button. Keyed entry sets are most commonly used in residential locations due to safety and ease of use, and are primarily used for securing entrances or private offices.
Specifications:
Backset: Adjustable to 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″ Standard
Door Thickness: 1-3/8″, 1-3/4″
Handing: Reversible
Lever Length: 3.84″
Rose Diameter: 2.56″
Lever Projection: 1.96″
Latch Faceplate: Radius Corner
Cylinder: 5 Pin
Additional Kwikset Links
View the Manufacturer Warranty
Browse all Kwikset Products
Kwikset Kingston Collection
Specifications
| Material | Steel |
| Thermostat | Modern |
| Function | Keyed Entry |
| Handshower | Reversible, Right, Left |
| Concealed Screws | Yes |
| Latch Faceplate | Round Corner |
| Locking Mechanism | Push Button |
| Rosette Shape | Round |
| Handle Material | Metal |
| Cylinder | 5 Pin |
| Cylinder Type | Single Cylinder |
| Keyway | KW1 |
| Panic Proof | Yes |
| Handle Design | Kingston |
| Lever Shape | Straight |
| ADA | Yes |
| Certifications | ANSI, UL |
| Collection | Kingston |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | No, Yes |
| Series | Light Commercial |
| ANSI Certification | A156.2 |
| BHMA Certification | Grade 2 |
| Fire Rated | Yes |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-3/4", 1-3/8" |
| Edge Bore | 1" |
| Handle Projection | 1.96 in. |
| Handle Length | 3.84 in. |
| Trim Height | 2.56 in. |
| Trim Width | 2.56 in. |
| Cylinder Included | Yes |
| Color | Polished Brass |
| Color Tone | Brass Tones |
