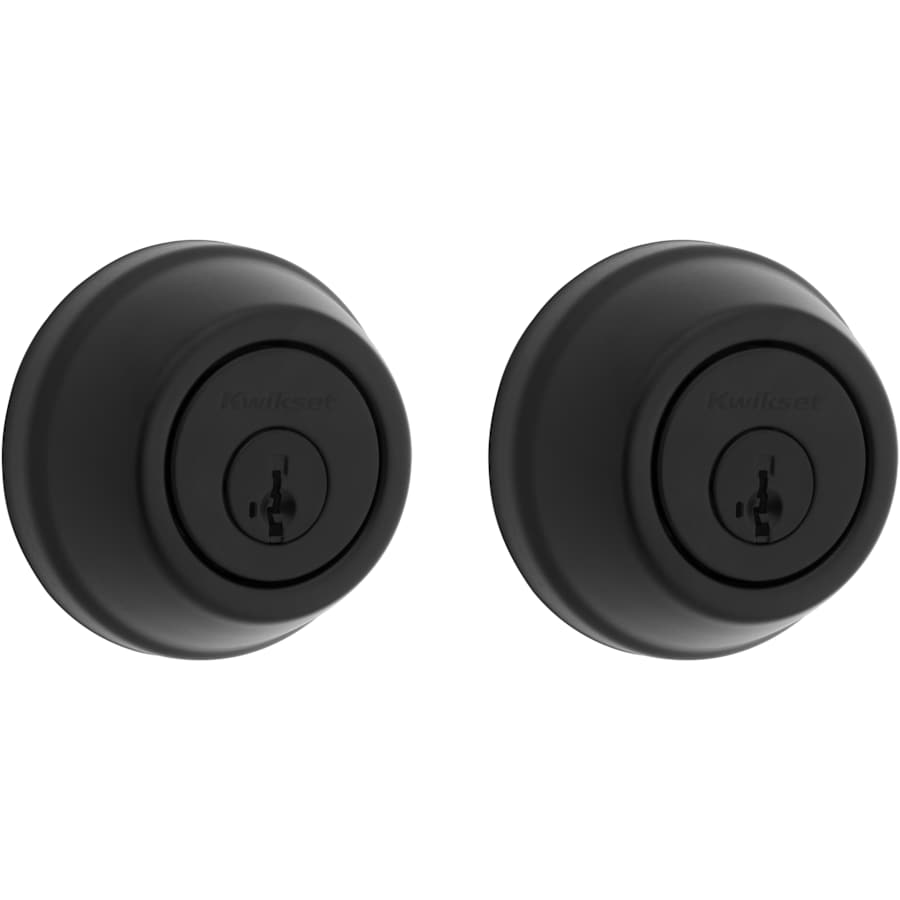

Double Cylinder: The deadbolt is thrown and retracted by a key from either side. As you will not be able to unlock this from the inside without a key, please check your local fire code to ensure this is allowed before purchasing.
Â
Features:
Tested to exceed ANSI/BHMA Grade 2 security requirements
Constructed of solid brass for durability and dependability
Installs easily with all necessary mounting hardware included
Covered by Kwikset’s limited lifetime manufacturer warranty
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 2-1/4″
Handing: Reversible Left or Right
Interior Height: 2-5/8″
Interior Width: 2-5/8″
Interior Projection: 2-1/8″
Exterior Height: 2-5/8″
Exterior Width: 2-5/8″
Exterior Projection: 2-1/8″
Latch Faceplate: Drive-In, Round Corner, or Square Corner
Cylinder: 6 Pin KW1
Additional Kwikset Links
View the Manufacturer Warranty
Browse all Kwikset Products
Kwikset 780 Collection
Specifications
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2", 2-1/4", 2-1/8" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Exterior Height | 2.625 in. |
| Exterior Projection | 2.15625 in. |
| Exterior Width | 2.625 in. |
| Interior Height | 2.625 in. |
| Interior Projection | 2.15625 in. |
| Interior Width | 2.625 in. |
| Concealed Screws | No |
| Function | Keyed Entry |
| Handshower | Left, Reversible, Right |
| Material | Brass |
| Rosette Shape | Round |
| Solid Construction | Solid Brass |
| Thermostat | Traditional |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Cylinder Type | Double Cylinder |
| Cylinder | 6 Pin |
| Keyway | KW1 |
| Number of Keys | 2 |
| ADA | No |
| Approved for Commercial Use | No |
| Collection | 780-Series |
| Manufacturer Warranty | Limited Lifetime |
| Series | Signature Series |
| Certifications | ANSI |
| ANSI Certification | A156.5 |
| BHMA Certification | Grade 2 |
| Color | Matte Black, Polished Brass, Polished Chrome, Satin Chrome, Satin Nickel, Venetian Bronze |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
