Kwikset Key Control UL Listed Single Cylinder Deadbolt with the SmartKey Feature FOR MASTER KEYING PROJECTS
Introducing Kwikset’s Key Control Deadbolt, featuring SmartKey re-key technology, a revolutionary cost and time-saving alternative to master keying. Re-keying a traditional master key system is labor intensive, time consuming and costly. This is the first two-cylinder Key Control Deadbolt and both cylinders can be re-keyed in seconds, without removing the lock from the door. Retain your one-key access to all units (master key) and gain more flexible key management, all while saving time and money. The new Key Control Deadbolt is the perfect alternative to master keying. Meets UL 3 hour fire rating for UL Function: UL Ref # R10923

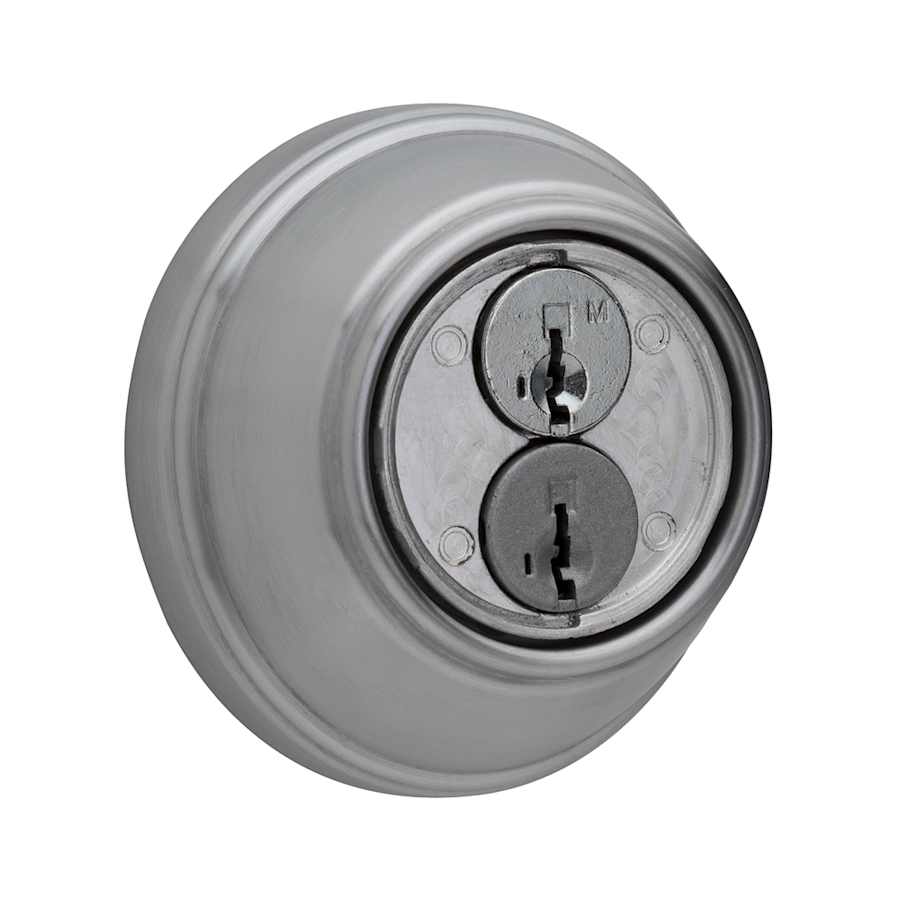

Top concealed cylinder provides one-key control for the property manager
Lower exposed cylinder allows unique user keys for the tenant
Re-key your user or control cylinder at any time in seconds
Maintain key control throughout tenant and employee turnover
Both Cylinders Feature the SmartKey Re-Key Technology
Increased Efficiency: Re-key the lock without removing from the door and Save time & money by re-keying yourself
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

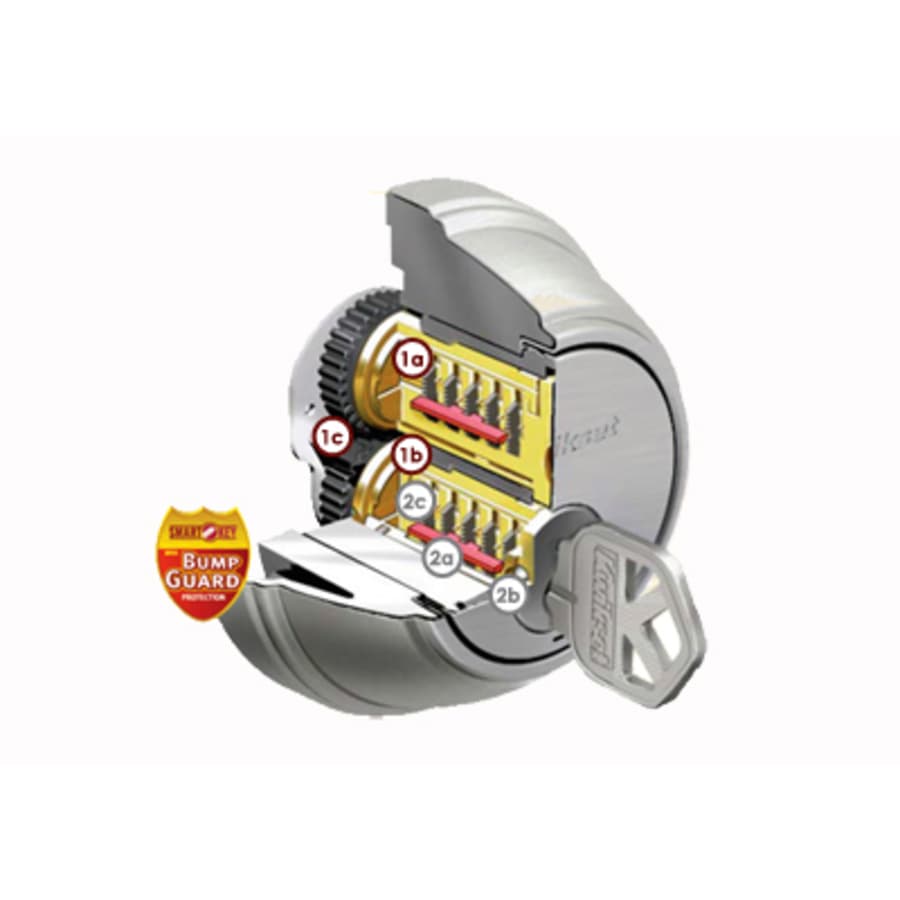

KEY TO THE DIAGRAM IN THE PRODUCT MULTIMEDIA ADDITIONAL IMAGES ABOVE:
1a: Concealed Key Control cylinder has a unique patented keyway to provide increased security. Simply rotate the cylinder cap to expose the cylinder for use
1b: User cylinder utilizes the traditional Kwikset keyway and keys.
1c: Gear assembly enables both cylinders to lock or retract the deadbolt latch.
ALSO FEATURES: CERTIFIED GRADE 2 ANSI/BHMA SECURITY BUMPGUARD(tm)
2a BUMPGUARD – Patented side locking bar technology offers improved security by protecting against lock bumping, an attack on conventional pin & tumbler locks.
2b: DRILL RESISTANCE – Cylinder uses two steel balls inserted into the front of the key face to resist attacks from drilling.
2c: PICK RESISTANCE: Superior SmartKey withstands the highest level of UL pick testing, the UL 437, Par. 11.6.
Additional Kwikset Links
View the Manufacturer Warranty
Browse all Kwikset Products
Kwikset Key Control Collection
Specifications
| Thermostat | Traditional |
| Latch Faceplate | Round Corner |
| Concealed Screws | No |
| Cylinder | SmartKey 5 Pin |
| Cylinder Type | Single Cylinder |
| Function | Keyed Entry |
| Keyway | KW1 |
| Shape | Round |
| ADA | Yes |
| Approved for Commercial Use | No |
| Collection | Key Control |
| Series | Signature Series |
| Certifications | ANSI, UL |
| ANSI Certification | A156.5 |
| BHMA Certification | Grade 2 |
| Edge Bore | 1" |
| Backset | 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Exterior Projection | 1.625 in. |
| Exterior Width | 2.875 in. |
| Color | Antique Brass, Matte Black, Polished Brass, Polished Chrome, Satin Chrome, Satin Nickel, Venetian Bronze |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
