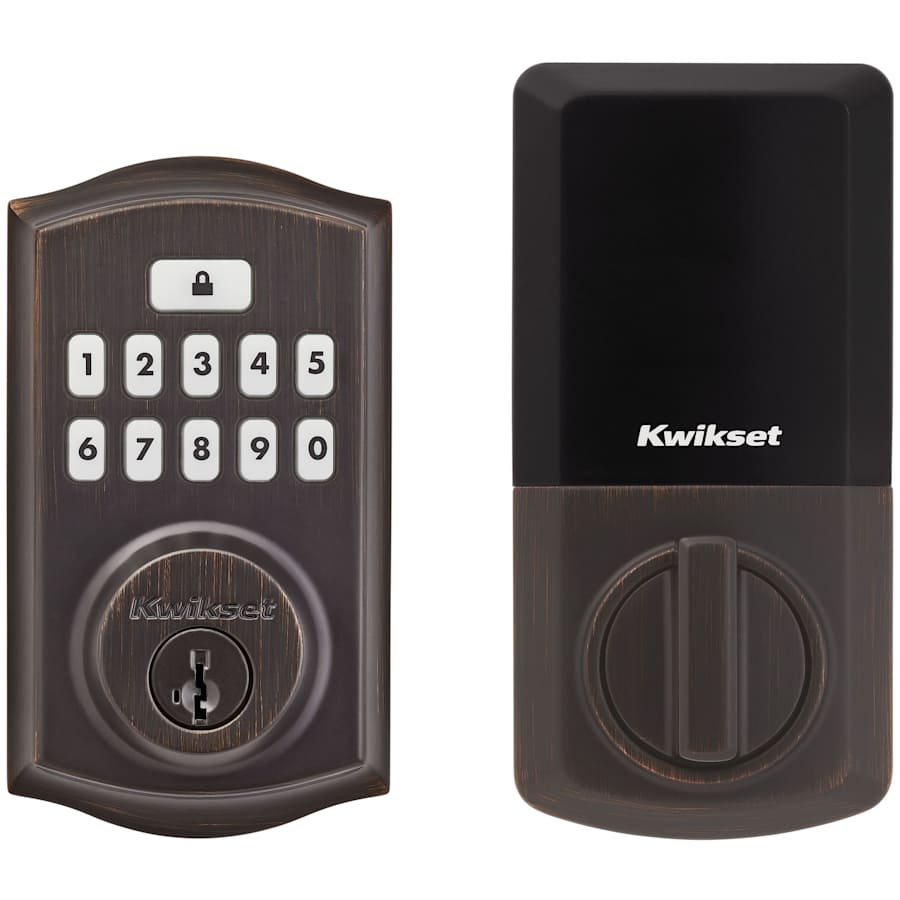

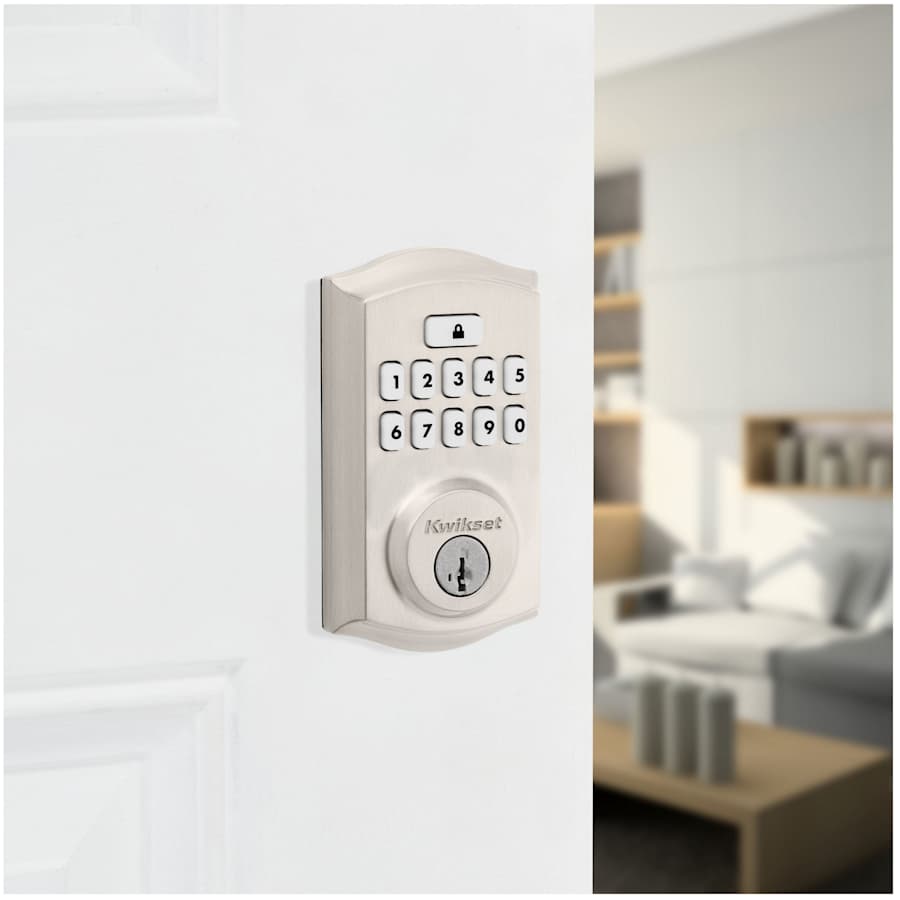

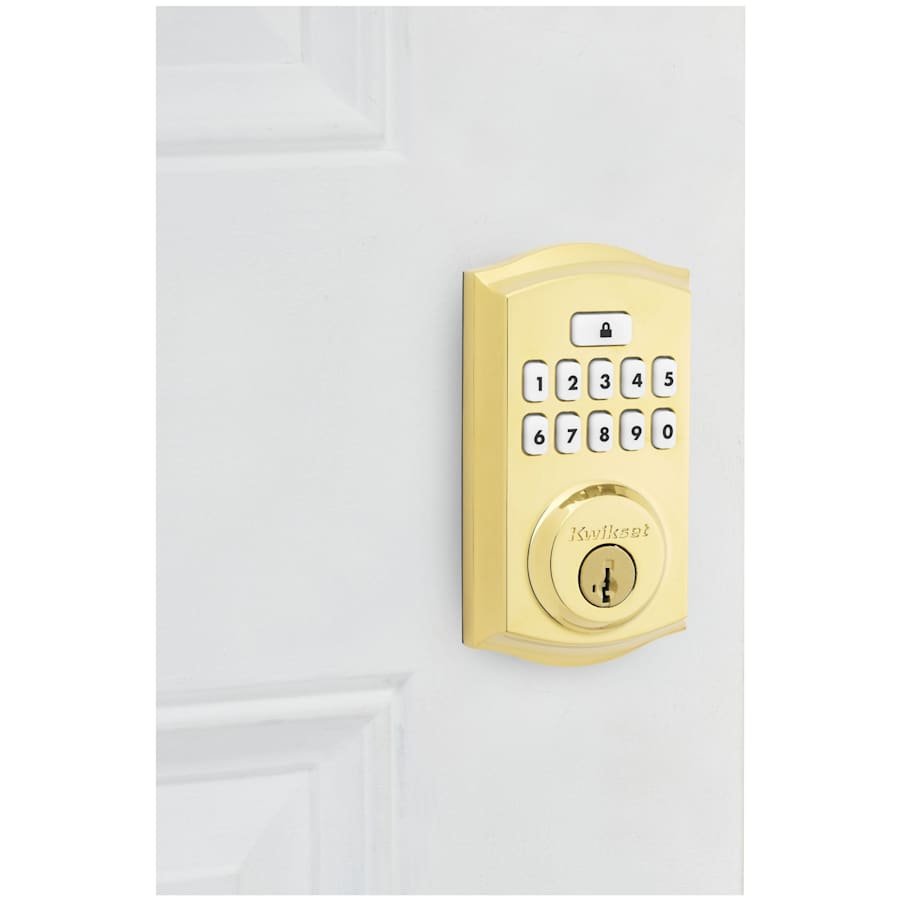

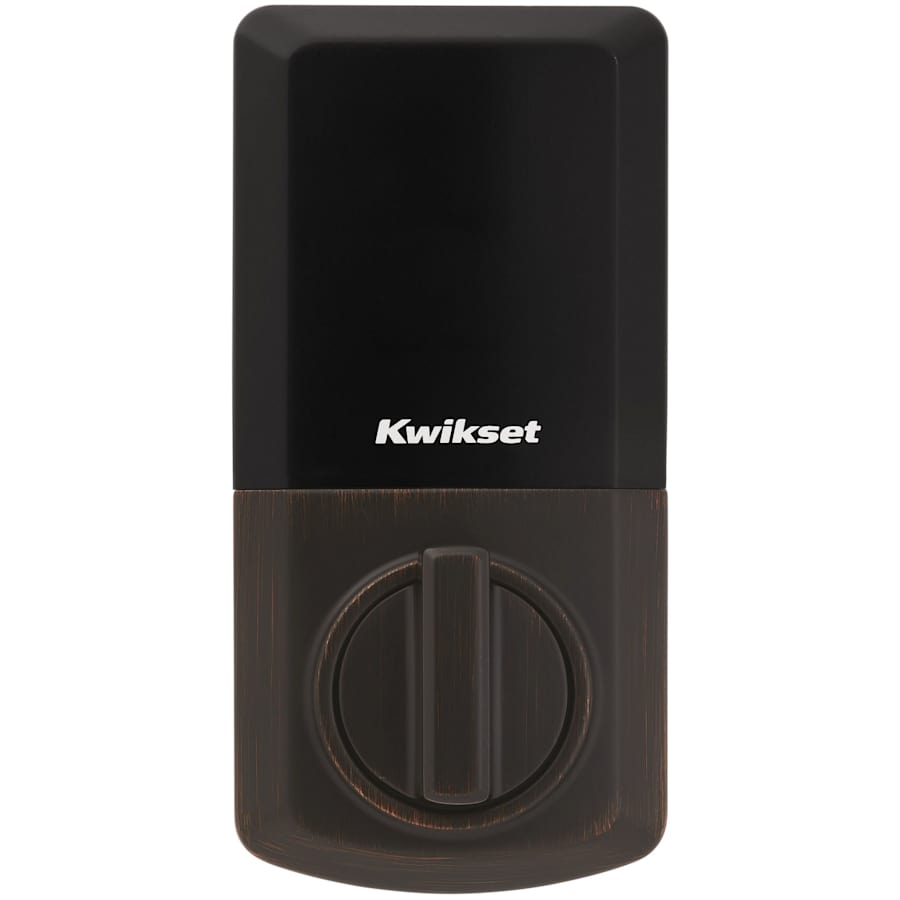

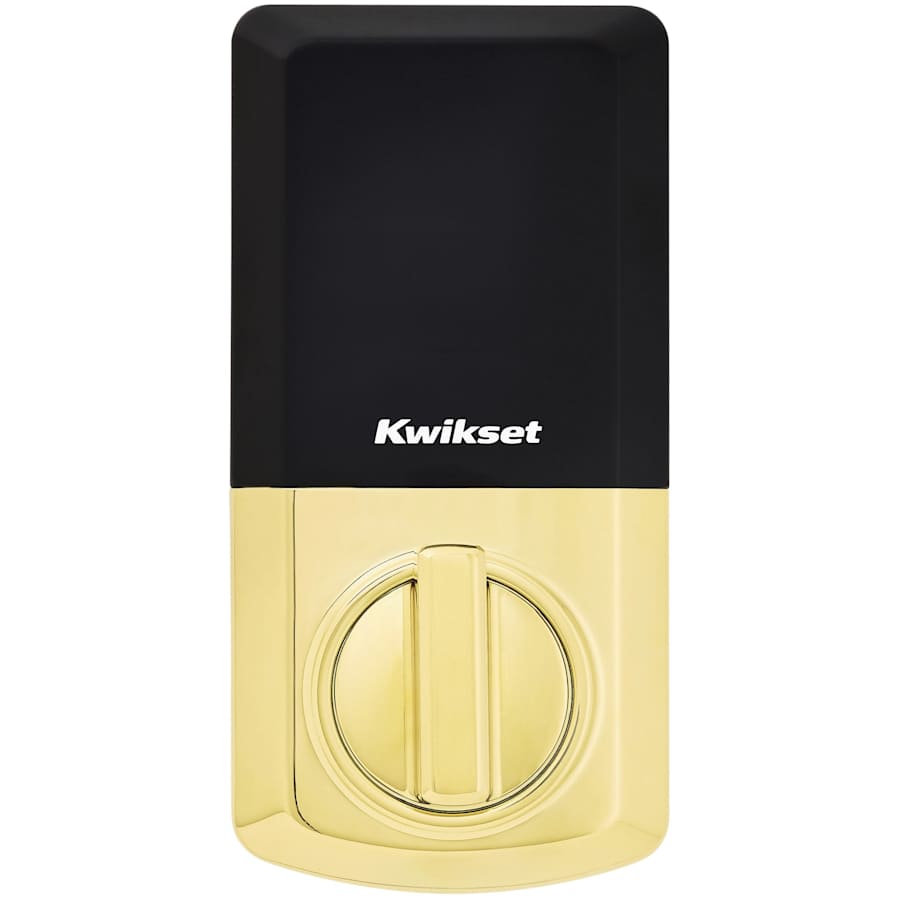

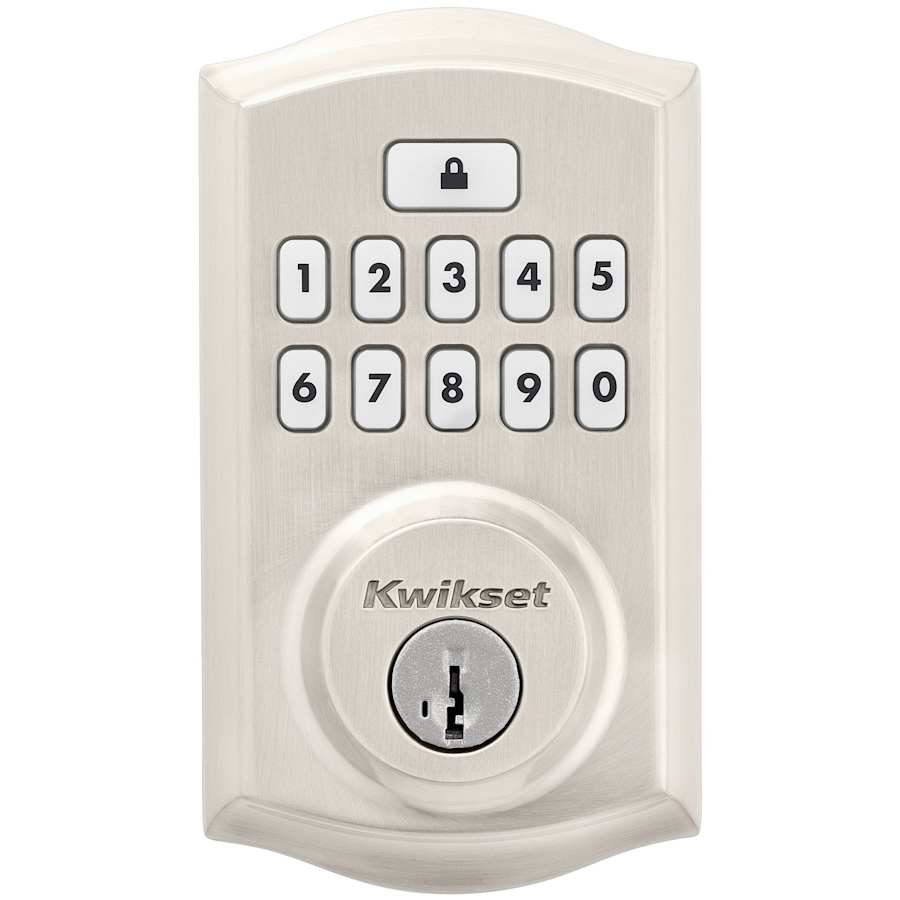

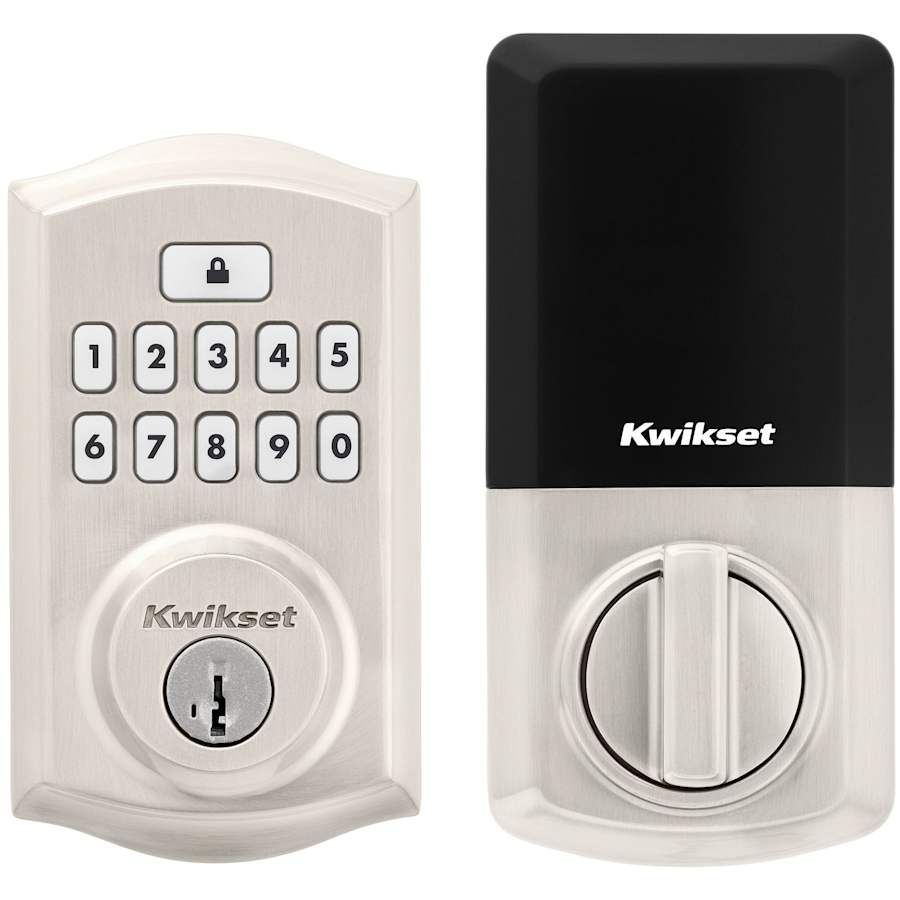

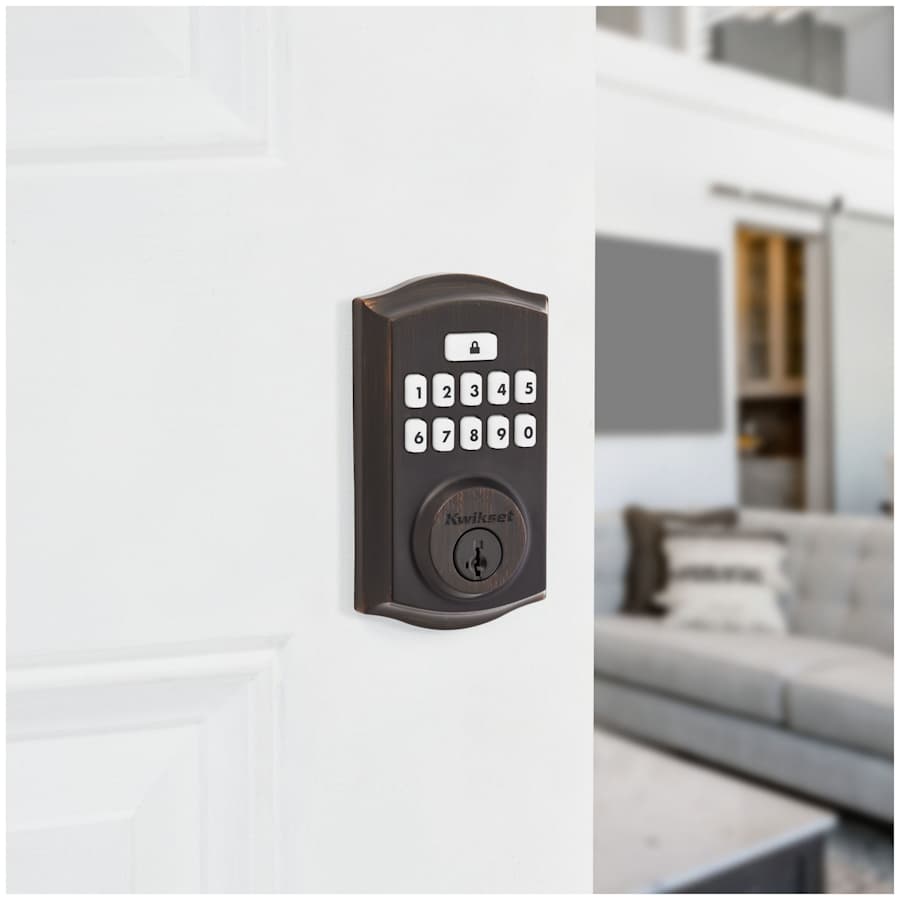

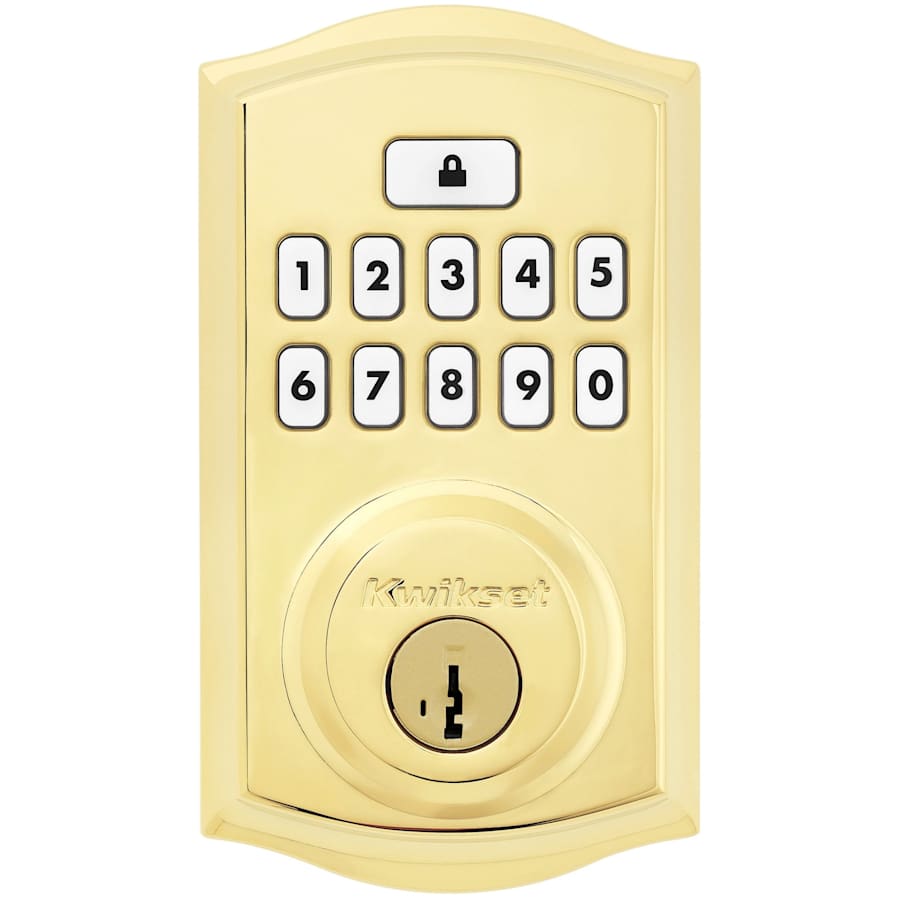

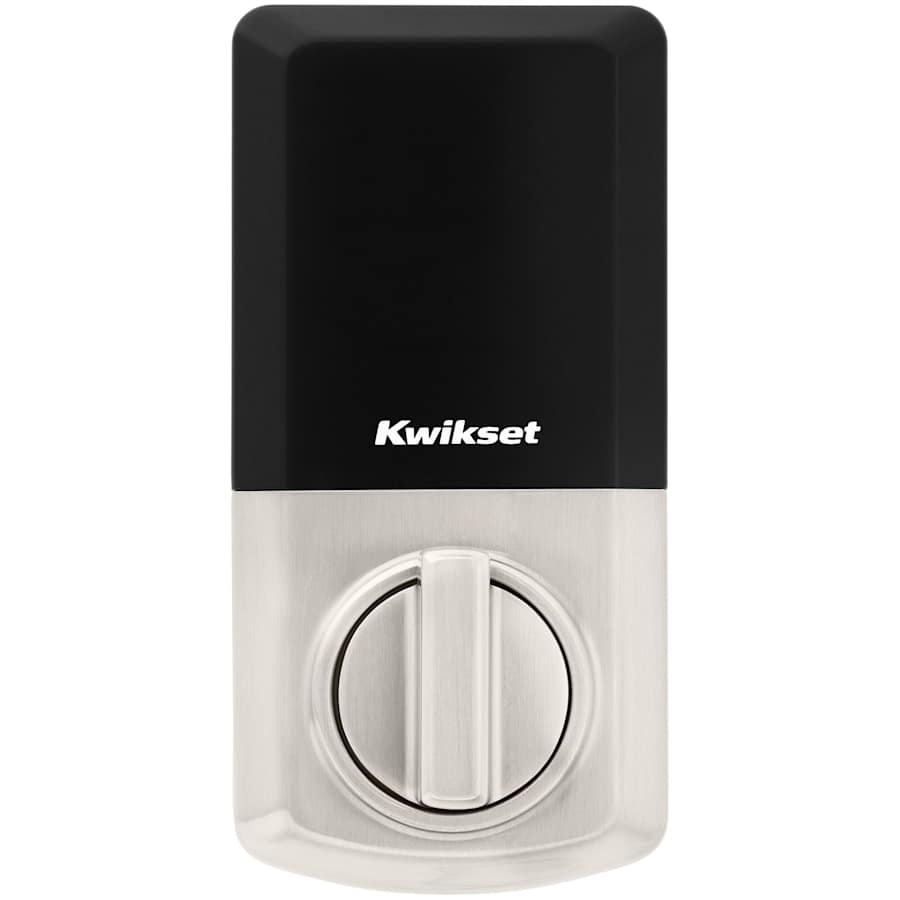

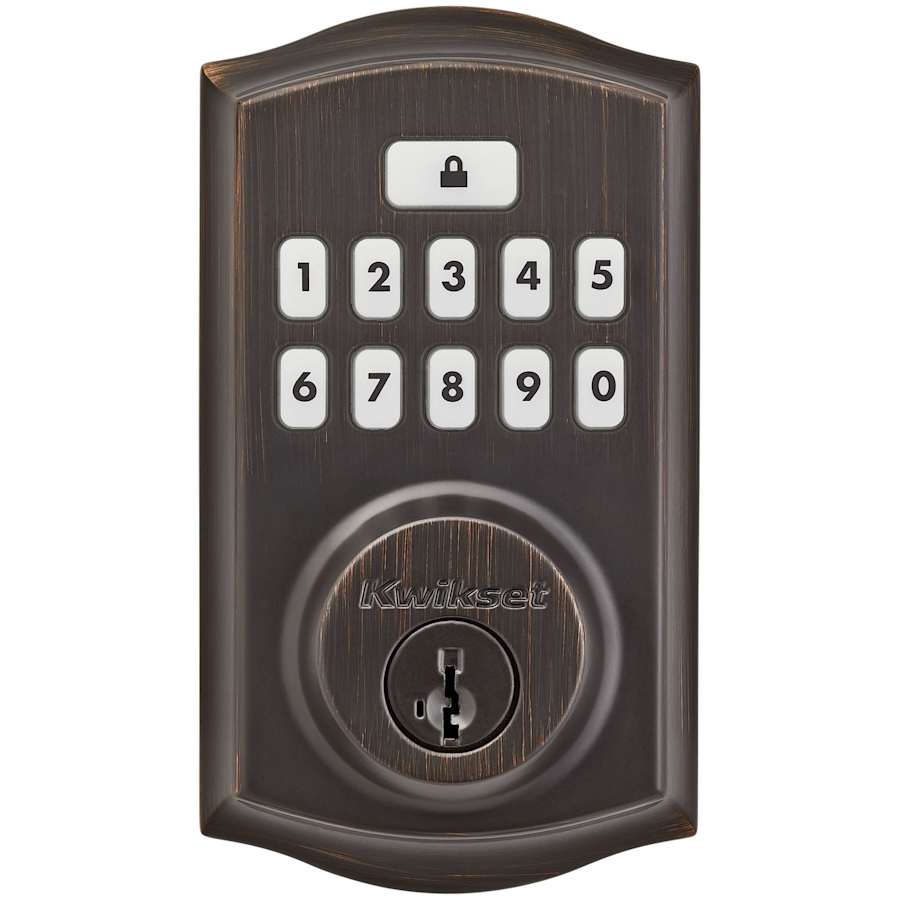

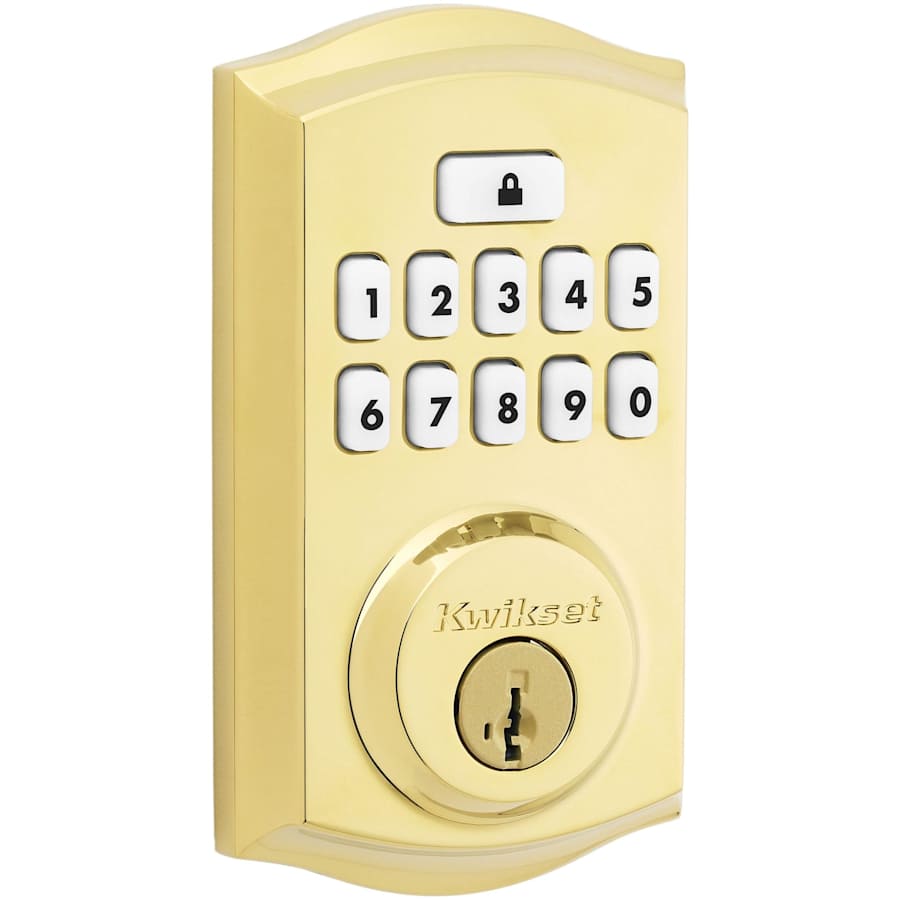

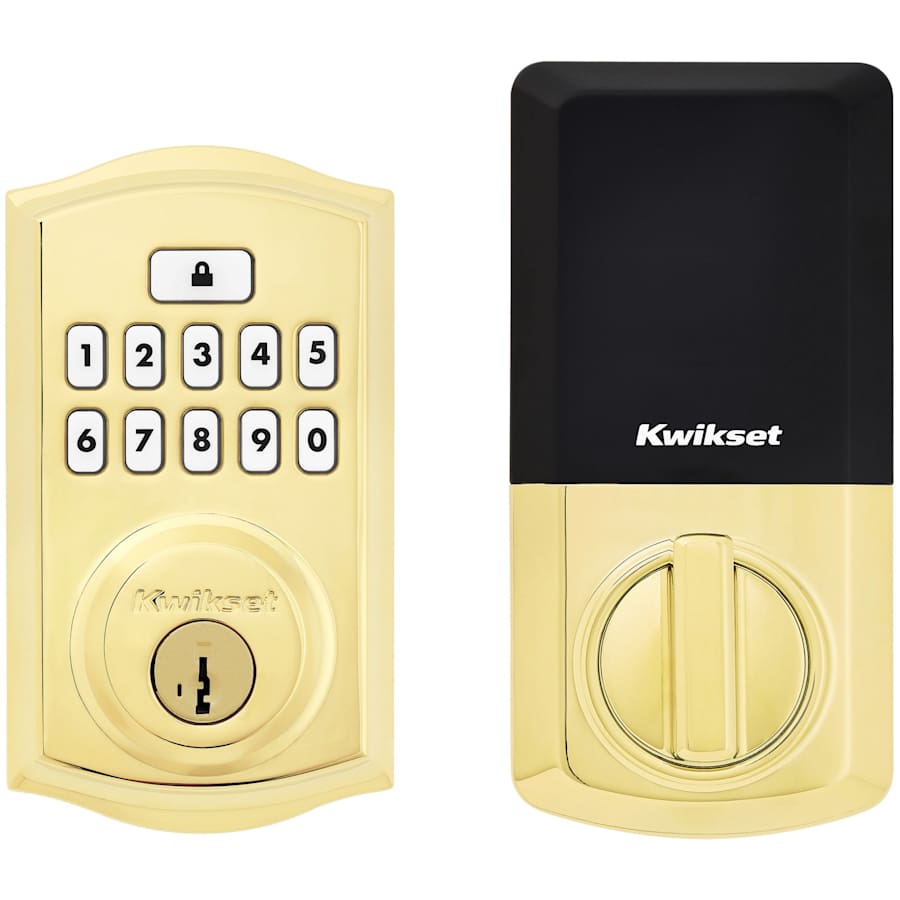

Single Cylinder Keyless Entry: The electronic keypad allows you to lock and unlock the handleset without the use of a key. It has the versatility of keyless operation while still retaining the functionality of keyed entry, having both a keypad and lock cylinder on the outside and a thumb turn on the interior. It’s perfect for front doors, side or back doors, and garage entry doors.
Â
Features:
Tested to exceed ANSI/BHMA Grade 2 security requirements
Constructed of high quality materials for durability and dependability
SmartKey Re-keying
20 minute UL fire rating
Responsive keypad provides bright LED illumination for easy code access
Fast motorized deadbolt with one-touch locking
Auto-locking after 30 seconds or select custom auto-lock time delay
Up to 50 user codes and 10 one-time user codes with optional programming code
Covered by Kwikset’s 1 year electronics, limited lifetime finish, and limited lifetime mechanical manufacturer warranties
Product Technologies:
SmartKey®:Â
This technology allows you to re-key your lock in seconds with 3 simple steps and features stainless steel racks, pins, and side locking bar for increased strength and security.
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 1-1/2″, 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Reversible Left or Right
Interior Height: 5-1/2″
Interior Width: 2-3/4″
Interior Projection: 1-11/16″
Exterior Height: 5″
Exterior Width: 2-13/16″
Exterior Projection: 1″
Latch Faceplate: Round Corner or Square Corner
Cylinder: SmartKey 5 Pin KW1
Additional Kwikset Links
View the Manufacturer Warranty
Browse all Kwikset Products
Kwikset SmartCode Deadbolts Touchpad Collection
Specifications
| Thermostat | Traditional |
| Smart Home | No |
| Handshower | Left, Reversible, Right |
| Concealed Screws | Yes |
| Cylinder | SmartKey 5 Pin |
| Cylinder Type | Single Cylinder |
| Function | Keyless Entry, Electronic Keyless Entry |
| Keyway | KW1 |
| Latch Faceplate | Round Corner, Square Corner |
| Rosette Shape | Rectangle |
| Auto-Lock Capable | Yes |
| Number of Codes | 50 |
| Battery Quantity | 4 |
| Insulation Type | Keypad |
| Lit Keypad | Yes |
| Motorized Deadbolt | Yes |
| Collection | SmartCode Deadbolts Touchpad |
| Manufacturer Warranty | 1 Year Electronics, Limited Lifetime Finish, Limited Lifetime Mechanical |
| Certifications | UL |
| Fire Rated | Yes |
| BHMA Certification | Grade 2 |
| Power Source | Battery |
| Battery Size | AA |
| Product Weight | 3.29 lbs. |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Interior Height | 5.5 in. |
| Interior Width | 2.75 in. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 1-1/2", 2-1/8" |
| Edge Bore | 1" |
| Exterior Height | 5 in. |
| Exterior Projection | 1 in. |
| Exterior Width | 2.8125 in. |
| Interior Projection | 1.6875 in. |
| Color | Lifetime Polished Brass, Satin Nickel, Venetian Bronze |
