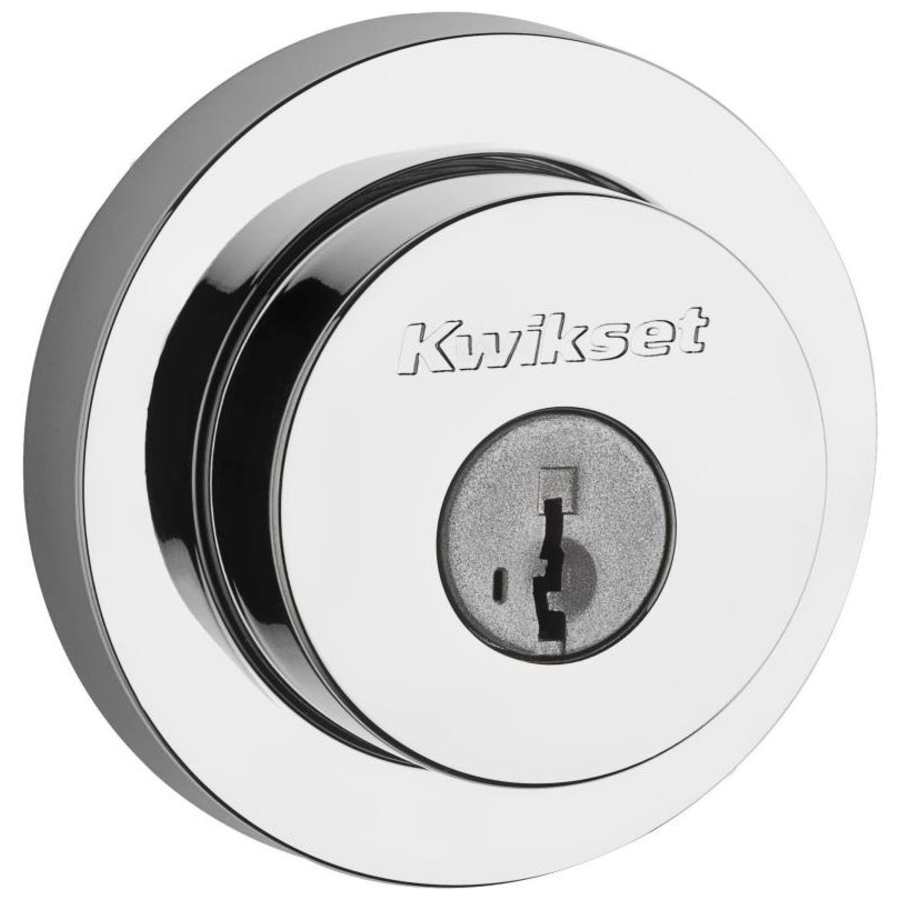

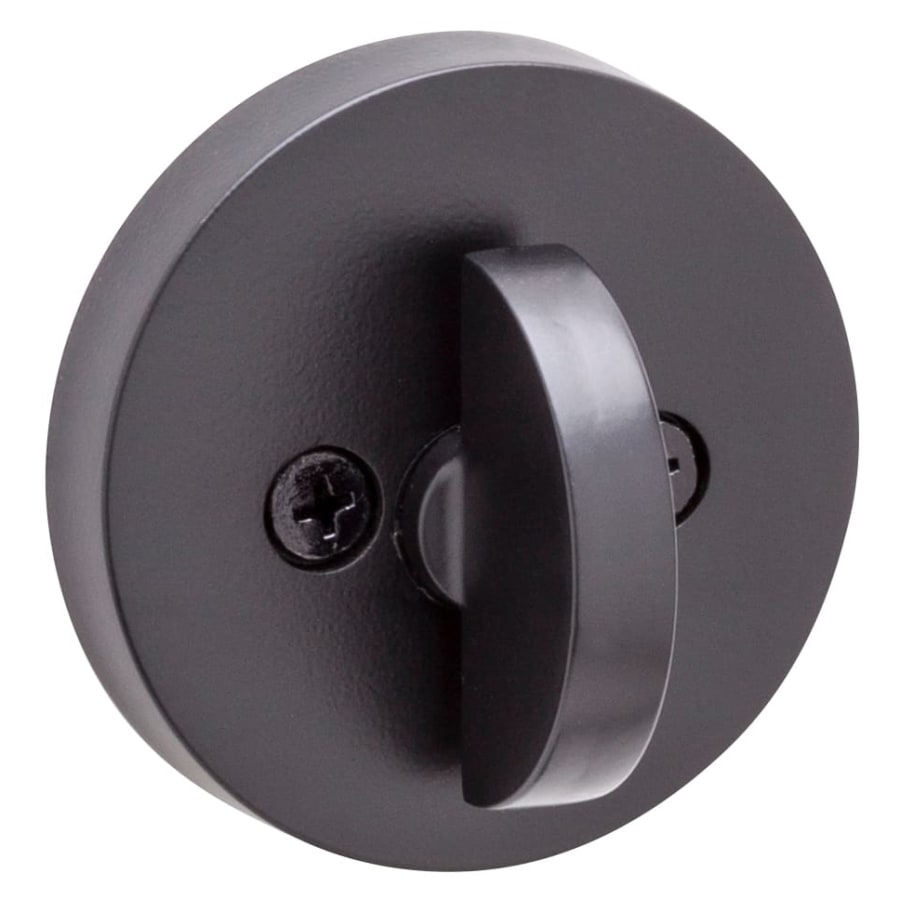

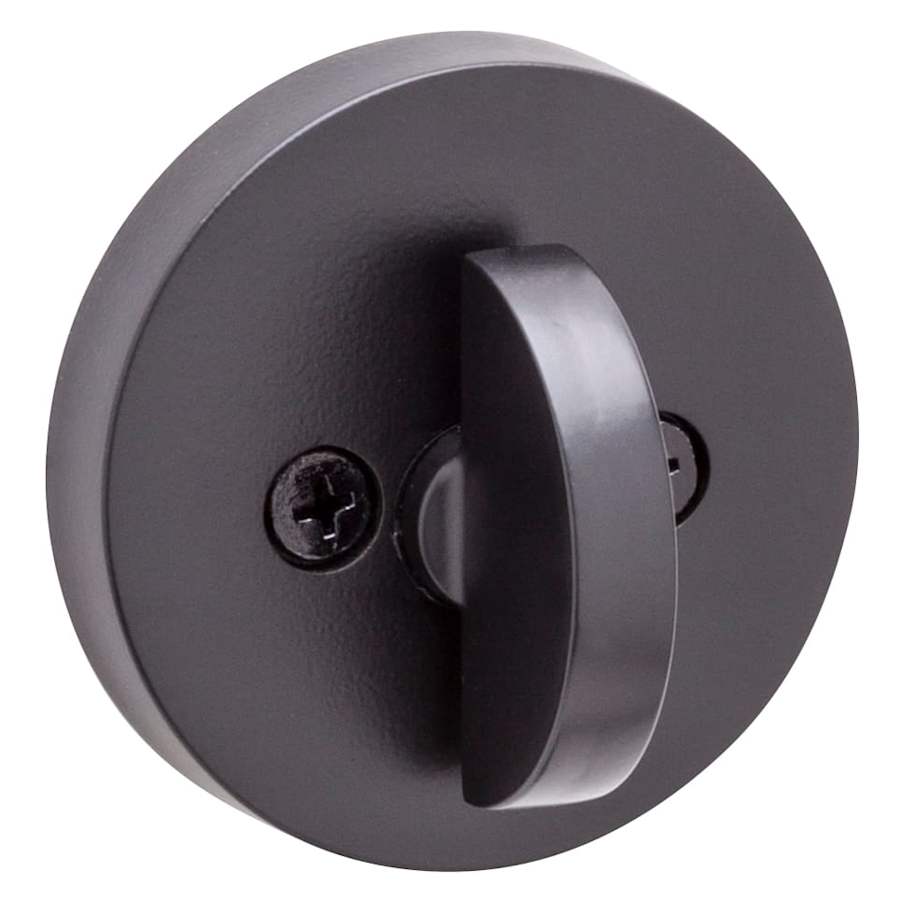

Single Cylinder: Single cylinder deadbolts are keyed on the exterior with an associated thumb turn on the inside that can quickly and easily lock or unlock the latch mechanism. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.
Â
Features:
BHMA certified grade 1 security
Constructed of high quality materials for lasting durability
Installs easily with all necessary mounting hardware included
Interior thumbturn complies with ADA standards
Covered by a limited lifetime manufacturer warranty
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Key Product Attributes:
BumpGuard™: Lock bumping is an attack technique used to defeat conventional pin and tumbler locks. Kwikset’s BumpGuard™ component utilizes a patented side locking bar which replaces the traditional pin and tumbler design providing protection against lock bumping.
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 1-1/2″ or 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Reversible Left or Right
Interior Height: 2-1/2″
Interior Width: 2-1/2″
Interior Projection: 1-3/8″
Exterior Height: 2-1/2″
Exterior Width: 2-1/2″
Exterior Projection: 15/16″
Product Weight: 1.4lb
Latch Faceplate: Round Corner
Cylinder: 5 Pin KW1
Additional Kwikset Links
View the Manufacturer Warranty
Browse all Kwikset Products
Kwikset Signature Series Collection
Specifications
| Material | Zinc |
| Concealed Screws | No |
| Function | Keyed Entry |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Round Corner |
| Rosette Shape | Round |
| Thermostat | Modern |
| Keyway | KW1 |
| Cylinder Type | Single Cylinder |
| Cylinder | 5 Pin KW1 |
| Number of Keys | 2 |
| ADA | Yes |
| Approved for Commercial Use | No |
| Certifications | ANSI, UL |
| Country Of Origin | Mexico |
| Collection | Milan |
| Fire Rated | Yes |
| Manufacturer Warranty | Limited Lifetime Mechanical |
| Series | Signature |
| ANSI Certification | A156.36 |
| BHMA Certification | Grade 1 |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 1-1/2", 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Edge Bore | 1" |
| Product Weight | 1.4 lbs. |
| Interior Height | 2.53125 in. |
| Interior Width | 2.53125 in. |
| Exterior Height | 2.53125 in. |
| Exterior Projection | 0.9375 in. |
| Exterior Width | 2.53125 in. |
| Interior Projection | 1.40625 in. |
| Color | Bright Chrome, Iron Black, Satin Chrome, Satin Nickel, Venetian Bronze |
