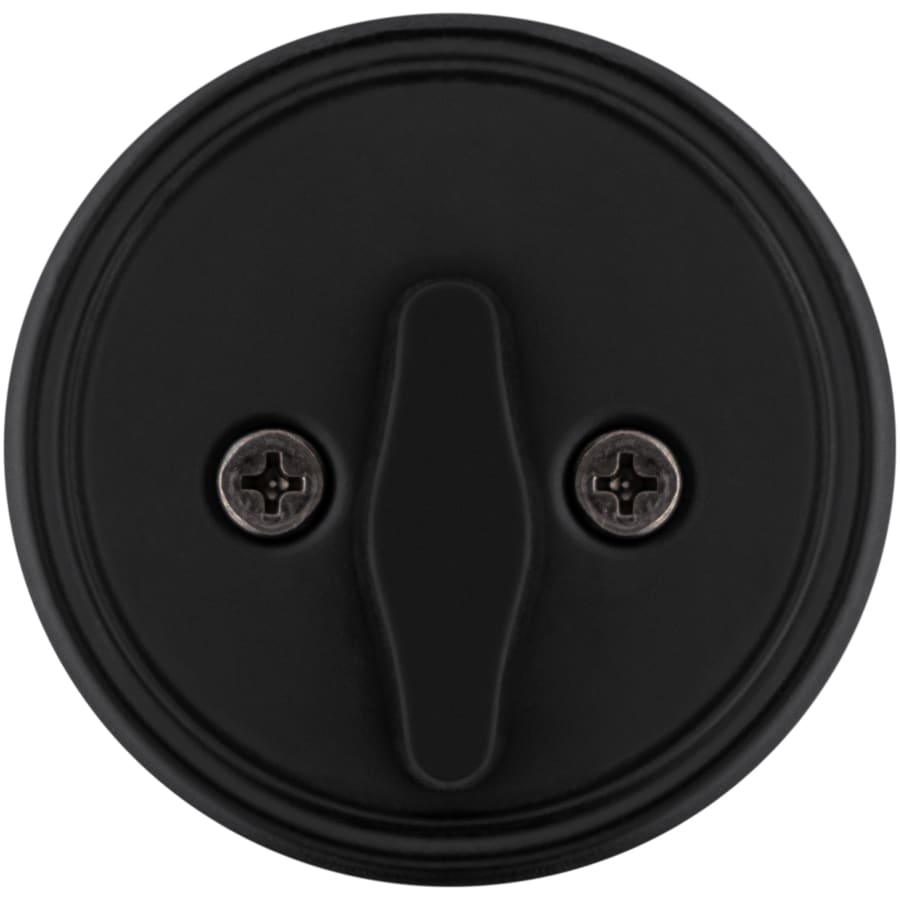

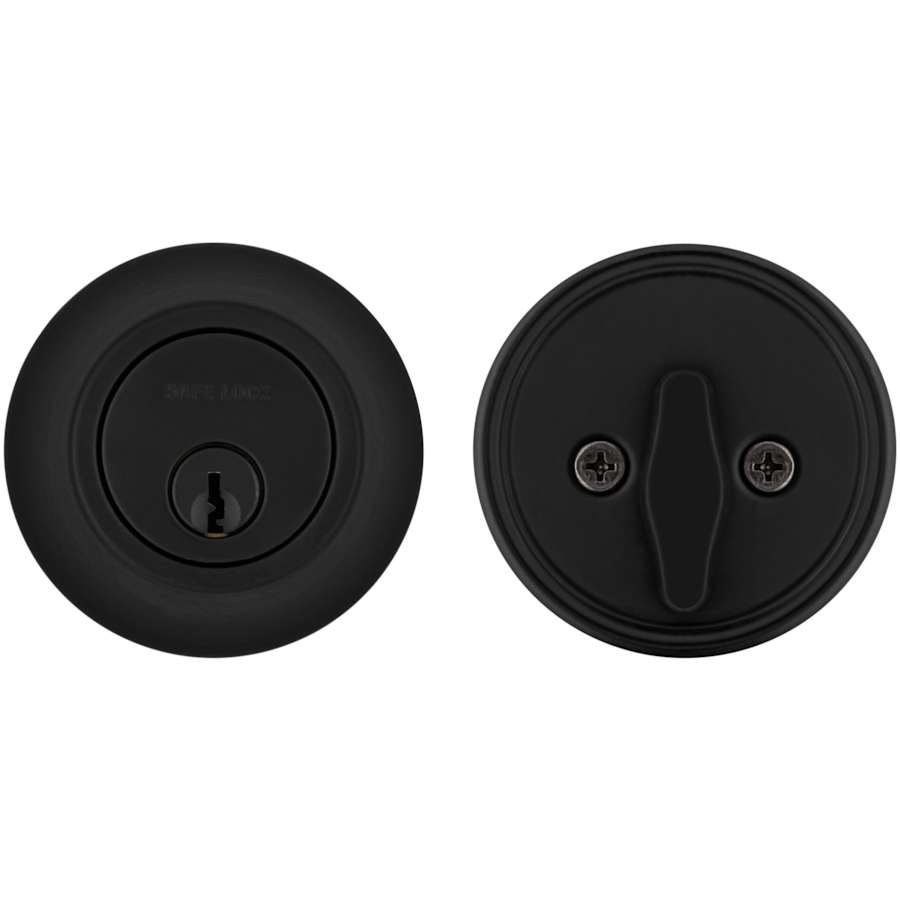

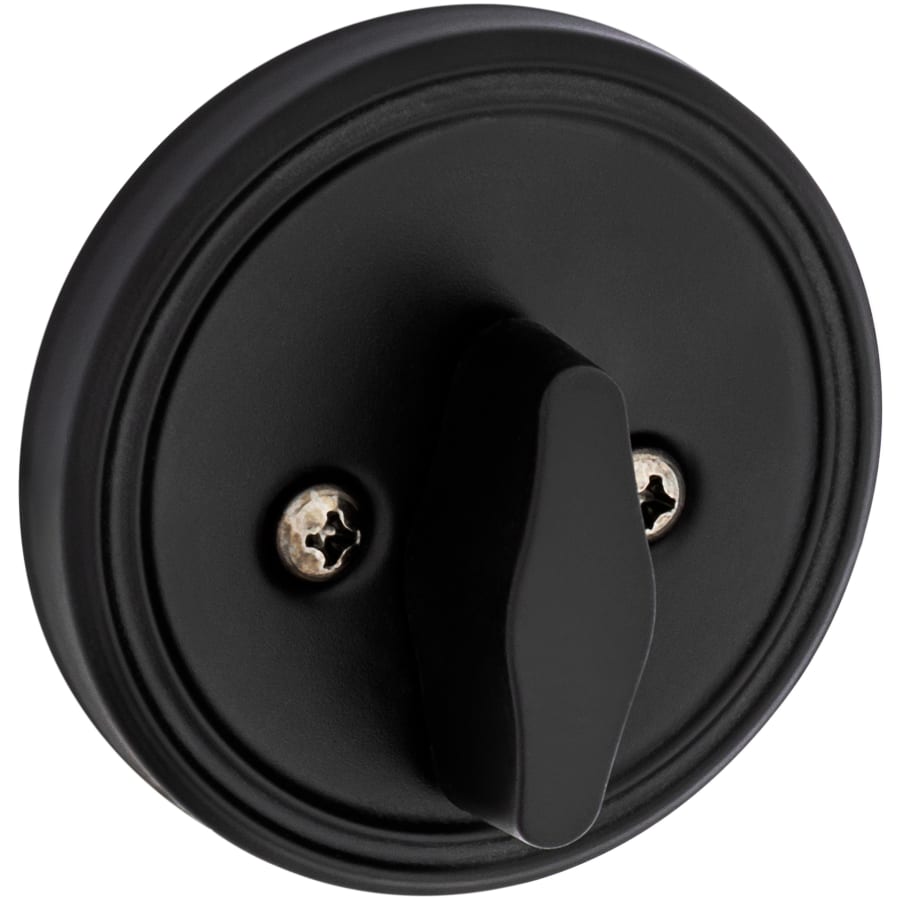

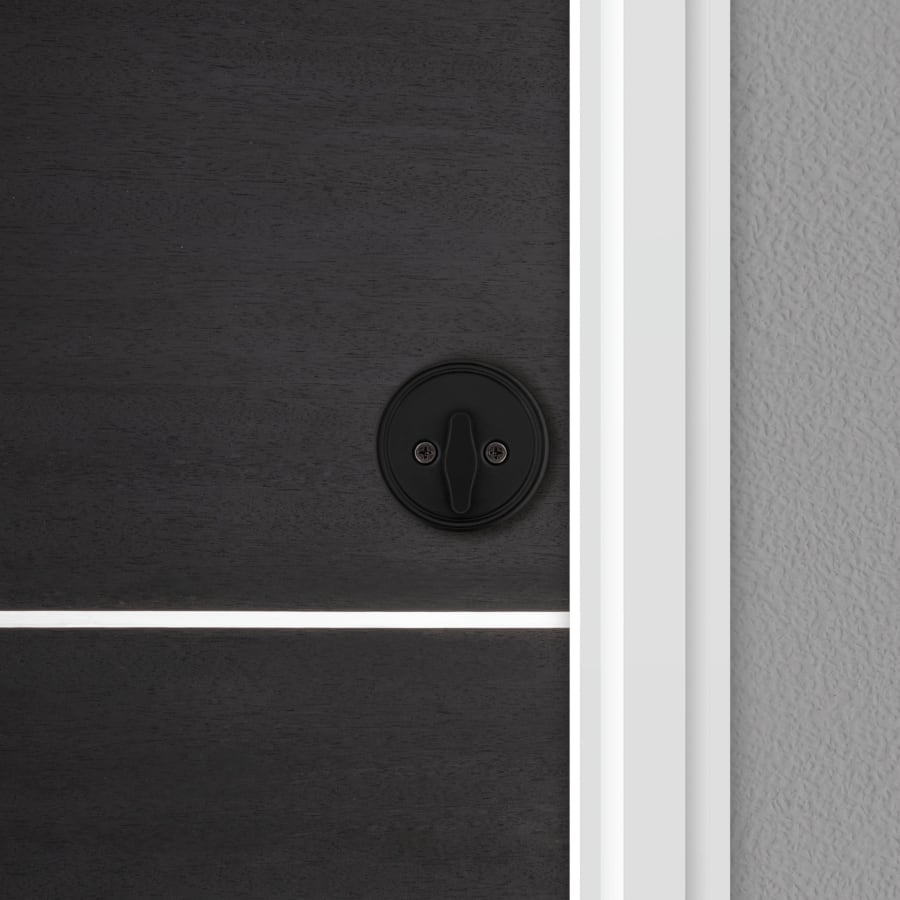

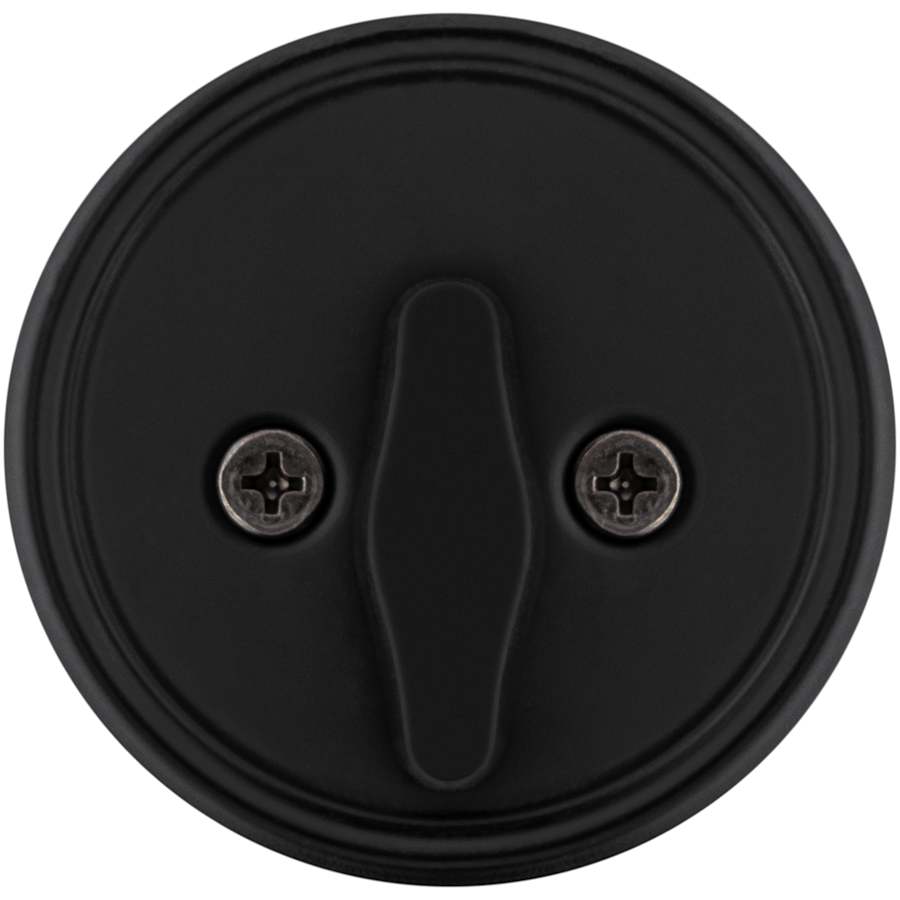

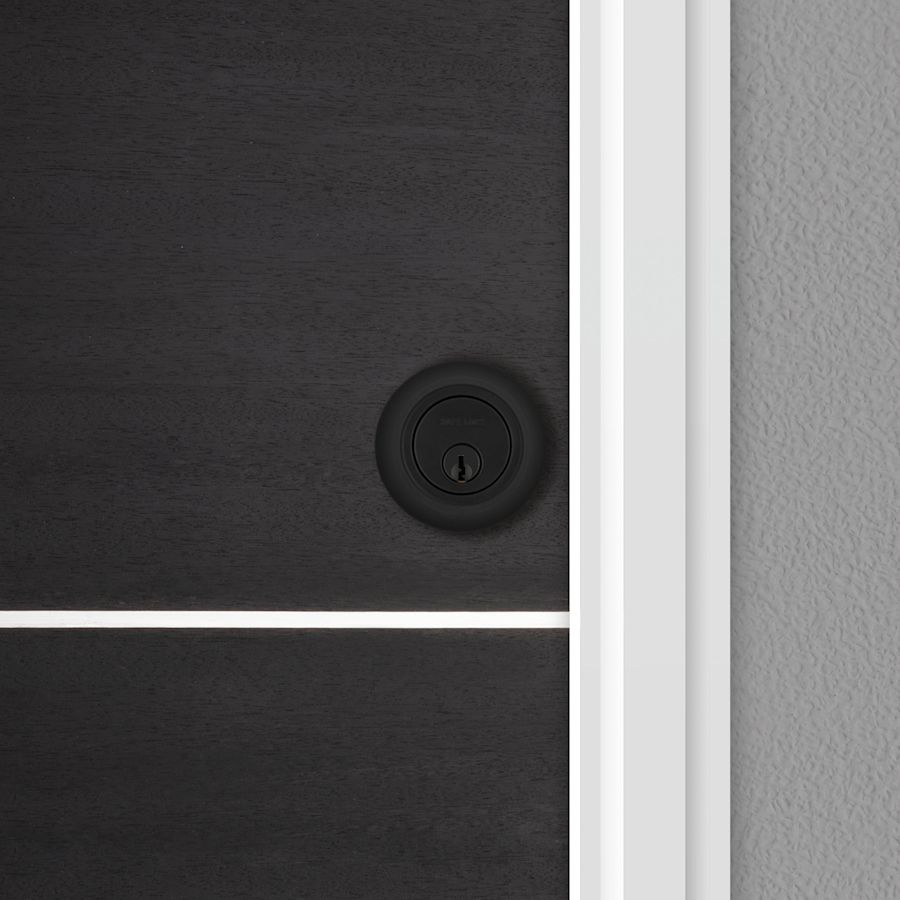

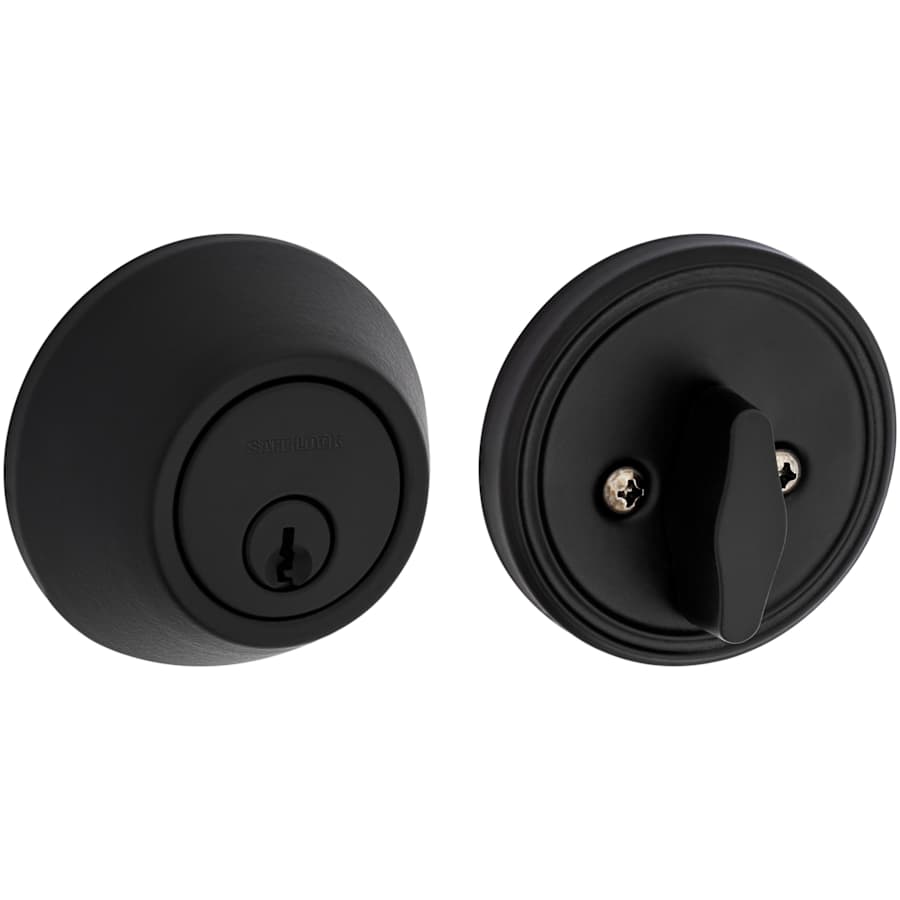

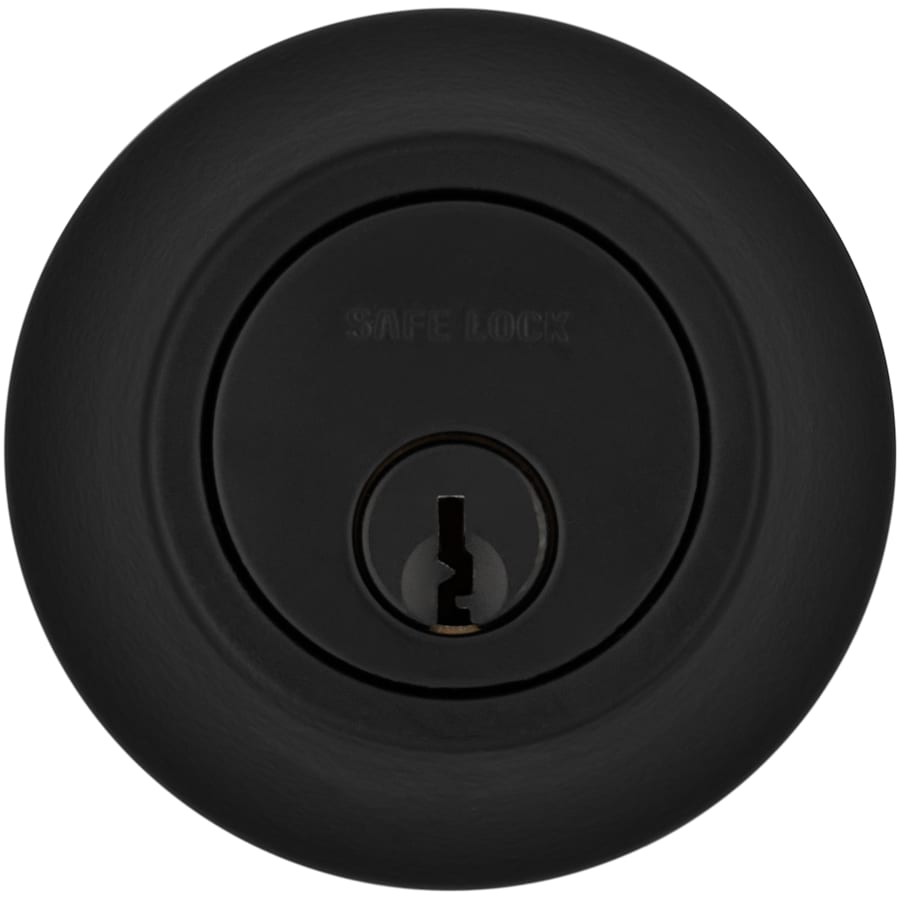

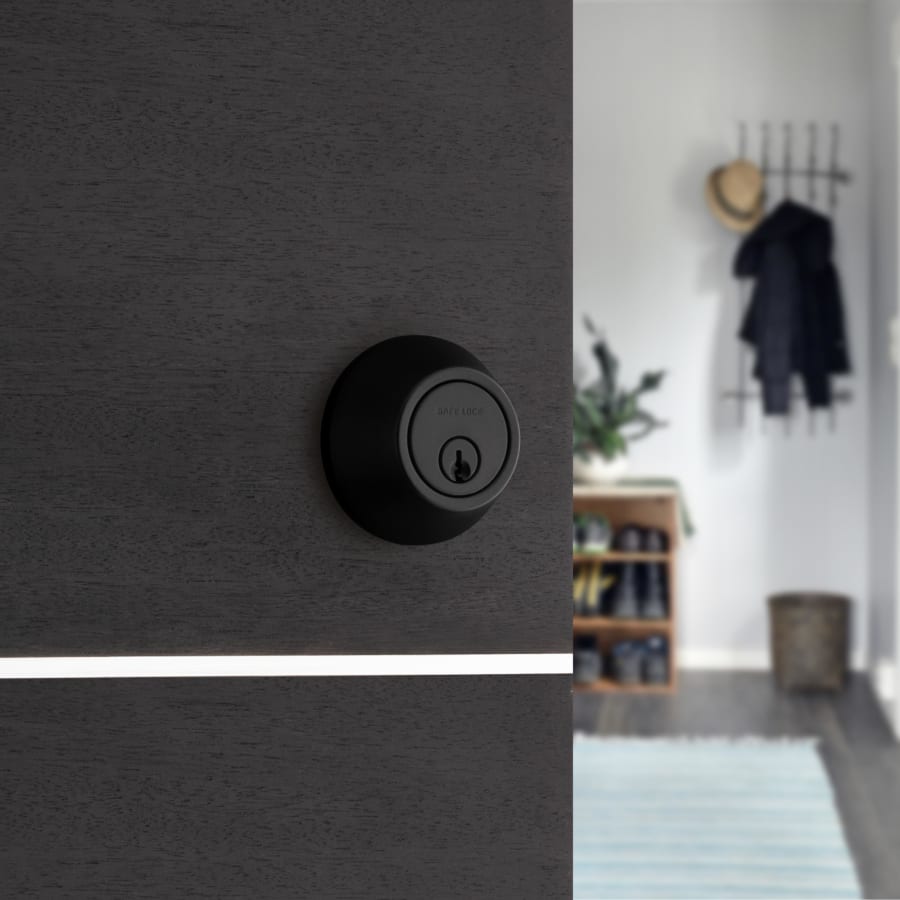

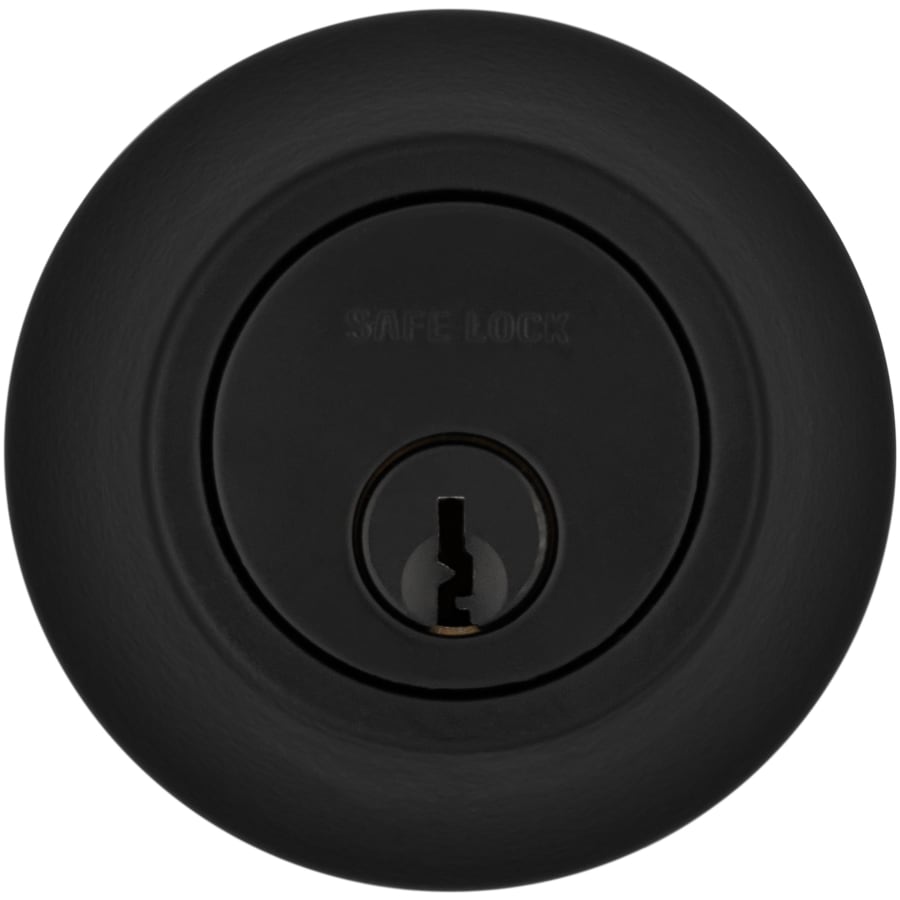

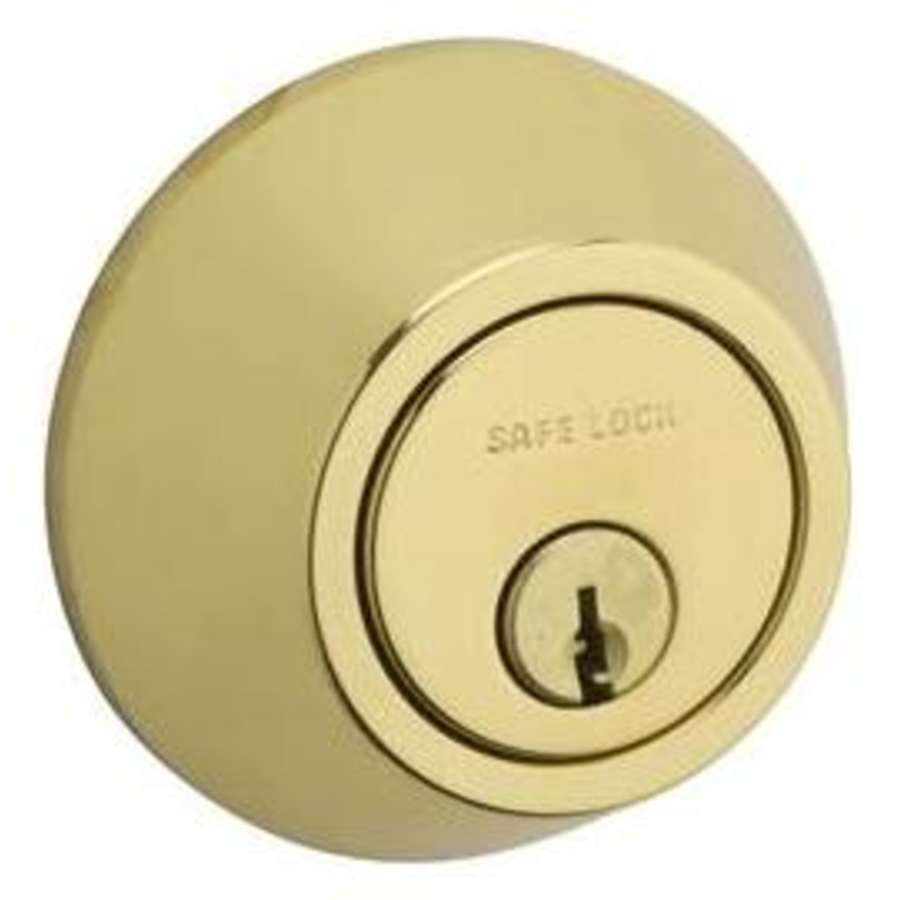

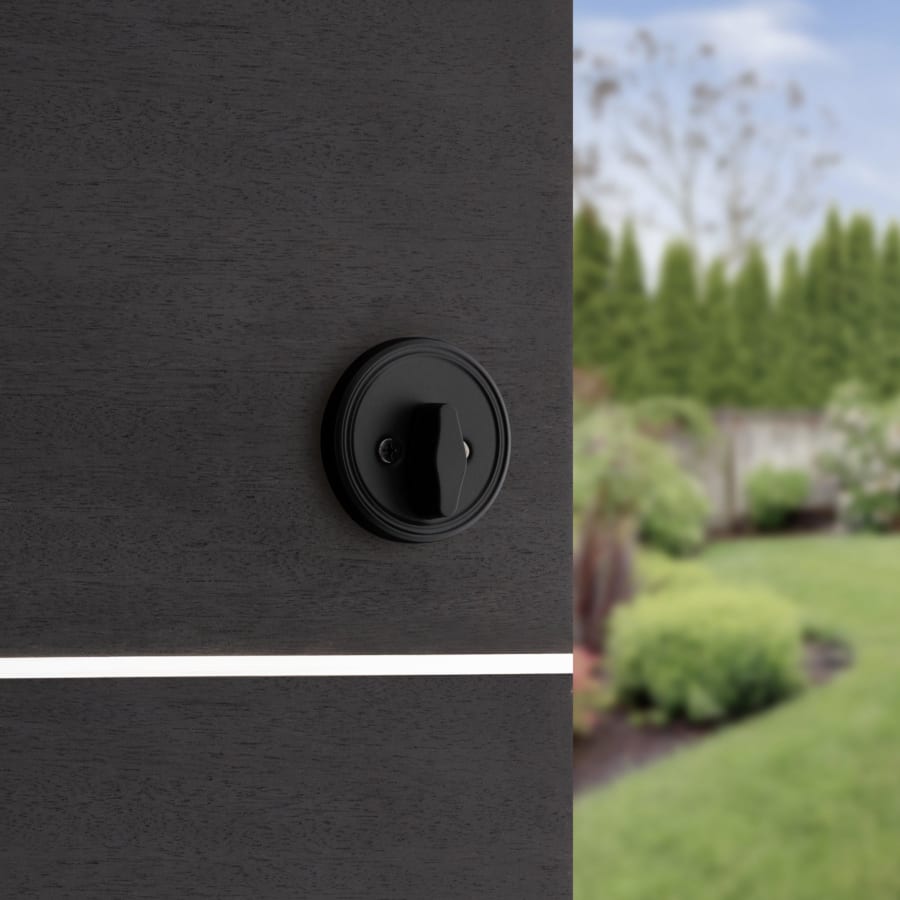

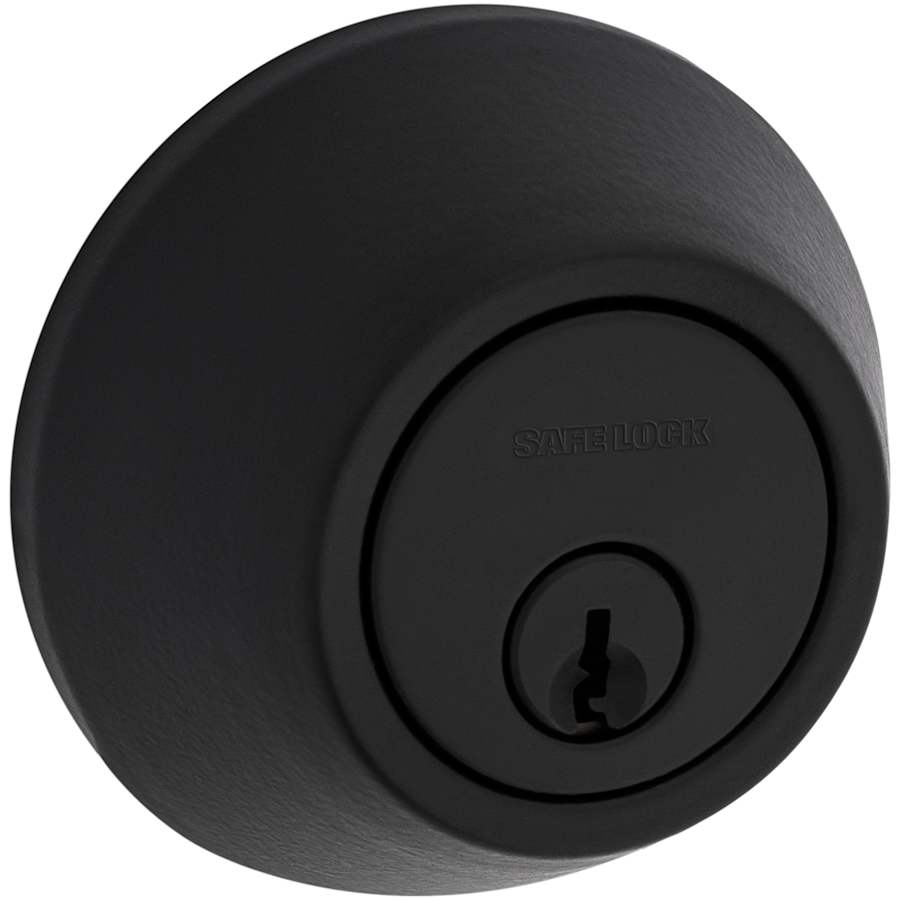

Single Cylinder: Single cylinder deadbolts are keyed on the exterior with an associated thumb turn on the inside that can quickly and easily lock or unlock the latch mechanism. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.
Features:
Tested to exceed ANSI/BHMA Grade 3 security requirements
Constructed of high quality materials for durability and dependability
Installs easily with all necessary mounting hardware included
ADA compliant
Covered by Kwikset’s limited lifetime manufacturer warranty
UL certified – 3 hour fire rating
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Reversible Left or Right
Interior Height: 2-9/16″
Interior Width: 2-9/16″
Interior Projection: 1-1/8″
Exterior Height: 2-1/2″
Exterior Width: 2-1/2″
Exterior Projection: 1-1/8″
Latch Faceplate: Round Corner
Cylinder: 5 Pin KW1
Additional Kwikset Links
View the Manufacturer Warranty
Browse all Kwikset Products
Kwikset 9100 Collection
Specifications
| Product Weight | 1.396 lbs. |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Edge Bore | 1" |
| Interior Height | 2.5625 in. |
| Exterior Height | 2.5 in. |
| Exterior Projection | 1.125 in. |
| Interior Projection | 1.125 in. |
| Interior Width | 2.5625 in. |
| Exterior Width | 2.5 in. |
| Thermostat | Contemporary |
| Material | Zinc |
| Concealed Screws | No |
| Function | Keyed Entry |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Round Corner |
| Rosette Shape | Round |
| Locking Mechanism | Thumbturn |
| Keyway | KW1 |
| Panic Proof | No |
| Cylinder | 5 Pin KW1 |
| Cylinder Type | Single Cylinder |
| Number of Keys | 2 |
| Collection | Safe Lock |
| Certifications | BHMA, UL |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | No |
| Series | 9100 |
| ADA | Yes |
| Country Of Origin | Philippines |
| Fire Rated | Yes |
| BHMA Certification | Grade 3 |
| ANSI Certification | A156.5 |
| Color | Bright Brass, Satin Chrome, Venetian Bronze, Matte Black, Satin Nickel |
