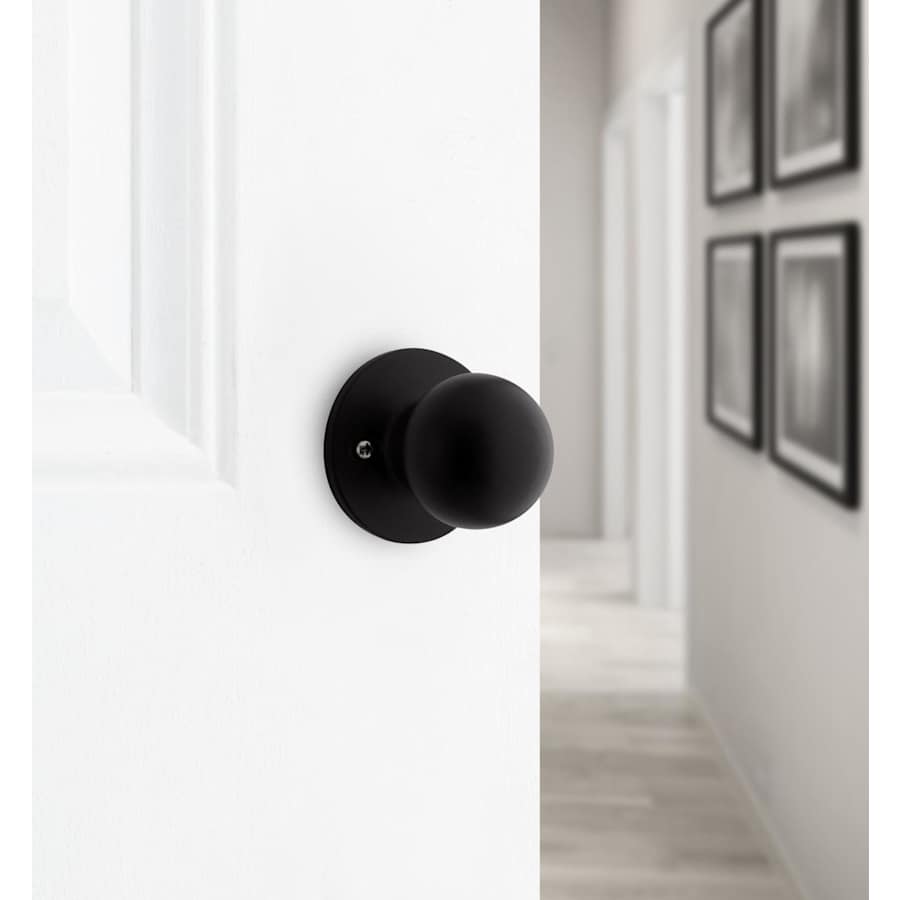

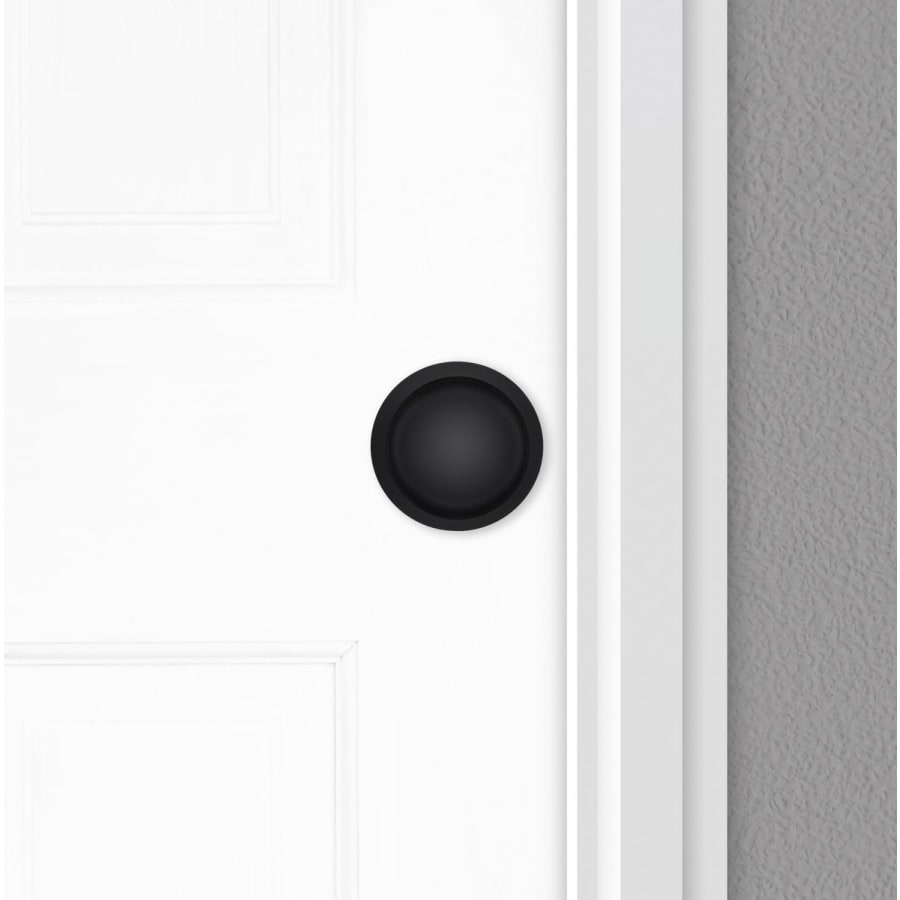

Passage: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn’t needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.
Â
Features:
Tested to exceed ANSI/BHMA Grade 3 security requirements
Constructed of high quality materials for durability and dependability
Installs easily with all necessary mounting hardware included
Covered by Kwikset’s limited lifetime manufacturer warranty
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Reversible Left or Right
Handle Width: 1-3/4″
Handle Height: 1-3/4″
Handle Projection: 2-7/8″
Trim Width: 2-9/16″
Trim Height: 2-9/16″
Product Weight: 0.975 lbs.
Latch Faceplate: Round Corner
Additional Kwikset Links
View the Manufacturer Warranty
Browse all Kwikset Products
Kwikset Regina Collection
Specifications
| Product Weight | 0.975 lbs. |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Handle Projection | 2.875 in. |
| Trim Height | 2.5625 in. |
| Trim Width | 2.5625 in. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Height | 1.75 in. |
| Handle Width | 1.75 in. |
| Material | Zinc |
| Thermostat | Contemporary |
| Handle Material | Metal |
| Handle Style | Knob |
| Concealed Screws | No |
| Function | Passage |
| Handshower | Left, Reversible, Right |
| Handle Design | Regina |
| Rosette Shape | Round |
| Latch Faceplate | Round Corner |
| Knob Shape | Ball |
| Approved for Commercial Use | No |
| Collection | Safe Lock |
| Country Of Origin | Taiwan |
| Manufacturer Warranty | Limited Lifetime |
| ADA | No |
| Series | Regina |
| Certifications | BHMA |
| BHMA Certification | Grade 3 |
| Fire Rated | No |
| ANSI Certification | A156.2 |
| 28 Degree Latch | No |
| Color | Bright Brass, Matte Black, Satin Chrome, Satin Nickel, Venetian Bronze |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
