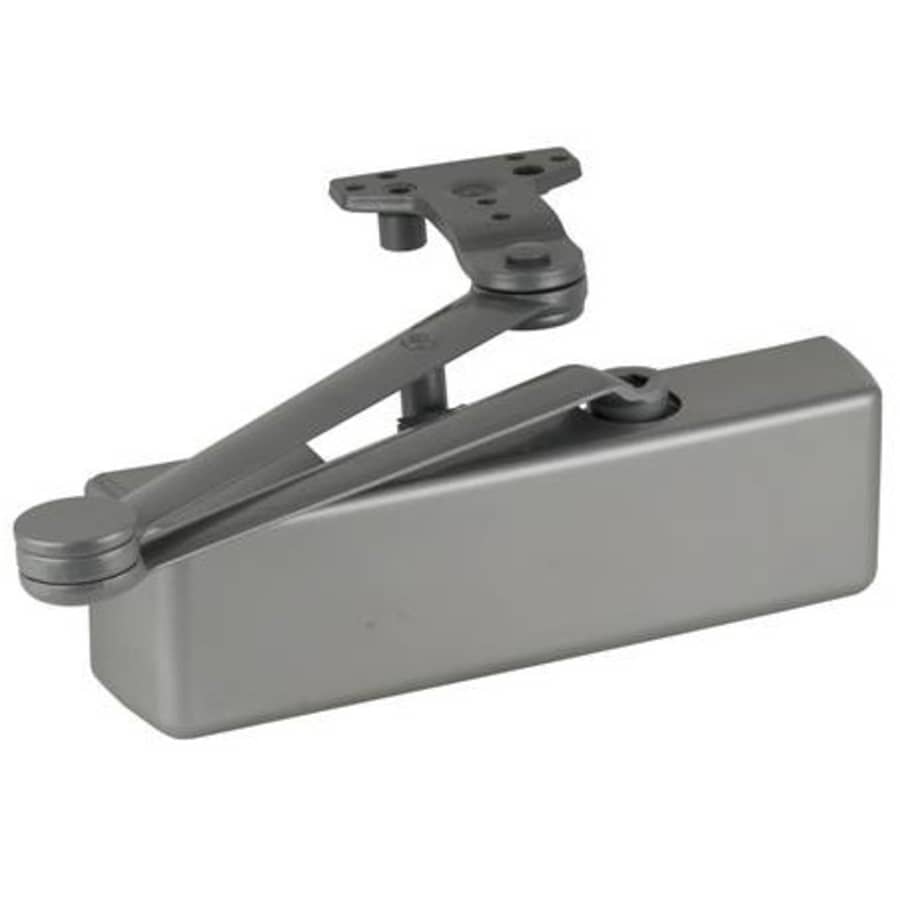

Surface Mount Hold Open Door Closer with Spring Cush-N-Stop Arm from the 4040XP Series
LCN’s most flexible heavy duty arm closer for a wide variety of interior applications. Its hold open spring Cush-N-Stop arm  make this high traffic interior door closer extremely versatile for almost any specific installation circumstance. A cast iron cylinder with all weather fluid and its ability to adjust in size from 26″ to 48″ wide serve to further proclaim the abilities of this unit. Also, with its UL and cUL listing, meeting of ADA requirements and achieving certification under ANSI Standard A156.4, Grade 1 specifications, you can rest assured that the product is up to your specified needs and will function just as you expect.
The new 4040XP is LCN’s most durable heavy duty closer designed for the most demanding, high use and abuse applications with 44% increased bearing load capacity, strongest pinion ever at 3/4″ journal diameter and widest bearing ever at 5/8″. With 16 arm options to fit your specific application, and its ability to adjust between sizes 1-6, LCN has made sure that the best in class 4040XP Super Smoothee can be utilized by everyone, almost anywhere.
Features:
Hinge, Top Jamb and Parallel Mounting Available
16 Arm Option Available (search base model: 4040XP)
Double Heat Treated Steel Pinion
Non-Sized Cast Iron 4041 Cylinder
Utilizes All Weather Fluid
UL and cUL Listed for Self-Closing Doors with Open Hold Arm
ANSI Standard A156.4, Grade One.
For Interior Doors Up To 60 Inches Wide
For Exterior Doors Up To 48 Inches Wide
Special Rust Inhibitor (SRI) Option for More Durable Finish
Includes Screw Pack
Since its founding in 1926, LCN has specialized in solving door control problems through the use of high quality, innovative door control products. By adhering to high standards of performance, LCN has earned a leadership role within the industry and is committed to meeting door control challenges of the future. With representatives located throughout the world, LCN provides the products and services necessary to solve your door control problems.
Additional LCN Links
View the Manufacturer Warranty
Browse all LCN Products
Specifications
| Height | 3.5 in. |
| Door Thickness | 1-3/4" |
| Projection | 2.25 in. |
| Closer Body Length | 12.25 in. |
| Closer Size | 1-6 |
| Horizontal Mounting Holes | 5 in. |
| Max Door Opening | 180 Degrees |
| Max Door Width | 60 in. |
| Vertical Mounting Holes | 5 in. |
| Material | Cast Iron |
| Handshower | Left, Reversible, Right |
| Adjustable Backcheck | Yes |
| Adjustable Spring | Yes |
| Arm Type | Hold Open |
| Barrier Free | Yes |
| Delay Action | Yes |
| Hold Open | Yes |
| Mounting | Parallel, Regular, Top Jamb, Tri-Pack |
| Operation Mode | Hydraulic |
| Shell Material | Plastic |
| ADA | Yes |
| Certifications | ANSI, UL10C, UL |
| Collection | 4040XP |
| Manufacturer Warranty | 30 Year |
| Approved for Commercial Use | Yes |
| Series | 4040 |
| ANSI Certification | A156.4 |
| BHMA Certification | Grade 1 |
| Fire Rated | Yes |
| Usage Level | Heavy Duty |
| Cushion Stop | Yes |
| Adjustable Closing Speed | Yes |
| Adjustable Latching Speed | Yes |
| Color | Aluminum |
| Color Tone | Neutrals |
