Features:
Constructed of high quality cast iron

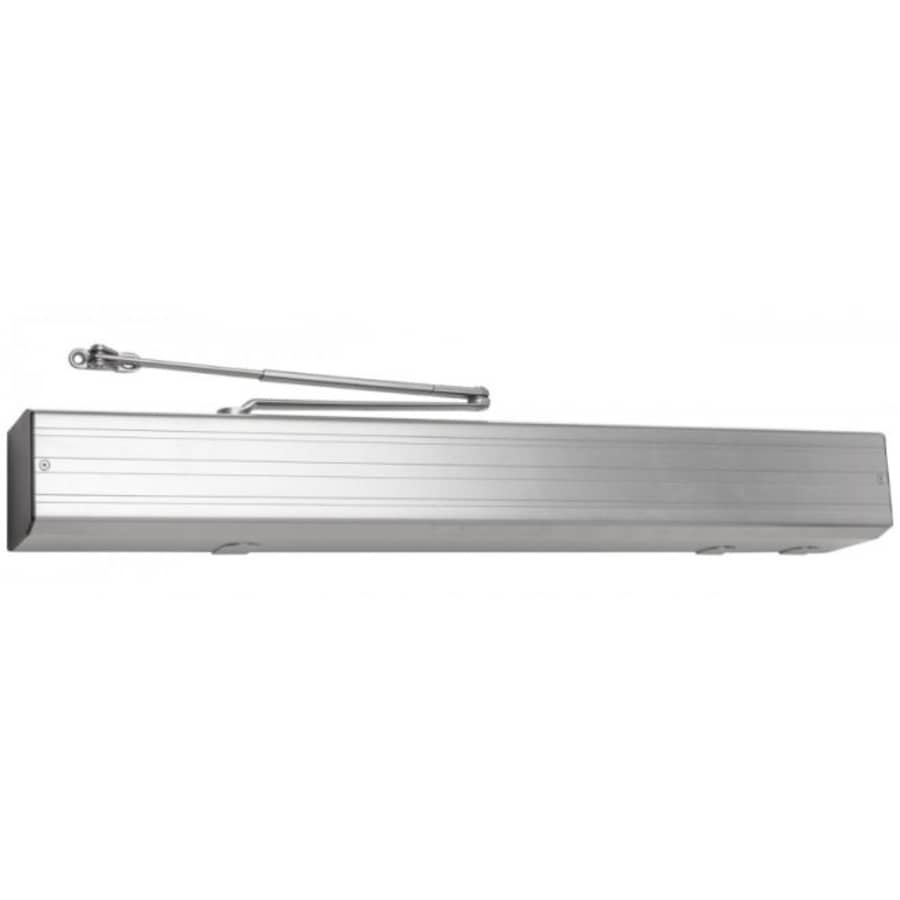

Grade 1 standard duty adjustable electric door closer
Top jamb mounting for left or right handed doors
Installs easily with all mounting hardware included
Adjustable spring size 2-5 door closer
Covered under a 1 year limited warranty
Specifications:
Closer Body Length: 33-1/2″
Max Door Width: 54″
Max Door Opening: 90°
ADA Barrier Free: Yes
UL Listed: Yes
Fire Rated: Yes
Hold Open: No
Cushion Stop: No
Delay Action: No
Additional LCN Links
View the Manufacturer Warranty
Browse all LCN Products
LCN 4640 Series Collection
Specifications
Dimensions and Measurements
| Height | 4.375 in. |
| Projection | 5.1875 in. |
| Product Weight | 35.1 lbs. |
| Door Thickness | 1-3/4" |
| Closer Body Length | 33.5 in. |
| Closer Size | 2-5 |
| Max Door Opening | 90 Degrees |
| Max Door Width | 54 in. |
Warranty and Product Information
| ADA | Yes |
| Country Of Origin | USA |
| Manufacturer Warranty | 1 Year Limited |
| Certifications | ANSI, UL10C, UL |
| Approved for Commercial Use | Yes |
| Series | 4640 Series |
| Fire Rated | Yes |
| ANSI Certification | A156.19 |
| BHMA Certification | Grade 1 |
| Usage Level | Standard Duty |
Characteristics and Features
| Material | Cast Iron |
| Handshower | Left, Reversible, Right |
| Adjustable Backcheck | No |
| Adjustable Spring | Yes |
| Arm Type | Standard |
| Barrier Free | Yes |
| Delay Action | No |
| Hold Open | No |
| Mounting | Top Jamb |
| Operation Mode | Electric |
Included Components
| Cushion Stop | No |
Electrical and Operational Information
| Adjustable Closing Speed | Yes |
| Adjustable Latching Speed | Yes |
| Color | Aluminum |
