Features:
Constructed of high quality cast iron

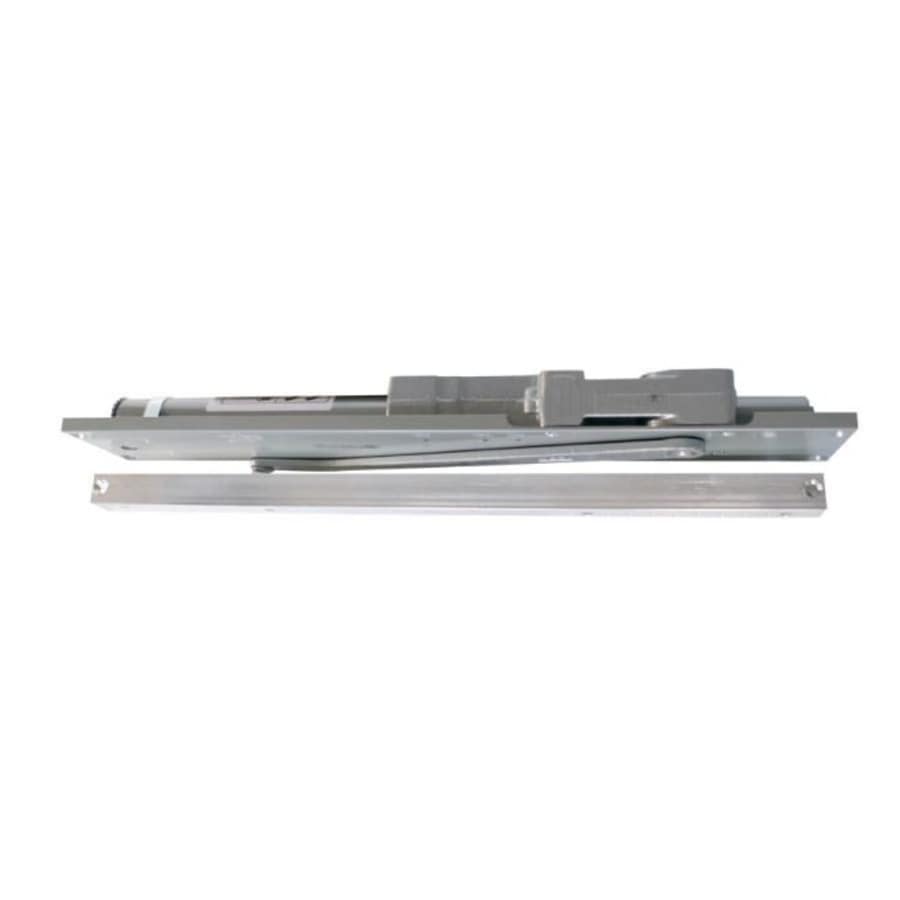

Grade 1 heavy duty non-adjustable hydraulic door closer
Regular mounting for left or right handed doors
Installs easily with all mounting hardware included
Non-Adjustable spring size 1 door closer
Covered under a 1 year limited warranty
Specifications:
Closer Body Length: 18-1/4″
Max Door Width: 36″
Max Door Opening: 95°
ADA Barrier Free: Yes
UL Listed: Yes
Fire Rated: Yes
Hold Open: No
Cushion Stop: No
Delay Action: No
Additional LCN Links
View the Manufacturer Warranty
Browse all LCN Products
LCN 6030 Series Collection
Specifications
Dimensions and Measurements
| Door Thickness | 1-3/4" |
| Height | 1.625 in. |
| Product Weight | 16.8 lbs. |
| Projection | 1.25 in. |
| Closer Body Length | 18.25 in. |
| Closer Size | 1 |
| Max Door Opening | 95 Degrees |
| Max Door Width | 36 in. |
Characteristics and Features
| Handshower | Left, Reversible, Right |
| Material | Cast Iron |
| Adjustable Backcheck | No |
| Adjustable Spring | No |
| Arm Type | Standard |
| Barrier Free | Yes |
| Delay Action | No |
| Hold Open | No |
| Mounting | Regular |
| Operation Mode | Hydraulic |
Warranty and Product Information
| ADA | Yes |
| Approved for Commercial Use | Yes |
| Fire Rated | Yes |
| Manufacturer Warranty | 1 Year Limited |
| Series | 6030 Series |
| Country Of Origin | USA |
| Certifications | ANSI, UL10C, UL |
| ANSI Certification | A156.4 |
| BHMA Certification | Grade 1 |
| Usage Level | Heavy Duty |
Included Components
| Cushion Stop | No |
Electrical and Operational Information
| Adjustable Closing Speed | Yes |
| Adjustable Latching Speed | Yes |
| Color | Aluminum |
| Color Tone | Neutrals |
