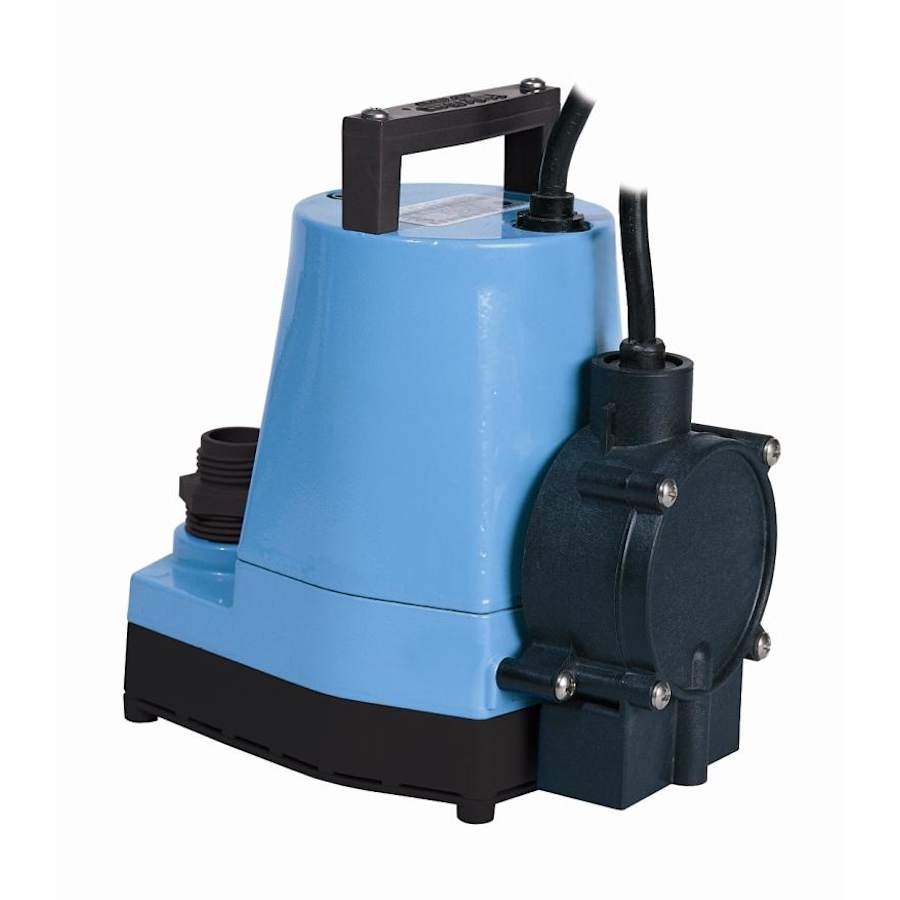

Water Wizard® 1/6 HP 115V 1200 GPH Submersible Utility Pump with Piggyback Diaphragm Switch
Automatic submersible utility pump with oil-filled motor and epoxy coated cast aluminum housing. For commercial, industrial and home applications where liquid must be transferred or recirculated. Pumps down to 1/8″ in manual mode operation. This 1200 GPH pump features a 1″ FNPT discharge with garden hose adaptor, 26.3′ shut-off head capability, and screened inlet.
1/6 HP shaded pole motor with overload protection
Designed for continuous duty
Pumps down to 1/8″
Garden hose adapter
Removable inlet screen for easy cleaning
Oil-filled motor
26.3′ maximum lift
380 watts
1″ FNPT discharge
Thermal overload protection
ASP On level: 6″–9″, Off level: 1″–4″
ASP-LL On level: 2″–3″, Off level: ½”–1½”
Piggyback diaphragm switch
For submersible use only
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
| Depth | 7.7 in. |
| Width | 4.31 in. |
| Height | 7.75 in. |
| Length | 7.7 in. |
| Product Weight | 9 lbs. |
| Water Connection | 1" |
| Discharge Diameter | 1 in. |
| Cord Length | 120 in. |
| Water Pressure (Max) | 11.4 PSI |

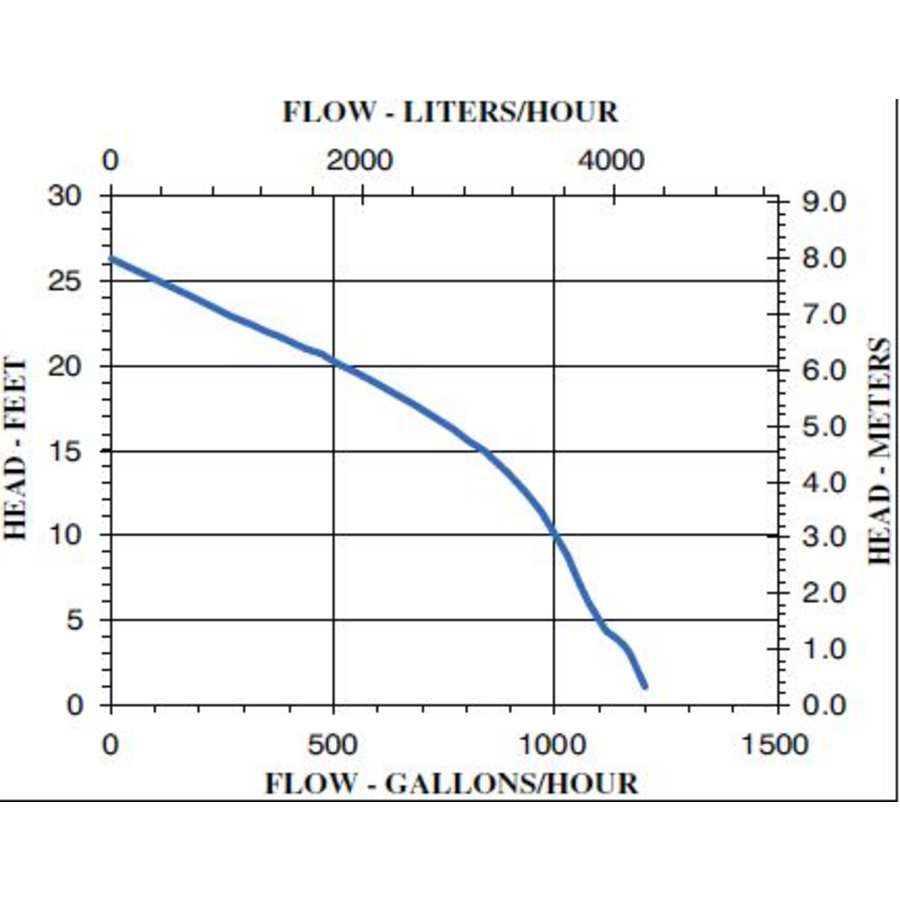

| Flow Rate by Feet of Head | 520 gal / 20 ft, 20 gal / 1 ft, 16.6 gal / 10 ft, 19.5 gal / 3 ft, 18.3 gal / 5 ft |
| Shut Off Height | 26.3 in. |
| Shut Off Pressure | 11.4 |
| Maximum Head Height | 26.3 in. |
| Minimum Head Height | 1 in. |
| Material | Aluminum |
| Configuration | Submersible Pump |
| Water Connection Type | NPT |
| Switch Type | Diaphragm |
| Shutoff Head in Feet | 26.3 |
| Submersible | Yes |
| Automatic | Yes |
| Impeller Material | Nylon |
| Material Casing | Aluminum |
| Material Housing | Aluminum |
| Approved for Commercial Use | Yes |
| Certifications | UL, CSA |
| Voltage | 115 |
| Wattage | 380 |
| Frequency | 60 Hertz |
| Amperage | 5 |
| Electrical Phases | 1 |
| Horsepower | .167 |
| Maximum Fluid Temperature | 120 °F |
| Color | Gray |
| Color Tone | Greys |
