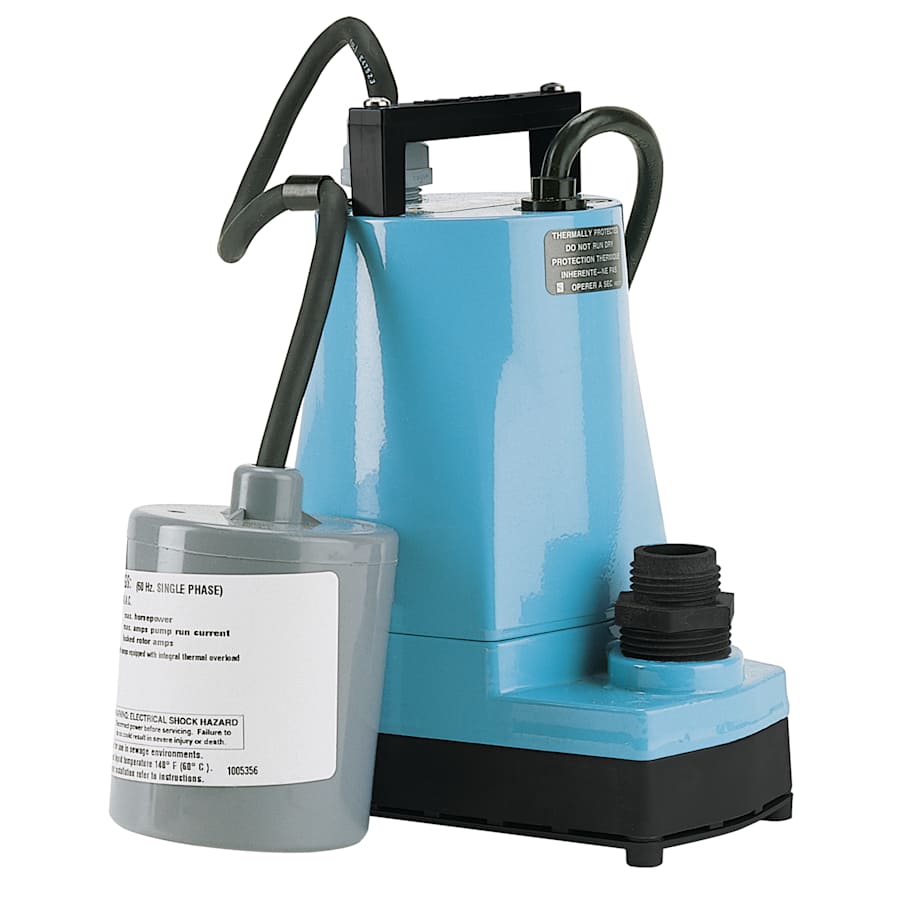

Water Wizard® Submersible Pump
Includes garden hose adapter and removable inlet screen for easy cleaning. Lifetime oil supply. Pumps down to 1/8″ (3.2 mm.). Pump will not pump down to within 1/8″ unless float switch is held up.
1/6 HP shaded pole motor with overload protection
Designed for continuous duty
Pumps down to 1/8″
Garden hose adapter
Removable inlet screen for easy cleaning
Epoxy coated cast aluminum housing
Viton shaft seal
Multiple switch options for automatic operation
Multiple power cord lengths available
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
Dimensions and Measurements
| Height | 8.5 in. |
| Width | 4.31 in. |
| Product Weight | 9 lbs. |
| Length | 6.12 in. |
| Depth | 6.12 in. |
| Water Connection | 1" |
| Cord Length | 10 in. |
| Discharge Diameter | 1 in. |
| Flow Rate by Feet of Head | 20 gal / 1 ft, 8.6 gal / 20 ft, 18.3 gal / 5 ft, 19.5 gal / 3 ft, 16.6 gal / 10 ft |
| Shut Off Height | 26.3 in. |
| Shut Off Pressure | 11.4 |
| Maximum Head Height | 26.3 in. |
| Minimum Head Height | 1 in. |
| Water Pressure (Max) | 11.4 PSI |
Characteristics and Features
| Material | Aluminum |
| Switch Type | Mechanical Float |
| Configuration | Submersible Pump |
| Water Connection Type | NPT |
| Submersible | Yes |
| Impeller Material | Nylon |
| Material Casing | Aluminum |
| Material Housing | Aluminum |
Warranty and Product Information
| Approved for Commercial Use | Yes |
| Certifications | UL, CSA |
Electrical and Operational Information
| Wattage | 380 |
| Voltage | 115 |
| Frequency | 60 Hertz |
| Amperage | 5 |
| Horsepower | 0.167 |
| Electrical Phases | 1 |
| Maximum Fluid Temperature | 120 °F |
| Color | Steel |
| Color Tone | Steel Tones |
