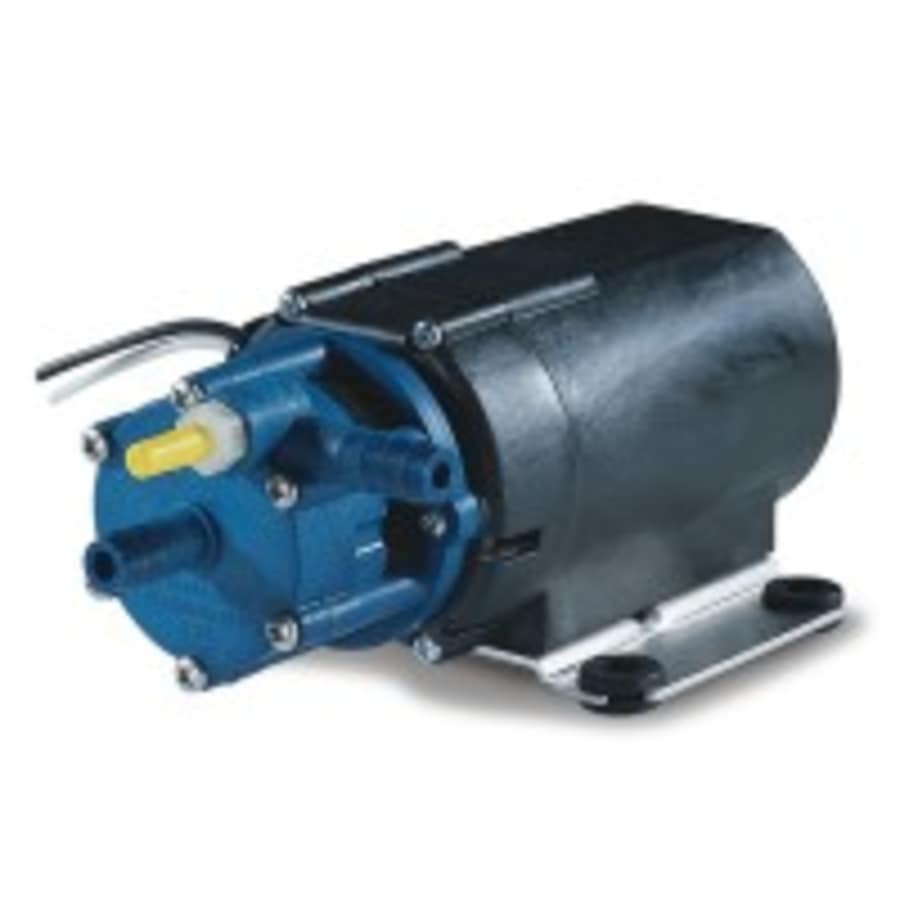

170 GPH 230V Non-Submersible High Pressure Pump
Non-submersible, high pressure pump for carpet cleaners, dispenser-displays and pressure-washer applications. Nylon pump head, Ryton impeller, 3/8″ barbed O.D. intake and discharge connections. 1/4″ barbed O.D. by-pass adapter included. Double-insulated motor (non-replaceable brushes last 500 to 1,000 hours) with 94-V-O thermoplastic housing. Not recommended for fountains.
1/11 HP Open Motor 230V
170 GPH@ 10′ Maximum flow rate
Intermittent Liquid Temp. to 120F
94-V-O thermoplastic housing
3/8″ Barbed OD Intake
3/8″ barbed OD Discharge
Nylon Volute
Ryton(tm) or PPS Impeller
Carbon/Ceramic Shaft Seal
24″ Lead Wires
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
| Height | 2.93 in. |
| Product Weight | 2.67 lbs. |
| Width | 4 in. |
| Depth | 6.91 in. |
| Discharge Diameter | 0.375 in. |
| Cord Length | 24 in. |
| Flow Rate by Feet of Head | 1.83 gal / 50 ft, 2.83 gal / 10 ft, 2.33 gal / 30 ft |
| Shut Off Height | 81 in. |
| Shut Off Pressure | 35.1 |
| Configuration | High Pressure Pump |
| Material | Carbon, Nylon |
| Submersible | Yes |
| Wattage | 132 |
| Voltage | 230 |
| Frequency | 50, 60 Hertz |
| Amperage | 0.6 |
| Horsepower | 0.09 |
| Color | Steel |
| Color Tone | Steel Tones |
