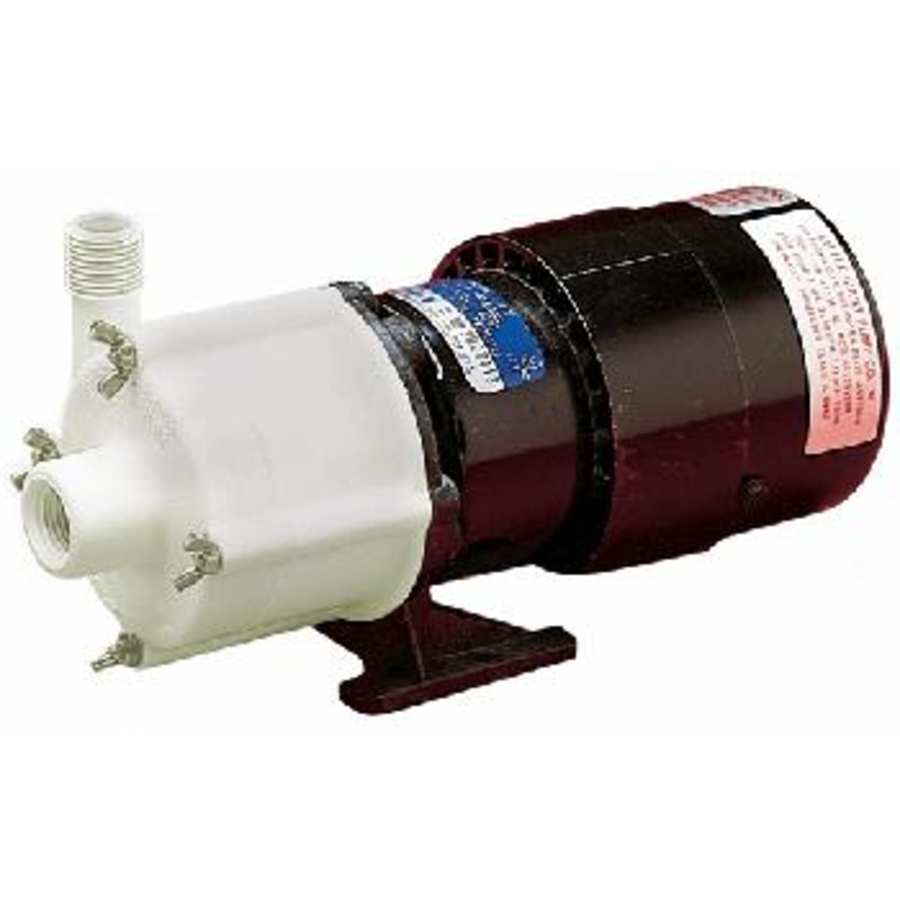

690 GPH 1/12 HP 230V Magnetic Drive Pump with 6′ Power Cord
Magnetically driven pump for mildly corrosive chemicals and solutions. The MD Series features leak proof, seal-less magnetic drives and are designed for in-line, non-submersed use. Thermally protected open fan-cooled motor with ball bearings. 6 ft. power cord and 3-prong molded plug. (230V version has no plug).
Specific Gravity – up to 1.1
Ambient Air Temperature – up to 77F (25C).
Fluid Temperature – Up to 150F (66C).
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
Dimensions and Measurements
| Height | 4.3 in. |
| Width | 4 in. |
| Depth | 8.9 in. |
| Product Weight | 8.5 lbs. |
| Cord Length | 72 in. |
| Discharge Diameter | 0.5 in. |
| Flow Rate by Feet of Head | 10 gal / 6 ft, 11 gal / 3 ft, 6.5 gal / 15 ft, 11.5 gal / 1 ft, 9.08 gal / 9 ft |
| Shut Off Height | 23.7 in. |
| Shut Off Pressure | 10.3 |
Characteristics and Features
| Material | Plastic, Titanium |
| Configuration | Magnetic Drive Pump |
| Submersible | No |
Electrical and Operational Information
| Voltage | 230 |
| Wattage | 212 |
| Amperage | 1.4 |
| Frequency | 60 Hertz |
| Horsepower | 0.083 |
Warranty and Product Information
| Certifications | CSA |
| Color | Steel |
| Color Tone | Steel Tones |
