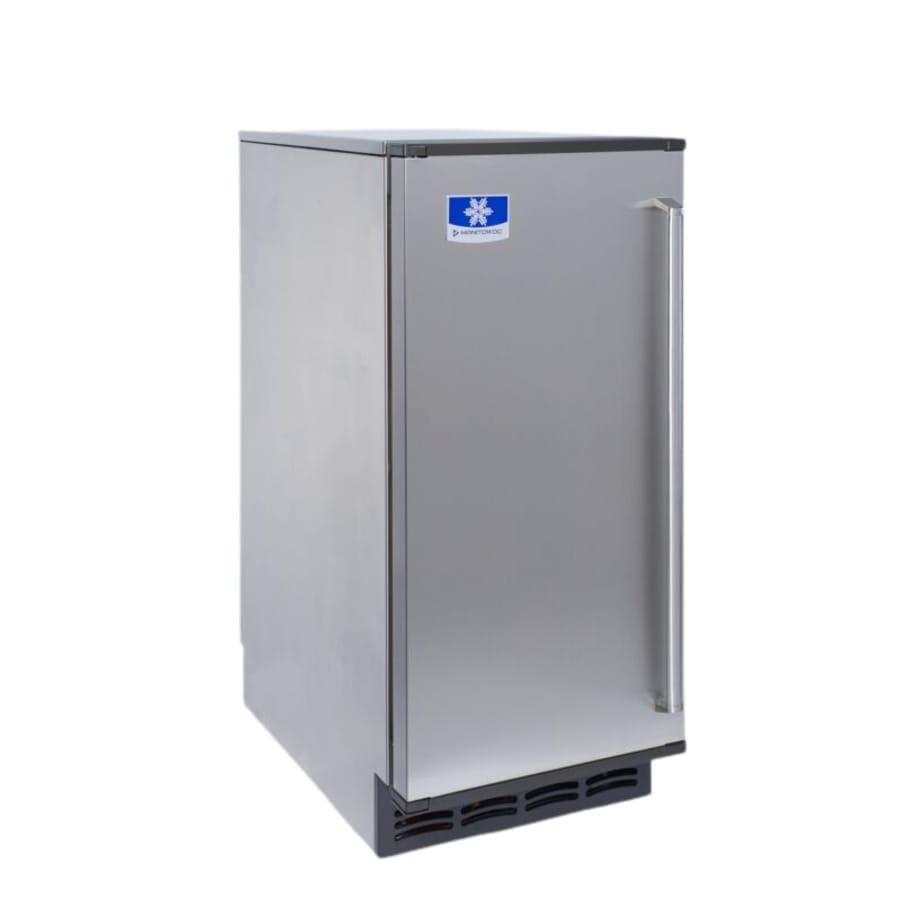

Produces up to 45 lbs. (20 kgs) of ice in 24 hours with storage capacity of 25 lbs. (11 kgs)

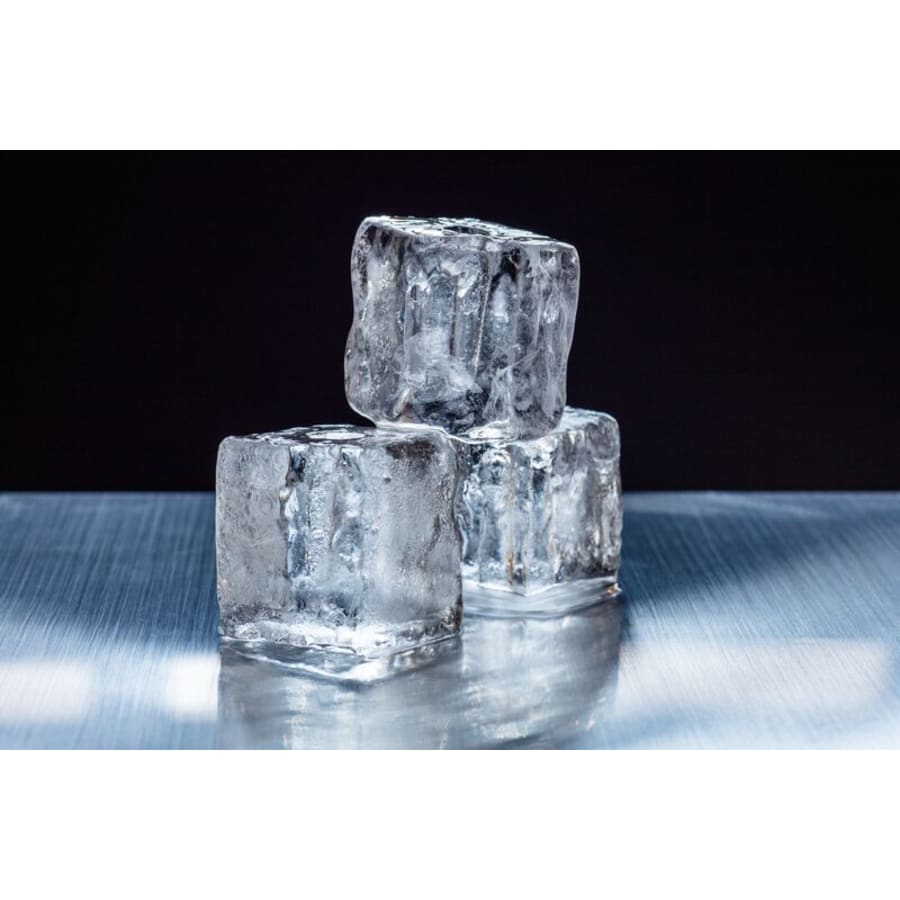

Individual cubes with unique square shape – 1.5″ x 1.5″ x 1.5″ (40g)
Designed to be installed into standard cabinet dimensions 15.00” (38.00 cm) or stand alone with stainless steel top and sides standard
Easily accessible control panel with the following functionality:
Automatic ice making mode
Patented cleaning and sanitizing
Delay start option
Filter replacement warning light
Water filter system integrated inside machine with depth filtration and scale inhibitor
Lighted bin (LED light) with large opening for easy access
Optional drain pump easily integrates inside the machine during installation
115V / 60Hz / 1Ph
14.75″ Width, 33.5″ Height, 22.75″ Depth
0″ to 1″ Leg Levelers Included – Optional Legs (K-00345 at 4.25″ – 6″) Available
3 years commercial parts and labor warranty on entire machine
Additional Manitowoc Links
Browse all Manitowoc Products
Specifications
| Height | 33.5 in. |
| Width | 14.75 in. |
| Depth | 22.75 in. |
| Nominal Width | 15 in. |
| Nominal Height | 34 in. |
| Nominal Depth | 23 in. |
| Cord Length | 72 in. |
| Max Capacity (Pounds) | 25 lbs. |
| Inside Diameter | 0.25 in. |
| Daily Ice Production | 45 |
| Voltage | 115 |
| Amperage | 4.1 |
| Temperature (Max) | 110 °F |
| Temperature (Min) | 50 °F |
| Frequency | 60 Hertz |
| Horsepower | 0.167 |
| Electrical Phases | 1 |
| Approved for Commercial Use | Yes |
| Energy Star | No |
| Manufacturer Warranty | 3 Year Commercial, 1 Year Limited Residential |
| Outdoor Approved | No |
| ADA | No |
| Certifications | AHRI, ETL, UL |
| Product Variation | Undercounter Ice Machine |
| Insulation Type | Undercounter, Free Standing |
| Material | Stainless Steel |
| Antimicrobial | No |
| Configuration | Self-Contained Ice Machine |
| Leveling Legs | Yes |
| Refrigerant | R-134a |
| Storage Features | Ice Bin |
| With Casters | No |
| Drain Required | Yes |
| Cube Style | Full Cube |
| Self-Contained | Yes |
| Control Type | Air Cooled |
| Air Filter | No |
| Pump Included | No |
| Includes Supply Lines | No |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
