Up to 100 lbs (45.4 kgs) of daily square cube ice production
38 lbs (17.2 kgs) or 868 cubes ice storage capacity
Heavy duty stainless steel cabinet resists corrosion

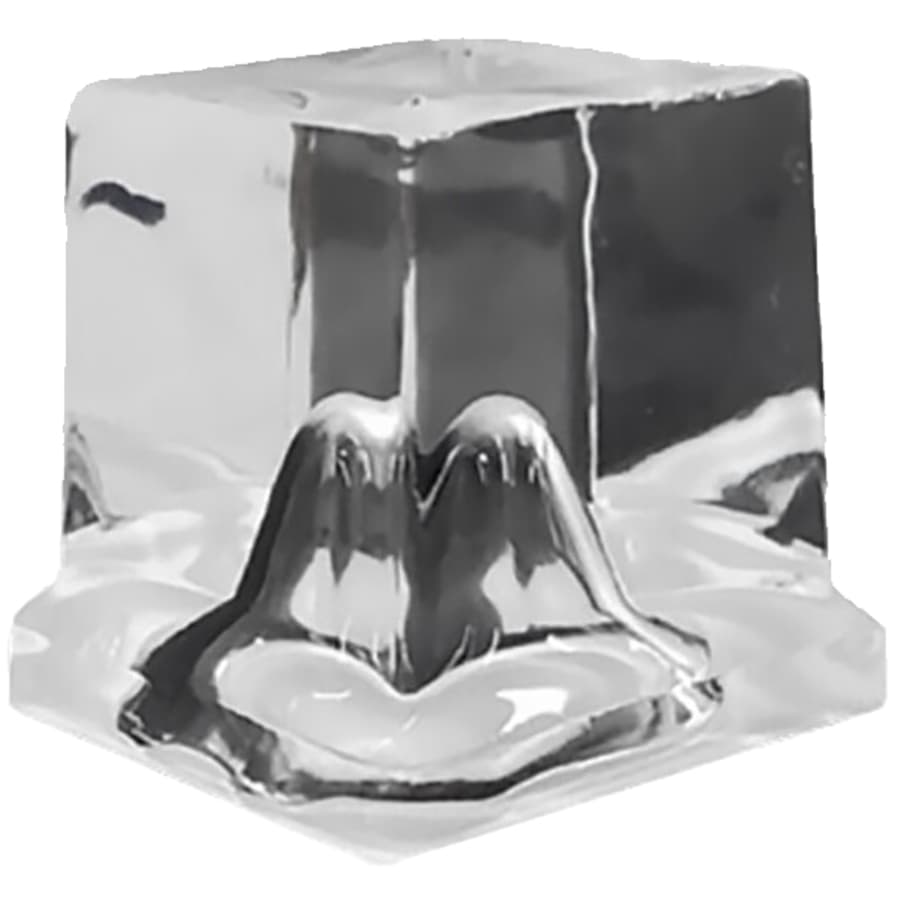

Square cube ice adds to the presentation of the drink and differentiates it from the competition – crystal clear cube weighs 22.5g and is 1”x1”
R290 Refrigerant
115V / 60Hz / 1Ph
19.68″ Width, 37.5″ Height, 22.83″ Depth
6″ Bin Legs Included – Standard Legs Adjustable from 4-1/2″ to 6″
3 years parts and labor
Additional Manitowoc Links
Browse all Manitowoc Products
Specifications
Dimensions and Measurements
| Depth | 22.83 in. |
| Drain Connection | 0.5 in. |
| Width | 19.68 in. |
| Product Weight | 209 lbs. |
| Height | 37.5 in. |
| Nominal Depth | 23 in. |
| Nominal Height | 38 in. |
| Nominal Width | 20 in. |
| Cord Length | 72 in. |
| Max Capacity (Pounds) | 38 lbs. |
| Inside Diameter | 0.375 in. |
| Daily Ice Production | 100 |
Characteristics and Features
| Material | Stainless Steel |
| Insulation Type | Undercounter, Free Standing |
| Leveling Legs | Yes |
| Configuration | Self-Contained Ice Machine |
| Refrigerant | R-290 |
| Storage Features | Ice Bin |
| With Casters | No |
| Antimicrobial | No |
| Drain Required | Yes |
| Control Type | Air Cooled |
| Cube Style | Full Cube |
| Self-Contained | Yes |
Warranty and Product Information
| ADA | No |
| Approved for Commercial Use | Yes |
| Certifications | AHRI, ETL, UL |
| Manufacturer Warranty | 3 Year Commercial, 1 Year Limited Residential |
| Energy Star | No |
| Outdoor Approved | No |
| Product Variation | Undercounter Ice Machine |
Electrical and Operational Information
| Amperage | 10 |
| Frequency | 60 Hertz |
| Voltage | 115 |
| Annual Energy Consumption (kWh) | 9.62 |
| Temperature (Max) | 110 °F |
| Temperature (Min) | 50 °F |
| Horsepower | 0.33 |
| Electrical Phases | 1 |
Included Components
| Pump Included | No |
| Air Filter | No |
| Includes Scoop | Yes |
| Includes Supply Lines | No |
| Color | Stainless Steel |
