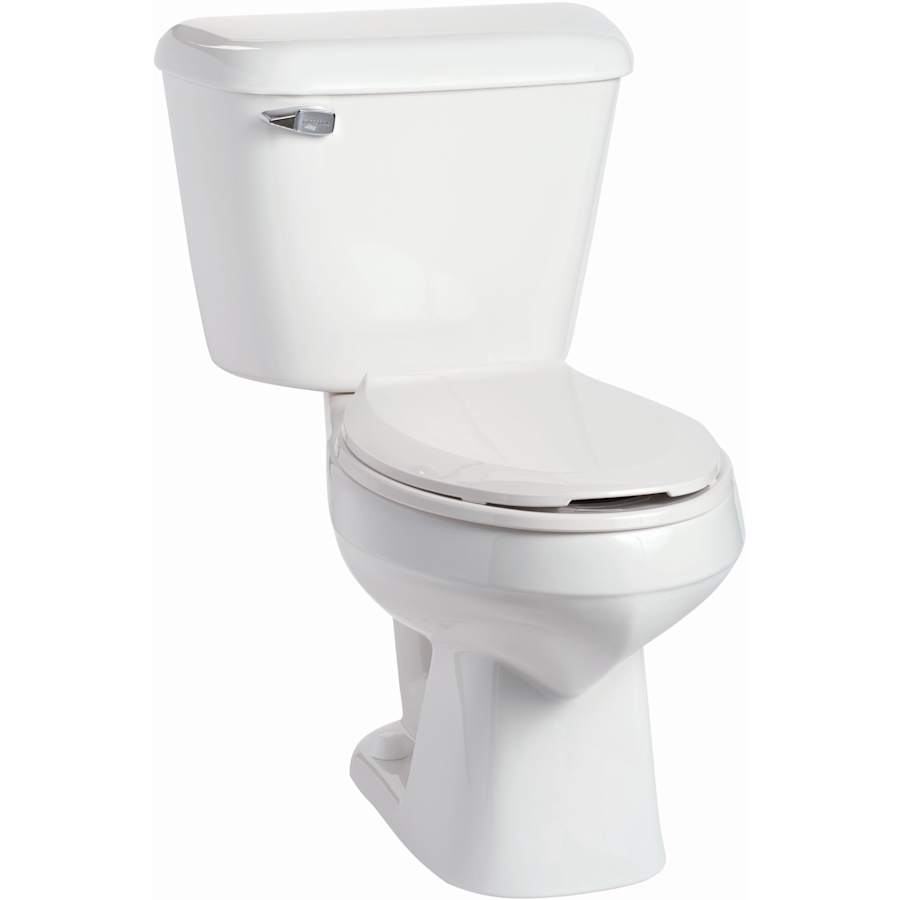

Mansfield 135-160 Features:
Two-piece configuration allows for easier access to the area around the toilet
Covered under a limited lifetime warranty
Constructed of vitreous china, ensuring durability and dependability
Elongated bowl provides extra comfort, extending out an extra 1-1/2″ compared to a round configuration
3 bolt tank to bowl connection makes assembly easy
Toilet seat not included – Must be purchased separately
For floor mounted installations
Mansfield 135-160 Specifications:
Overall Height: 29-3/4″ (bottom of the base to the highest point on the toilet)
Overall Depth: 28-7/8″ (back of the tank to the front of the rim)
Overall Width: 19-3/4″ (furthest point on the left to the furthest on the right)
Bowl Height: 15″ (bottom of the base to the rim)
Flow Rate: 1.6 gallons-per-flush
Water Area: 9″ x 10″
Trapway (Discharge Passageway) Size: 2″
Rough-In: 12″
Distance Between Toilet Seat Installation Holes: 5-1/2″
Additional Mansfield Links
Browse all Mansfield Products
Mansfield Alto Collection
Specifications
| Height | 29.75 in. |
| Width | 19.75 in. |
| Depth | 28.875 in. |
| Product Weight | 84.1 lbs. |
| Flush Valve Size | 2 in. |
| Gallons Per Flush | 1.6 |
| Rough In | 12 in. |
| Trapway | 2 in. |
| Water Area | 9 x 10 |
| Bowl Height | 15 in. |
| Hinge Center to Center | 5.5 in. |
| Thermostat | Contemporary |
| Insulation Type | Floor Mounted |
| Material | Vitreous China |
| Configuration | Two Piece |
| Trip Lever Placement | Left |
| Flush Type | Gravity Flush |
| Bowl Shape | Elongated |
| Design Features | Glazed Trapway |
| Collection | Alto |
| Certifications | UPC, ASME, CSA |
| Manufacturer Warranty | Limited Lifetime |
| ADA | No |
| Country Of Origin | USA |
| Made in America | Yes |
| ASSE Code | A112.19.2 |
| CSA Code | B45.1 |
| CA Drought Compliant | No |
| WaterSense Certified | No |
| TX Drought Compliant | No |
| Seat Included | No |
| Color | White |
