Features:
Includes one (1) door hinge in each order
Features square corners
Hinge is designed with a removable pin
Constructed from steel for long lasting durability
Non-handed for left or right handed door applications
Accomodates doors of 1-3/4″ thickness
Mckinney offers a limited 1 year manufacturer warranty
Tested for residential strength applications, ideal for multi-family housing
Product Technologies:

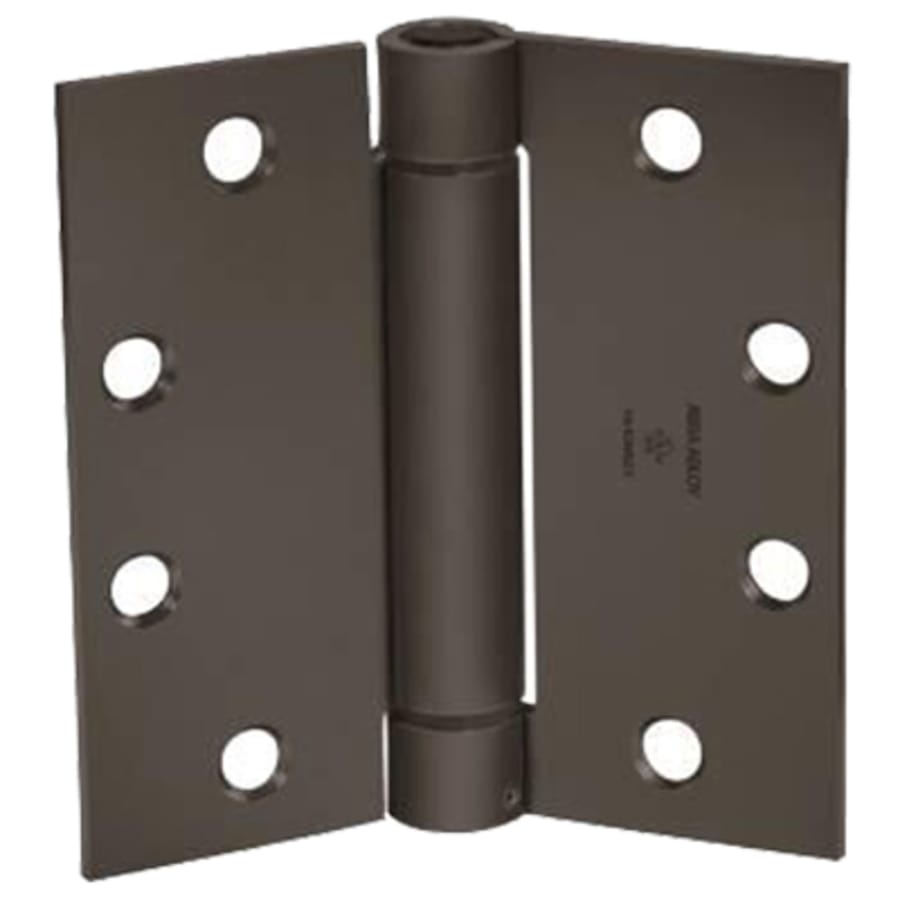

Spring Hinge: These single action hinges are fitted with springs in the barrel to bring an open door back to a closed position automatically. Great where door space is at a premium and door closers are impractical. With double action hinges, the door is able to move in either direction.
Mortise Hinge: Mortise door hinges mount flush with the surface of your door, providing maximum strength with the least interference with door functionality. It is recommended that three hinges be used on doors up to and including 7-1/2 feet, with one additional hinge for each additional 2-1/2 feet. Be sure to check your current hinges before making a purchase.
Specifications:
Height: 4″
Width: 4″
Material: Steel
Mount Type: Mortise
Gauge (Thickness of Hinge): 0.106″
Number of Knuckles: 3
Number of Holes: 8
Removable Pin: Yes
Adjustable: Yes
Door Thickness: 1-3/4″
Quantity: 1
Additional McKinney Links
Browse all McKinney Products
McKinney 1502 Collection
Specifications
| Quantity | 1 |
| Width | 4 in. |
| Height | 4 in. |
| Door Thickness | 1-3/4" |
| Corners | Square Corner |
| Gauge | 0.106 |
| Hinge Size | 4 x 4 in. |
| Material | Steel |
| Insulation Type | Screw |
| Adjustable | Yes |
| Mounting Type | Mortise |
| Self Closing | Yes |
| Number Of Hooks | 8 |
| Number of Knuckles | 3 |
| Hole Pattern | Arc |
| Removable Pin | Yes |
| Sconce Type | Wood |
| Approved for Commercial Use | Yes, No |
| Collection | 1502 |
| Manufacturer Warranty | 1 Year Limited |
| ANSI Certification | A156.1 |
| Certifications | ANSI |
| Usage Level | Residential Grade |
| Color | Black Powder Coat, Bright Brass, Oil Rubbed Bronze, Prime Coat, Satin Brass, Satin Chrome |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Silver Tones, Whites |
