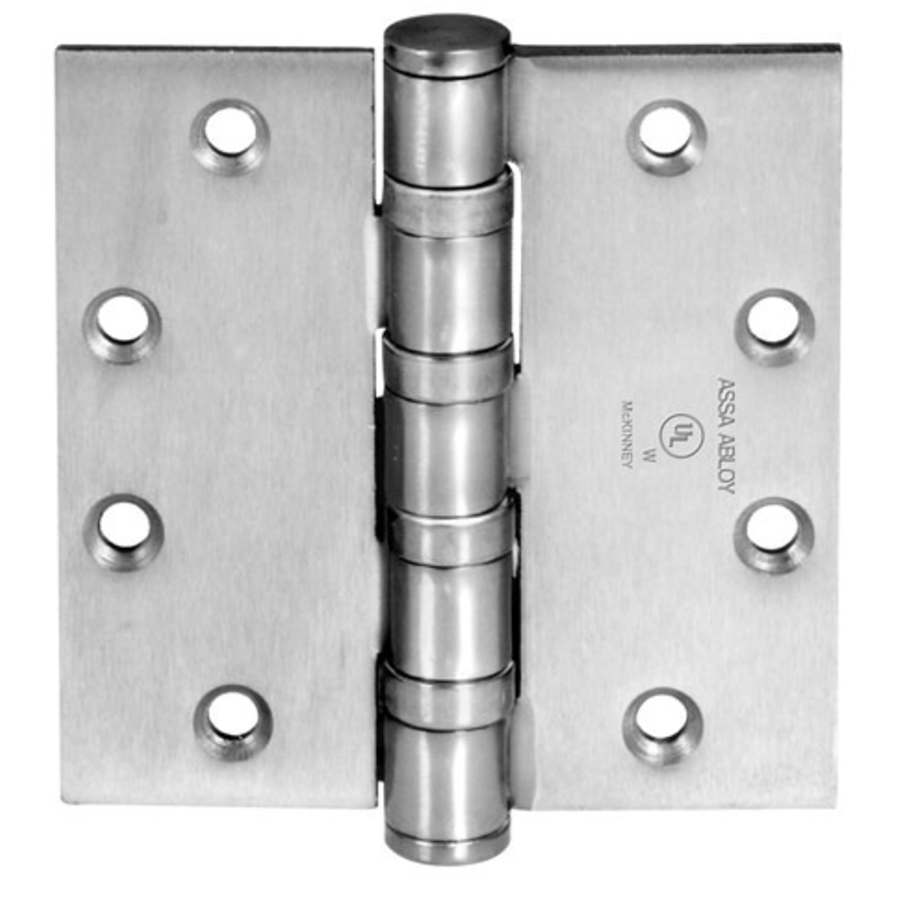

McKinney T4A Series 4-1/2″ x 7″ Heavy Duty Plain Bearing Square Corner Mortise Door Hinge with Removable Pin – Single

Features:

Includes one (1) door hinge in each order
Features square corners
Hinge is designed with a removable pin
Constructed from stainless steel for long lasting durability
Non-handed for left or right handed door applications
Accomodates doors of 2″ to 2-1/2″ thickness
Mckinney offers a limited 1 year manufacturer warranty
Tested for commercial strength, ideal for heavy duty applications

Product Technologies:

Plain Bearing Hinge: Plain bearing hinges feature knuckles that are machined to a smooth surface, allowing them to move against one another without bearings. Plain bearing hinges are not recommended for heavy use on high traffic entrance ways, but meet the need of a standard residential door.
Mortise Hinge: Mortise door hinges mount flush with the surface of your door, providing maximum strength with the least interference with door functionality. It is recommended that three hinges be used on doors up to and including 7-1/2 feet, with one additional hinge for each additional 2-1/2 feet. Be sure to check your current hinges before making a purchase.

Specifications:

Height: 4-1/2″
Width: 7″
Material: Stainless Steel
Mount Type: Mortise
Gauge (Thickness of Hinge): 0.19″
Number of Knuckles: 5
Number of Holes: 8
Removable Pin: Yes
Door Thickness: 2″ to 2-1/2″
Quantity: 1
