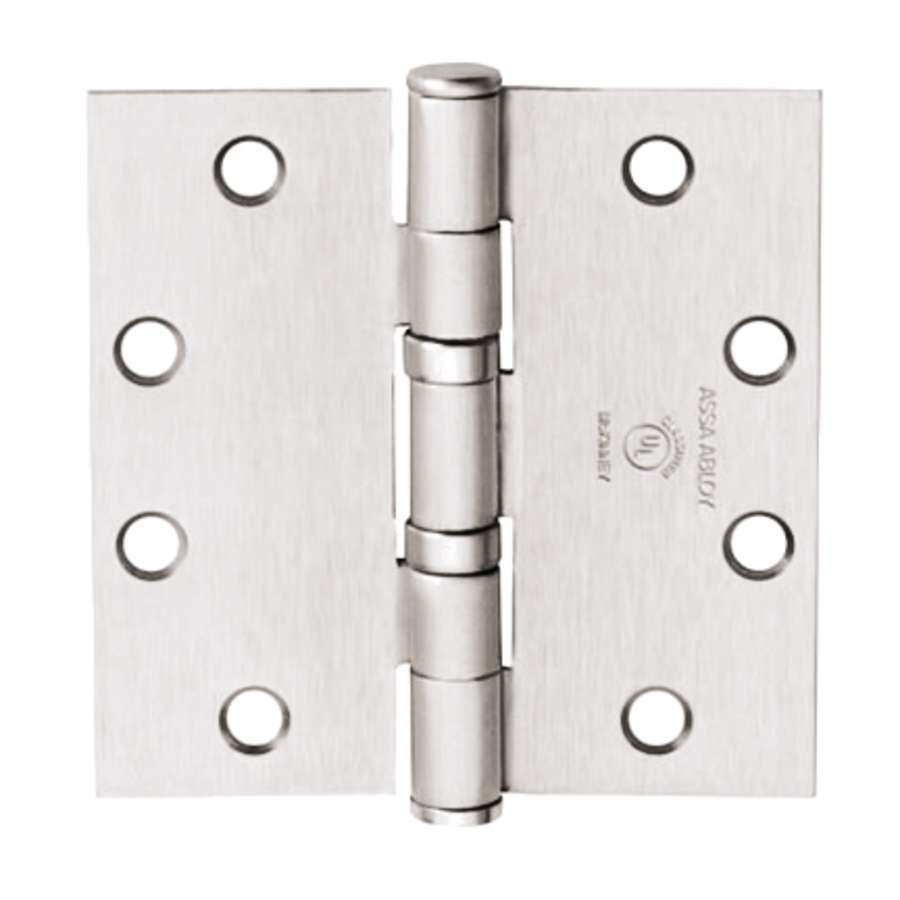

McKinney TB2714 Series 4-1/2″ x 4-1/2″ Heavy Duty Ball Bearing Square Corner Mortise Door Hinge with Non Removable Pin – Single

Features:

Includes one (1) door hinge in each order
Features square corners
Hinge is designed with a non removable pin
Constructed from steel for long lasting durability
Non-handed for left or right handed door applications
Accomodates doors of 1-3/4″ thickness
Mckinney offers a limited 1 year manufacturer warranty
Tested for commercial strength, ideal for standard duty applications

Product Technologies:

Ball Bearing Hinge: Ball bearing hinges are designed to handle the extra stress brought on by high traffic doorways. The greased bearings reduce the rotational friction extending the life of a hinge in heavy use situations. These hinges tend to be more durable than standard, or plain bearing hinges.
Mortise Hinge: Mortise door hinges mount flush with the surface of your door, providing maximum strength with the least interference with door functionality. It is recommended that three hinges be used on doors up to and including 7-1/2 feet, with one additional hinge for each additional 2-1/2 feet. Be sure to check your current hinges before making a purchase.

Specifications:

Height: 4-1/2″
Width: 4-1/2″
Material: Steel
Mount Type: Mortise
Gauge (Thickness of Hinge): 0.18″
Number of Knuckles: 5
Number of Holes: 8
Removable Pin: No
Door Thickness: 1-3/4″
Quantity: 1
