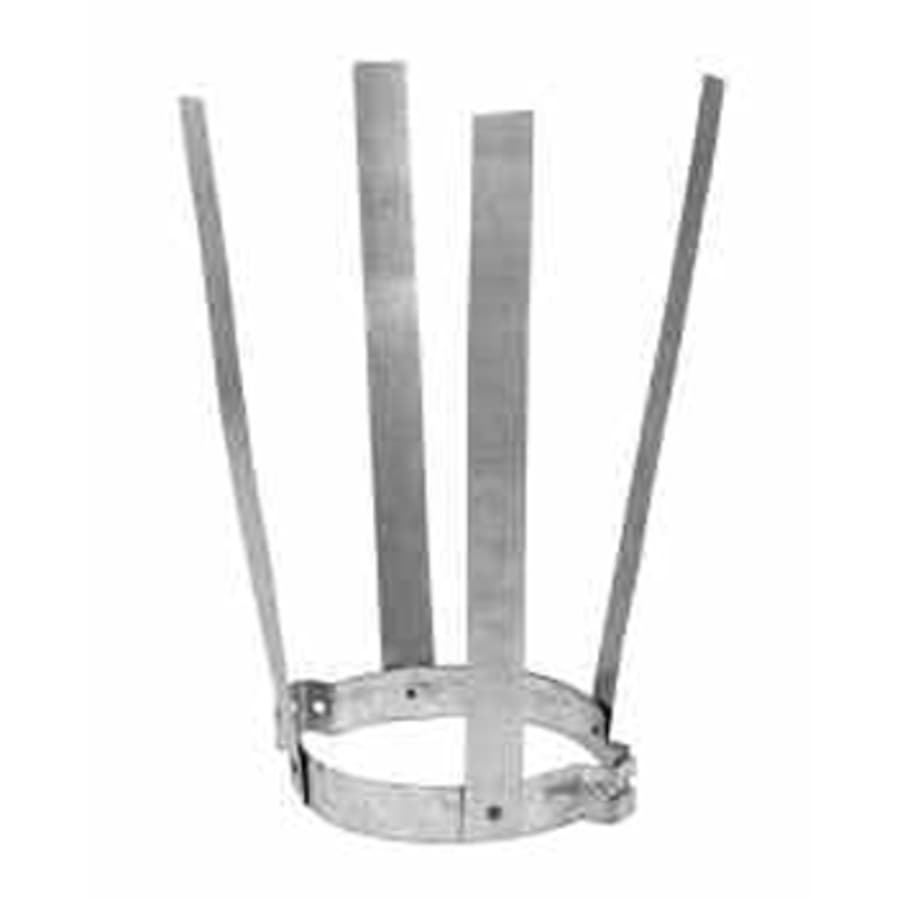

14″ Class A Chimney Pipe Interior Resupport Band from Sure-Temp
Interior resupport assembly allows for two different methods of chimney resupport. The first method is used at the immediate section of chimney above the upper elbow of an offset. With the appropriate Fire Stop/Joist Shield (JS) in place, clamp the support band around chimney and attach with 6 sheet metal screws. The second means of support is used primarily when the immediate sections of the upper offset do not pass through a joist area and resupport is necessary. The Support Band is clamped around the chimney immediately below a Locking Band. In both methods, the straps are nailed to suitable framing at 2″ clearance. The 18′ limit of supportable chimney length applies.
The Sure-Temp Chimney System is designed to meet the needs of today’s high-efficiency Wood Stoves and other appliances burning wood, oil or gas. Components may be combined in a wide variety of ways to solve almost any chimney installation requirement.
Features:
Materials: Stainless steel
Clearance: 2″ to combustibles
Allowable Flue Gas Temperatures:
Maximum Continuous: 1,000 Degrees Fahrenheit / 540 Degrees Celsius
Brief Forced Firing: 1,400 Degrees Fahrenheit / 760 Degrees Celsius (60 min.)
Creosote Burn Out: 1700 Degrees Fahrenheit / 930 Degrees Celsius (3 x 10 min.)
UL Listed: UL-103
Warranty: Lifetime Limited Warranty
Straps measure 17.5″ long
Additional Metalbest Links
View the Manufacturer Warranty
Metalbest 14 Inch SureTemp Collection
Specifications
| Material | Stainless Steel |
| Configuration | Bracket, Strap |
| Pipe Class | Class A |
| Pipe Shape | Round |
| Vent Construction | Double Wall |
| Collection | Galva-Temp, Ultra-Temp, Sure-Temp |
| Approved for Commercial Use | No |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | UL |
| Pipe Inside Diameter | 14 in. |
| Fuel Type | Coal, Oil, Wood |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
