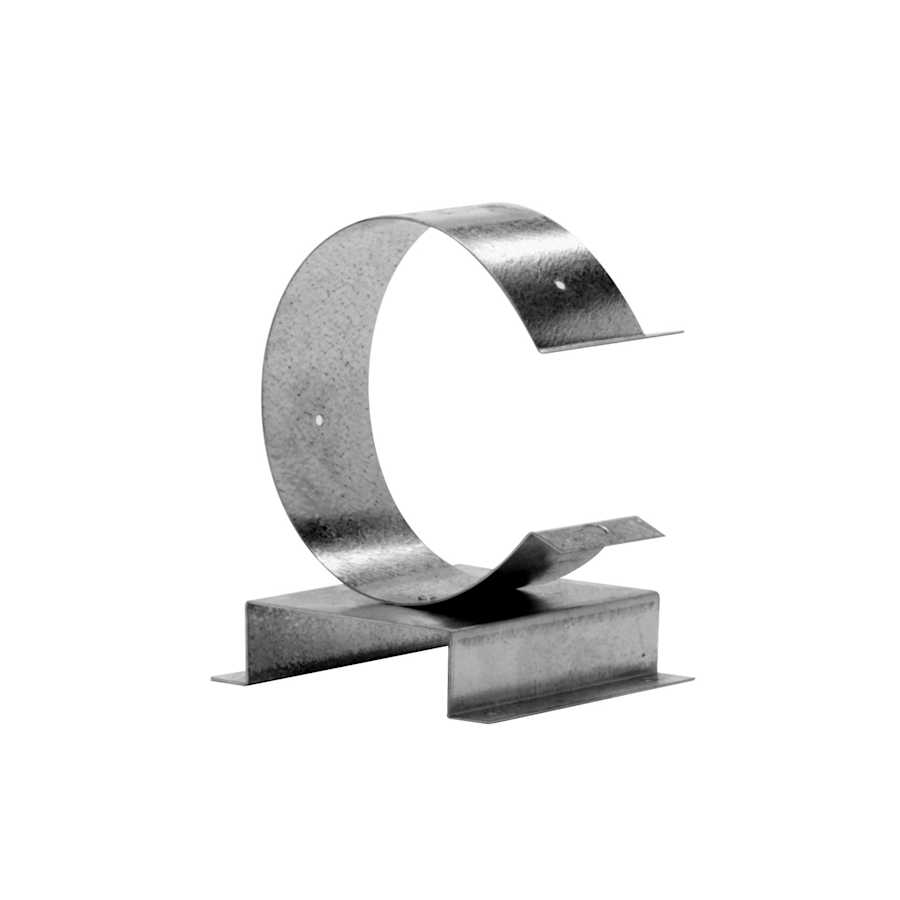

3″ Type B Gas Vent Wall Support / Band Assembly from the RV Collection
The Wall Support / Band assembly is used along the outside wall to provide for 1″ clearance and assure stability. Also useful for suspending offsets. Must be installed just above the tee and every 6′ thereafter.
The RV series offers round gas vent pipe and fittings for residential, commercial and industrial applications. It features a snap together, non-positional lock system, die formed ends, and eliminates the need for all cutting, fitting and special engineering. It has an improved joint design provides for a rapid and secure connection in seconds. The use of our “LockTab” feature gives installers the option of engaging this tab instead of using sheet metal screws, when required by local code.
Features:
Residential and light commercial and industrial
Materials: Galvanized steel outer and aluminum inner liner
Easy to use LockTab or non-positional lock system
Fuel: Gas
UL 441 listed
Minimum Safety Clearance to Combustibles:
1″ for diameters of 3″ to 24″
2″ for diameters 26″ to 48″
Warranty: Lifetime Limited Warranty
Additional Metalbest Links
View the Manufacturer Warranty
Metalbest RV Collection
Specifications
| Approved for Commercial Use | No |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | UL |
| Material | Aluminum, Galvanized Steel |
| Configuration | Bracket, Strap |
| Pipe Class | Type B |
| Pipe Shape | Round |
| Vent Construction | Double Wall |
| Pipe Inside Diameter | 3 in. |
| Inside Diameter | 3.5 in. |
| Fuel Type | Gas |
| Color | Galvanized |
| Color Tone | Neutrals |
