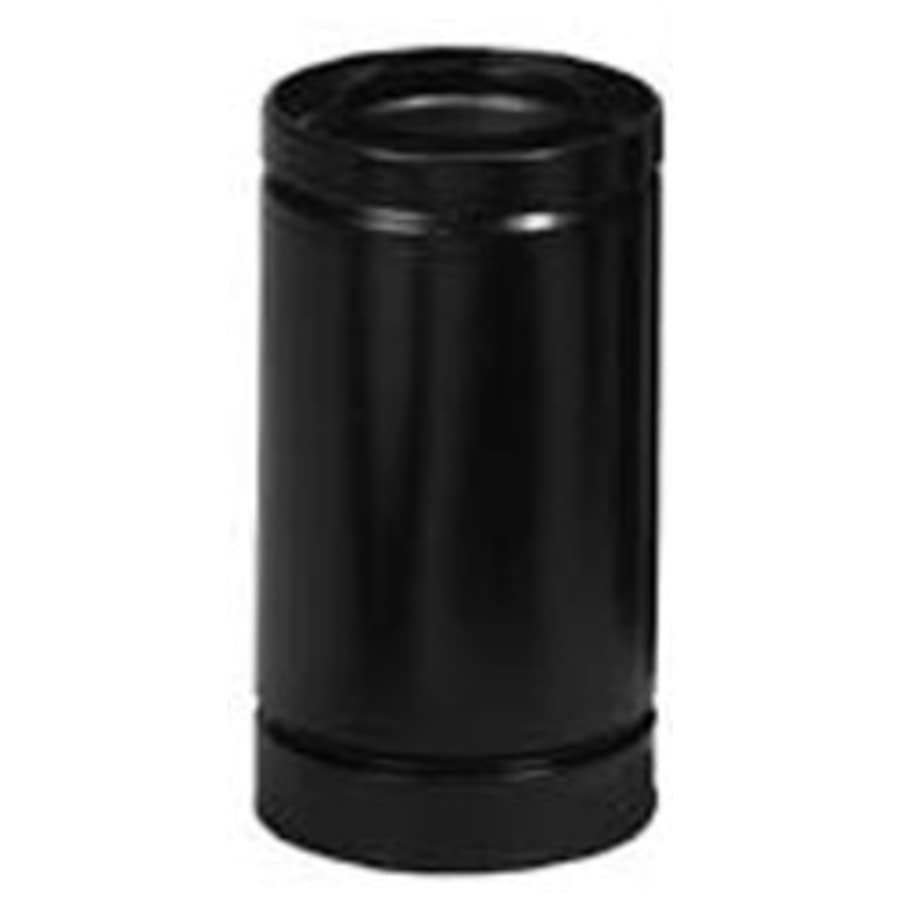

Metalbest 4″ Inner Diameter – Direct-Temp Direct Vent Pipe – Double Wall – 6″ Pipe Length

Pipe lengths provide the core part of the chimney system. Pipes should match the inside diameter of all other pieces and all pieces should be from the same manufacturer. The net length when installed is 1.625″ shorter than the overall length of the pipe.

Direct-Temp system features stainless steel inner and heavy duty galvanized steel outer walls. Heavy duty centering brackets keep inner pipe centered and chamfered edges allow for easy slide-together assembly. The free-floating inner liner allows the pipe to expand and contract under high temperature, without creating gaps or stress points. The Lock Tab(r) is a unique design that allows for 360° rotation while securely locking the sections of pipe together with just a push of the tab.

Features:

Siliconized Fiberglass seal
LockTab security
Pipe rotates easily to align system components
No sealant required
High efficiency performance
Gasket joint design
Internal spacing bead assures uniform insulating airspace
Warranty: Limited Lifetime

Connector Specifications:

Joint/Connection Overlap: 1-5/8″
Joint/Connection Type: Twist-Lock standard on all diameters

Material Specifications:

Outer Wall: Heavy duty galvanized steel
Inner Wall: 304 Stainless Steel
