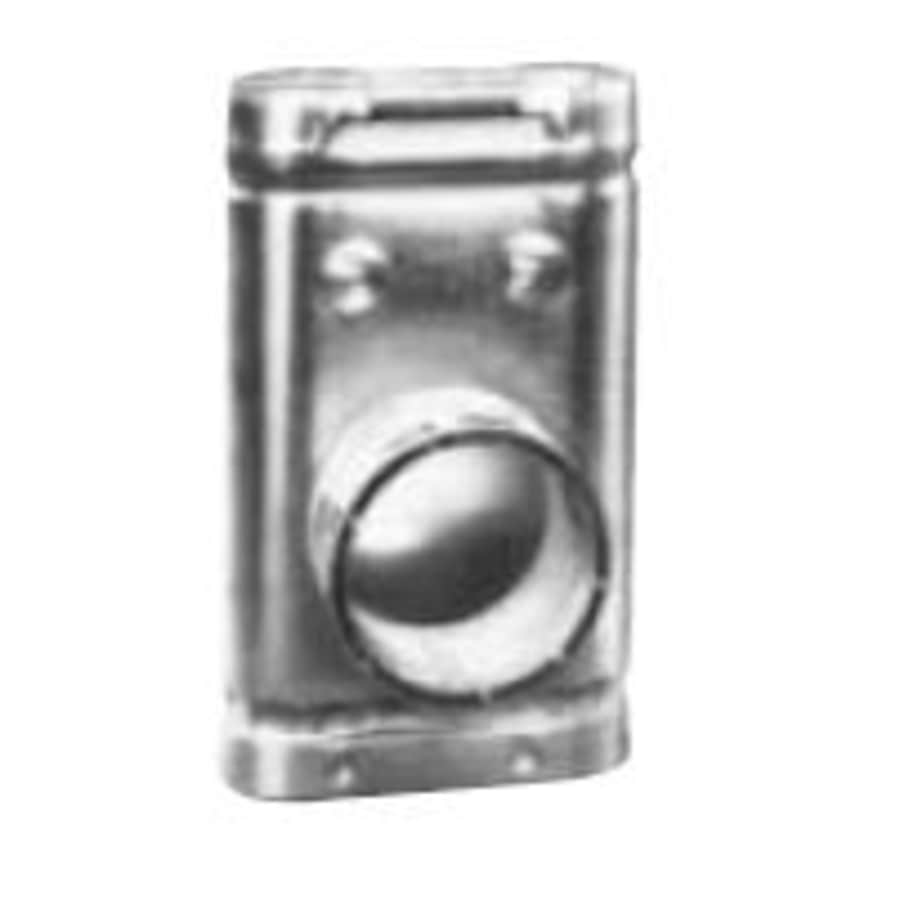

4″ Type B Gas Vent Standard Oval Tee from the OV Collection
A tee is used in conjunction with a vertical vent system to provide easy access for inspection and cleaning. The branch and trunk size have the same diameter. The branch accepts either single- or double-wall round pipe.
The OV series offers oval gas vent pipe and fittings and can be used for Type B, Type B 2×4, Type BW and Type B 2×6 depending on the pipe size. It features a snap together die formed ends, and is UL 441 listed. Note: Special factory supplied parts are required to use 4″ OV as Type BW vent.
Features:
Materials: Aluminum inner and Galvanized steel outer pipe
Minimum Safety Clearance to Combustibles:
1″ for diameters of 3″ to 24″
2″ for diameters 26″ to 48″
Fuels: Gas
UL Listed: UL 441
Warranty: Lifetime Limited Warranty
Additional Metalbest Links
View the Manufacturer Warranty
Specifications
| Approved for Commercial Use | No |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | UL |
| Height | 12 in. |
| Pipe Inside Diameter | 4 in. |
| Material | Aluminum, Galvanized Steel |
| Configuration | Tee |
| Pipe Class | Type B |
| Pipe Shape | Oval |
| Vent Construction | Double Wall |
| Fuel Type | Gas |
