Metalbest 5″ Inner Diameter – Direct-Temp Direct Vent Pipe – Double Wall – Adjustable Flashing for 0/12 to 6/12 Roof Pitch

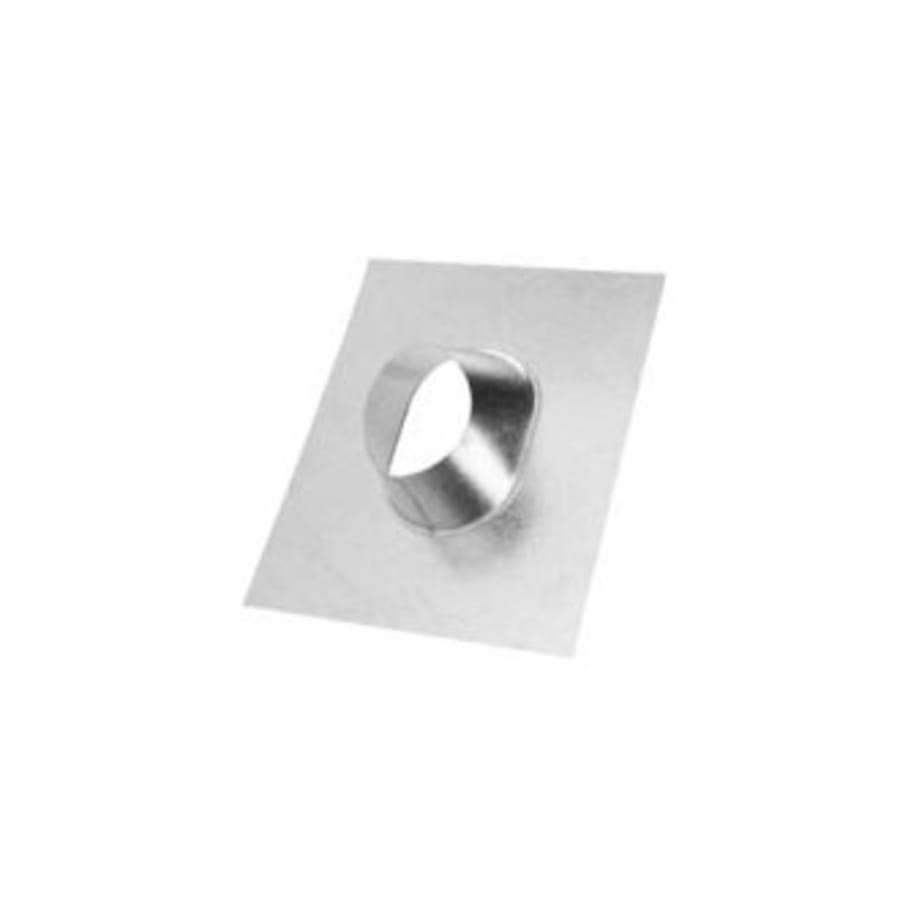

5″ x 8″ Direct Vent Adjustable Flashing for 0/12 to 6/12 Roof Pitch from Direct-Temp

Flashings are used to seal the opening where the Direct-Temp pipe penetrates the roof and to divert rain and snow down from the roof and away from the venting system. It is important to choose flashing that matches the pitch of your roof. This adjustable flashing works for 0/12 to 6/12 pitch. Note: To determine your roof pitch, measure the number of inches from the end of a level 12” ruler down to the roof. This is the rise for 12 inches of run. For example, a rise of 5 inches is a 5/12 pitch.

Direct-Temp system features stainless steel inner and heavy duty galvanized steel outer walls. Heavy duty centering brackets keep inner pipe centered and chamfered edges allow for easy slide-together assembly. The free-floating inner liner allows the pipe to expand and contract under high temperature, without creating gaps or stress points. The LockTab(r) is a unique design that allows for 360° rotation while securely locking the sections of pipe together with just a push of the tab.

Features:

Siliconozed fiberglass seal
LockTab security
Pipe rotates easily to align system components
No sealant required
High efficiency performance
Connection Specifications:
Joint/Connection Overlap: 1-5/8″
Joint/Connection Type: Twist-Lock standard on all diameters
Material Specifications:
Outer Wall: Heavy duty galvanized steel
Inner Wall: 304 Stainless Steel
