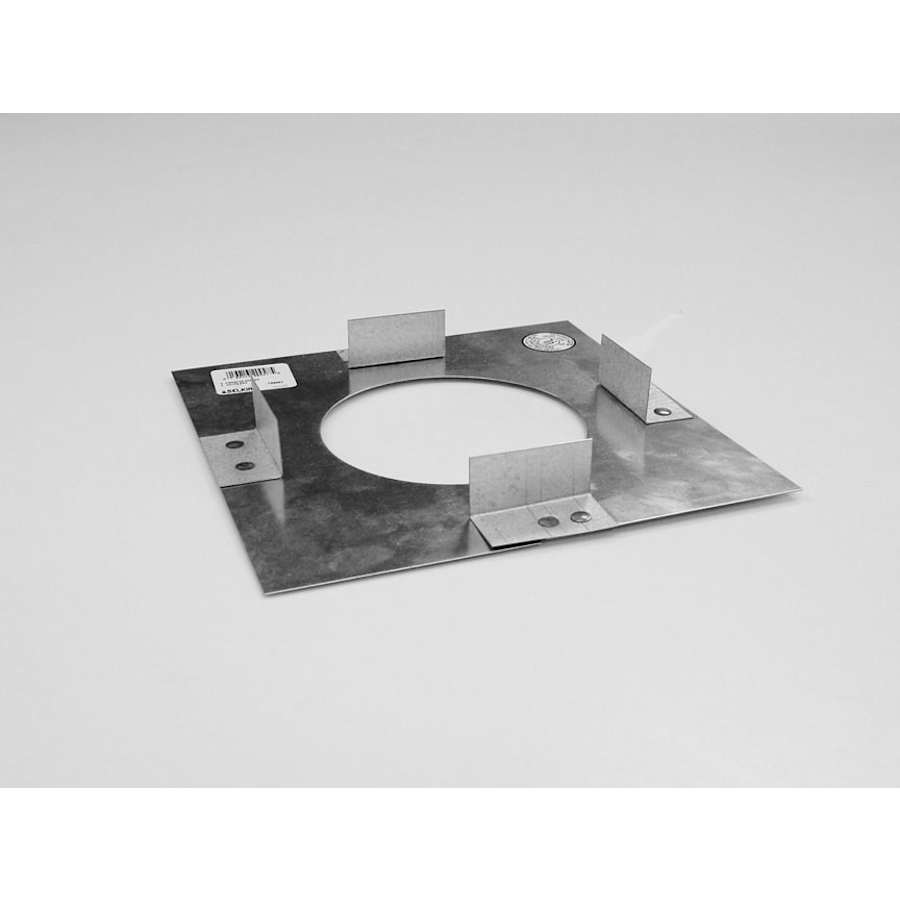

Metalbest Direct-Temp 5″ x 8″ Direct Vent Firestop Spacer

5″ x 8″ Direct Vent Firestop Spacer from Direct-Temp

This spacer is required when penetrating combustible materials with the direct vent system. Refer to the installation instructions for specific requirements.

Direct-Temp system features stainless steel inner and heavy duty galvanized steel outer walls. Heavy duty centering brackets keep inner pipe centered and chamfered edges allow for easy slide-together assembly. The free-floating inner liner allows the pipe to expand and contract under high temperature, without creating gaps or stress points. The LockTab(r) is a unique design that allows for 360° rotation while securely locking the sections of pipe together with just a push of the tab.

Features:

Siliconozed fiberglass seal
LockTab security
Pipe rotates easily to align system components
No sealant required
14″ x 14″ Base
8.125″ Hole Diameter
10.125″ between opposite tabs
High efficiency performance
Connection Specifications:
Joint/Connection Overlap: 1-5/8″
Joint/Connection Type: Twist-Lock standard on all diameters
Material Specifications:
Outer Wall: Heavy duty galvanized steel
Inner Wall: 304 Stainless Steel
