Metalbest 5″ Inner Diameter – Direct-Temp Direct Vent Pipe – Double Wall – Wall Thimble

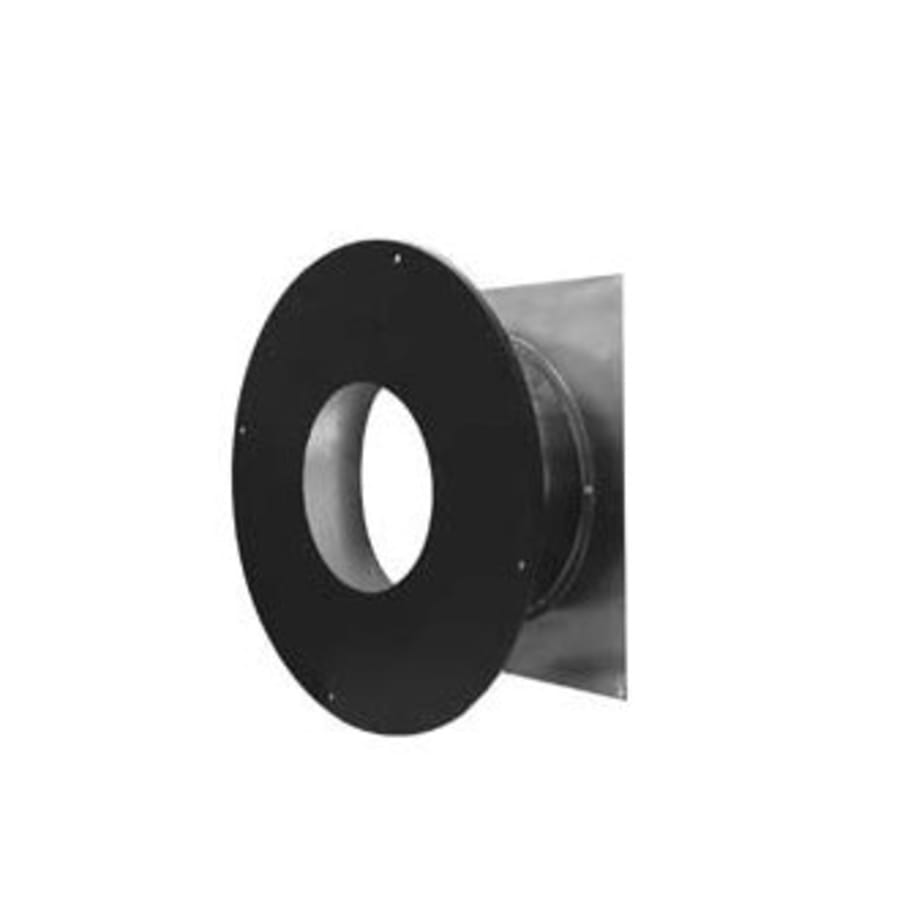

5″ x 8″ Direct Vent Wall Thimble from Direct-Temp

This two-piece wall thimble easily slides together for installation on wall thicknesses of 4″ to 7″. This serves a dual purpose as both a heat shield and firestop.

Direct-Temp system features stainless steel inner and heavy duty galvanized steel outer walls. Heavy duty centering brackets keep inner pipe centered and chamfered edges allow for easy slide-together assembly. The free-floating inner liner allows the pipe to expand and contract under high temperature, without creating gaps or stress points. The LockTab(r) is a unique design that allows for 360° rotation while securely locking the sections of pipe together with just a push of the tab.

Features:

Siliconozed fiberglass seal
LockTab security
Pipe rotates easily to align system components
No sealant required
12.5″ x 12.5″ Base
6″ to 11″ adjustable depth
Diameter: 8.125″ inner and 19″ outer
High efficiency performance
Connection Specifications:
Joint/Connection Overlap: 1-5/8″
Joint/Connection Type: Twist-Lock standard on all diameters
Material Specifications:
Outer Wall: Heavy duty galvanized steel
Inner Wall: 304 Stainless Steel
