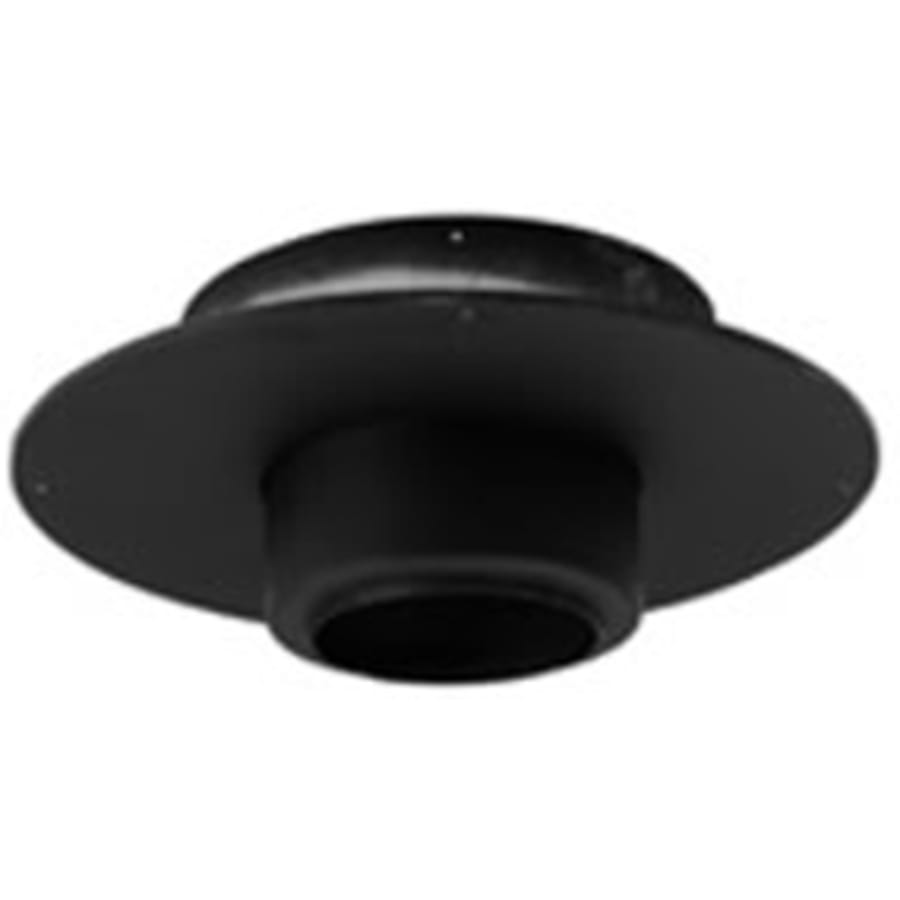

5″ Class A Chimney Pipe Round Ceiling Support from Sure-Temp
The ceiling support package has a round trim plate and is unpainted on the back. With proper framing, all ceiling supports assure at least 2″ minimum clearance to combustibles at the support level and can carry up to 50′ of vertical chimney height.
The Sure-Temp Chimney System is designed to meet the needs of today’s high-efficiency Wood Stoves and other appliances burning wood, oil or gas. Components may be combined in a wide variety of ways to solve almost any chimney installation requirement.
Features:
Materials: Stainless steel
Clearance: 2″ to combustibles
Allowable Flue Gas Temperatures:
Maximum Continuous: 1,000 Degrees Fahrenheit / 540 Degrees Celsius
Brief Forced Firing: 1,400 Degrees Fahrenheit / 760 Degrees Celsius (60 min.)
Creosote Burn Out: 2,100 Degrees Fahrenheit / 1,150 Degrees Celsius (3 x 10 min.)
UL Listed: UL-103-HT
Warranty: Lifetime Limited Warranty
Framing Dimensions: 11.25″ x 11.25″
3.5″ Projection from ceiling
Additional Metalbest Links
View the Manufacturer Warranty
Metalbest Ultra-Temp Collection
Specifications
| Approved for Commercial Use | No |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | UL |
| Material | Stainless Steel |
| Configuration | Support Box |
| Pipe Class | Class A |
| Pipe Shape | Round |
| Vent Construction | Double Wall |
| Depth | 3.5 in. |
| Pipe Inside Diameter | 5 in. |
| Overall Diameter | 17 in. |
| Bottom Diameter | 5.25 in. |
| Top Diameter | 11.25 in. |
| Fuel Type | Coal, Oil, Wood |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
