Metalbest RV 6″ Type B Gas Vent Hi-Wind Top Termination

6″ Type B Gas Vent Hi-Wind Top Termination from the RV Collection

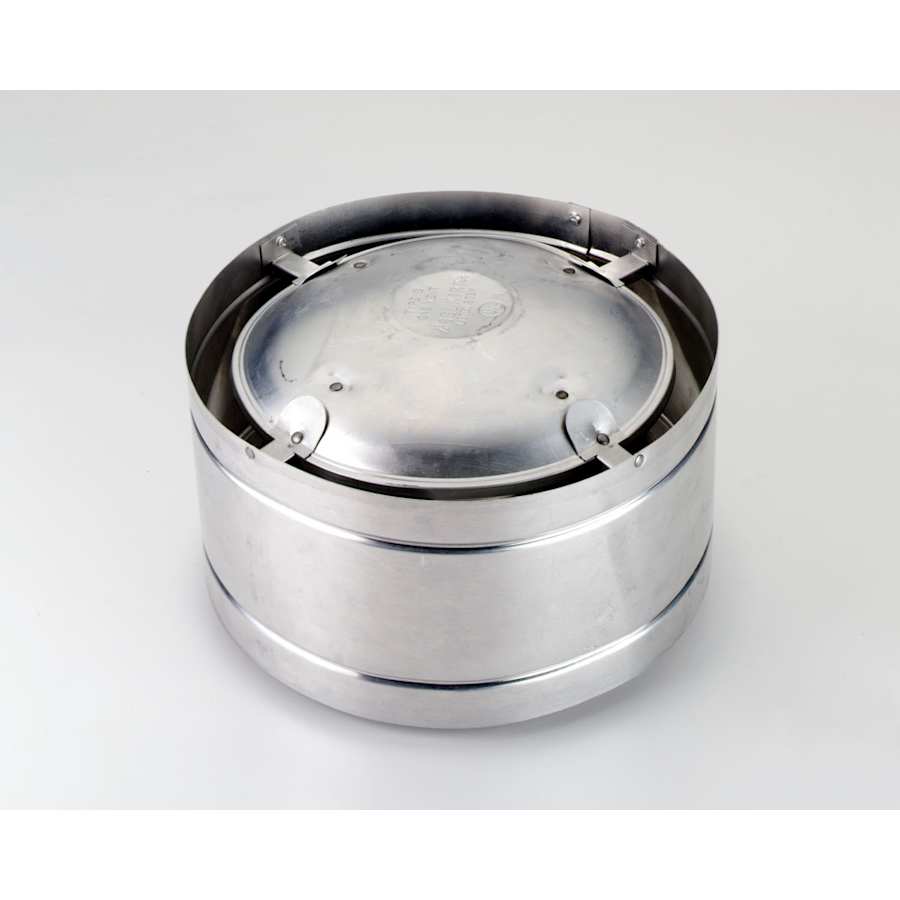

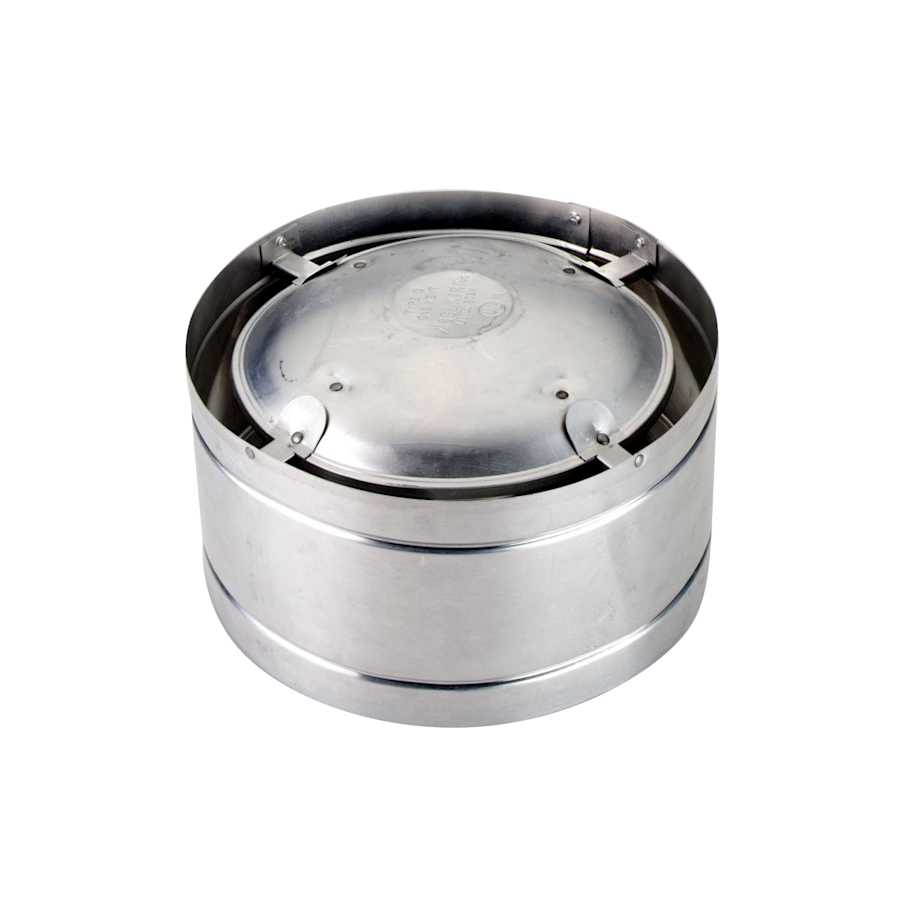

Part of the chimney system roof assembly, the hi-wind top is designed with a dome to exclude rain and leaves and a side wall to improve flue gas flow and prevent downdrafts. It is used in high wind environments.

The RV series offers round gas vent pipe and fittings for residential, commercial and industrial applications. It features a snap together, non-positional lock system, die formed ends, and eliminates the need for all cutting, fitting and special engineering. It has an improved joint design provides for a rapid and secure connection in seconds. The use of our “LockTab” feature gives installers the option of engaging this tab instead of using sheet metal screws, when required by local code.

Features:

Residential and light commercial and industrial
Materials: Galvanized steel outer and aluminum inner liner
Easy to use LockTab or non-positional lock system
Fuel: Gas
UL 441 listed
Minimum Safety Clearance to Combustibles:
1″ for diameters of 3″ to 24″
2″ for diameters 26″ to 48″
Warranty: Lifetime Limited Warranty
