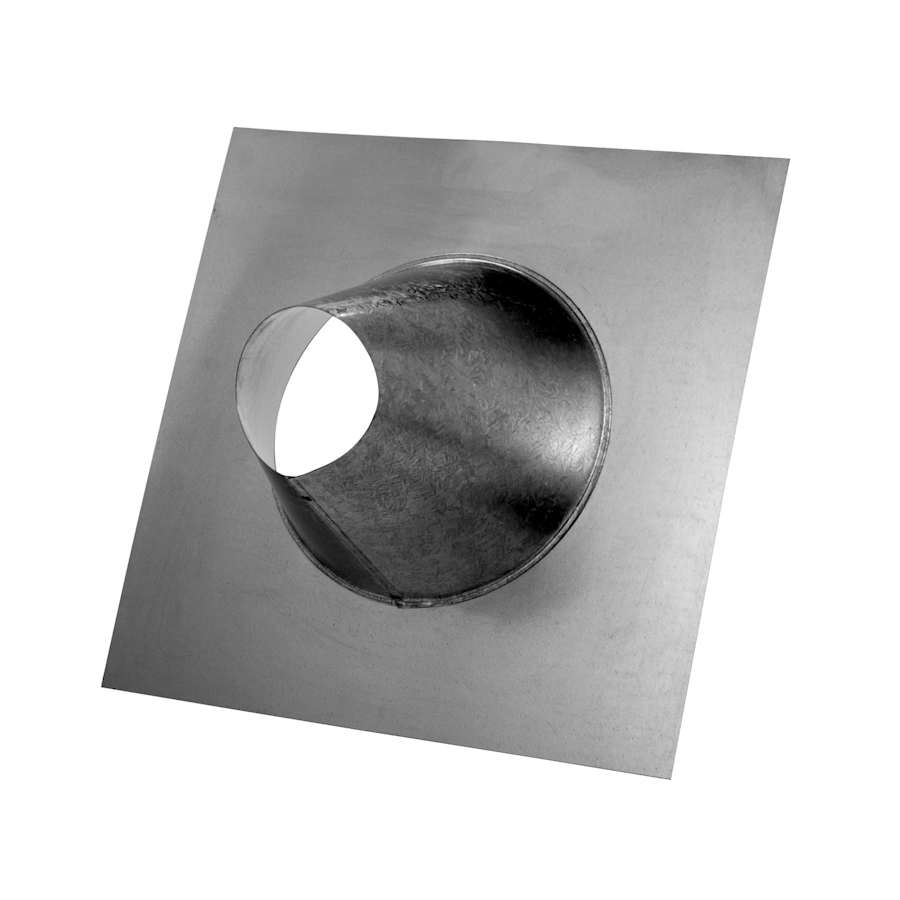

6″ Type B Gas Vent Tall Cone Adjustable Pitch Roof Flashing from the RV Collection
Flashings are used to seal the opening where the chimney penetrates the roof and to divert rain and snow down from the roof and away from the chimney system. It is important to choose flashing that matches the pitch of your roof. This flashing works for up to 6/12 pitch and has over 8″ cone height. Note: To determine your roof pitch, measure the number of inches from the end of a level 12” ruler down to the roof. This is the rise for 12 inches of run. For example, a rise of 5 inches is a 5/12 pitch.
The RV series offers round gas vent pipe and fittings for residential, commercial and industrial applications. It features a snap together, non-positional lock system, die formed ends, and eliminates the need for all cutting, fitting and special engineering. It has an improved joint design provides for a rapid and secure connection in seconds. The use of our “LockTab” feature gives installers the option of engaging this tab instead of using sheet metal screws, when required by local code.
Features:
Residential and light commercial and industrial
Materials: Galvanized steel outer and aluminum inner liner
Easy to use LockTab or non-positional lock system
Fuel: Gas
UL 441 listed
Minimum Safety Clearance to Combustibles:
1″ for diameters of 3″ to 24″
2″ for diameters 26″ to 48″
Warranty: Lifetime Limited Warranty
Additional Metalbest Links
View the Manufacturer Warranty
Metalbest RV Collection
Specifications
| Height | 8.75 in. |
| Bar Length | 19.5 in. |
| Base Width | 19.5 in. |
| Pipe Inside Diameter | 6 in. |
| Pitch | 0/12 - 6/12 |
| Bottom Diameter | 11 in. |
| Material | Aluminum, Galvanized Steel |
| Configuration | Flashing |
| Pipe Class | Type B |
| Pipe Shape | Round |
| Vent Construction | Double Wall |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | UL |
| Approved for Commercial Use | No |
| Fuel Type | Gas |
| Color | Galvanized |
| Color Tone | Neutrals |
