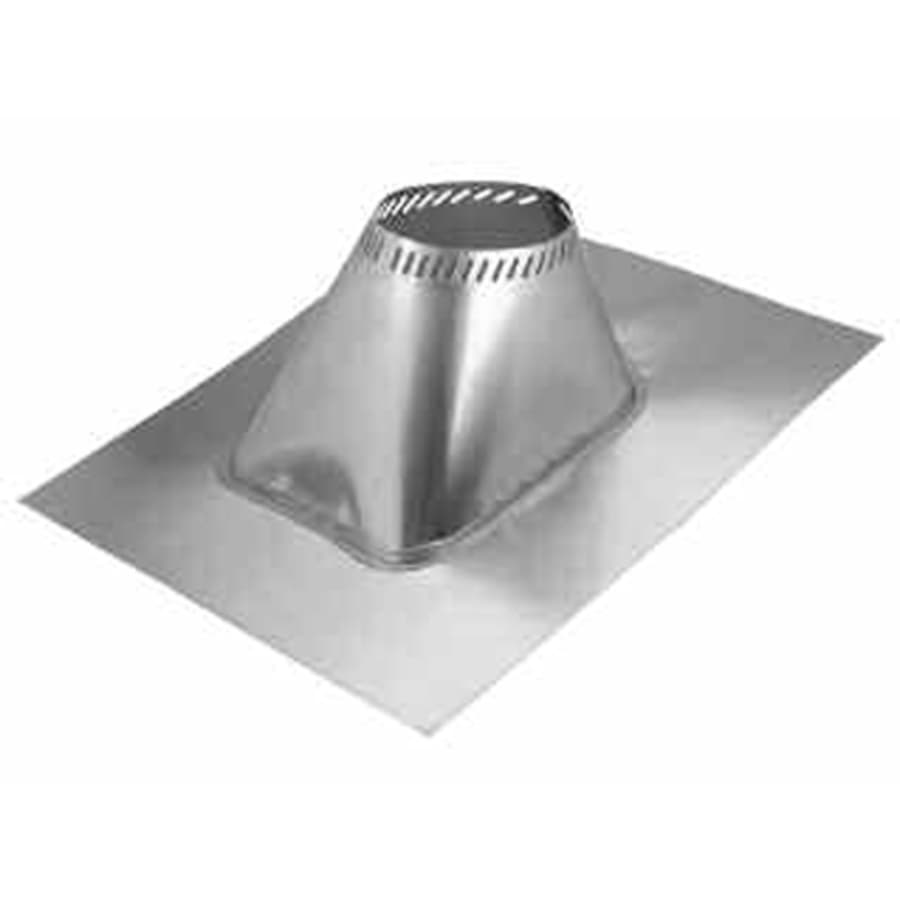

6″ Class A Chimney Pipe Adjustable Roof Flashing for 6/12 to 12/12 Roof Pitch from Sure-Temp
Flashings are used to seal the opening where the chimney penetrates the roof and to divert rain and snow down from the roof and away from the chimney system. It is important to choose flashing that matches the pitch of your roof. This adjustable flashing works for 6/12 to 12/12 pitch. Note: To determine your roof pitch, measure the number of inches from the end of a level 12” ruler down to the roof. This is the rise for 12 inches of run. For example, a rise of 7 inches is a 7/12 pitch.
The Sure-Temp Chimney System is designed to meet the needs of today’s high-efficiency Wood Stoves and other appliances burning wood, oil or gas. Components may be combined in a wide variety of ways to solve almost any chimney installation requirement.
Features:
Materials: Stainless steel
Clearance: 2″ to combustibles
Allowable Flue Gas Temperatures:
Maximum Continuous: 1,000 Degrees Fahrenheit / 540 Degrees Celsius
Brief Forced Firing: 1,400 Degrees Fahrenheit / 760 Degrees Celsius (60 min.)
Creosote Burn Out: 2,100 Degrees Fahrenheit / 1,150 Degrees Celsius (3 x 10 min.)
.025 aluminum base
UL Listed: UL-103-HT
Note: For a 5″ chimney use this flashing with 5/6 inch storm collar
Warranty: Lifetime Limited Warranty
Additional Metalbest Links
View the Manufacturer Warranty
Metalbest Ultra-Temp Collection
Specifications
| Bar Length | 31.875 in. |
| Base Width | 27 in. |
| Pipe Inside Diameter | 6 in. |
| Bottom Diameter | 19.875 in. |
| Top Diameter | 8.125 in. |
| Pitch | 6/12 - 12/12 |
| Material | Aluminum, Stainless Steel |
| Configuration | Flashing |
| Pipe Class | Class A |
| Pipe Shape | Round |
| Vent Construction | Double Wall |
| Approved for Commercial Use | No |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | UL |
| Fuel Type | Coal, Oil, Wood |
| Color | Galvanized |
| Color Tone | Neutrals |
