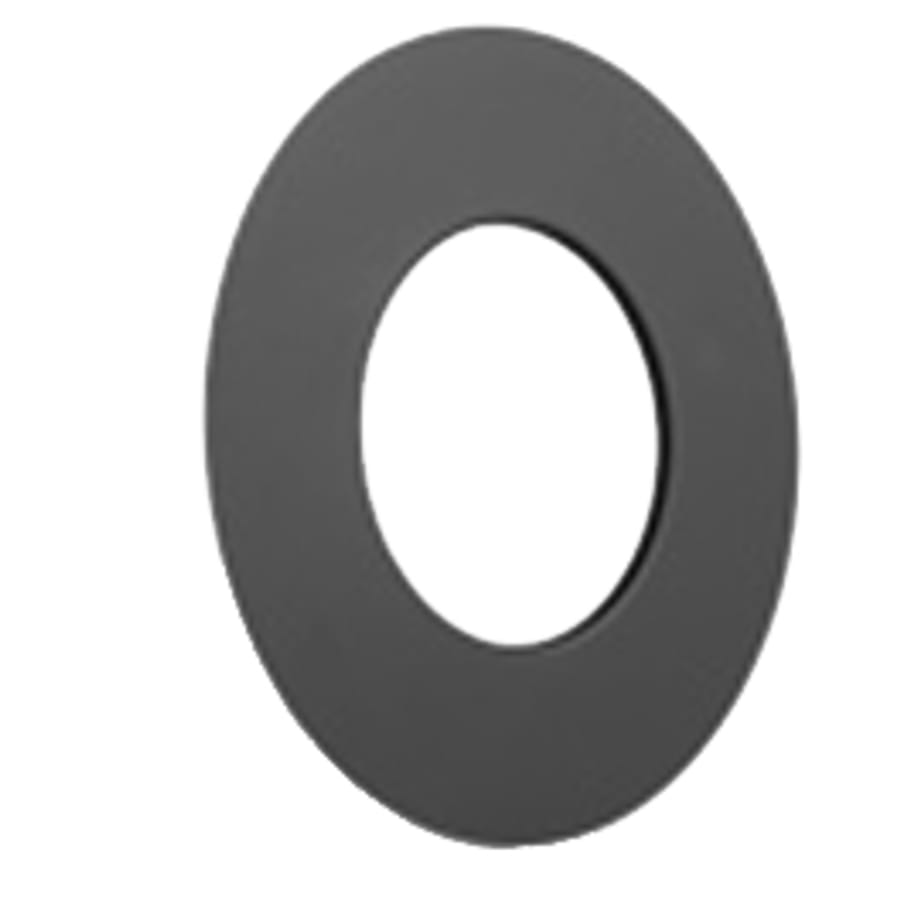

Used to trim ceiling and close off airspace around the pipe, which is supported from above, extending down into the room, and intended to be used in conjunction with the Firestop/Joist Shield.
Galva-Temp is designed for all-fuel applications and comes with a galvanized steel outer casing. Galva-Temp chimney pipe is insulated with 1″ solid pack and UL Listed to UL-103 standards. With stainless steel inner pipe, 1-inch premium insulation, durable galvanized steel outer pipe, this is “the coolest under the hottest conditions”.
Features:
Galvanized steel
Clearance of 2″ to combustibles
Allowable Flue Gas Temperatures:
Maximum Continuous: 1,000 Degrees Fahrenheit / 540 Degrees Celsius
Brief Forced Firing: 1,400 Degrees Fahrenheit / 760 Degrees Celsius (60 min.)
Creosote Burn Out: 2,100 Degrees Fahrenheit / 1,150 Degrees Celsius (3 x 10 min.)
UL Rated to UL-103
Lifetime Limited Warranty
Specifications:
Fuel Type: Coal, Oil, Wood
Material: Galvanized Steel
Outside Diameter: 9″
Vent Construction: Double Wall
Pipe Shape: Round
Pipe Inside Diameter: 7″
Additional Metalbest Links
View the Manufacturer Warranty
Metalbest 7 Inch Galva-Temp Collection
Specifications
| Material | Galvanized Steel |
| Configuration | Trim |
| Pipe Class | Class A |
| Pipe Shape | Round |
| Vent Construction | Double Wall |
| Manufacturer Warranty | Limited Lifetime |
| Collection | Galva-Temp |
| Certifications | UL |
| Pipe Inside Diameter | 7 in. |
| Outside Diameter | 21 in. |
| Inside Diameter | 9.125 in. |
| Top Diameter | 13 in. |
| Fuel Type | Coal, Oil, Wood |
| Color | Galvanized Steel |
| Color Tone | Steel Tones |
