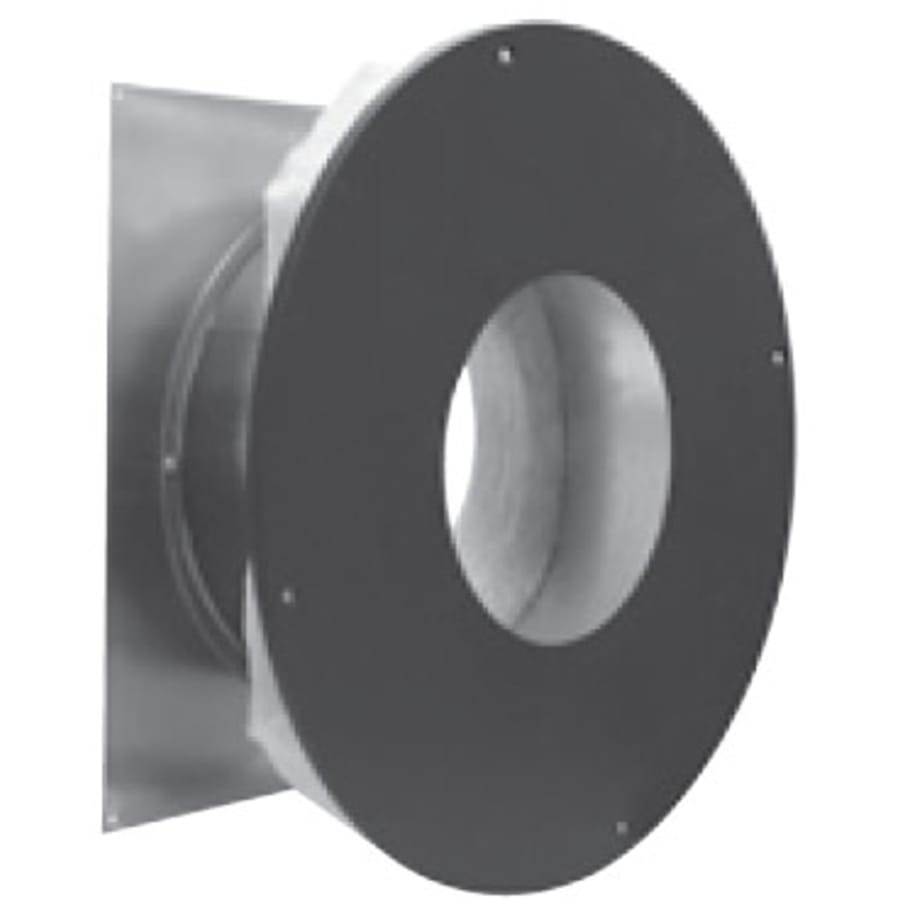

7″ Class A Chimney Pipe Insulated Wall Thimble from Sure-Temp
Metalbest’s Insulated Wall Thimble installs quickly and eliminates the need for using individual firestops. The round shielding acts as a radiation shield and provides the required two inch air space clearance to combustibles. The two sections telescope to accommodate 6″ to 11″ of wall thickness.
The Sure-Temp Chimney System is designed to meet the needs of today’s high-efficiency Wood Stoves and other appliances burning wood, oil or gas. Components may be combined in a wide variety of ways to solve almost any chimney installation requirement.
Features:
Materials: Stainless steel
Clearance: 2″ to combustibles
Allowable Flue Gas Temperatures:
Maximum Continuous: 1,000 Degrees Fahrenheit / 540 Degrees Celsius
Brief Forced Firing: 1,400 Degrees Fahrenheit / 760 Degrees Celsius (60 min.)
Creosote Burn Out: 2,100 Degrees Fahrenheit / 1,150 Degrees Celsius (3 x 10 min.)
UL Listed: UL-103-HT
Warranty: Lifetime Limited Warranty
Opening Required: 13.125″ x 13.125″
Telescopes for 6″ to 11″ wall thickness
Additional Metalbest Links
View the Manufacturer Warranty
Metalbest Ultra-Temp Collection
Specifications
| Material | Stainless Steel |
| Configuration | Wall Thimble |
| Pipe Class | Class A |
| Pipe Shape | Round |
| Vent Construction | Double Wall |
| Approved for Commercial Use | No |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | UL |
| Pipe Inside Diameter | 7 in. |
| Bar Length | 16 in. |
| Base Width | 16 in. |
| Overall Diameter | 21 in. |
| Fuel Type | Coal, Oil, Wood |
| Color | Black |
| Color Tone | Blacks |
