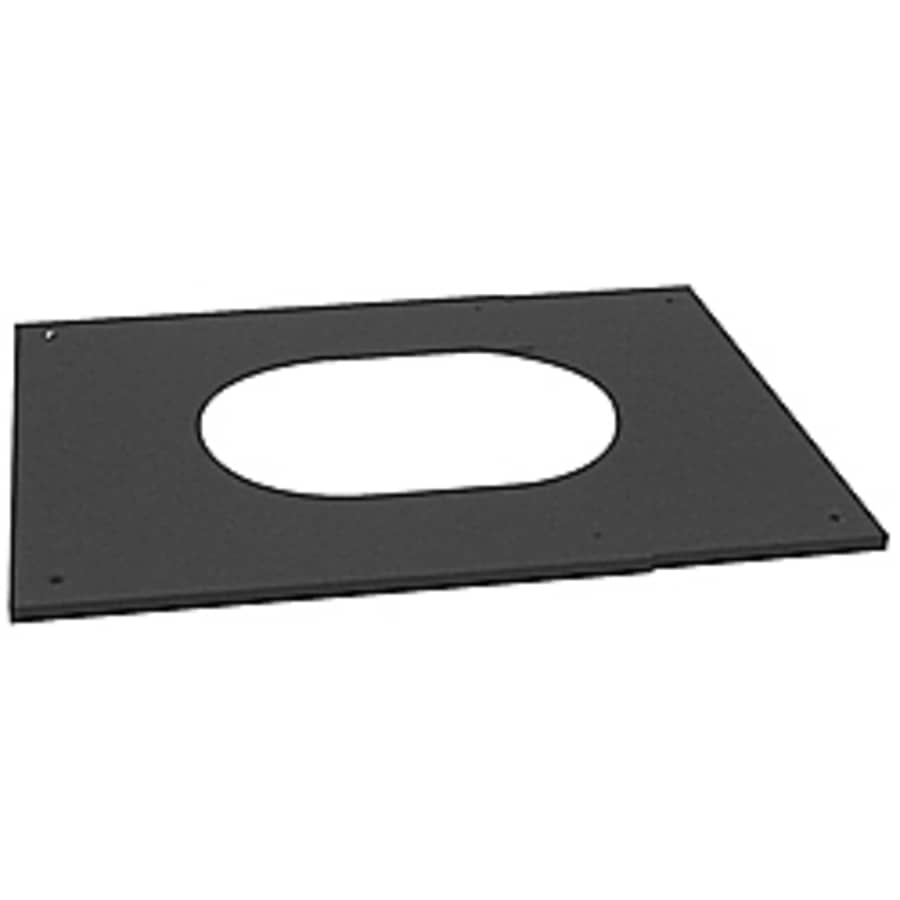

8″ Class A Chimney Pipe Adjustable 6/12 to 12/12 Pitched Ceiling Plate from Sure-Temp
The Pitched Ceiling Plate provides a finished appearance where the chimney passes through a sloped ceiling. It is important to choose a plate that matches the pitch of your roof. This adjustable plate works for 6/12 to 12/12 pitch. Note: To determine your roof pitch, measure the number of inches from the end of a level 12” ruler down to the roof. This is the rise for 12 inches of run. For example, a rise of 7 inches is a 7/12 pitch.
The Sure-Temp Chimney System is designed to meet the needs of today’s high-efficiency Wood Stoves and other appliances burning wood, oil or gas. Components may be combined in a wide variety of ways to solve almost any chimney installation requirement.
Features:
Materials: Stainless steel
Clearance: 2″ to combustibles
Allowable Flue Gas Temperatures:
Maximum Continuous: 1,000 Degrees Fahrenheit / 540 Degrees Celsius
Brief Forced Firing: 1,400 Degrees Fahrenheit / 760 Degrees Celsius (60 min.)
Creosote Burn Out: 2,100 Degrees Fahrenheit / 1,150 Degrees Celsius (3 x 10 min.)
UL Listed: UL-103-HT
Warranty: Lifetime Limited Warranty
Additional Metalbest Links
View the Manufacturer Warranty
Metalbest Galva-Temp Collection
Specifications
| Material | Stainless Steel |
| Configuration | Trim |
| Pipe Class | Class A |
| Pipe Shape | Round |
| Vent Construction | Double Wall |
| Approved for Commercial Use | No |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | UL |
| Width | 18.5 in. |
| Pipe Inside Diameter | 8 in. |
| Maximum Length | 33 in. |
| Minimum Length | 21 in. |
| Fuel Type | Coal, Oil, Wood |
| Color | Galvanized Steel |
| Color Tone | Steel Tones |
