Metalbest Sure-Temp 8″ Thru-the-Wall Support Kit for Horizontal Connector

8″ Thru-the-Wall Support Kit for Horizontal Connector from Sure-Temp

For a wall-supported chimney system with a horizontal connector passing through an exterior wall, connecting to a Tee and running vertically up the exterior wall to termination above the roof line. The Thru-the-Wall Support Kit provides all necessary parts for a complete installation with the exception of required Insulated Pipe Lengths to reach your desired chimney height. One Wall Band (WB) is included in the kit. Additional Wall Bands could be required if your vertical chimney run is more than 16 feet high. In the event that your vertical chimney run penetrates the roof eave, your installation could also require an Adjustable Flashing (AF) and Storm Collar (SC).

The Sure-Temp Chimney System is designed to meet the needs of today’s high-efficiency Wood Stoves and other appliances burning wood, oil or gas. Components may be combined in a wide variety of ways to solve almost any chimney installation requirement.

Features:

Materials: Stainless steel
Clearance: 2″ to combustibles
Allowable Flue Gas Temperatures:
Maximum Continuous: 1,000 Degrees Fahrenheit / 540 Degrees Celsius
Brief Forced Firing: 1,400 Degrees Fahrenheit / 760 Degrees Celsius (60 min.)
UL Listed: UL-103-HT
Warranty: Lifetime Limited Warranty

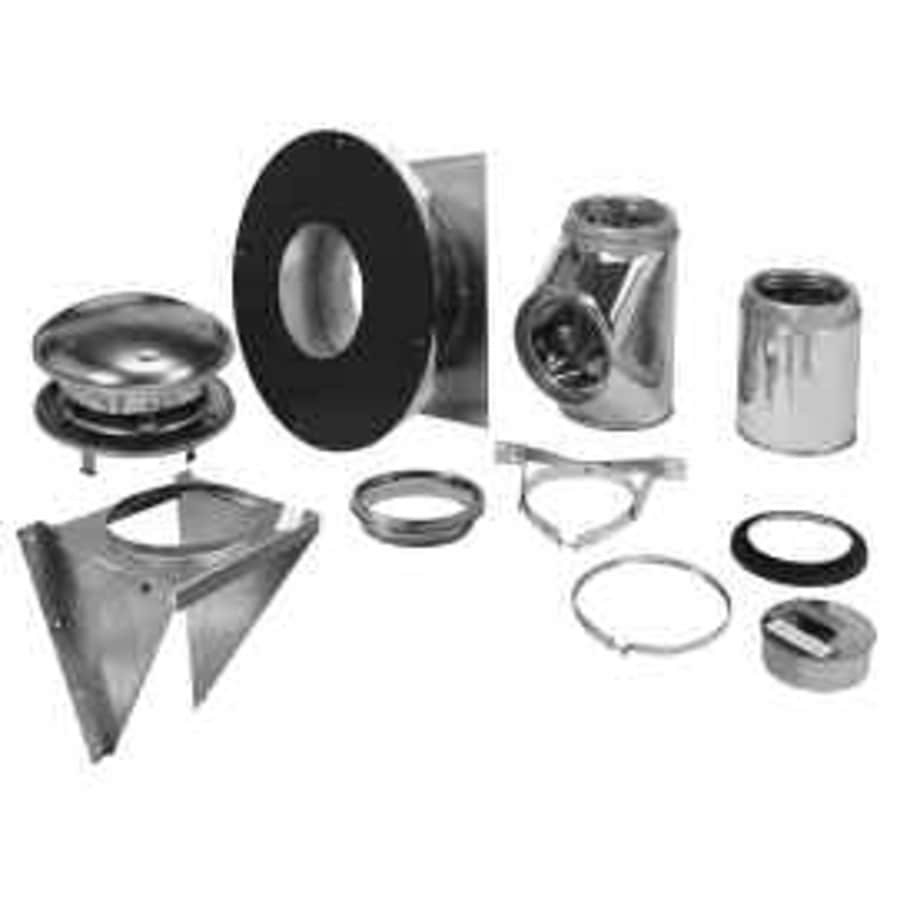

Kit includes:
Round top CT
Wall support kit WSK
Finishing collar FC
Chimney pipe adapter CPA
12″ insulated pipe length T-12
Wall band WB
Insulated tee/plug IT
Insulated wall thimble IWT
77964
