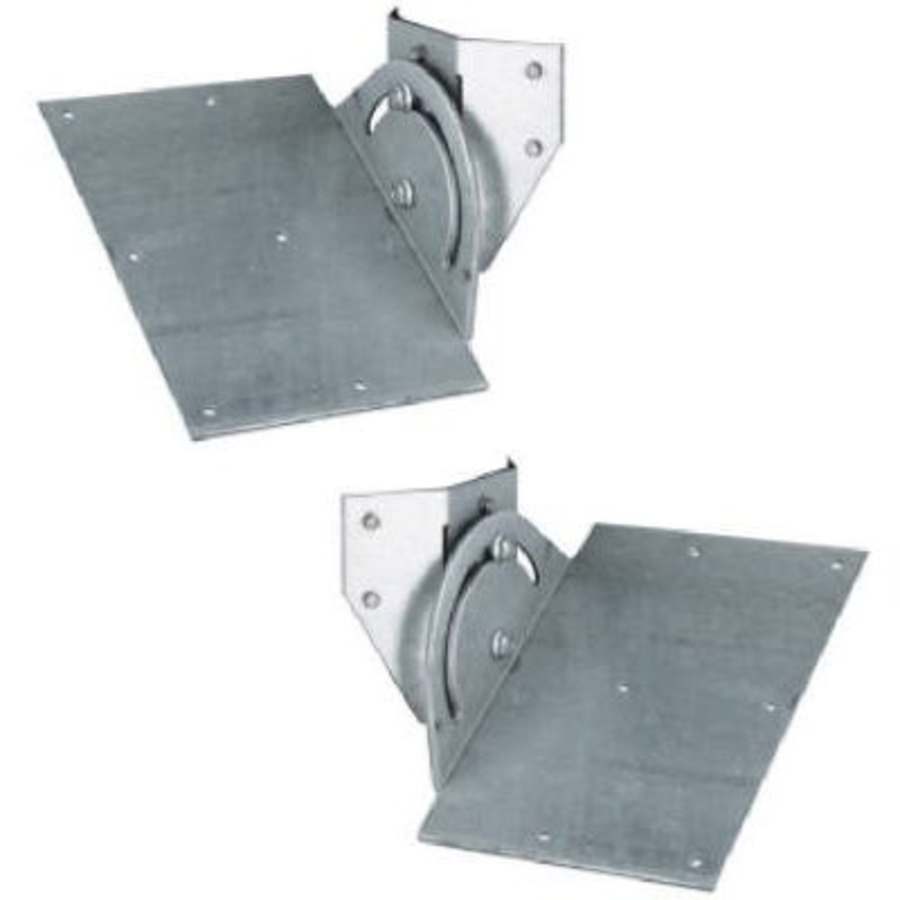

Universal Class A Roof Support Bracket
An ideal support assembly for freestanding fireplaces and open cathedral ceiling installations. Fits all roof pitches and requires only simple framing. Mounts easily onto top of roof through opening that allows 2″ clearance. Maximum length of chimney which can be suspended below is 20´. Maximum total length is 30´. This kit contains the roof brackets and hardware, but does not come with the pipe section (for pipe section order an RSP). The brackets may be assembled to any standard pipe length at any desired height. Locking bands must be used at each pipe joint.
Features:
Materials: Stainless steel
Clearance: 2″ to combustibles
Allowable Flue Gas Temperatures:
Maximum Continuous: 1,000 Degrees Fahrenheit / 540 Degrees Celsius
Brief Forced Firing: 1,400 Degrees Fahrenheit / 760 Degrees Celsius (60 min.)
UL Listed: UL-103
Warranty: Lifetime Limited Warranty
Additional Metalbest Links
View the Manufacturer Warranty
Metalbest Ultra-Temp Collection
Specifications
| Width | 5.75 in. |
| Length | 8 in. |
| Pipe Inside Diameter | 10, 12, 14, 5, 6, 7, 8 in. |
| Material | Stainless Steel |
| Configuration | Bracket |
| Pipe Class | Class A |
| Pipe Shape | Round |
| Vent Construction | Double Wall |
| Approved for Commercial Use | No |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | UL |
| Fuel Type | Coal, Oil, Wood |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
