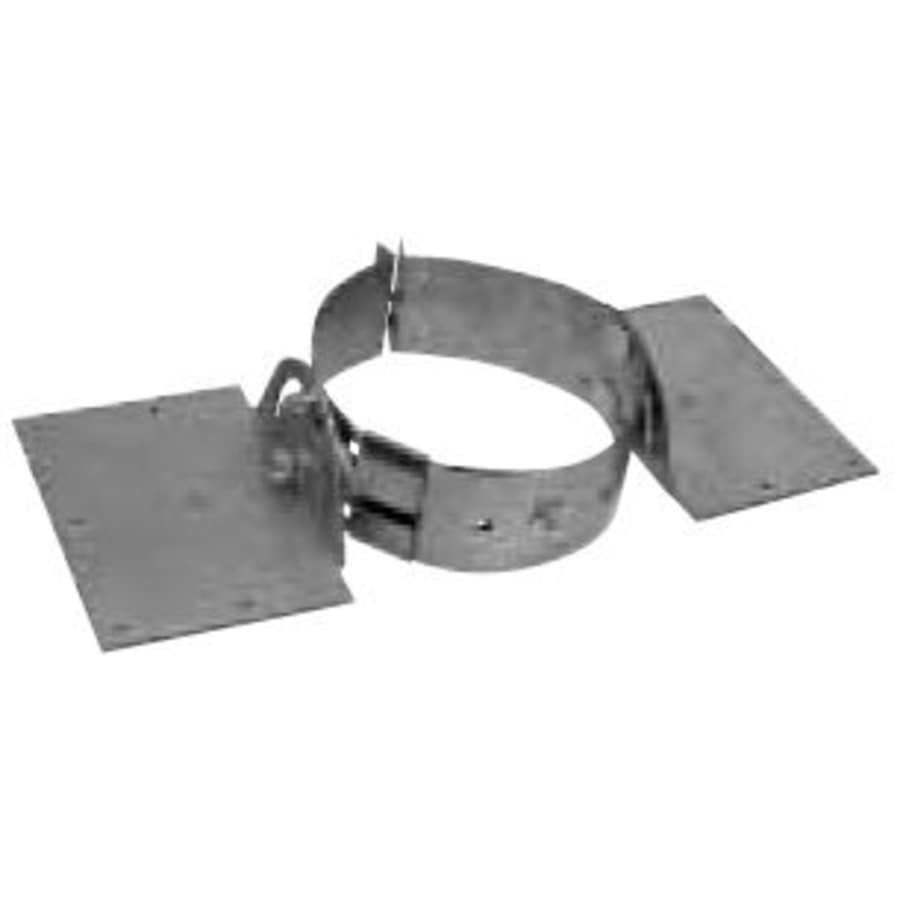

Universal Roof Support Assembly for 5″ to 8″ Diameter Class A Chimney Pipe
An ideal support assembly for freestanding fireplaces and open cathedral ceiling installations. This new design fits all roof pitches and gives you the flexibility of securing 5″ to 8″ chimney pipe with a heavy duty band. The band allows you to slide the installed length vertically to properly position this section in the system. Mounts easily onto top of roof through opening that allows 2″ clearance. Maximum length of chimney which can be suspended below is 20´. Maximum total length is 30´. This kit roof brackets and mounting hardware. Locking bands must be used at each pipe joint.
Features:
Materials: Stainless steel
Clearance: 2″ to combustibles
Allowable Flue Gas Temperatures:
Maximum Continuous: 1,000 Degrees Fahrenheit / 540 Degrees Celsius
Brief Forced Firing: 1,400 Degrees Fahrenheit / 760 Degrees Celsius (60 min.)
Creosote Burn Out: 2,100 Degrees Fahrenheit / 1,150 Degrees Celsius (3 x 10 min.)
UL Listed: UL-103-HT
Warranty: Lifetime Limited Warranty
Additional Metalbest Links
View the Manufacturer Warranty
Specifications
| Width | 5.75 in. |
| Length | 8 in. |
| Pipe Inside Diameter | 5, 6, 7, 8 in. |
| Material | Stainless Steel |
| Configuration | Bracket |
| Pipe Class | Class A |
| Pipe Shape | Round |
| Vent Construction | Double Wall |
| Approved for Commercial Use | No |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | UL |
| Fuel Type | Coal, Oil, Wood |
| Color | Galvanized |
| Color Tone | Neutrals |
