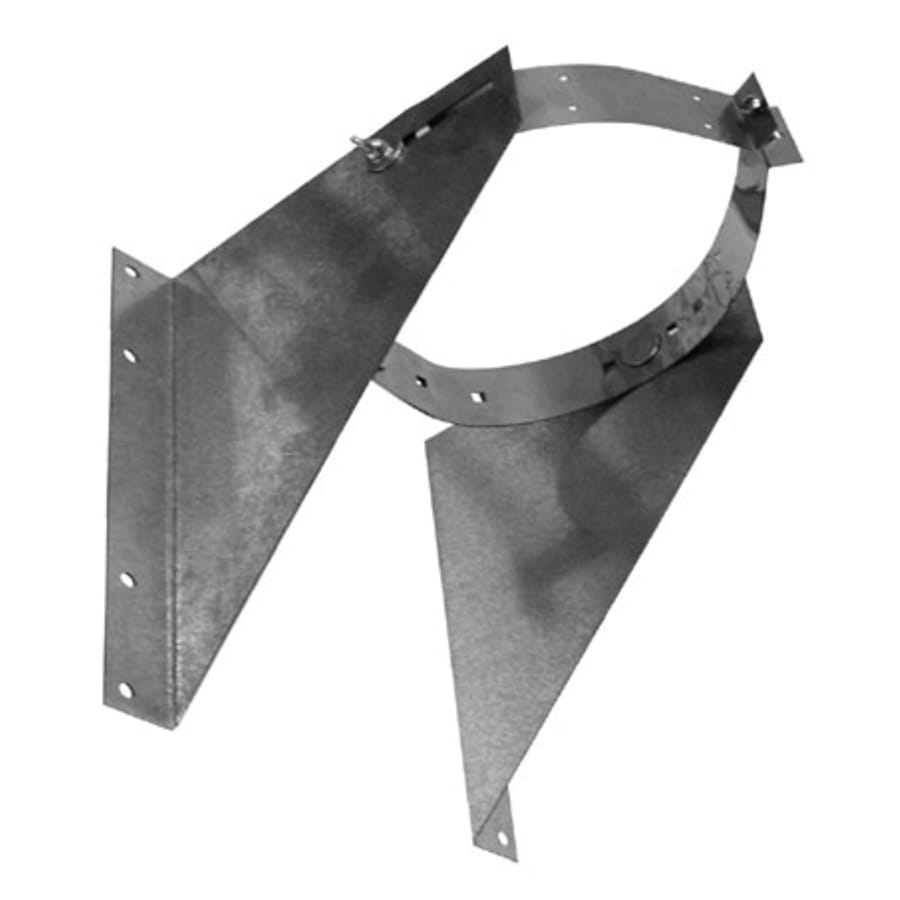

Universal Wall Support / Resupport Assembly for 5″ to 8″ Diameter Class A Chimney Pipe
Designed to support a vertical wall installation above the tee or above an offset, but it can also serve as an intermediate support. This universal design will work on 5″, 6″, 7″ and 8″ diameters with varying height of support depending on the diameter.
Features:
Materials: Stainless steel
Clearance: 2″ to combustibles
Allowable Flue Gas Temperatures:
Maximum Continuous: 1,000 Degrees Fahrenheit / 540 Degrees Celsius
Brief Forced Firing: 1,400 Degrees Fahrenheit / 760 Degrees Celsius (60 min.)
Creosote Burn Out: 2,100 Degrees Fahrenheit / 1,150 Degrees Celsius (3 x 10 min.)
UL Listed: UL-103-HT
Warranty: Lifetime Limited Warranty
29′ of support allowed for 5″ diameter
28′ of support allowed for 6″ diameter
25′ of support allowed for 7″ diameter
20′ of support allowed for 8″ diameter
4″ of horizontal adjustability on 6″ diameter pipe
Additional Metalbest Links
View the Manufacturer Warranty
Specifications
| Material | Stainless Steel |
| Configuration | Bracket |
| Pipe Class | Class A |
| Pipe Shape | Round |
| Vent Construction | Double Wall |
| Approved for Commercial Use | No |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | UL |
| Pipe Inside Diameter | 5, 6, 7, 8 in. |
| Fuel Type | Coal, Oil, Wood |
| Color | Galvanized |
| Color Tone | Neutrals |
