MUST BE ORDERED IN QUANTITY OF 12
Product Features:

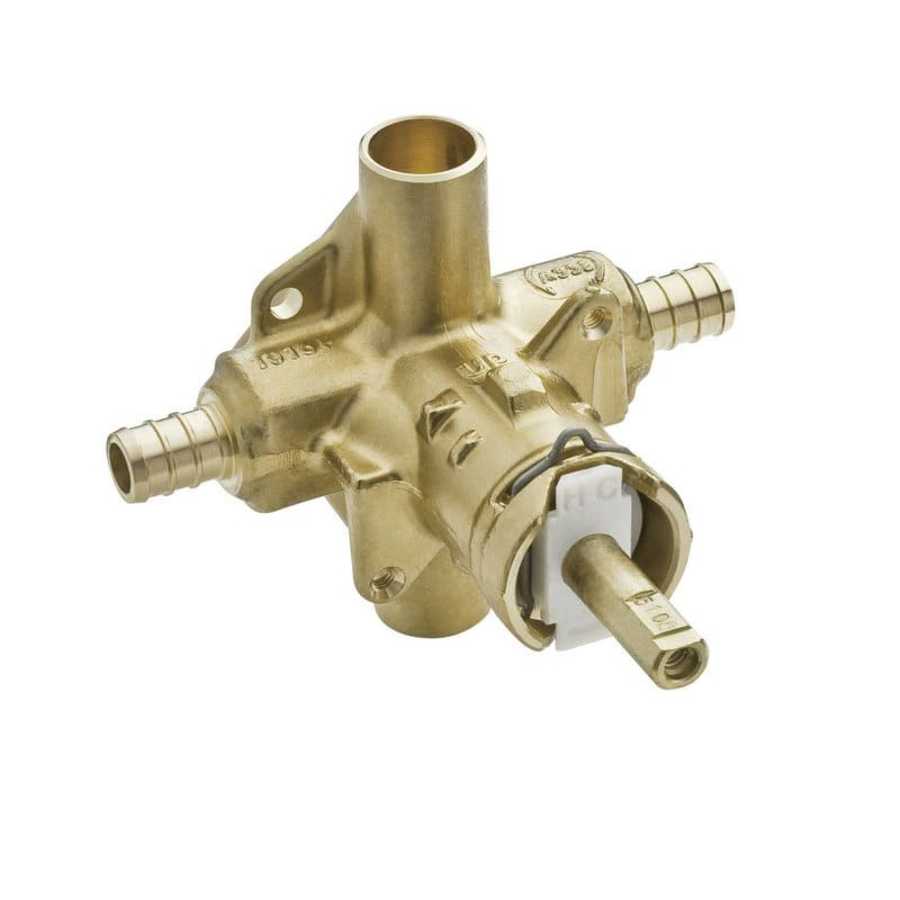

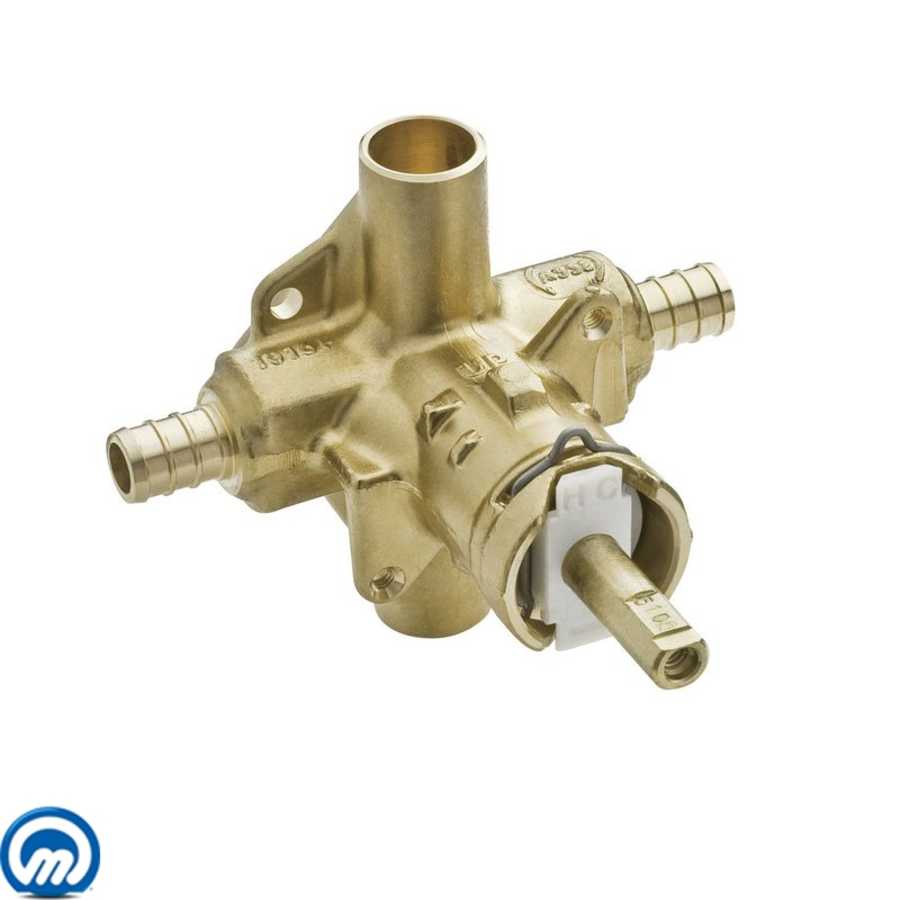

Valve is constructed of brass ensuring durability and dependability
Covered under Moen’s limited lifetime warranty for residential installations and 5-year limited warranty for commercial installations
Features Moen’s M-PACT® common valve system
Posi-Temp® pressure balancing valve maintains water pressure and controls temperature
Designed for PEX inlet / outlet connections
Back-to-back installation capabilities
Sturdy mounting bracket included with valve
Note: This is the rough-in valve only – valve trim is required to complete product
Sold Individually
Product Technologies / Benefits:
M-PACT® Common Valve System: This innovation from Moen gives the homeowner the up-most functionality and convenience when it comes to bathroom faucets. Designed to be a catch-all valve system, once M-PACT® is installed you can upgrade the style of the lavatory or shower faucet without replacing nay of the faucet plumbing.
Â
Posi-Temp® Valve: A pressure balancing valve that maintains water temperature within 3° F. Built-in temperature limit stops allow you to control how far the handle rotates, in effect controlling the range of water temperature. The Posi-Temp® offers the best water flow available for any comparable valve.
Product Specifications:
Connection Size: 1/2″
Connection Type: PEX
Cartridge Included: 1222
Number of Ports: 4
Variations:
62380: This model
62300: IPS connections, no stops
62320: Sweat (CC) connections, no stops
62330: CPVC connections, with stops
62340: CPVC connections, no stops
62360: PEX connections, with stops
62365: Cold expansion PEX connections, no stops
62370: Sweat (CC) connections, with stops
62385: Cold expansion PEX connections, with stops
62390: IPS connections, with stops
Different Types of Valve Inlet / Outlet Connections:
Additional Moen Links
View the Manufacturer Warranty
Browse all Moen Products
Moen M-Pact Collection
Specifications
| Material | Brass |
| Thermostat | Modern |
| Valve Type | Pressure Balanced |
| Water Connection Type | PEX |
| Scald Guard | Yes |
| Configuration | Shower Valve |
| Valve Function | Pressure Balance |
| Number Of Ports | 4 |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | 5 Year Limited Commercial, Limited Lifetime Residential |
| Certifications | ASME, CSA |
| CSA Code | B125 |
| ASSE Code | A112.18.1M |
| Installation Hardware Included | Yes |
| Integrated Diverter | No |
| Volume Control | No |
| Water Connection | 1/2" |
| Max Deck Thickness | 2.875 in. |
