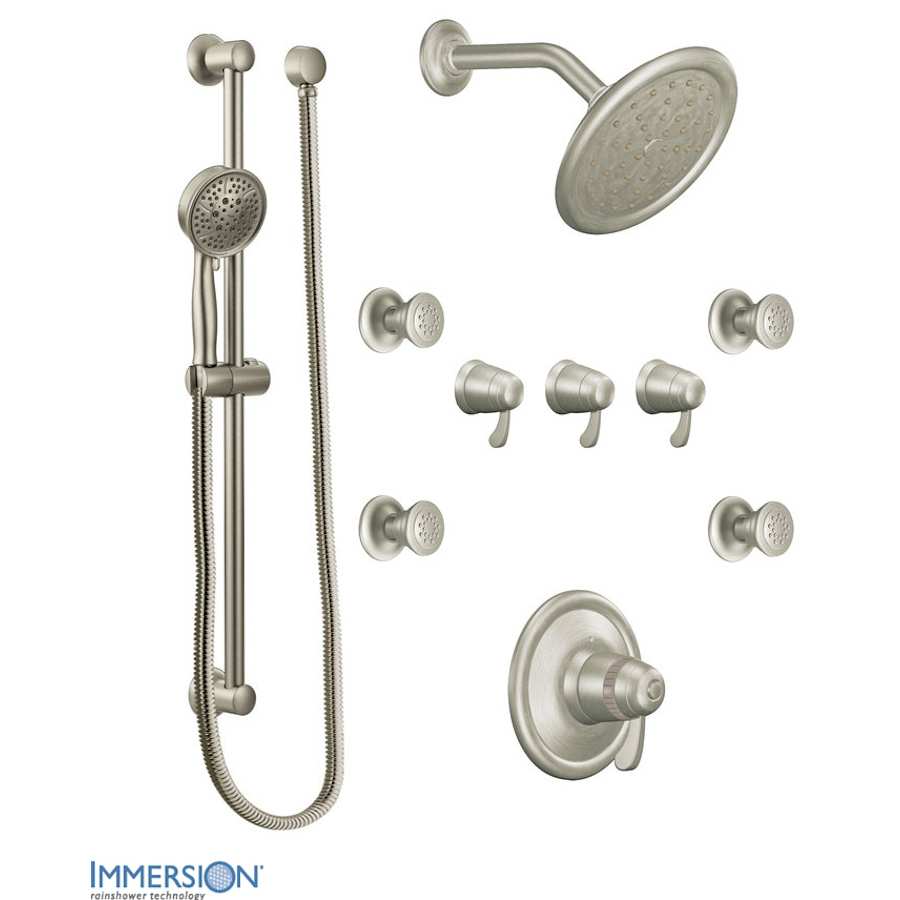

What’s Included in this Shower Package:
(1) 3667EP – Hand Shower with Slide Bar

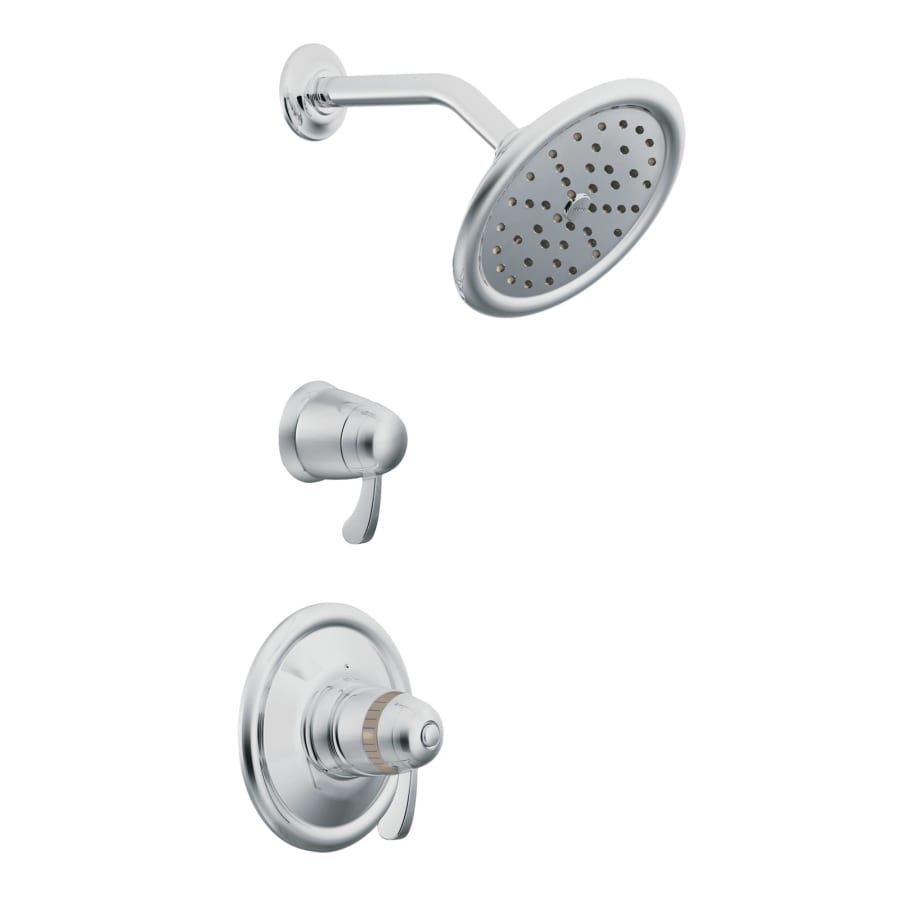

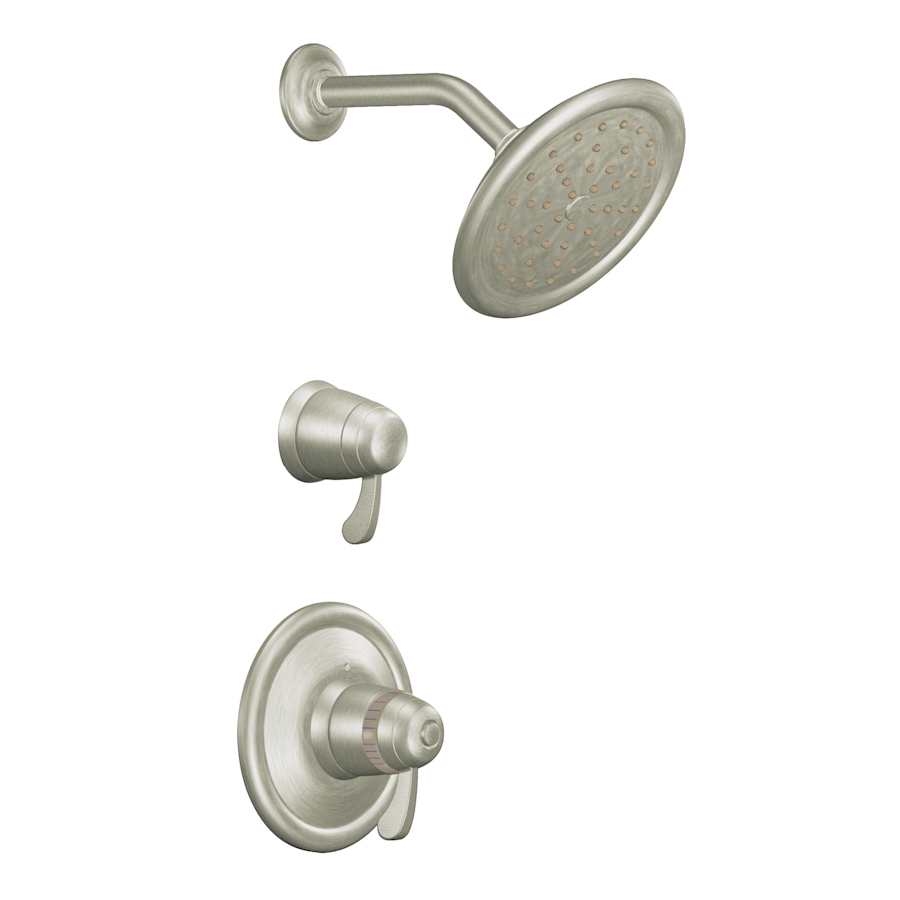

(1) TS3400 – Shower Head with Thermostatic Valve Trim and Volume Control Trim
(2) TS3600 – Volume Control Valve Trims
(4) A501 – Body Sprays

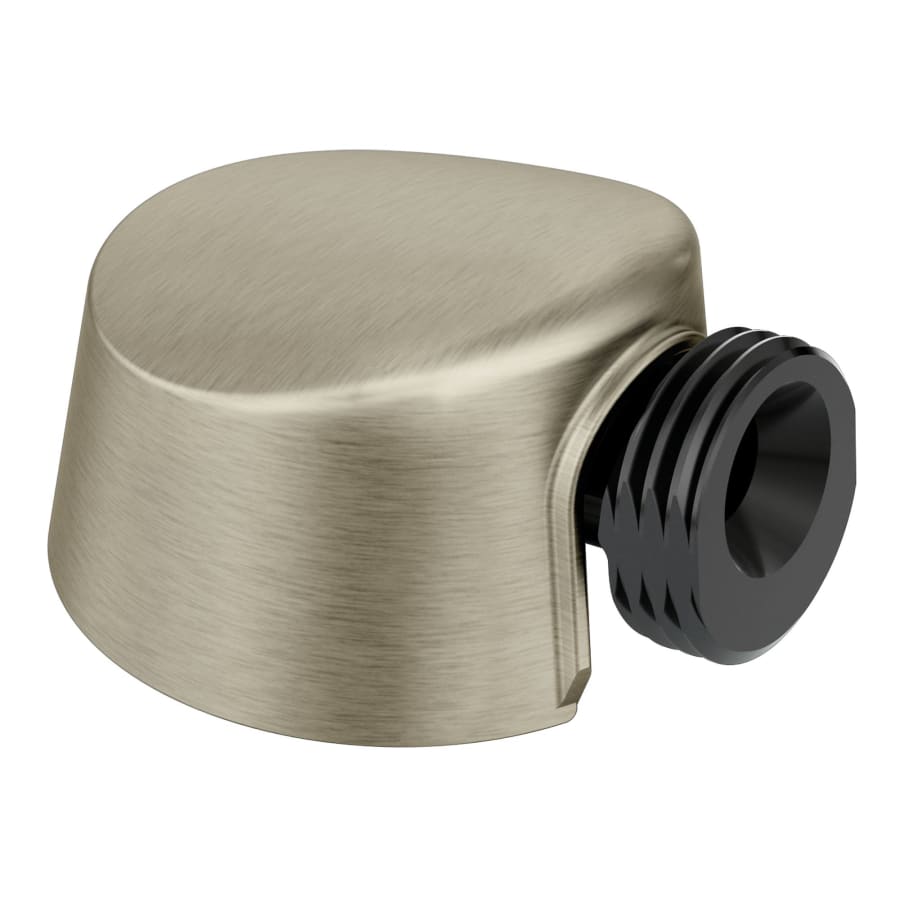

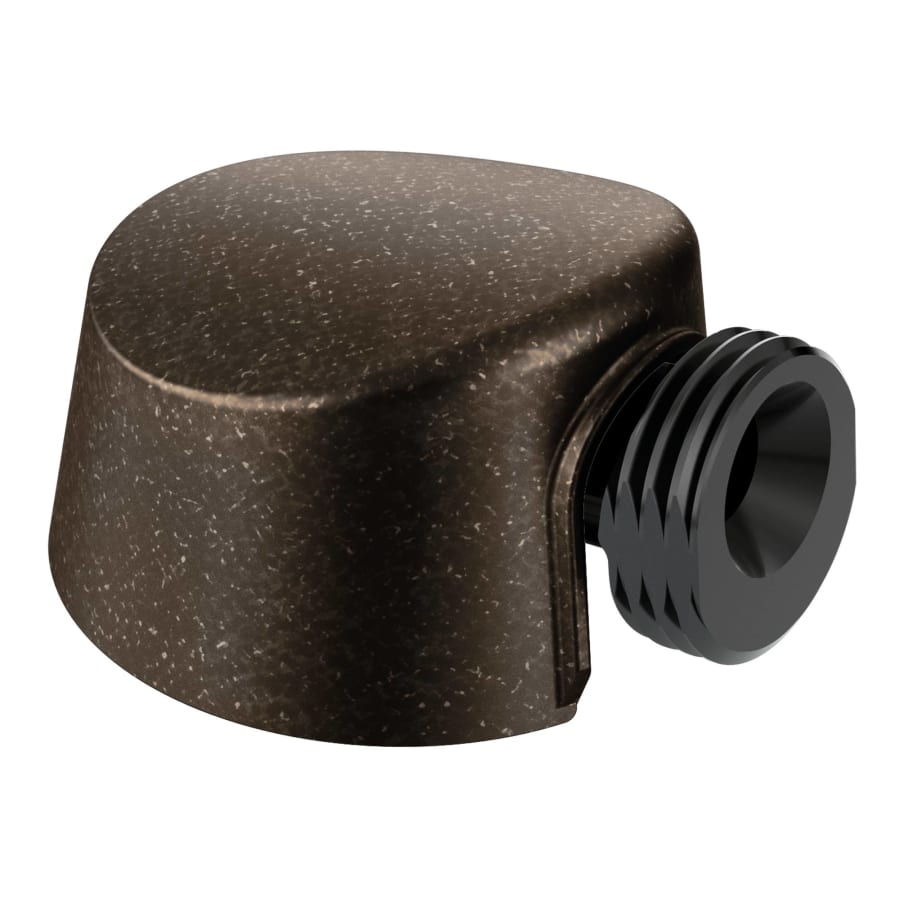

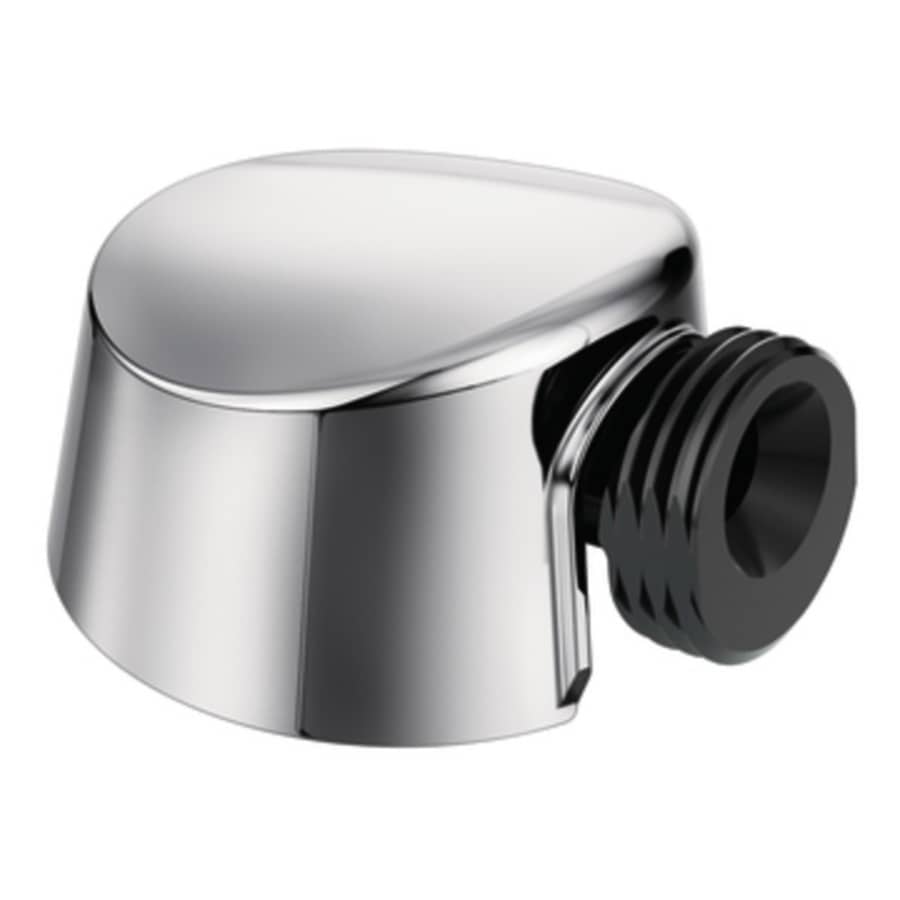

(1) A725 – Wall Supply Elbow

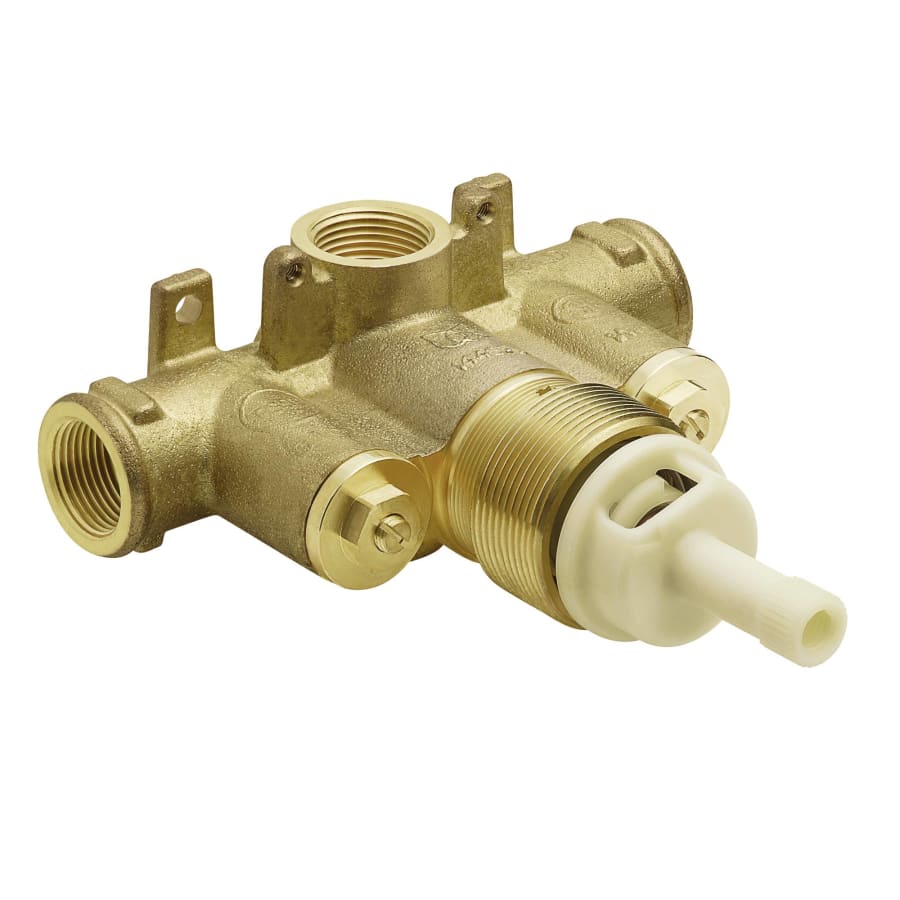

(1) S3371 – Thermostatic Rough-In Valve

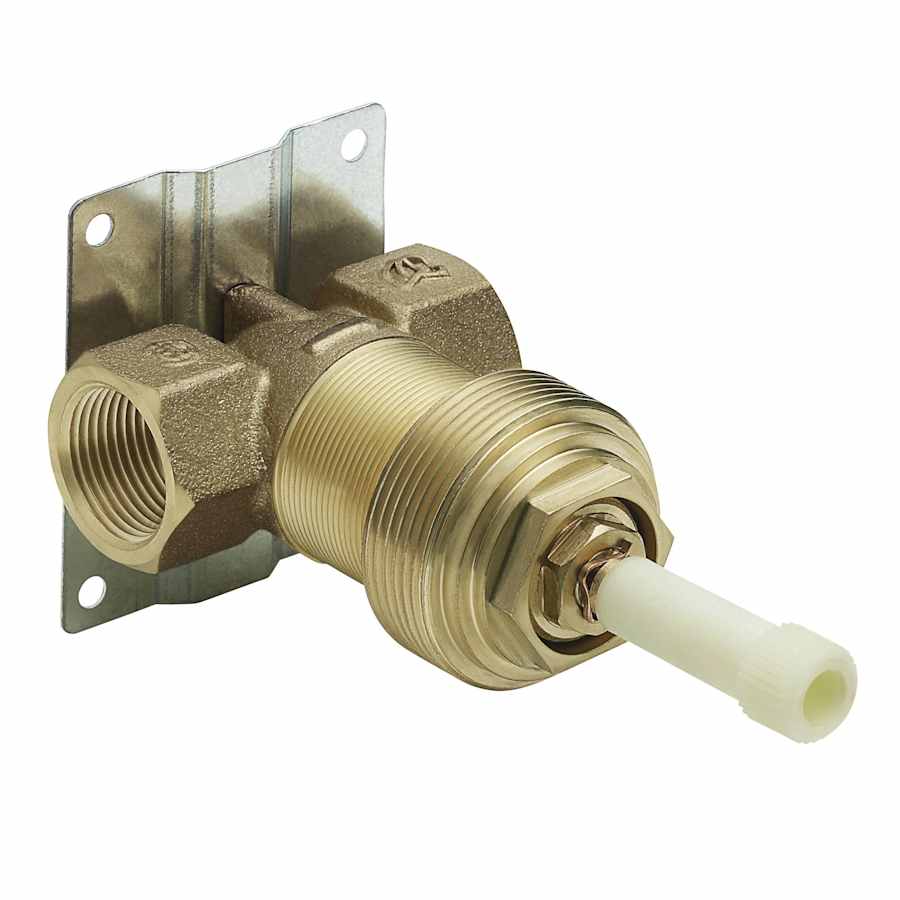

(3) S3600 – Volume Control Rough-In Valves
Do you like this Moen shower system, but want to make changes to it? Give us a call & one of our customer care experts will help customize your own personal Moen shower.
Shower System Features:
All items covered under Moen’s limited lifetime warranty
Trim is constructed of metal – ensuring durability and providing aesthetic appeal
Premier finishing process – finishes will resist rust and corrosion through everyday use
Single function rain shower head
Features four single function cartridges – one controlling the temperature of the shower system and three controlling the volume of water to each output independently
ExactTemp® thermostatic valve cartridge allows for pinpoint temperature control and precise water volume
Designed to easily install with standard U.S. plumbing connections
These bundles were created by emeraldkitchenbath.com for the convenience of our customers – each item is sold as a separate product and needs to be combined together to create the complete shower system
Product Technologies / Benefits:
Immersion™ Rainshower Technology: Immersion™ rainshower technology channels water through a spoke design, concentrating and magnifying the water’s natural force, dramatically enhancing the showering experience.
ExactTemp® Valve: This thermostatic valve is the ideal foundation for at-home spa installations. It assures precise water temperature from one shower to the next. Each shower component is independently controlled for the ultimate personalized water delivery system. It is completely customizable to any customer’s home, tastes and space.

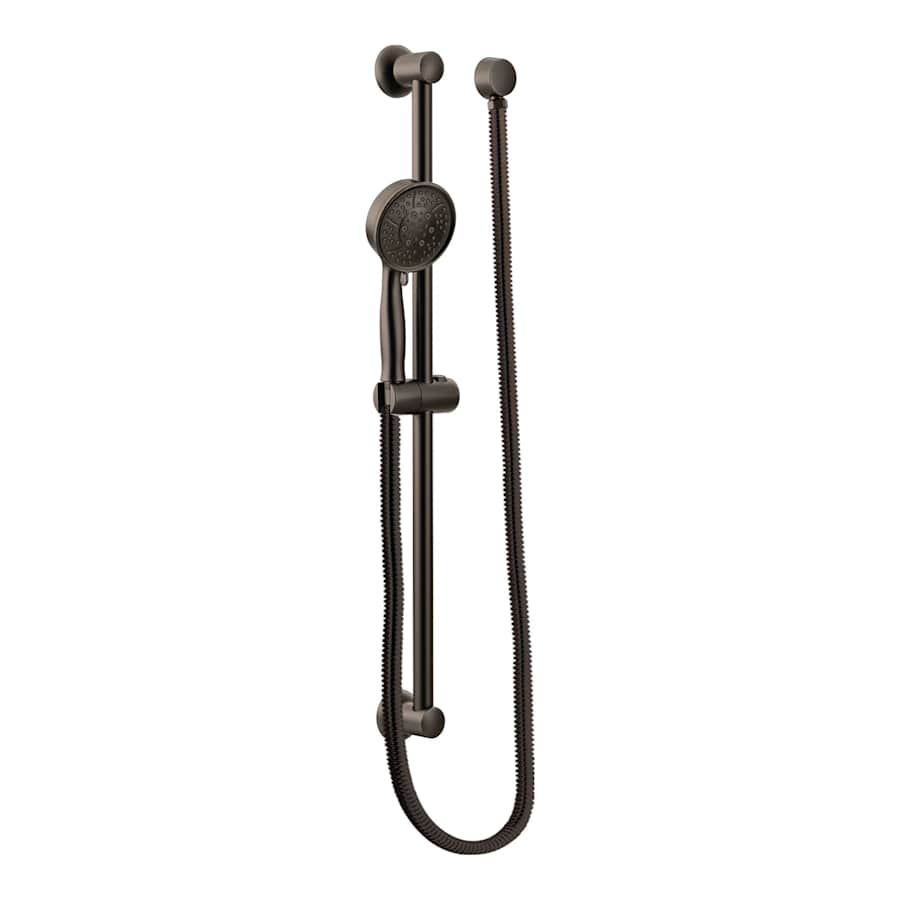

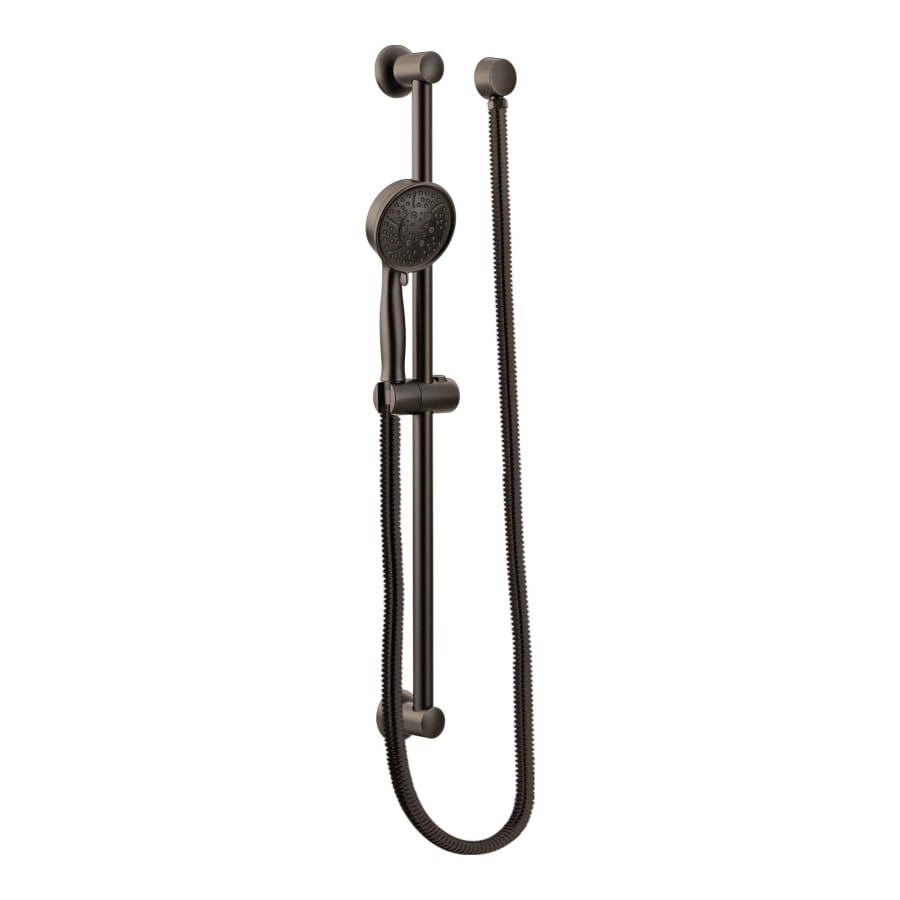

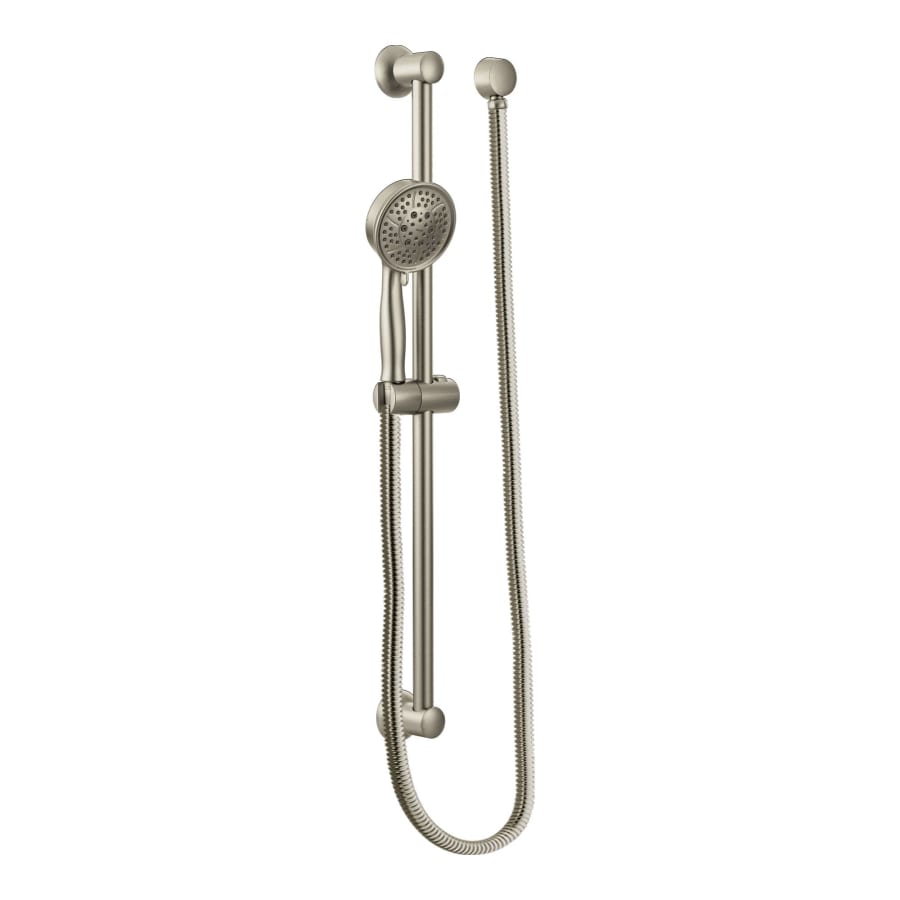

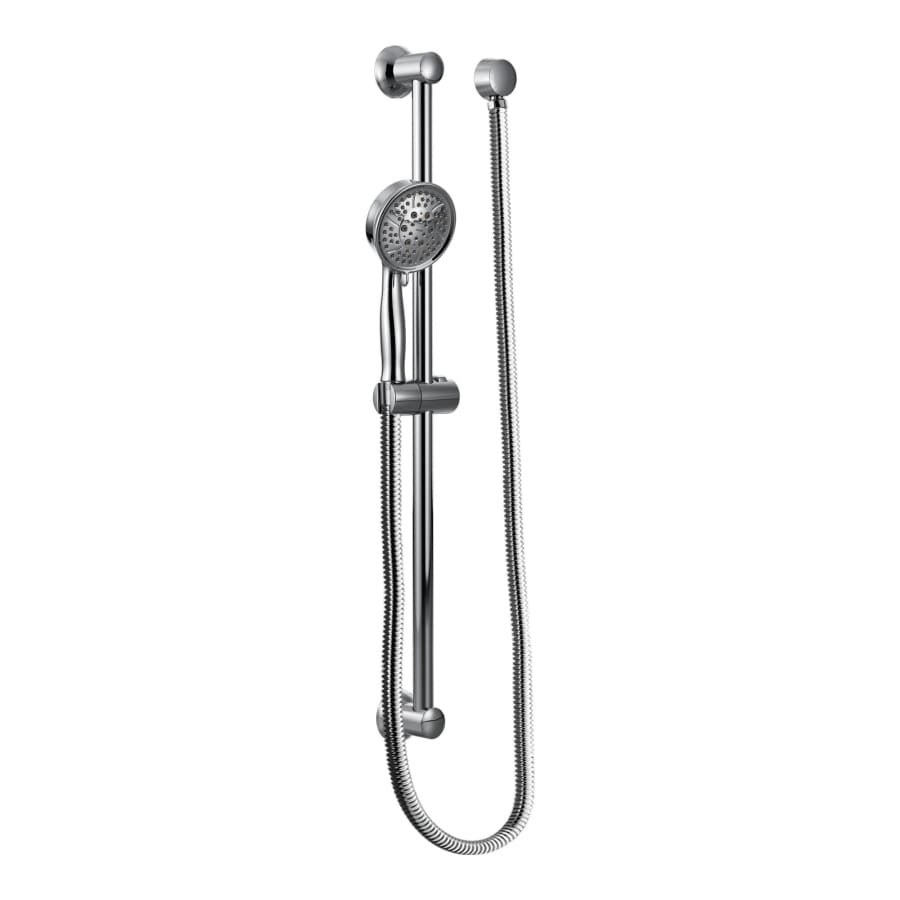

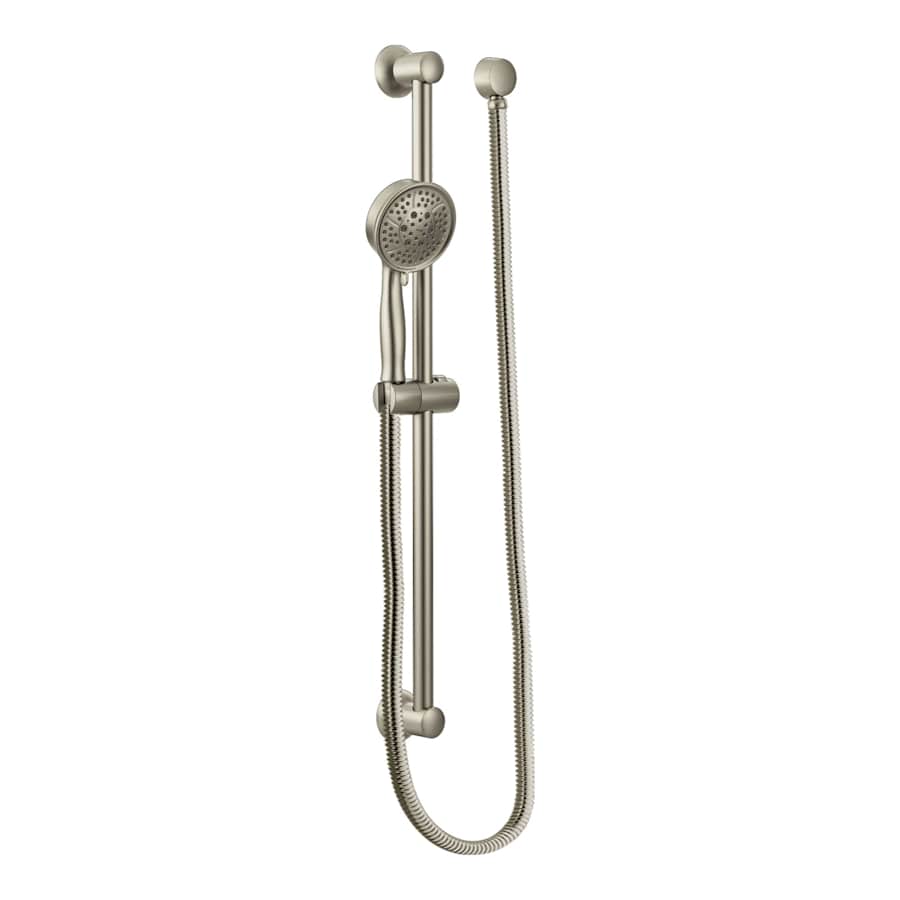

Hand Shower / Slide Bar Specifications:
Spray Functions: Massage, vigorous, full, and combination
Flow Rate: 1.75 GPM (gallons-per-minute)
Hand Shower Height: 9-11/16″
Spray Head Diameter: 4-3/8″
Slide Bar Length: 30-5/8″ (center-to-center distance between installation holes)
Hose Length: 69″
Integrated dual check valves
Wall supply is included with hand shower

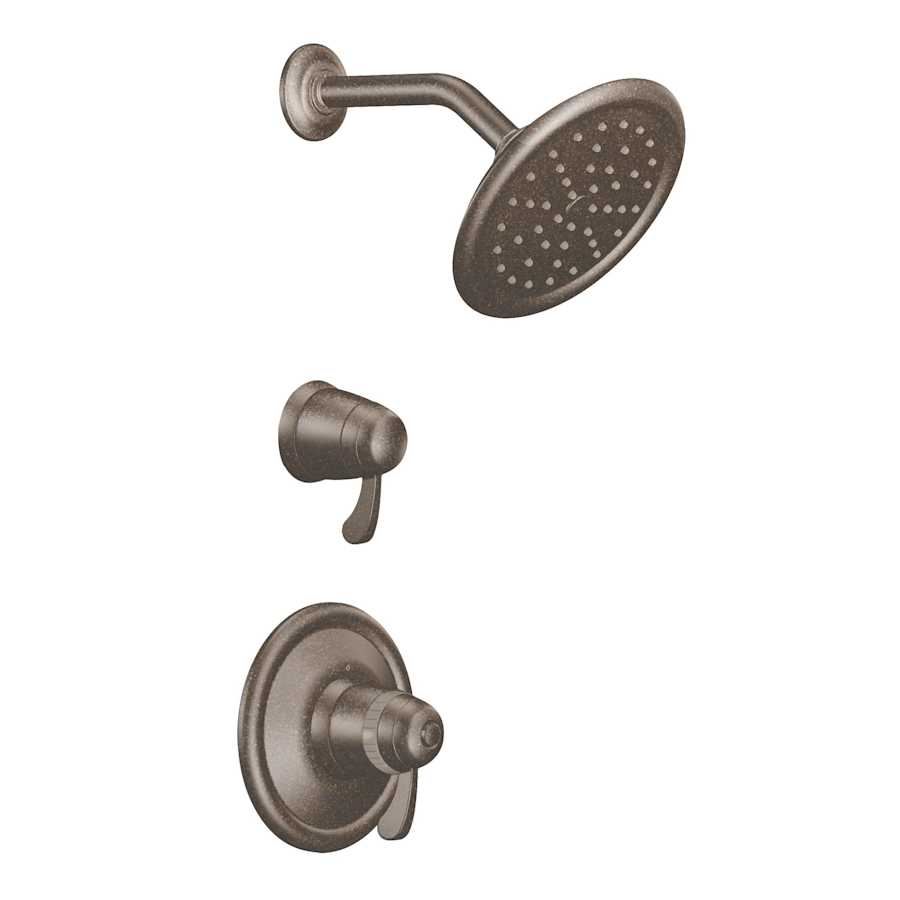

Shower Head / Shower Arm Specifications:
Spray Function: Rain
Flow Rate: 2.5 GPM (gallons-per-minute)
Shower Head Diameter: 7″
Shower Arm Length: 8″

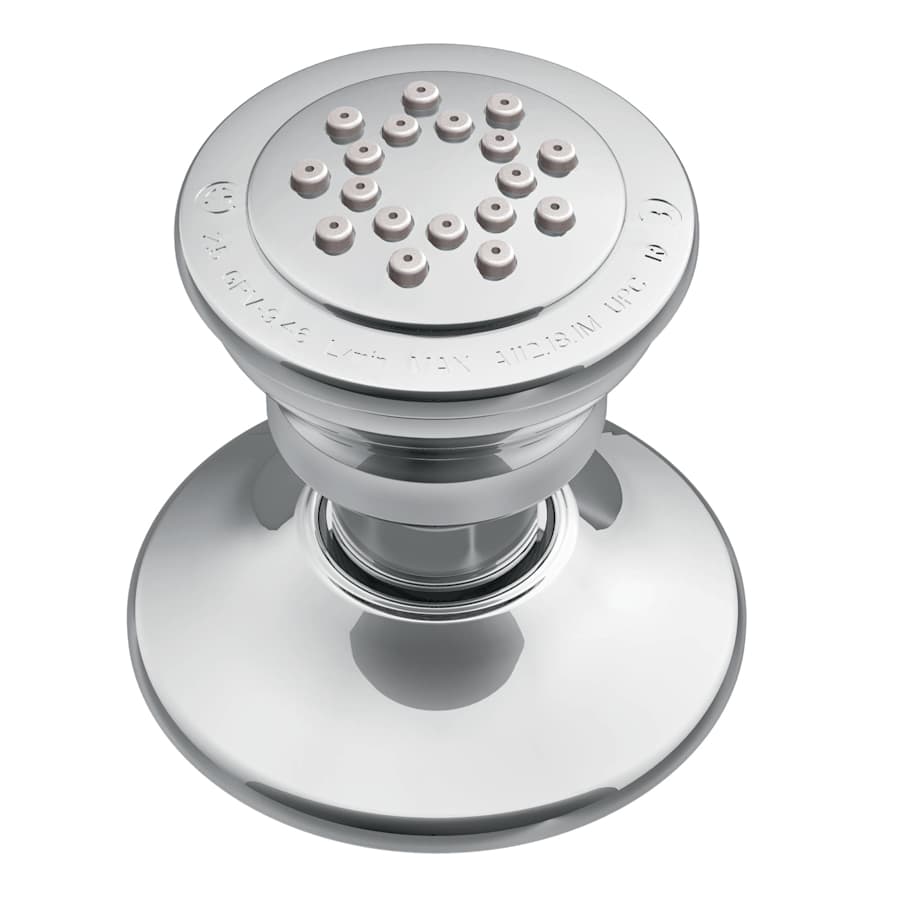

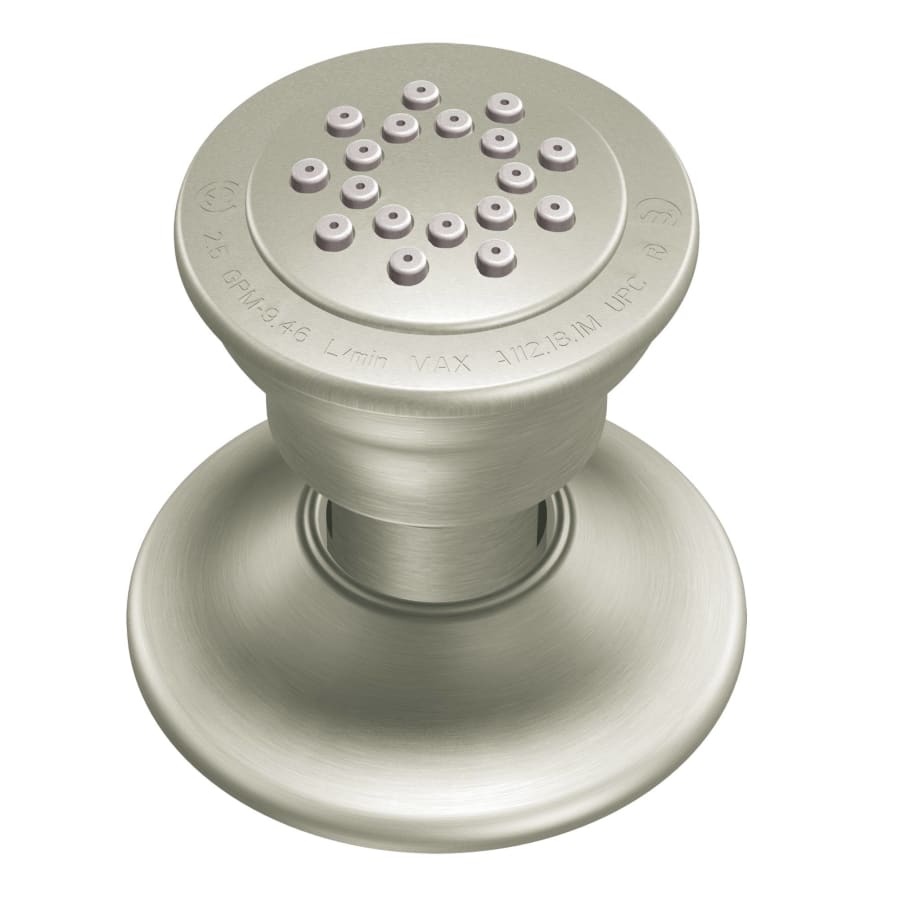

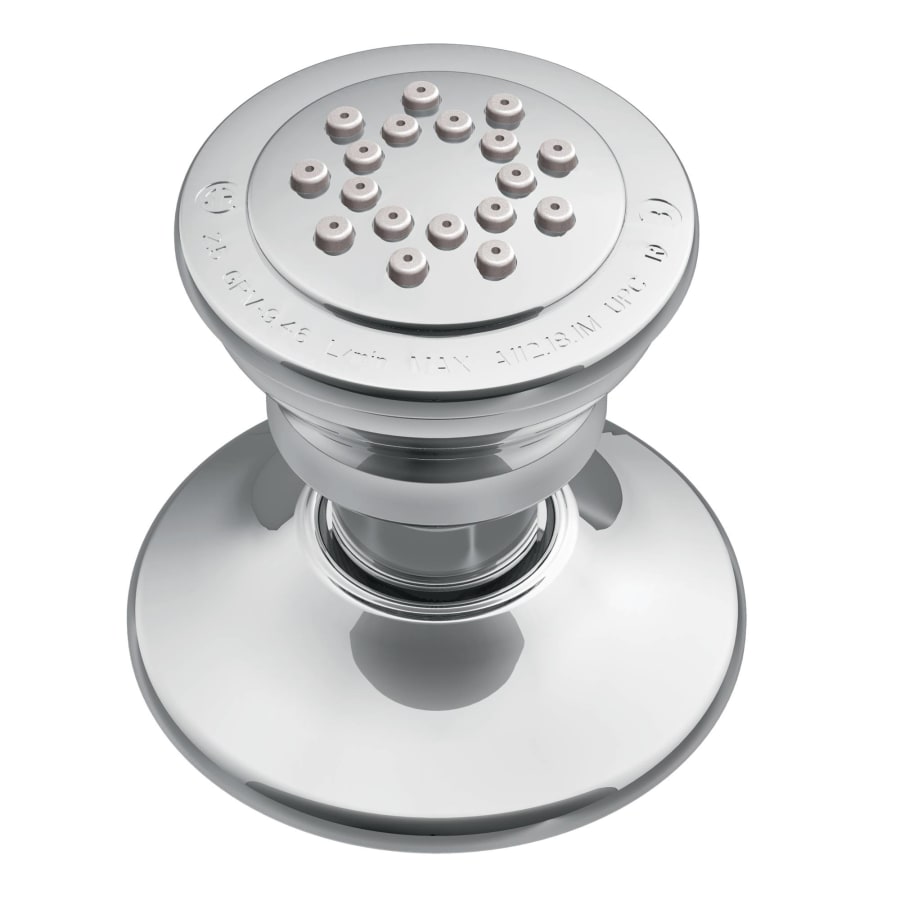

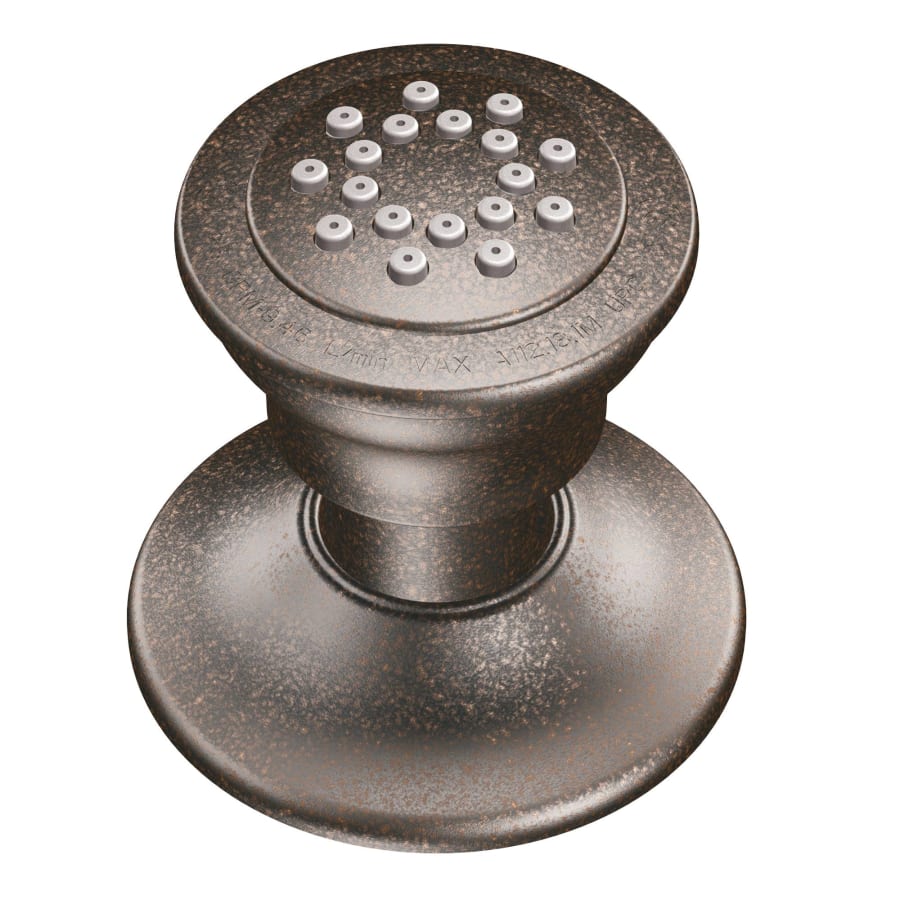

Body Spray Specifications:
Spray Function: Full
Body spray head rotates 360° on a swivel ball assembly
Flow Rate: 1.75 GPM (gallons-per-minute)
Spray Head Width: 2″
Body Spray Diameter: 2-1/2″
Depth: 2-1/2″ (projection from shower wall)
Body spray rough-in valve is included

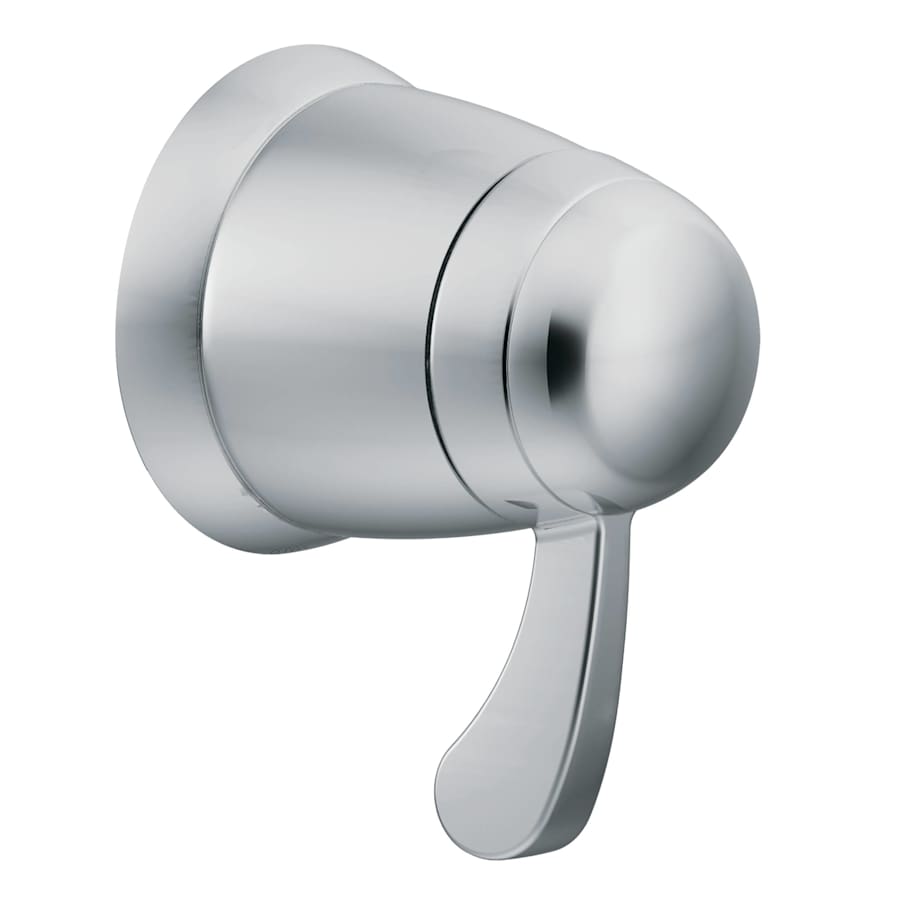

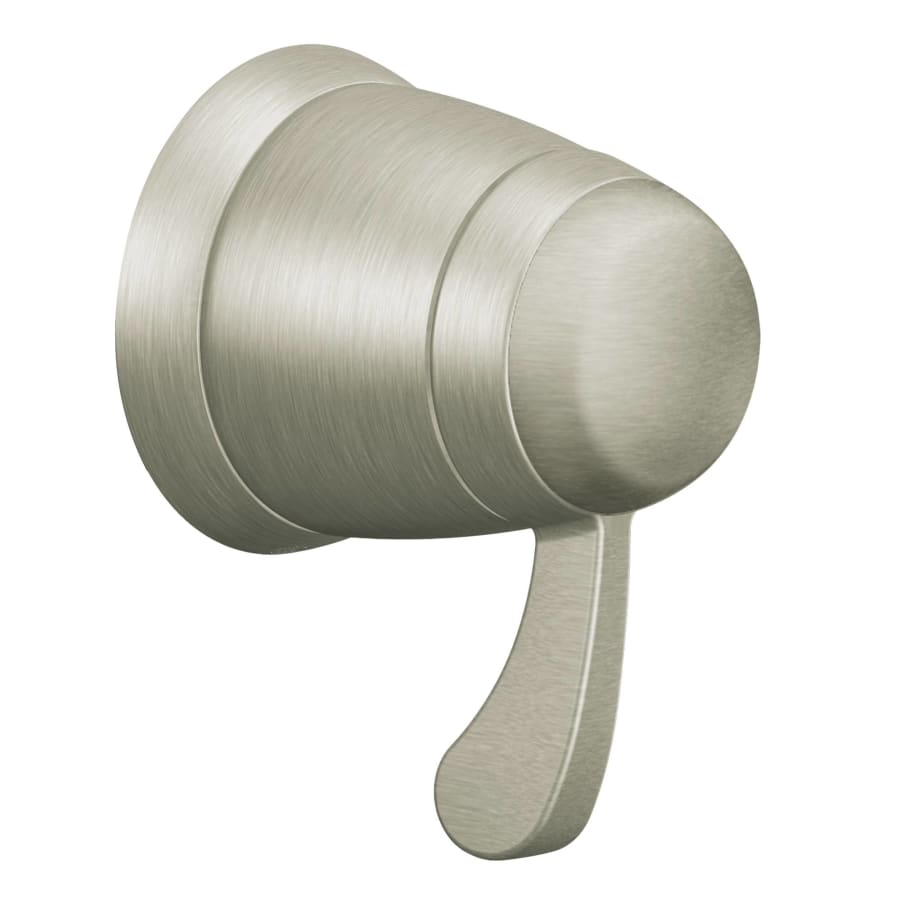

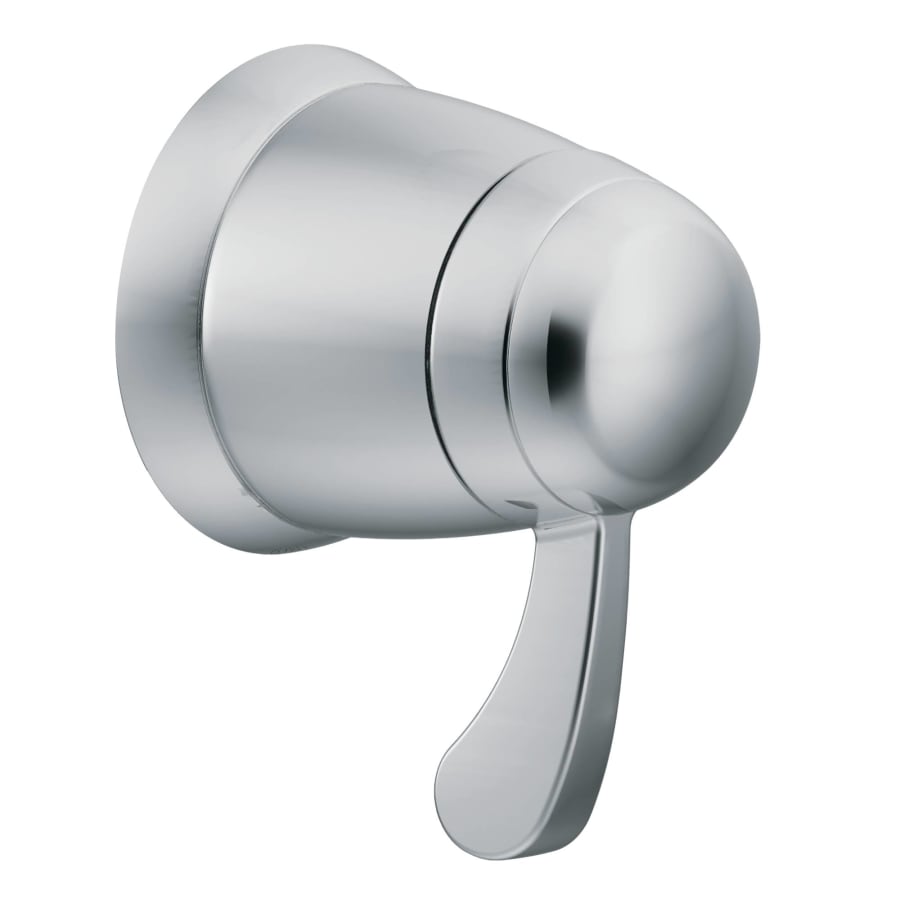

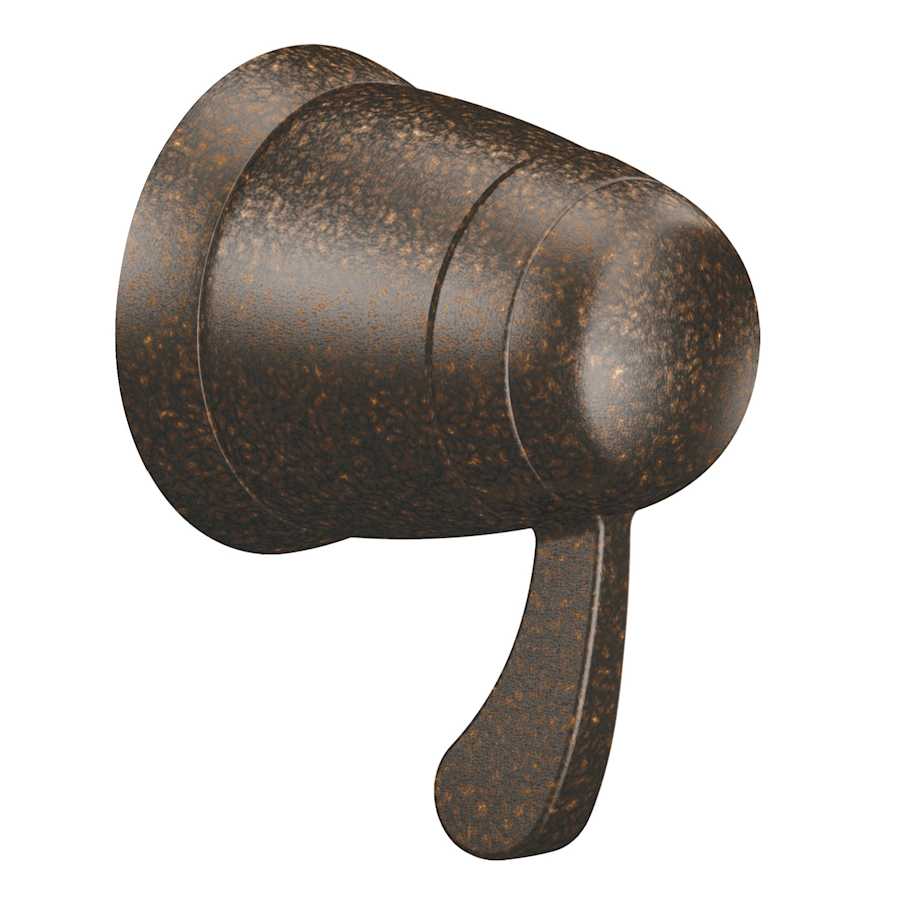

Valve Trim / Volume Control Trim Specifications:
Temperature dial swings 340°
Includes pre-set safety stop with override capability
Valve Trim Diameter: 6-1/2″
Volume Control Diameter: 2-11/16″
Rough-in valves for valve trim and volume control trims are included with shower system
Additional Moen Links
View the Manufacturer Warranty
Browse all Moen Products
Moen ExactTemp Collection
Specifications
| Material | Metal |
| Thermostat | Modern |
| Insulation Type | Wall Mounted |
| Showerhead Shape | Round |
| Spray Pattern | Combination, Full, Massage, Rain, Vigorous |
| Spray Settings | 1, 4 |
| Faucet Type | Shower System |
| Handle Style | Lever |
| Number Of Handles | 4 |
| Valve Type | Thermostatic |
| Handle Material | Metal |
| Handshower | Multi Function |
| Scald Guard | Yes |
| Number Of Bodysprays | 4 |
| Approved for Commercial Use | No |
| Manufacturer Warranty | Limited Lifetime |
| ADA | No |
| CA Drought Compliant | No |
| Flow Rate (GPM) | 1.75, 2.5 |
| Showerhead Width | 7 in. |
| Shower Arm Reach | 8 in. |
| Hose Length | 69 in. |
| Handshower Flow Rate | 1.75 |
| Showerhead Flow Rate (GPM) | 2.5 |
| Bodyspray Flow Rate (GPM) | 1.75 |
| Bowl Height | 2.5 in. |
| Bodyspray Width | 2.5 in. |
| Handshower Included | Yes |
| Valve Included | Yes |
| Diverter Included | No |
| Hose Included | Yes |
| Slide Bar Included | Yes |
| Volume Control | Yes |
| Wall Supply Included | Yes |
| Shower Head Included | Yes |
| Bodysprays Included | Yes |
| Color | Brushed Nickel, Chrome, Oil Rubbed Bronze |
| Color Tone | Bronze Tones, Nickel Tones, Silver Tones |
